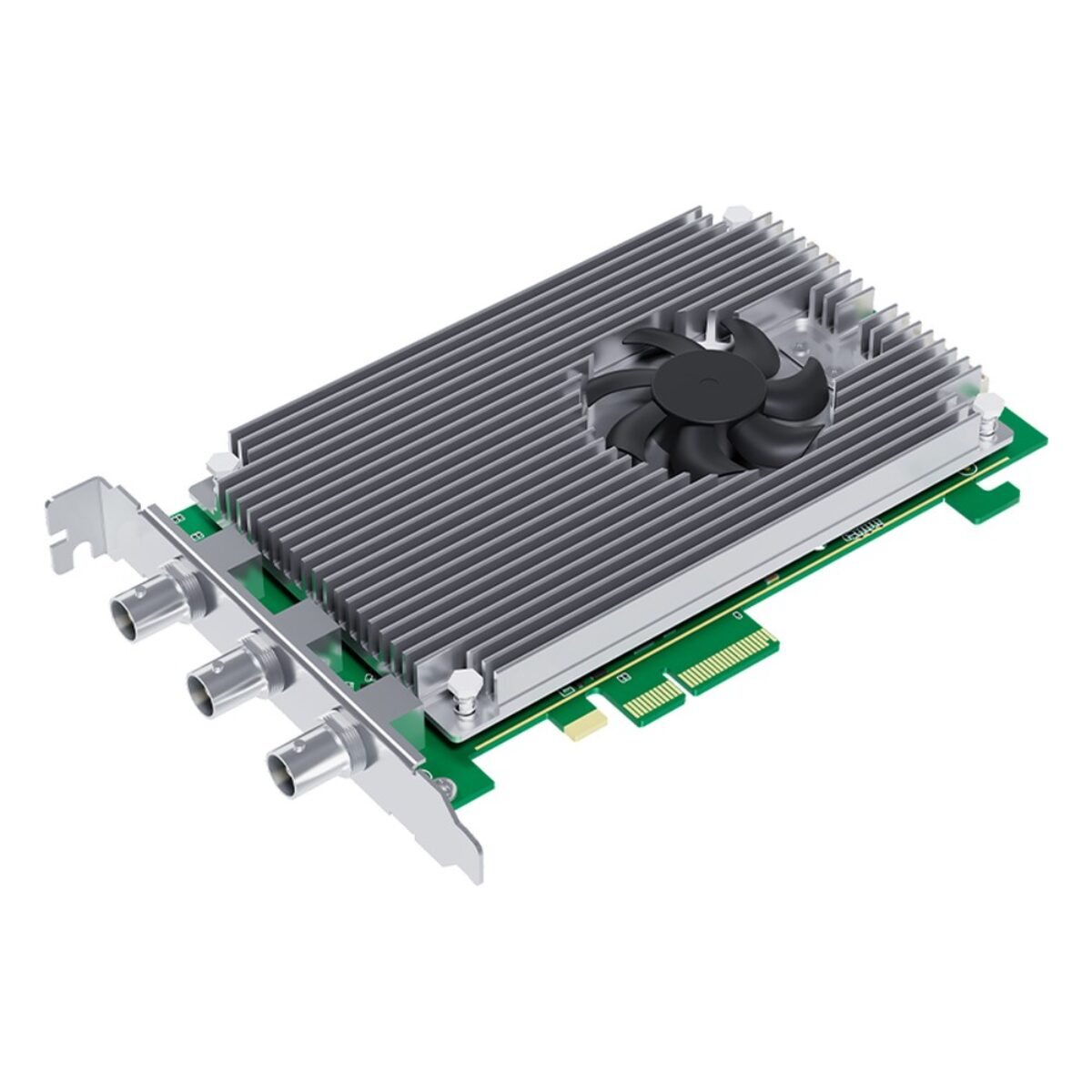

Yuan SC750N1O1 12G-SDI Genlock PCIe SDI Frame Grabber with 12G-SDI Input, Output and Genlock at 4K60

The SC750N1O1 12G-SDI Genlock is Yuan's PCIe SDI frame grabber with one 12G-SDI input, one 12G-SDI output and a genlock reference input, handling DCI 4K at 60/50 fps. It suits broadcast and production systems that capture 4K SDI and play video back out from the host in time with house reference.

  • 12G-SDI Input and Output: One 12G-SDI input and one 12G-SDI output on the card, so a single PCIe slot handles both 4K capture and 4K playout.
  • Genlock Reference: A dedicated genlock input locks the output to the facility reference, with genlock formats matching the full input list up to DCI 4K.
  • DCI 4K and 2K Formats: Captures 4096 x 2160 and 3840 x 2160 at up to 60 fps, plus 2048 x 1080 including 48 fps for cinema-rate material.
  • Playout From the Host: Video from the PC goes out over 12G-SDI as YUV 4:2:2 8-bit at 3840 x 2160p60 or 1920 x 1080p60.
  • PCIe x4 Gen3, Full Height: Full-height PCIe x4 Gen3 card with 12G-SDI active bypass support and drivers for Windows 11 and Linux 4.8 or higher.
Form Factor: PCI ExpressPCI Express
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications

SC750N1O1 12G-SDI Genlock Overview

Broadcast and production systems often need to do more than record: they take a 4K SDI feed in, send a program back out and keep both locked to the studio reference. The SC750N1O1 12G-SDI Genlock is Yuan’s PCIe SDI frame grabber for that job, with one 12G-SDI input, one 12G-SDI output and a genlock input on a single full-height card. It can suit playout, graphics and replay systems where capture and output share one host.

On the input side the card takes 4096 x 2160 at 60, 50, 48, 30, 25 and 24 fps, 3840 x 2160 at 60/50/30/25/24 fps and 2048 x 1080 at up to 60 fps, plus 1080p, 1080i and 720p. The 12G-SDI output follows the input or the genlock format, and video sent from the PC can be played out as YUV 4:2:2 8-bit at 3840 x 2160p60 or 1920 x 1080p60. Audio is stereo, 16-bit, 48 kHz, embedded in the 12G-SDI stream.

It connects over PCIe x4 Gen3 and supports 12G-SDI active bypass. YUAN does not list on-board encoding or video processing for this card, so compression and graphics run in host software. Where only capture is needed, the SC710N1 12G-SDI takes a single 12G-SDI input at 4K60, and the SC720N4 12G-SDI takes four 12G-SDI inputs on one card for multi-camera work.

Driver support covers Windows 11 and Linux 4.8 or higher, 32-bit and 64-bit. We supply the SC750N1O1 12G-SDI Genlock fitted and tested in the host system it goes into, with drivers installed, so the capture, output and genlock paths are checked before it ships.

SC750N1O1 12G-SDI Genlock Specifications

Overview
Brand & ModelYuan SC750N1O1 12G-SDI Genlock
Video Capture
Host InterfacePCIe [x4, Gen3]
Simultaneous Video Inputs1
Video Input1x 12G-SDI
Video Resolution Input4K60 [4096×2160p @ 60/50fps]
Video Output1x 12G-SDI
Video Resolution Output4K60 [4096x2160p @ 60/50/30/25/24fps]
Audio Input1x SDI Embedded Audio Input
