6G-SDI Capture Cards for 4K30 Sources
A 6G-SDI capture card takes 4K video at 30 fps over a single SDI cable, the step between 1080p 3G-SDI and 4K60 12G-SDI. Available as a four-input 6G-SDI card and as 12G-SDI cards that also accept 6G-SDI sources.
Options include multi-input capture on one card and Windows and Linux SDKs, suited to 4K production, medical imaging and inspection systems whose cameras output 6G-SDI.
Speak to a video capture specialist to match the SDI standard and channel count to your system.
Browse Our 6G-SDI Capture Cards

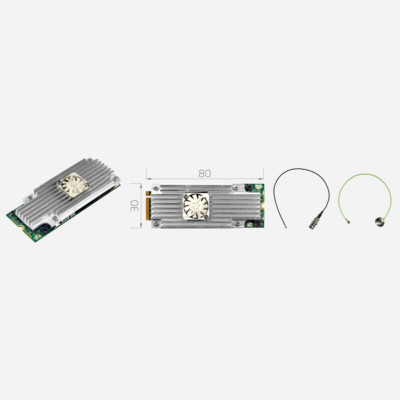

- Video Input: 1x 6G-SDI
- Host: M.2 [3080, M-Key]
- Simultaneous Video Inputs: 4
- Video Input: 1x 12G-SDI, 2x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

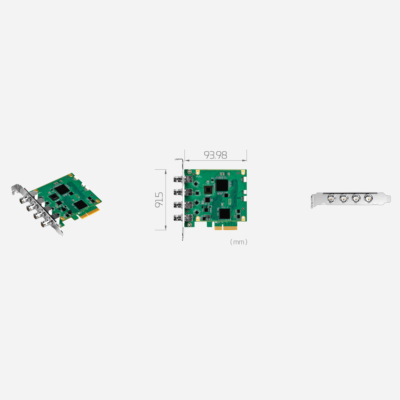

- Video Input: 1x 6G-SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 1x 12G-SDI, 2x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

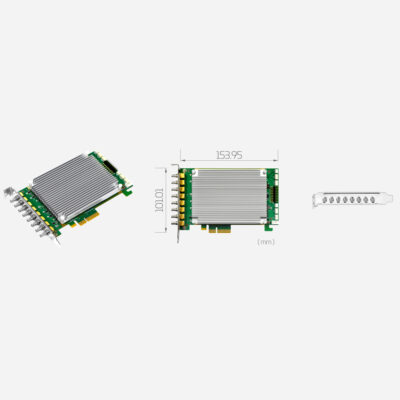

- Video Input: 2x 6G-SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 8
- Video Input: 2x 12G-SDI, 4x 3G-SDI
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

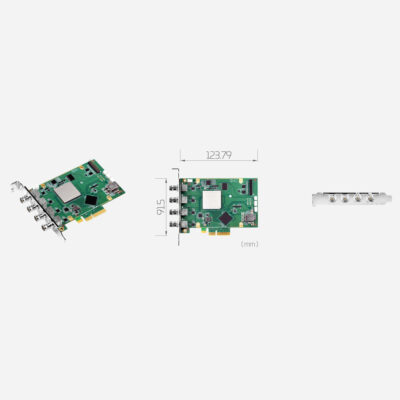

- Video Input: 4x 6G-SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Max Input Resolution: 4K30 [3840×2160p @ 30/25fps]
- Max Video Capture Resolution: 4K30 [3840×2160p @ 30/25fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
6G-SDI Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of 6G-SDI capture cards, so the ranges below are the ones we specify for 4K30 video systems. Compare them by SDI standard and channel count, then browse the models above or ask a video capture specialist which range suits your system.
SC400 and SC410 Yuan Capture Cards
HDMI, 3G-SDI, 6G-SDI and TVI capture on PCIe, M.2 and Mini PCIe, from single-input all-in-one cards to four-channel 4K30 models.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
Not sure which range fits? Tell us the application and we will recommend the right model.
Explore Our Capture Cards and Frame Grabbers
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
What to Specify in a 6G-SDI Capture Card
A 6G-SDI capture card records 4K30 over a single SDI cable, and most also accept 3G-SDI and HD-SDI sources. Check every source first, because 4K60 needs a 12G-SDI card instead.
SDI Formats
6G-SDI for 4K30, with 3G-SDI and HD-SDI support. Choose a 12G-SDI card if any source runs 4K60.
Channel Count
Single-input cards for one camera, or two and four-input cards for multi-camera 4K recording from one slot.
PCIe or M.2
PCIe cards for workstations and rack servers, M.2 cards for compact embedded and edge systems.
Jetson Support
Jetson support on every card lets 4K SDI video feed AI and inspection software on an edge computer.
Embedded Audio
SDI carries embedded audio with the video. Check how many audio channels the card captures per input.
Drivers and SDK
Windows and Linux drivers and SDKs on every card, for recording, streaming and analysis software.
6G-SDI Capture Innovation & 4K Video Insights
Speak to a 4K SDI Specialist.
Tell us the resolution and frame rate your sources output, the host system and how the video will be recorded or processed. We will recommend the right card for the bandwidth, then configure and test it with your system before it ships.
