Yuan SC710N1-L 12G-SDI+HDMI2.0 PCIe HDMI and SDI Frame Grabber with 4K60 Input
PCI ExpressSC710N1-L 12G-SDI+HDMI2.0 Overview
A compact 4K recorder may meet a 12G-SDI camera on one job and an HDMI 2.0 source on the next, and a low profile chassis leaves no room for two full-height cards. The SC710N1-L 12G-SDI+HDMI2.0 is Yuan’s low profile PCIe HDMI and SDI frame grabber that carries both inputs, capturing 4096 x 2160 at 60/50 fps with HDR10, HLG and HDR tone mapping. It suits compact broadcast, streaming and 4K recording systems.
12G-SDI carries 4096 x 2160 and 3840 x 2160 at 60/50 fps, 6G-SDI the same sizes at 30/25/24 fps and 3G-SDI 1920 x 1080p at 60/50 fps, with HD-SDI and SD-SDI formats also accepted. On HDMI 2.0, modes run from 4K at 60/50/30/25/24 fps through 2560 x 1440p at 144 fps and 1920 x 1080p at 240 fps, down to SD and PC modes. HDMI 1.4b 3D is supported. Formats are RGB24 and RGB32 at 4:4:4 8-bit, YUY2 at 4:2:2 8-bit, YV12 and NV12 at 4:2:0 8-bit, and P010 at 4:2:0 10-bit. Audio arrives as two embedded stereo streams, one from each input, with VANC capture alongside.
The card uses a PCIe x4 Gen2 slot, and on-board processing covers cropping and scaling, automatic signal detection and deinterlacing. There is no built-in hardware encoder, so compression runs on the host or a GPU. Yuan’s Windows and Linux SDK supports multiple instances and multiple cards, and DirectShow and V4L2 support opens it to vMix, OBS, Zoom and Teams as well as custom software. Sixteen GPIO lines are on board. The SC710N1-L HDMI2.0 is the HDMI-only low profile card with loop-through, and the SC710N1 12G-SDI adds dual and quad-link SDI input.

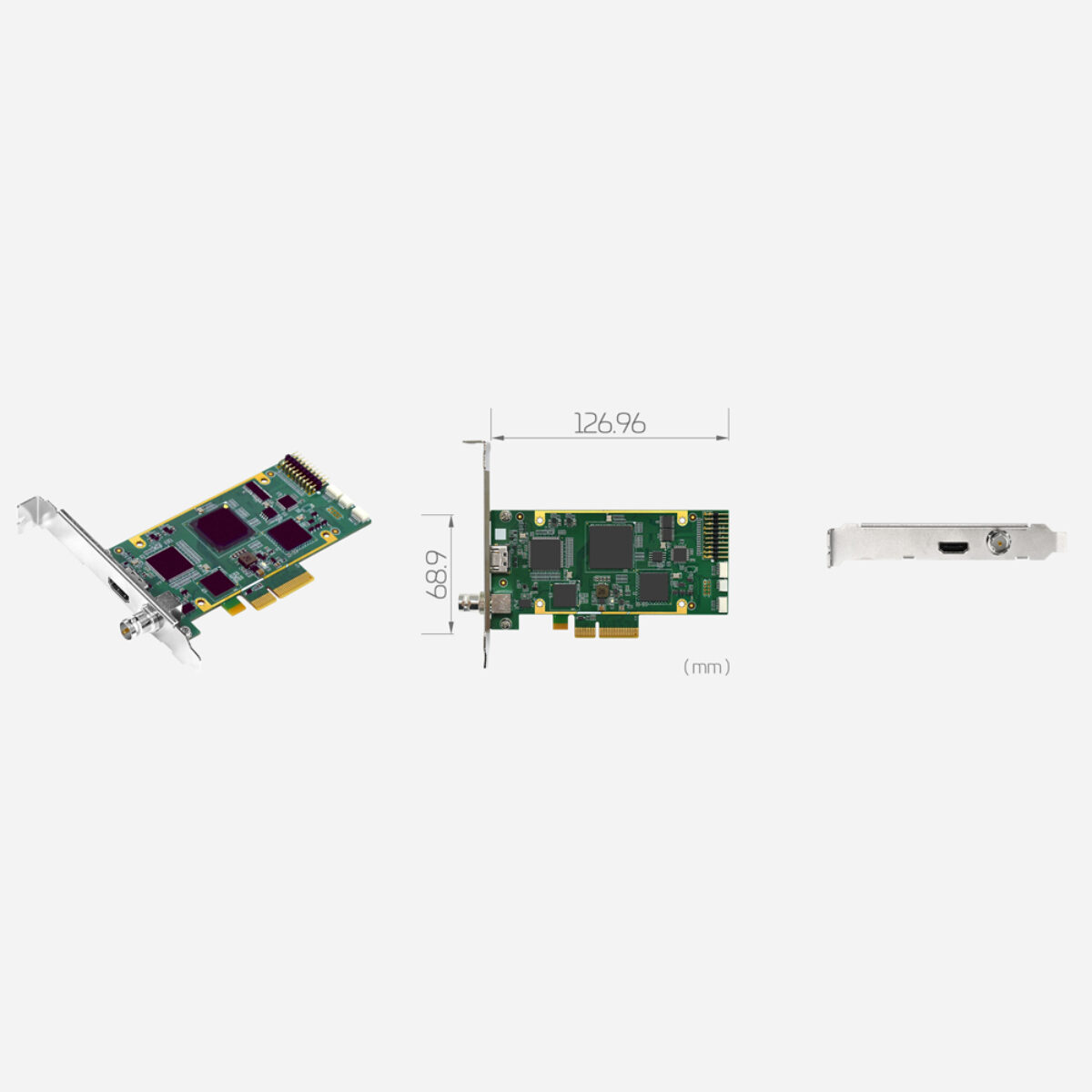

Yuan lists support for Windows 7, 8, 8.1 and 10, Linux 4.8 or higher in 32-bit and 64-bit builds, Linux ARM and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX. The low profile board measures 126.96 x 68.9 mm, with the 12G-SDI and HDMI connectors on one bracket, so it suits compact chassis where full-height slots are not available.
SC710N1-L 12G-SDI+HDMI2.0 Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC710N1-L 12G-SDI+HDMI2.0 |
| Video Capture | |
| Host Interface | PCIe [x4, Gen2] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x 12G-SDI 1x HDMI2.0 |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Resolution Output | 4K60 [4096x2160p @ 60/50/30/25/24fps] |
| Color Format | NV12 4:2:0 8Bit P010 4:2:0 10Bit RGB24 4:4:4 8Bit RGB32 4:4:4 8Bit YUY2 4:2:2 8Bit YV12 4:2:0 8Bit |
| Audio Input | 2x Stereo Audio Input |
