Winmate R12L600-MRM2 12.1″ Marine Panel Mount Monitor with Resistive Touch, IP66 Front and DNVGL-CG-0339
Resistive
Fanless
CE
FCCR12L600-MRM2 Overview

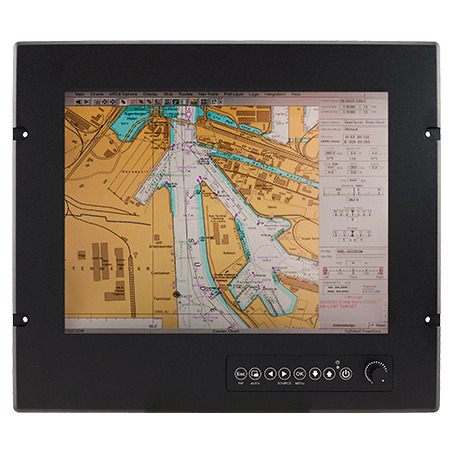

Bridge equipment has to meet marine standards, dim right down for night watches and keep working through vibration and salt air. The R12L600-MRM2 is Winmate’s 12.1 inch marine panel mount monitor for those consoles: a 1024 x 768 XGA display with resistive touch, an IP66 front and certification to DNVGL-CG-0339, IEC 60945 4th edition and IACS E10.

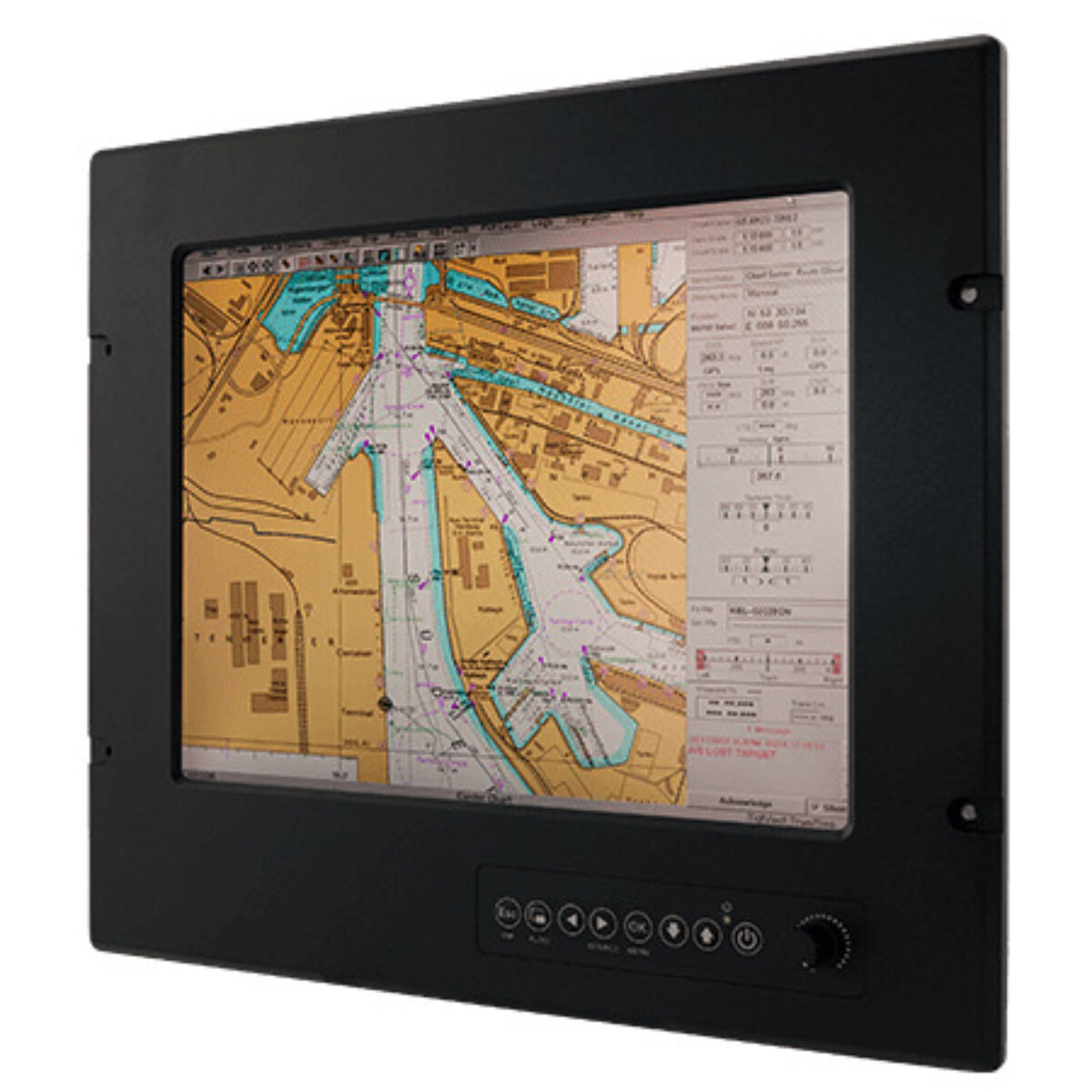

The panel delivers 500 nits with a 1000:1 contrast ratio and 178° viewing angles, and a dimming knob takes the backlight from nearly 0% to 100%, so the watch keeps night vision without losing the picture. The resistive touch screen works with gloves and connects over RS-232 or USB, and AR glass is available as an option. An eight-key front OSD panel handles settings.
Inputs are VGA, DVI-D, composite and S-Video, with picture-in-picture so a camera feed can sit over a chart. A separate RS-232 port allows remote control. The R12L600-MRM2HB is the 1000 nit high brightness version of the same chassis, and the R15L600-MRM2 offers the same resistive marine design at 15 inches.
Power is isolated 24 V DC, with 9 to 36 V DC acceptable, drawing 35 W typical. The R12L600-MRM2 is fanless, operates from -15 to 55 °C at 5 to 95% humidity, withstands 15 G shock and is vibration-rated at 0.7 g to DNVGL-CG-0339 Class A. Its powder-coated metal housing has an IP66 front and IP54 rear, measures 337 x 293.2 x 70.8 mm, weighs 4 kg and fits a 307 x 253 mm cut-out or 75 x 75 mm VESA. Winmate names marine bridge systems, shipboard automation and offshore operations.
R12L600-MRM2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12L600-MRM2 |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[4:3, 1024 x 768, XGA] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 9-36V DC Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE DNV GL FCC IACS E10 IEC 60945 |
| Mechanical Properties | |
| Dimensions | 337mm x 293mm x 71mm (13.27" x 11.54" x 2.8") |
- R12L600-MRM2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R12L600-MRM2 configured for USA marine and offshore projects. Within the Winmate range the R12L600-MRM2HB is the 1000 nit high brightness version of this chassis, and the R15L600-MRM2 offers the same resistive marine design at 15 inches for larger consoles.
With marine certification the R12L600-MRM2 sits among our marine monitors, our front IP66 displays and our panel mount monitors. Where a bridge console needs a certified 12.1 inch touch display that dims for night watches, this is the model to specify.
