Winmate R15L600-MRM2 15″ Marine Panel Mount Monitor with Resistive Touch, IP66 Front and Dimming Knob
Resistive
Fanless
CE
FCCR15L600-MRM2 Overview

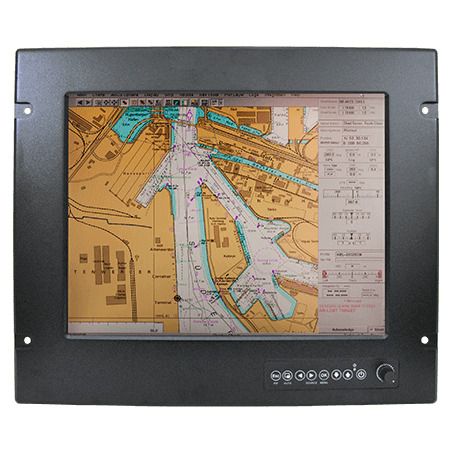

Many ships still run cameras and navigation equipment with composite or S-Video outputs alongside newer PCs, and a bridge screen has to take both. The R15L600-MRM2 is Winmate’s 15 inch marine panel mount monitor for those consoles: a 1024 x 768 XGA display with resistive touch, an IP66 front and inputs for VGA, DVI-D, composite and S-Video with picture-in-picture.

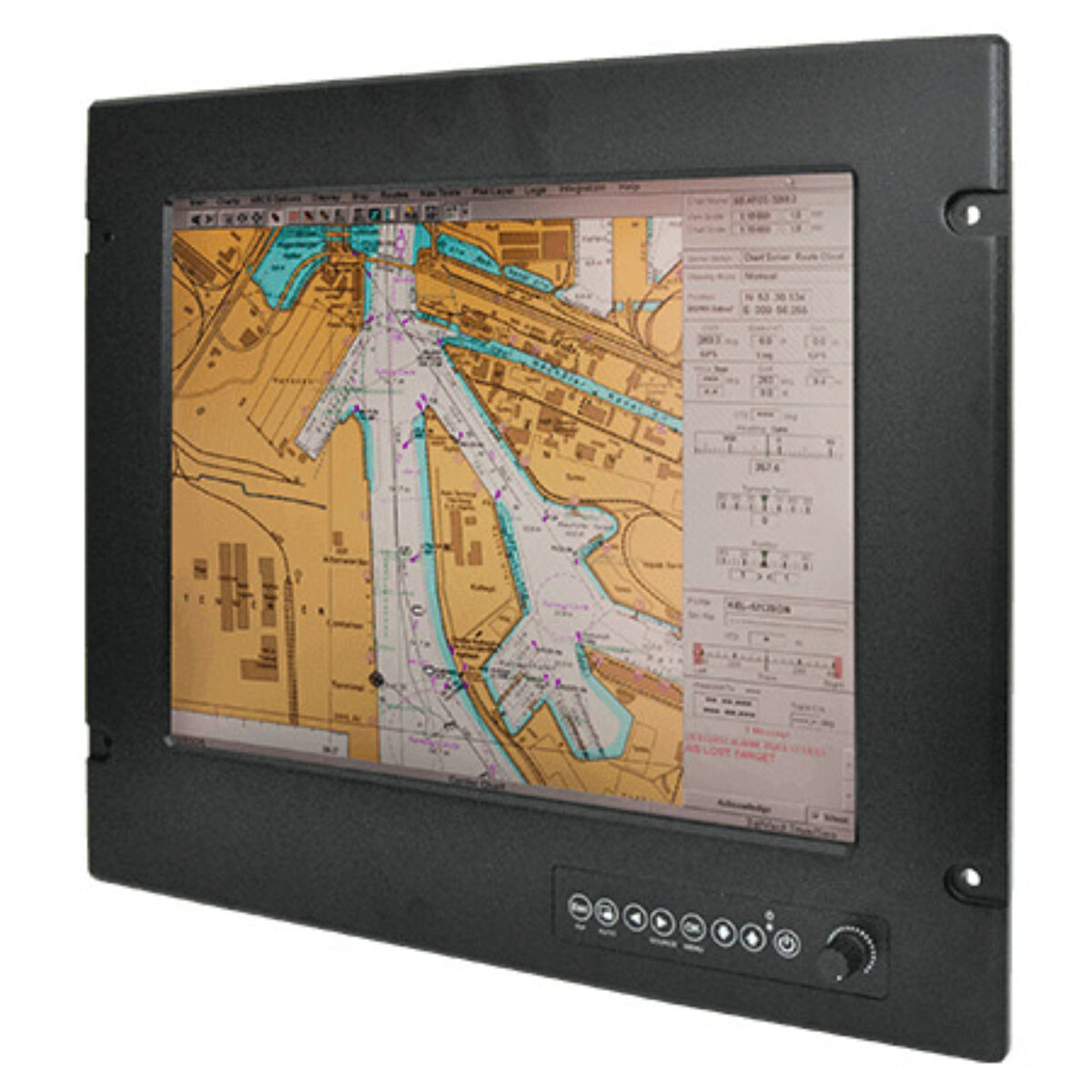

The panel delivers 500 nits with a 2500:1 contrast ratio and 176° viewing angles, and a dimming knob takes the backlight from nearly 0% to 100%, so the screen suits night watches. The resistive touch screen works with gloves and connects over RS-232 or USB, and AR glass is available as an option. Winmate lists DNVGL-CG-0339, IEC 60945 4th edition and IACS E10 against this model.
Picture-in-picture lets a camera feed sit over a chart or an automation page. A separate RS-232 port allows remote control, and a front OSD panel handles settings. The R15L600-MRA3FP is the PCAP touch ECDIS display at the same size, and the R12L600-MRM2 offers this resistive marine design at 12.1 inches.

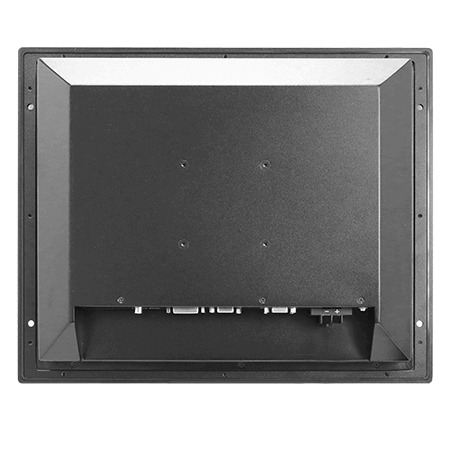

Power is isolated 24 V DC, with 9 to 36 V DC acceptable, drawing 35 W typical. The R15L600-MRM2 is fanless, operates from -15 to 55 °C at 5 to 95% humidity, withstands 15 g shock and is vibration-rated at 0.7 g to DNVGL-CG-0339 Class A. Its powder-coated metal housing has an IP66 front and IP54 rear, measures 412 x 345 x 79.7 mm and fits a 338 x 288 mm cut-out or 75 x 75 mm VESA. Winmate names marine bridge systems, shipboard automation and offshore operations.
R15L600-MRM2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L600-MRM2 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2500:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 9-36V DC Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 412mm x 345mm x 80mm (16.22" x 13.58" x 3.15") |
- R15L600-MRM2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L600-MRM2 configured for USA marine and offshore projects. Within the Winmate range the R15L600-MRA3FP is the PCAP touch ECDIS display at the same size, and the R12L600-MRM2 offers this resistive marine design at 12.1 inches.
With composite and S-Video inputs the R15L600-MRM2 sits among our marine displays, our front IP66 displays and our resistive touch monitors. Where a bridge mixes older camera feeds with PC sources, this is the model to specify.
