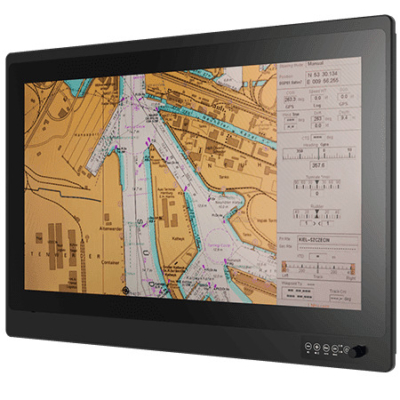

W24L100-MRL1FP 23.8″ 4K UHD PCAP Marine Monitor with IP66 Front and DisplayPort

IP Rating: Front IP66
Display: 23.8"[16:9, 3840 x 2160, UHD]
Touch: Resistive Touch
Brightness: 540
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
Power: 24V DC
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, FCC

Winmate

W24L100-MRL1FP23.8″ 4K UHD PCAP Marine Monitor with IP66 Front and DisplayPort

Datasheet

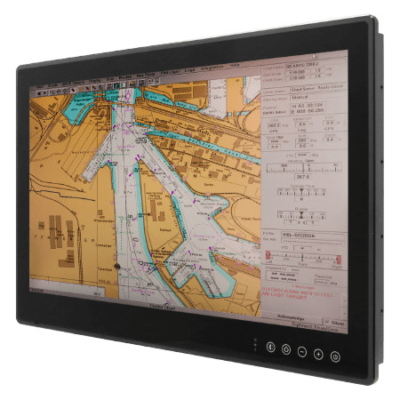

W24L100-MRA1FP 24″ PCAP ECDIS Marine Monitor with IP66 Front and DNVGL-CG-0339

IP Rating: Front IP66
Display: 24"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x HDMI 1.4, 1x VGA Input, 1xDVI-D
Power: 9-36V DC Input
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

Winmate

W24L100-MRA1FP24″ PCAP ECDIS Marine Monitor with IP66 Front and DNVGL-CG-0339

Datasheet

W24L100-MRA1 24″ Marine Monitor with Resistive Touch, IP66 Front and DNVGL-CG-0339

IP Rating: Front IP66
Display: 24"[16:9, 1920 x 1080, FHD]
Touch: Resistive Touch
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
Power: 9-36V DC Input
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, FCC

Winmate

W24L100-MRA124″ Marine Monitor with Resistive Touch, IP66 Front and DNVGL-CG-0339

Datasheet

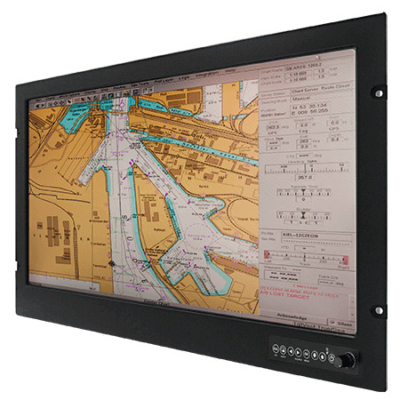

W24L100-MRA1HB 24″ High Brightness Marine Monitor with 1000 Nit FHD Display and IP66 Front

IP Rating: Front IP66
Display: 24"[16:9, 1920 x 1080, FHD]
Touch: Resistive Touch
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
Power: 9-36V DC Input
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, FCC

Winmate

W24L100-MRA1HB24″ High Brightness Marine Monitor with 1000 Nit FHD Display and IP66 Front

Datasheet

W26L100-MRA1FP 26″ Marine PCAP Touch Monitor with 1920 x 1200, ECDIS Keys and IP66 Front

IP Rating: Front IP66
Display: 26"[8:5, 1920 x 1200, WUXGA]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x HDMI 1.4, 1x VGA Input, 1xDVI-D
Power: 9-36V DC Input
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

Winmate

W26L100-MRA1FP26″ Marine PCAP Touch Monitor with 1920 x 1200, ECDIS Keys and IP66 Front

Datasheet

W27L100-MRA3FP 27″ ECDIS Marine Monitor with 9 to 36V DC and PCAP Touch

IP Rating: Front IP66
Display: 27"[16:9, 3840 x 2160, UHD]
Touch: Multi Touch PCAP
Brightness: 400
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Display Port Input, 1x VGA Input, 1xDVI-D, 2 x HDMI
Serial: 1x RS232 [DB9]
Power: 24V DC, 9-36V DC Input, AC Power Supply Included
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

Winmate

W27L100-MRA3FP27″ ECDIS Marine Monitor with 9 to 36V DC and PCAP Touch

Datasheet

W27L100-MRA1FP 27″ Marine PCAP Touch Monitor with 1920 x 1080, IP66 Front and Isolated DC Input

IP Rating: Front IP66
Display: 27"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x HDMI 1.4, 1x VGA Input, 1xDVI-D
Power: 24V DC, 9-36V DC Input
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, FCC

Winmate

W27L100-MRA1FP27″ Marine PCAP Touch Monitor with 1920 x 1080, IP66 Front and Isolated DC Input

Datasheet

W32L100-MRA1FP 32″ ECDIS Marine Monitor with 9 to 36V DC and PCAP Touch

IP Rating: Front IP66
Display: 32"[16:9, 3840 x 2160, UHD]
Touch: Multi Touch PCAP
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Display Port Input, 1x VGA Input, 1xDVI-D, 2 x HDMI
Serial: 1x RS232 [DB9]
Power: 24V DC, 9-36V DC Input, AC Power Supply Included
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

Winmate

W32L100-MRA1FP32″ ECDIS Marine Monitor with 9 to 36V DC and PCAP Touch

Datasheet

W43L100-MRA2FP 42.5″ ECDIS Marine Monitor with 9 to 36V DC and PCAP Touch

IP Rating: Front IP66
Display: 42.5"[16:9, 3840 x 2160, UHD]
Touch: Multi Touch PCAP
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Display Port Input, 1x VGA Input, 1xDVI-D, 2 x HDMI
Serial: 1x RS232 [DB9]
Power: 24V DC, 9-36V DC Input, AC Power Supply Included
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, DNV GL, FCC, IACS E10, IEC 60945

Winmate

W43L100-MRA2FP42.5″ ECDIS Marine Monitor with 9 to 36V DC and PCAP Touch

Datasheet

W55L100-MRA1FP 55″ Marine Monitor with PCAP Touch and 4K UHD LCD

IP Rating: Front IP66
Display: 55"[16:9, 3840 x 2160, UHD]
Touch: Multi Touch PCAP
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Display Port Input, 1x VGA Input, 1xDVI-D, 2 x HDMI
Serial: 1x RS232 [DB9]
Power: 100-240V AC
Temp: -15°C to 55°C [5°F to 131°F]
Certification: CE, FCC

Winmate

W55L100-MRA1FP55″ Marine Monitor with PCAP Touch and 4K UHD LCD

Datasheet
