Winmate W24L100-MRA1 24″ Marine Monitor with Resistive Touch, IP66 Front and DNVGL-CG-0339
Resistive
Fanless
CE
FCCW24L100-MRA1 Overview

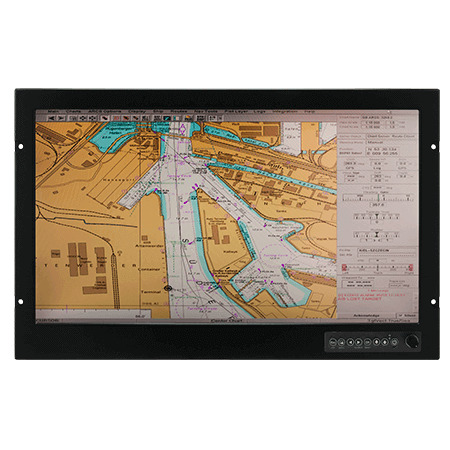

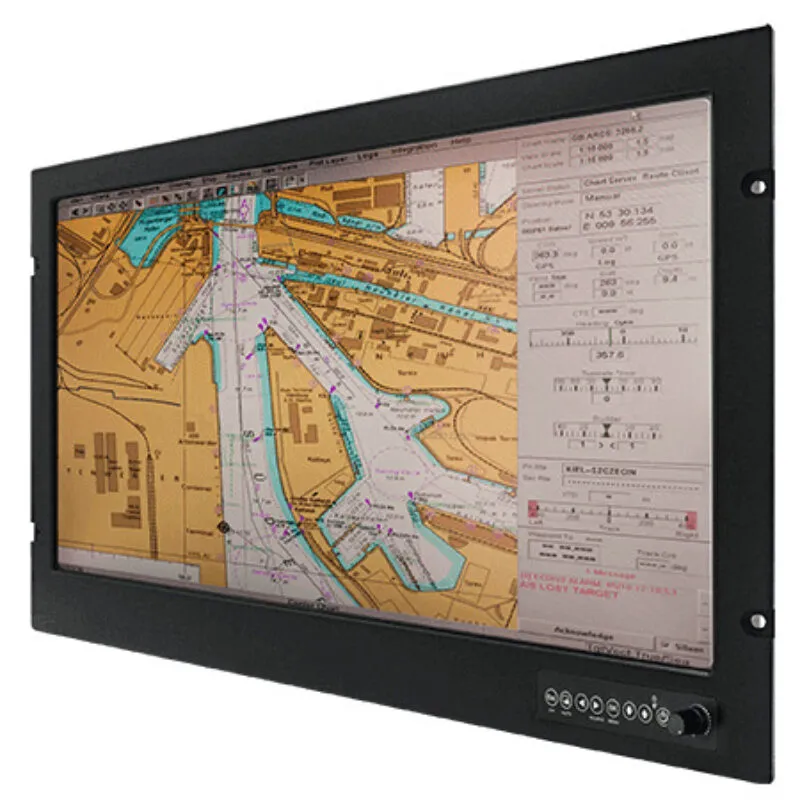

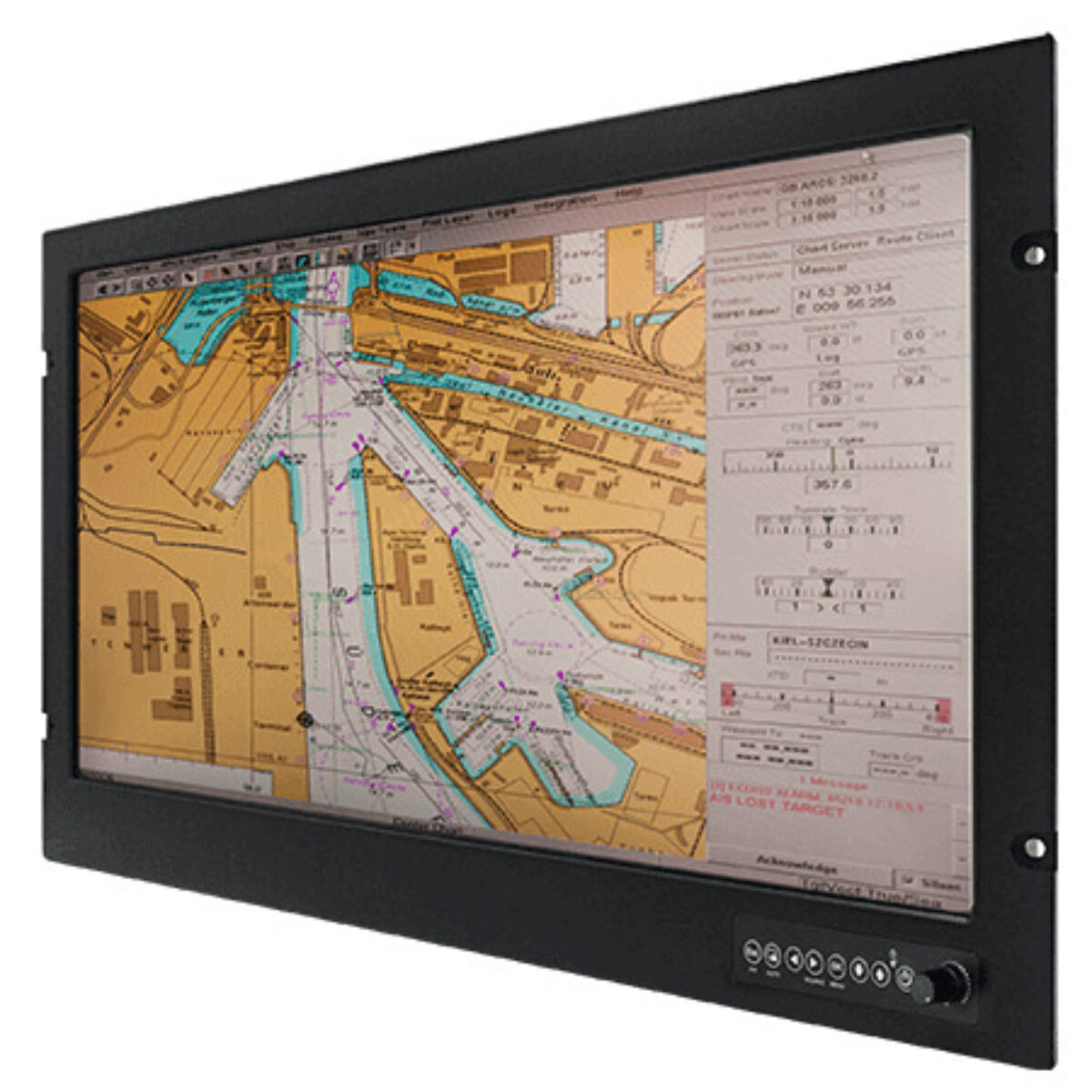

Bridge screens have to be dimmed almost to black at night, survive spray and vibration, and carry the approvals a class surveyor will ask for. The W24L100-MRA1 is Winmate’s 24 inch marine monitor built for that work, with resistive touch, a dimming knob and an IP66 front for panel mounting into consoles.
The 1920 x 1080 panel runs at 300 nits with a 5000:1 contrast ratio and 178° viewing angles, and the dimming knob sets the backlight from nearly 0% to 100%. Resistive touch connects over RS-232 or USB and works with gloves, with AR protection glass as an option. Winmate lists DNVGL-CG-0339, IEC 60945 4th edition and IACS E10 among its certifications, alongside CE and FCC.
Video inputs are VGA, DVI-D, composite and S-Video, which suits radar, chart and camera sources on older and newer bridge systems, and an RS-232 port handles remote control. An eight-key OSD panel sits beside the knob. For bare-finger PCAP touch, HDMI input and ECDIS mode keys, the W24L100-MRA1FP is the flat-front version, and the W24L100-MRA1HB raises brightness to 1000 nits for bright wheelhouses.
Power is a 24 V DC isolated input that accepts 9 to 36 V DC, drawing 50 W typical. The fanless unit measures 593 x 356.7 x 62.7 mm, weighs 9.7 kg and panel mounts, with M6 VESA holes as an alternative. The front is rated IP66 and the rear IP54, and it operates from -15 °C to 55 °C at 5 to 95% humidity, with shock rated at 15 G over 11 ms. Winmate names marine bridge systems, shipboard automation and offshore operations as target uses.
W24L100-MRA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-MRA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 24"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 5000:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 9-36V DC Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 593mm x 357mm x 63mm (23.35" x 14.06" x 2.48") |
- W24L100-MRA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-MRA1 configured for USA marine and offshore projects. Within the Winmate range the W24L100-MRA1FP is the PCAP ECDIS version with HDMI, and the W24L100-MRA1HB is the 1000 nit version of this monitor.
With its listed marine approvals the W24L100-MRA1 sits among our marine monitors, our front IP66 monitors and our panel mount screens. Where a bridge console needs gloved touch and full dimming, this is the model to specify.
