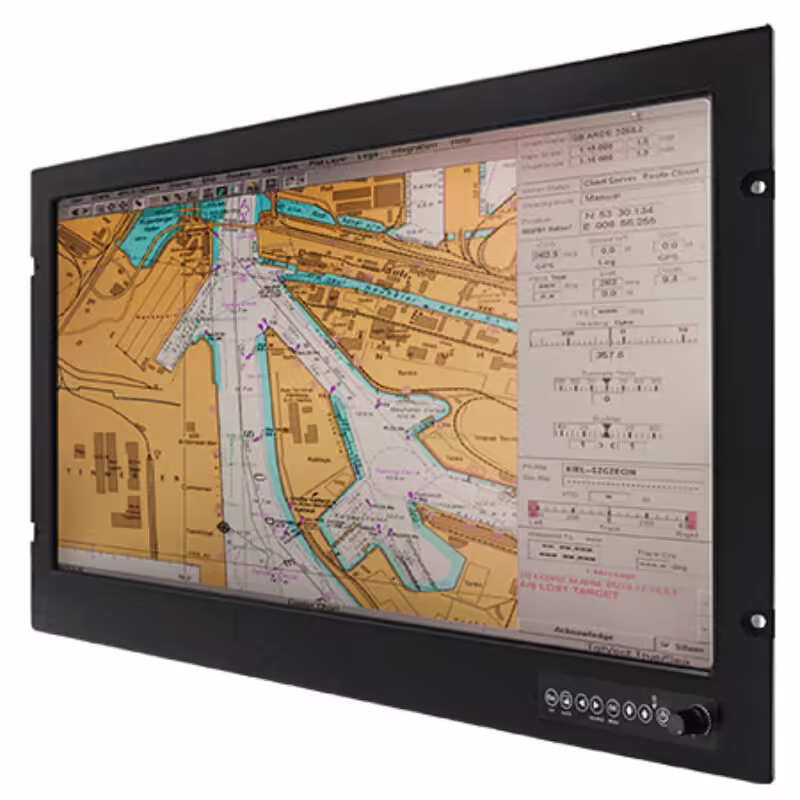

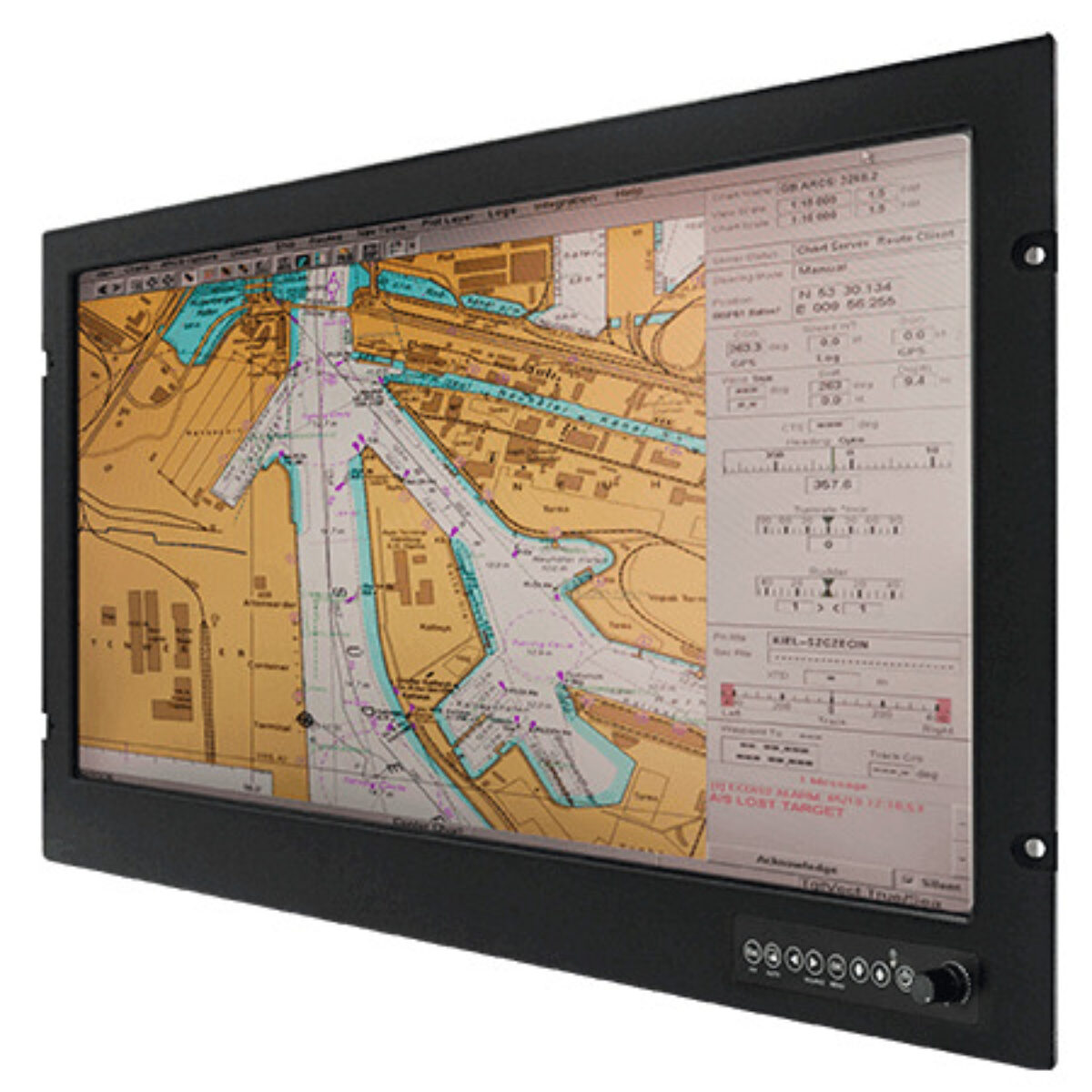

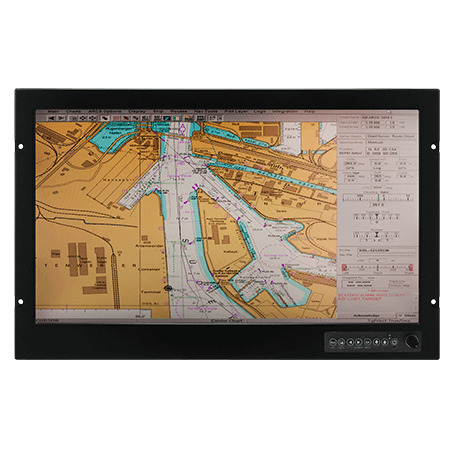

Winmate W24L100-MRA1HB 24″ High Brightness Marine Monitor with 1000 Nit FHD Display and IP66 Front
Resistive
High Bright
Fanless
CE
FCCW24L100-MRA1HB Overview
A marine screen that reads well at night can vanish in afternoon sun through the wheelhouse glass. The W24L100-MRA1HB is Winmate’s 24 inch high brightness marine monitor, raising the panel to 1000 nits while keeping a dimming knob that takes the backlight down to nearly zero for night watch.
The 1920 x 1080 panel delivers 1000 nits with a 5000:1 contrast ratio and 178° viewing angles, and the knob sets the backlight from nearly 0% to 100%. Resistive touch or a protection glass without touch are offered as options, with the touch link over RS-232 or USB. Vibration is tested to 0.7 g under DNVGL CG-0339 Class A, and the certification list for this model shows CE and FCC.
Video inputs are VGA, DVI-D, composite and S-Video, which suits radar, camera and chart sources, and an RS-232 port covers remote control. An eight-key OSD panel sits beside the dimming knob. The W24L100-MRA1 is the 300 nit version with DNVGL-CG-0339, IEC 60945 and IACS E10 on its certification list, and the W24L100-MRA1FP is the PCAP ECDIS version with HDMI input.
Power is a 24 V DC isolated input that accepts 9 to 36 V DC, drawing 55 W typical. The fanless unit measures 593 x 356.7 x 62.7 mm, weighs 9.7 kg and panel mounts, with M6 VESA holes as an alternative. The front is rated IP66 and the rear IP54, and it operates from -15 °C to 55 °C at 5 to 95% humidity, with shock rated at 15 G over 11 ms. Winmate names marine bridge systems, shipboard automation and offshore operations as target uses.
W24L100-MRA1HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-MRA1HB |
| Features | Fanless Industrial |
| Display | |
| Display | 24"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 5000:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 9-36V DC Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 593mm x 357mm x 63mm (23.35" x 14.06" x 2.48") |
- W24L100-MRA1HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-MRA1HB configured for USA marine and offshore projects. Within the Winmate range the W24L100-MRA1 is the 300 nit version with a marine certification list, and the W24L100-MRA1FP is the PCAP ECDIS version.
With its 1000 nit panel the W24L100-MRA1HB sits among our marine monitors, our sunlight readable screens and our front IP66 monitors. Where a wheelhouse screen faces daylight and night watch, this is the model to specify.
