Winmate W24L100-MRL1FP 23.8″ 4K UHD PCAP Marine Monitor with IP66 Front and DisplayPort
Resistive
Fanless
CE
FCCW24L100-MRL1FP Overview

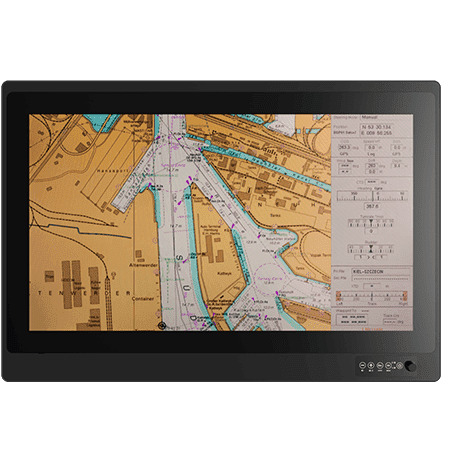

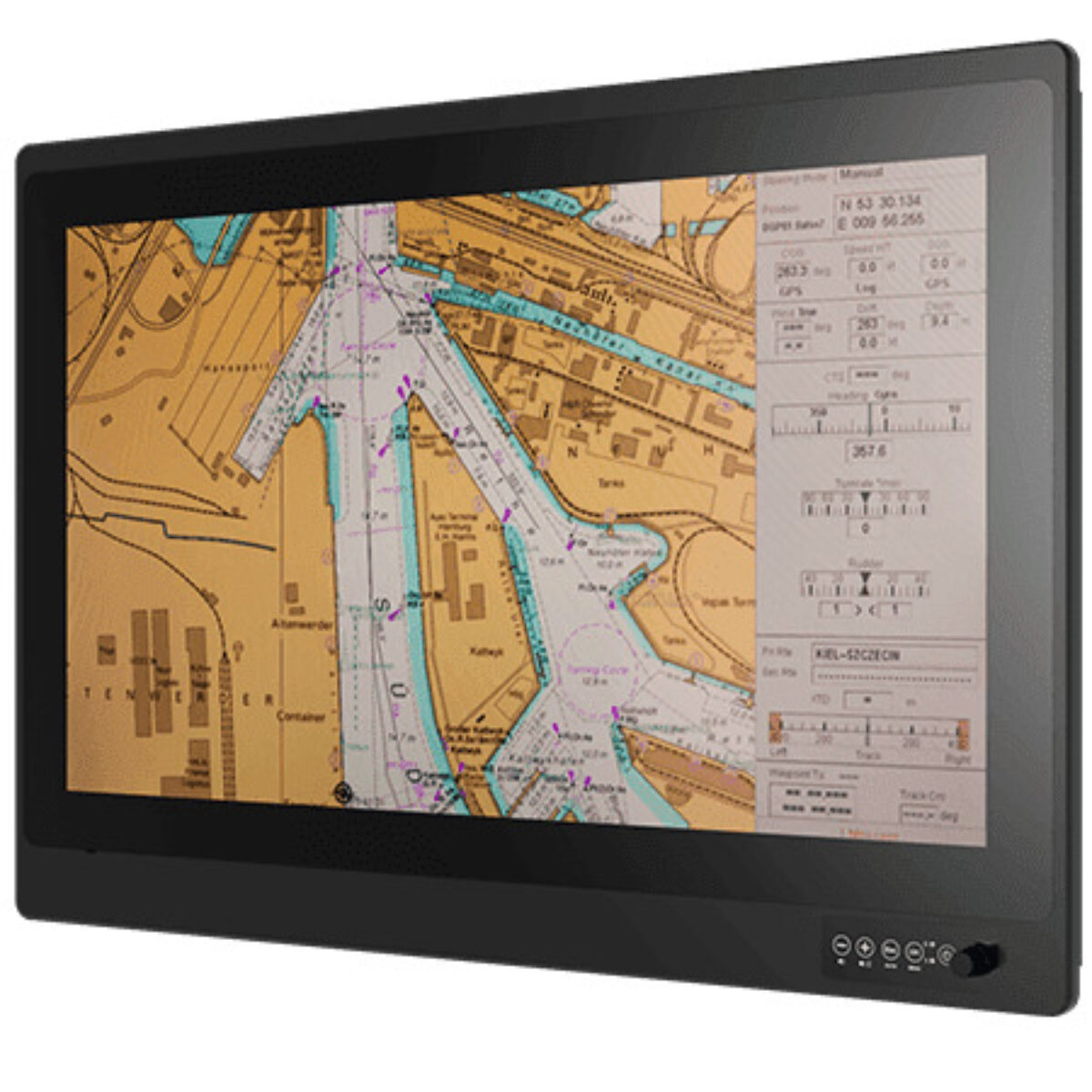

Bridge systems increasingly combine charts, radar overlays and camera views on one screen, and a 1920 x 1080 panel runs out of detail quickly. The W24L100-MRL1FP is Winmate’s 23.8 inch 4K UHD marine monitor, with a 3840 x 2160 PCAP touch panel in a narrow anodised aluminum bezel with an IP66 front.
The panel runs at 540 nits with a 1200:1 contrast ratio, 1.07 billion colors and 178° viewing angles. Projected capacitive multi-touch is fitted, with AR glass as an option. Vibration is tested to 0.7 g under DNVGL CG-0339 Class A and shock is rated at 15 G over 11 ms, while the certification list for this model shows CE and FCC.
Inputs are VGA, DVI-D, HDMI 1.4, HDMI 2.0 and DisplayPort, with a USB Type-A port and an RS-232 port for remote control, so it pairs with a UHD bridge computer as well as older sources. The W24L100-MRA1FP is the 1920 x 1080 ECDIS version with Day, Dusk and Night mode keys, and the W24L100-MLL1FP carries a 4K UHD panel in a rack mount defense display.

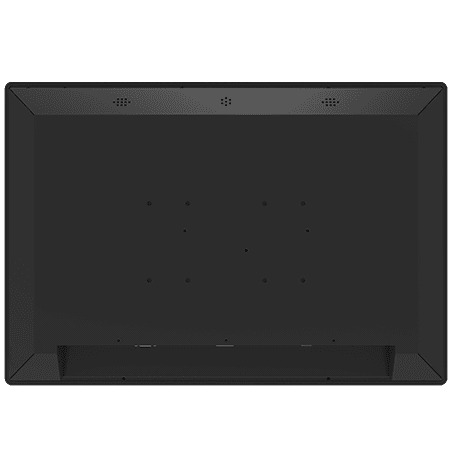

Power is 24 V DC, with an AC to DC adapter and a three-pin terminal block in the kit. The fanless unit panel mounts, with M6 VESA holes at 100 and 200 mm spacing as an alternative, and the IP66 front suits console installs. It operates from -15 °C to 55 °C at 5 to 95% humidity. Winmate names marine bridge systems, shipboard automation and offshore operations as target uses, and the monitor carries CE and FCC marks. It is a good fit where a UHD bridge computer needs a touch screen at the console.
W24L100-MRL1FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-MRL1FP |
| Features | Fanless Industrial |
| Display | |
| Display | 23.8"[16:9, 3840 x 2160, UHD] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 540 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1200:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 24V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 601mm x 415mm x 74mm (23.66" x 16.34" x 2.91") |
- W24L100-MRL1FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-MRL1FP configured for USA marine and offshore projects. Within the Winmate range the W24L100-MRA1FP is the 1920 x 1080 ECDIS version, and the W24L100-MLL1FP is a 4K UHD defense display.
With its UHD panel the W24L100-MRL1FP sits among our marine industrial monitors, our front IP66 displays and our PCAP touch screen monitors. Where a bridge console needs fine detail and DisplayPort, this is the model to specify.
