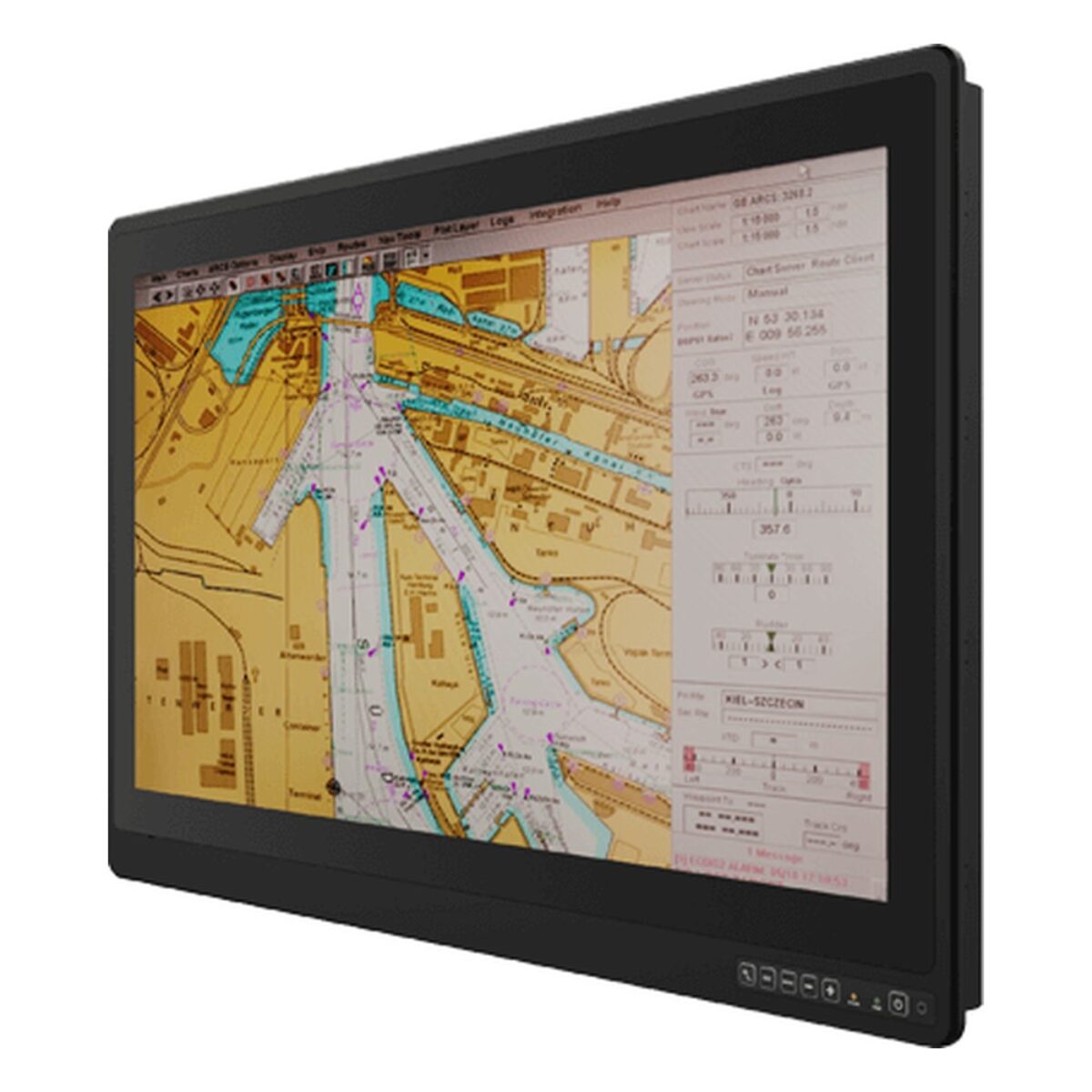

Winmate W32L100-MRA1FP 32″ ECDIS Marine Monitor with 9 to 36V DC and PCAP Touch

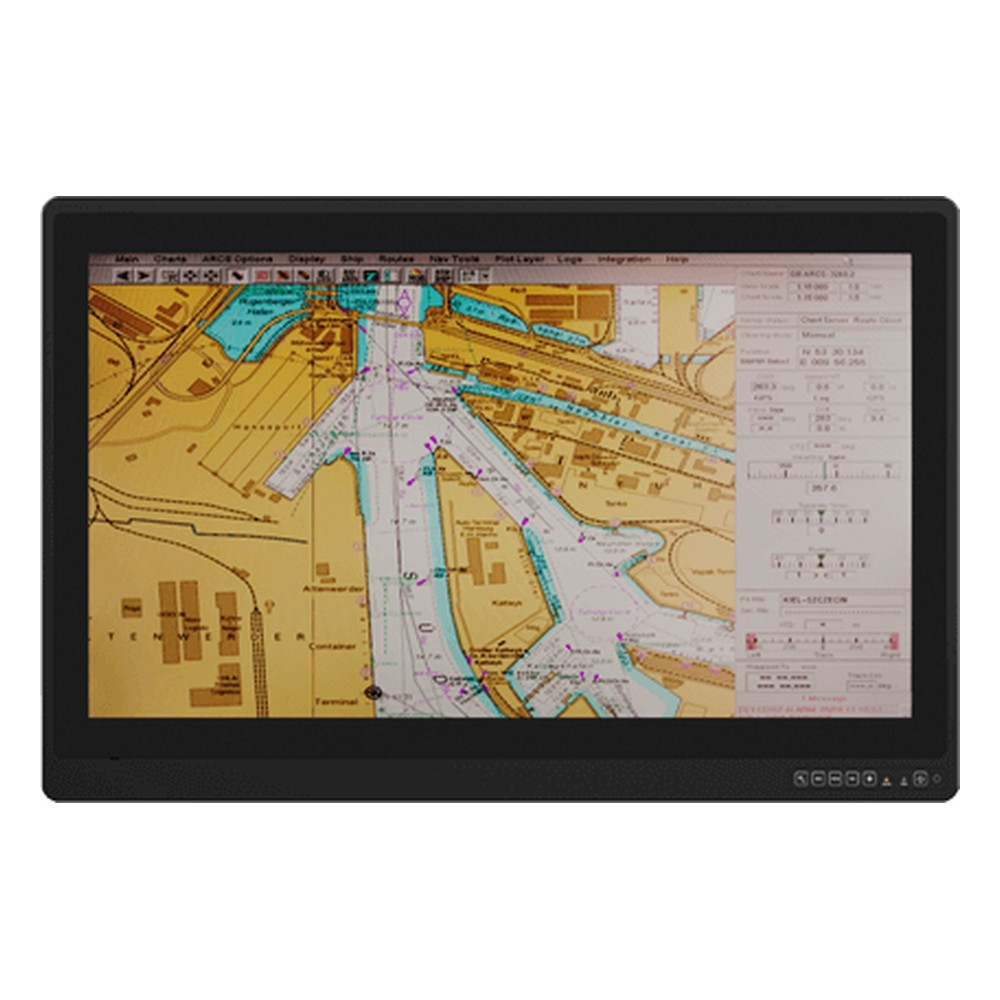

Bridge consoles and offshore control rooms need large, sharp chart screens that switch cleanly for night watches and cope with vibration, humidity and a ship’s DC supply. The W32L100-MRA1FP is Winmate’s 32 inch 4K UHD marine display for that job: a 32″ 3840 x 2160 panel at 350 nits with 1000:1 contrast and 178° viewing angles behind projected capacitive multi-touch with an anti-reflection coating as standard, and anti-glare film or anti-reflection glass as options. It is a display, so it connects to a separate bridge or navigation computer.

OSD keys on the unit switch between ECDIS Day, Dusk and Night modes, so the screen can be switched for night viewing without a trip into menus. Color calibration for ECDIS compliance is offered as an option. Touch is reported to the host over one USB connection, and one RS-232 port allows remote control. The edge-to-edge narrow bezel keeps the frame slim on a console. The W32L100-MRA3FP is the 32 inch marine touch monitor with a 1920 x 1080 panel.

Video inputs cover old and new sources: one VGA, one DVI-D, two HDMI 2.0 and one DisplayPort, so the W32L100-MRA1FP can connect to older and newer computers alike. VGA, DVI, DisplayPort, two HDMI, RS-232 and USB cables are supplied with a 3-pin terminal block. The W27L100-MRA3FP is the 27 inch 4K marine display with a 400 nit panel.

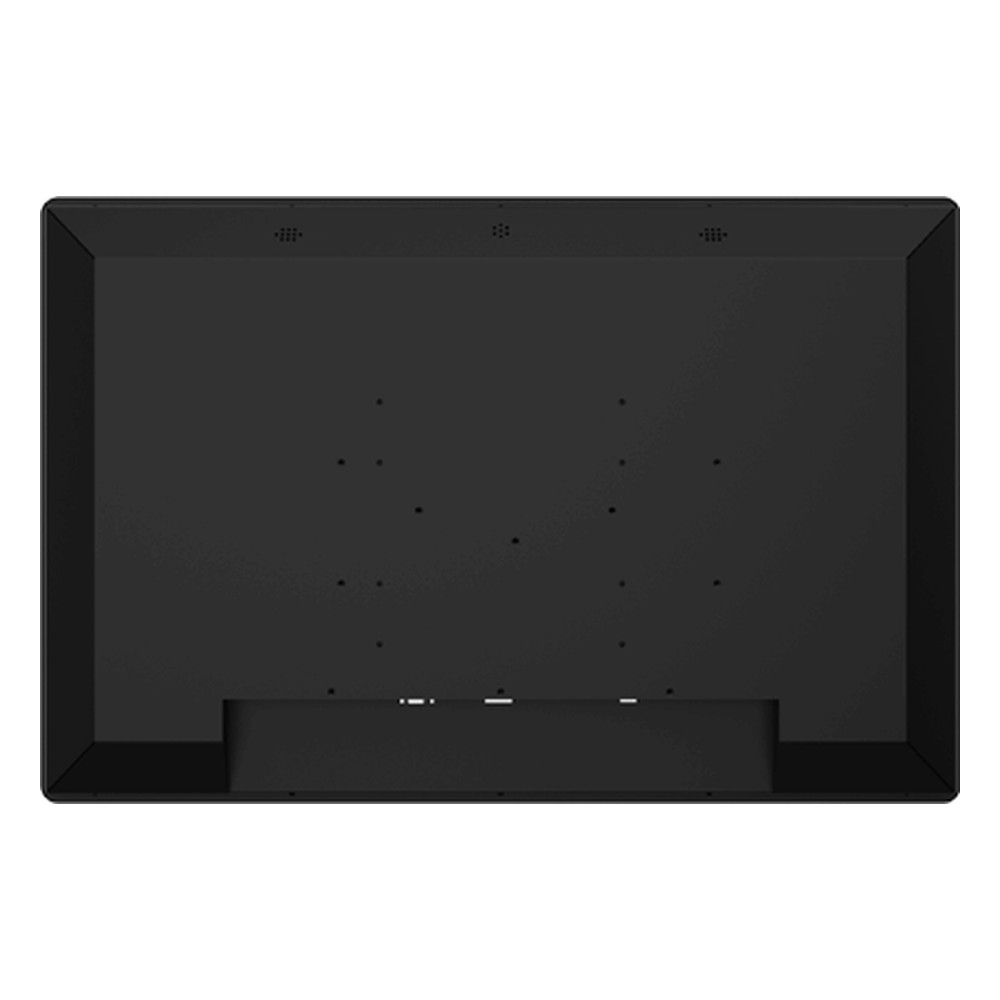

Power is a 24 V DC input with isolation that accepts 9 to 36 V DC, drawing 65 W typical, and an AC to DC adapter and power cord are supplied. The front side is rated IP66 and the fanless unit operates from -15 °C to 55 °C at 5 to 95% humidity. Shock is rated at 15 G for 11 ms and vibration at 0.7 g to DNV-CG-0339 (Class A). Winmate lists the W32L100-MRA1FP as certified to DNV-CG-0339, IEC 60945 4th edition and IACS E10, plus CE and FCC. It mounts in a console panel or on VESA, with an anodised aluminum bezel. We supply it configured and tested before dispatch.
