Winmate W32L100-MRA3FP 32″ Marine PCAP Touch Monitor with 1920 x 1080 and Isolated DC Input
PCAP
Fanless
CE
FCCW32L100-MRA3FP Overview

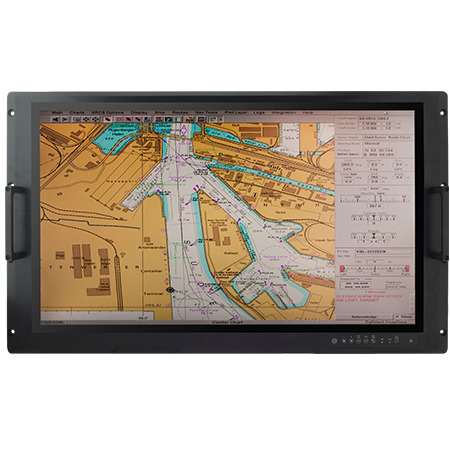

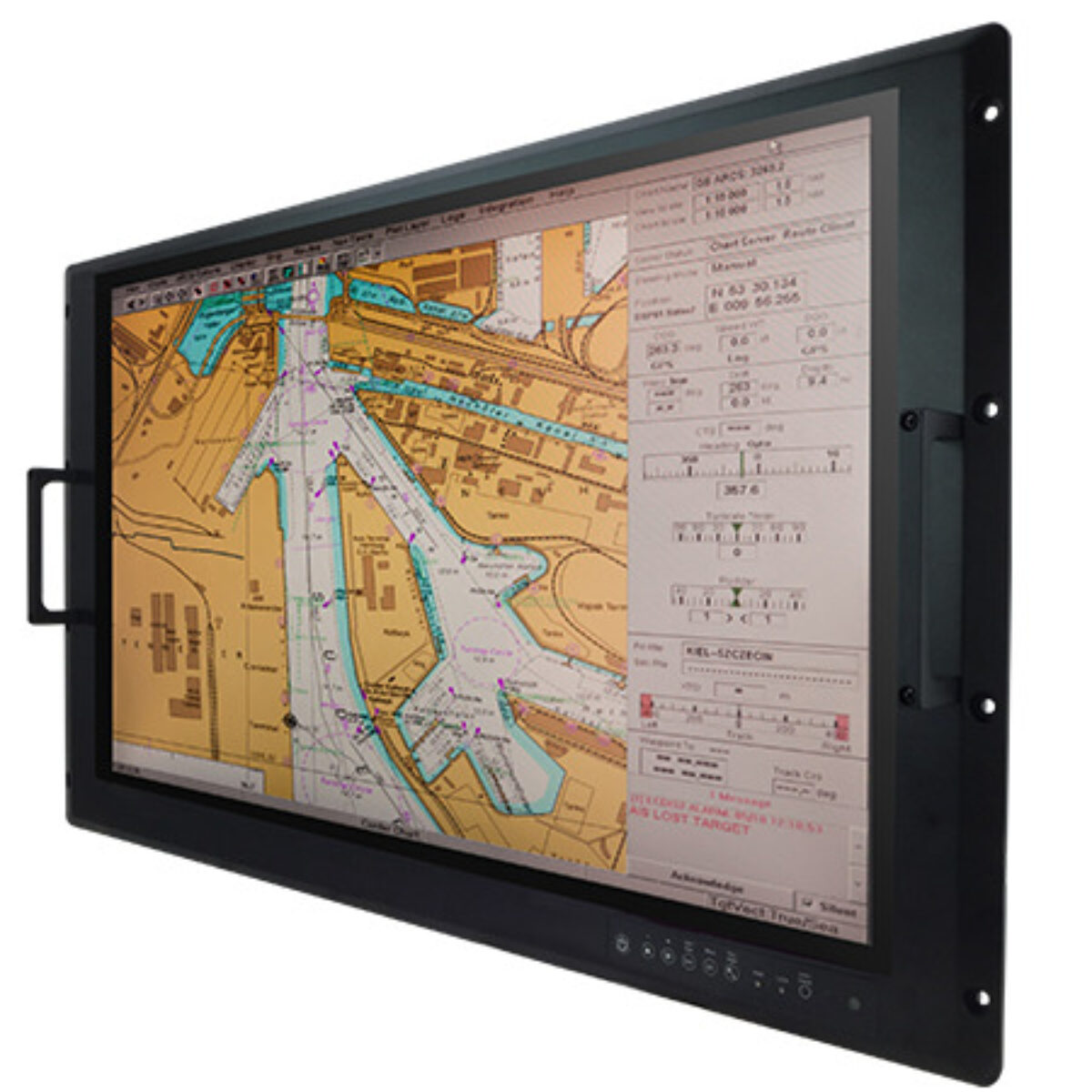

Large bridge and engine control screens have to run from the ship’s DC supply, fit the console layout and still take a finger for chart and camera work. The W32L100-MRA3FP is Winmate’s 32 inch marine monitor: a fanless 1920 x 1080 PCAP touch display with an isolated 9 to 36 V DC input and a choice of panel, rack or VESA mounting.
The 16:9 panel runs at 1920 x 1080 with 400 nits brightness, a 4000:1 contrast ratio and 178° viewing angles, showing 16.7 million colors. Projected capacitive multi-touch connects to the host over USB, and a build with ITO film is an option. A seven-key front OSD panel handles power, brightness, menu, auto adjust, day/night mode and a control lock, which helps crews switch to a darker picture at night.
Video inputs are VGA, DVI-D and HDMI, and VGA, DVI and HDMI cables come in the box. The W27L100-MRA1FP is the 27 inch marine model with an IP66 front, and the W26L100-MRA1FP adds ECDIS day, dusk and night mode keys on a 26 inch 1920 x 1200 panel.
Power is 9 to 36 V DC with isolation, and a MIL-DTL-38999/1 power cord is supplied. The monitor measures 825 x 500 x 87.2 mm, fits a 762 x 474 mm cut-out, rack mounts on its handles or takes a VESA arm on 200 x 200 or 200 x 100 holes. It operates from -15 to 55 °C, stores from -20 to 60 °C at 10 to 95% humidity, runs fanless and carries CE and FCC marks.
W32L100-MRA3FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L100-MRA3FP |
| Features | Fanless Industrial |
| Display | |
| Display | 32"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x HDMI Input 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 9-36V DC Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 825mm x 500mm x 87mm (32.48" x 19.69" x 3.43") |
- W32L100-MRA3FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L100-MRA3FP configured for USA marine projects. Within the Winmate range the W27L100-MRA1FP gives a 27 inch marine display with an IP66 front, and the W32L100-MLA3FP is the 32 inch defense model on AC power in the same chassis size.
With an isolated DC input and PCAP touch, the W32L100-MRA3FP sits among our marine monitors, our panel mount displays and our 32 inch industrial monitors. Where a bridge console needs a 32 inch touch display on ship DC power, this is the model to specify.
