Winmate W27L100-MRA1FP 27″ Marine PCAP Touch Monitor with 1920 x 1080, IP66 Front and Isolated DC Input
PCAP
CE
FCCW27L100-MRA1FP Overview

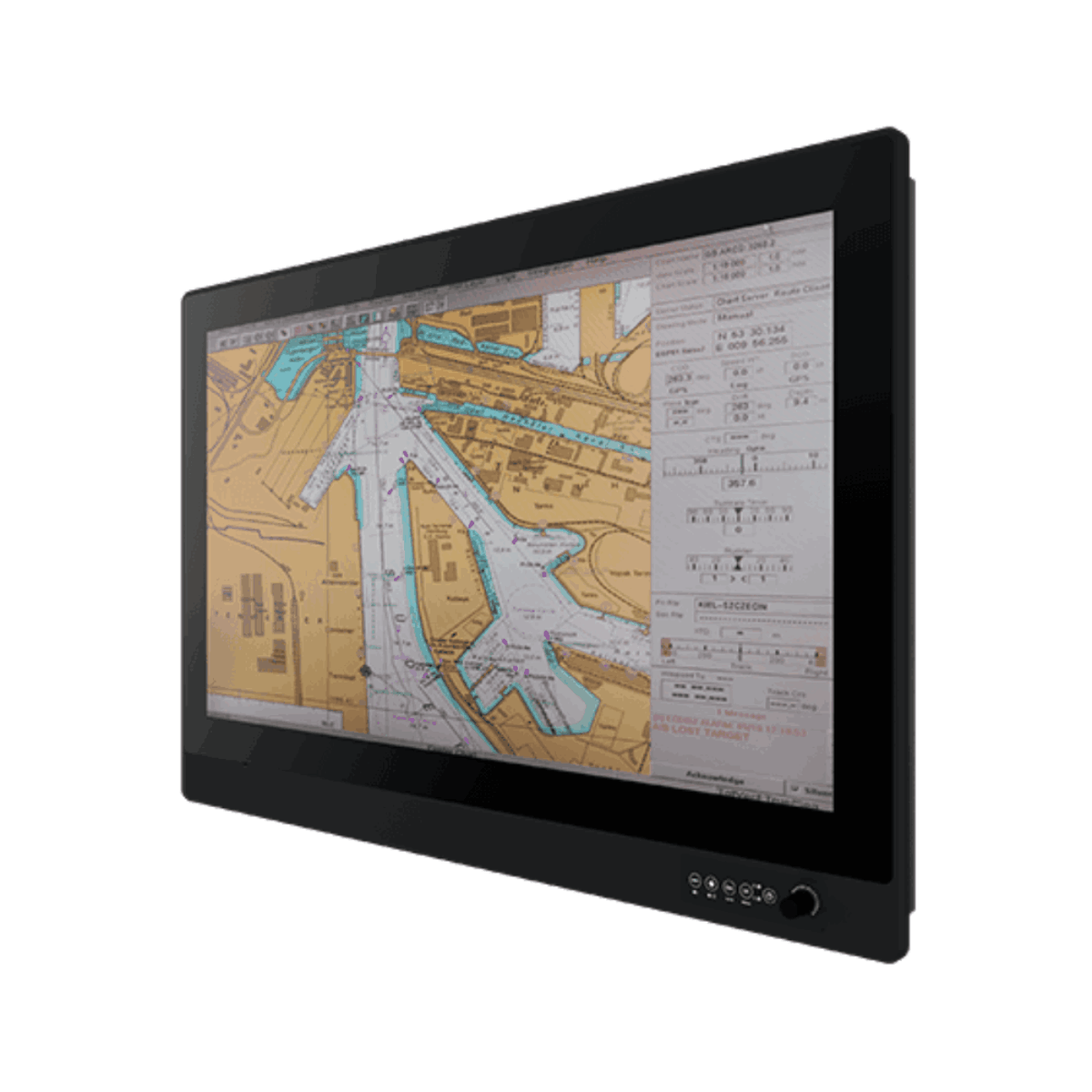

Ship systems run on DC supplies that swing and spike, and bridge and engine room consoles need a display that sits flush and shrugs off spray on the front. The W27L100-MRA1FP is Winmate’s 27 inch marine panel mount monitor: a fanless 1920 x 1080 PCAP touch display with an IP66 front and an isolated DC input.

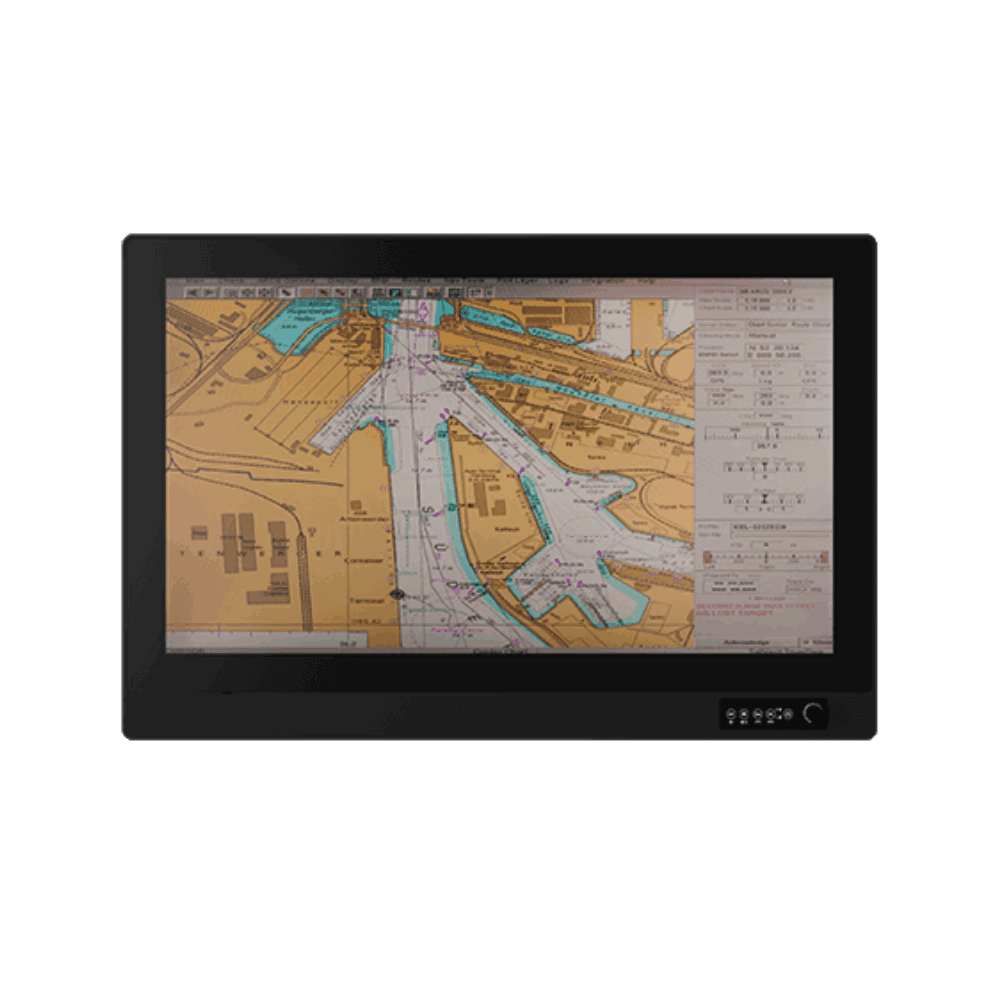

The 16:9 panel runs at 1920 x 1080 with 300 nits brightness, a 3000:1 contrast ratio and 178° viewing angles, so chart and alarm screens stay readable from the side of a console. Projected capacitive multi-touch with an AR film sits on the edge-to-edge narrow bezel, with AG film or AR glass as alternatives. An OSD control panel sits on the lower edge of the bezel.
Inputs are VGA, DVI-D and HDMI 1.4, with one USB Type-A for touch and one RS-232 port for remote control, and cables for each come in the box. The W26L100-MRA1FP is the 26 inch 1920 x 1200 model with ECDIS mode keys, and the W32L100-MRA3FP gives a 32 inch marine display with a 4000:1 panel.
Power is 24 V DC isolated, accepting 9 to 36 V DC, at 55 W typical on a three-pin terminal block. The monitor is designed to meet IEC 60945 4th edition, DNVGL-CG-0339 and IACS E10, and Winmate quotes 15 G, 11 ms shock and 0.7 g vibration to DNVGL-CG-0339 Class A. It measures 679.2 x 455.6 x 85.5 mm, weighs 13.7 kg, fits a 655 x 430 mm cut-out and operates from -15 to 55 °C at 5 to 95% humidity.
W27L100-MRA1FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W27L100-MRA1FP |
| Features | Fanless Industrial |
| Display | |
| Display | 27"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x HDMI 1.4 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 24V DC 9-36V DC Input |
| Environmental Conditions | |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 679mm x 456mm x 86mm (26.73" x 17.95" x 3.39") |
- W27L100-MRA1FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W27L100-MRA1FP configured for USA marine and offshore projects. Within the Winmate range the W26L100-MRA1FP adds ECDIS day, dusk and night mode keys on a 26 inch 1920 x 1200 panel, and the W32L100-MRA3FP moves to a 32 inch marine display.
With an IP66 front and isolated DC input, the W27L100-MRA1FP sits among our marine displays, our IP66 front monitors and our capacitive touch monitors. Where a vessel console needs a 27 inch flush touch display on ship DC power, this is the model to specify.
