Winmate W32L100-MLA3FP 32″ Rack Mount PCAP Touch Defense Monitor with 1920 x 1080 and 4000:1 Contrast
PCAP
CE
FCCW32L100-MLA3FP Overview

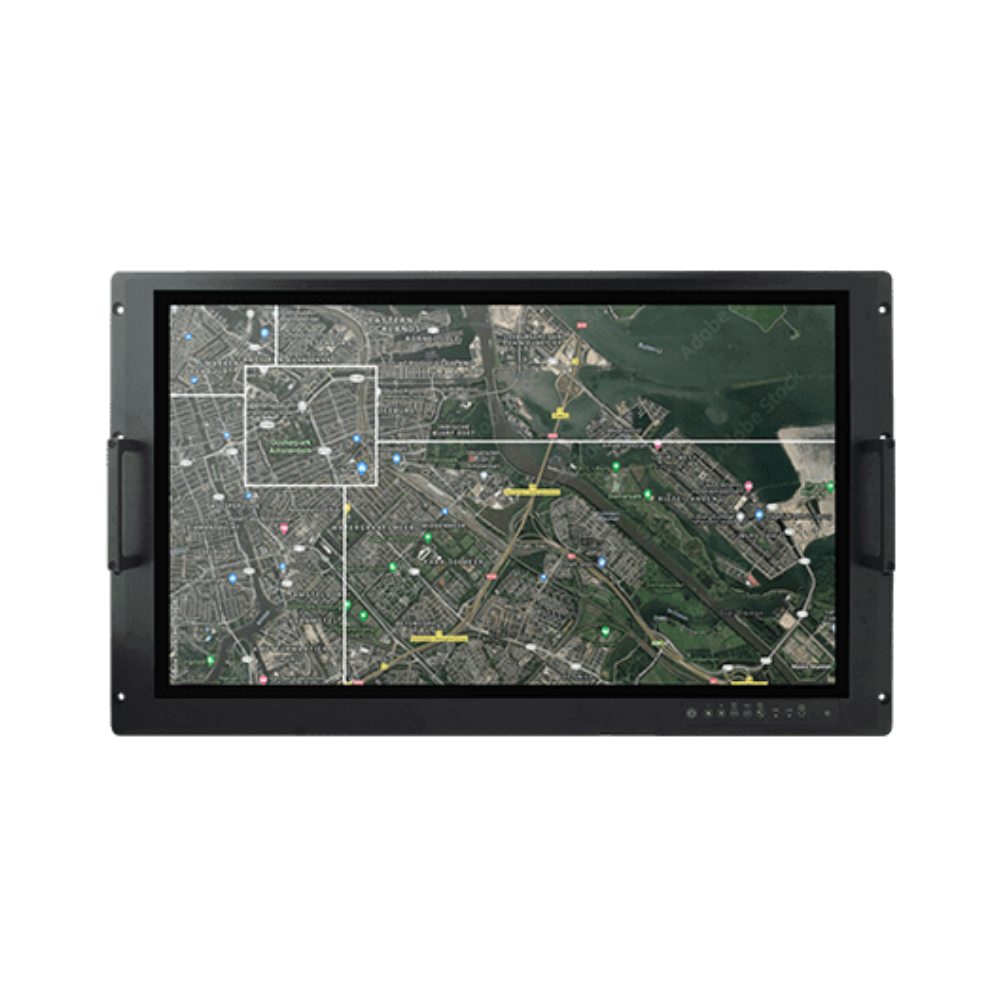

Training rooms and command centres need a large touch display that reads well under bright lighting and connects to whatever computer the program already uses. The W32L100-MLA3FP is Winmate’s 32 inch rack mount PCAP touch defense monitor: a fanless 1920 x 1080 display with a 4000:1 panel and a defence-grade power connector.
The 16:9 panel runs at 1920 x 1080 with 400 nits brightness, a 4000:1 contrast ratio and 178° viewing angles, showing 16.7 million colors. Projected capacitive multi-touch connects to the host over USB, and a build with ITO film is an option. A seven-key panel on the bezel handles power, brightness, menu, auto adjust, day/night mode and a control lock.
Video inputs are VGA, DVI-D and HDMI, so the monitor takes analog and digital sources without adaptors, and VGA, DVI and HDMI cables come in the box. The W32L100-MLA1FP gives PCAP touch on a 3840 x 2160 panel, and the W32L100-RKA3ML is the same 32 inch 1920 x 1080 format behind protective glass with a light sensor.

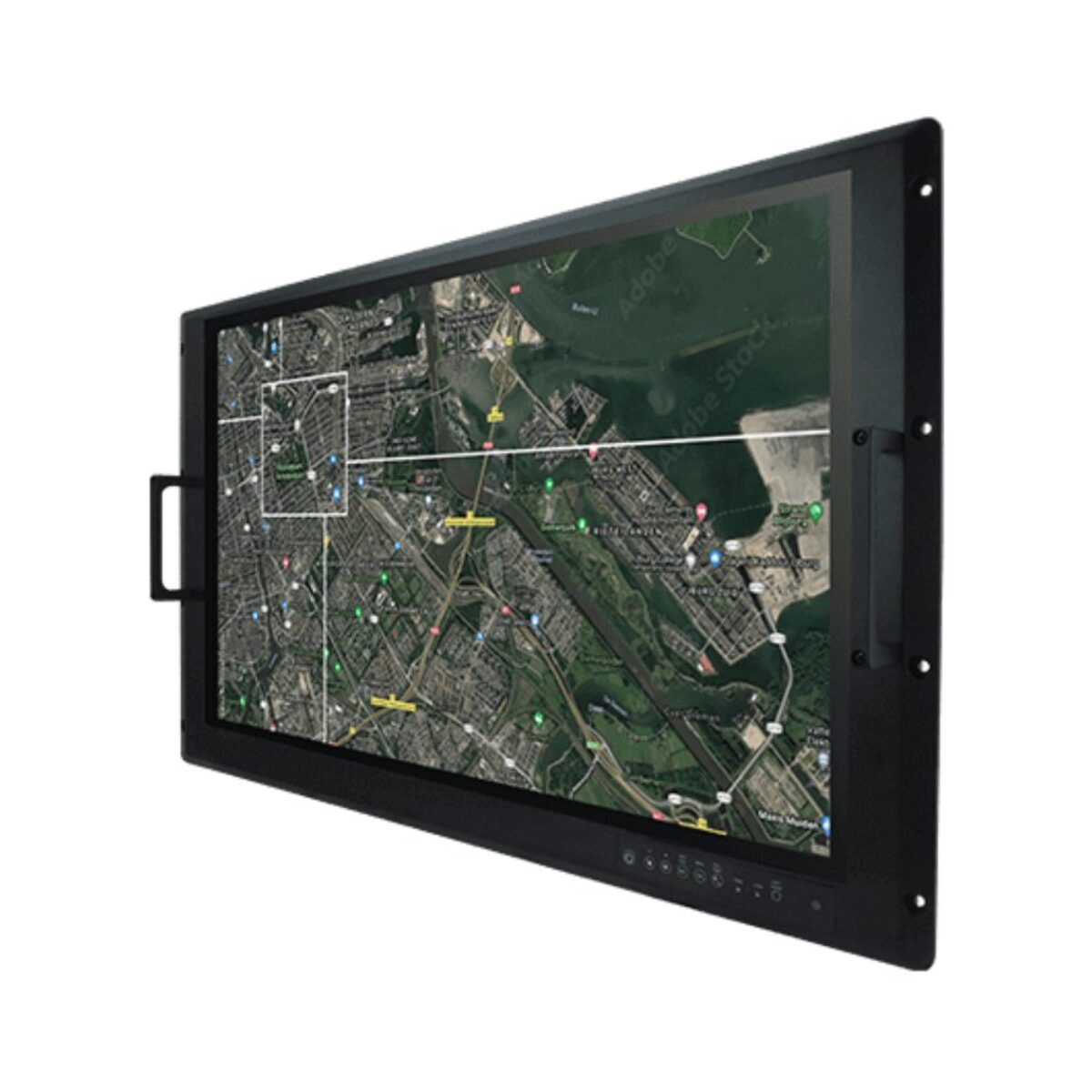

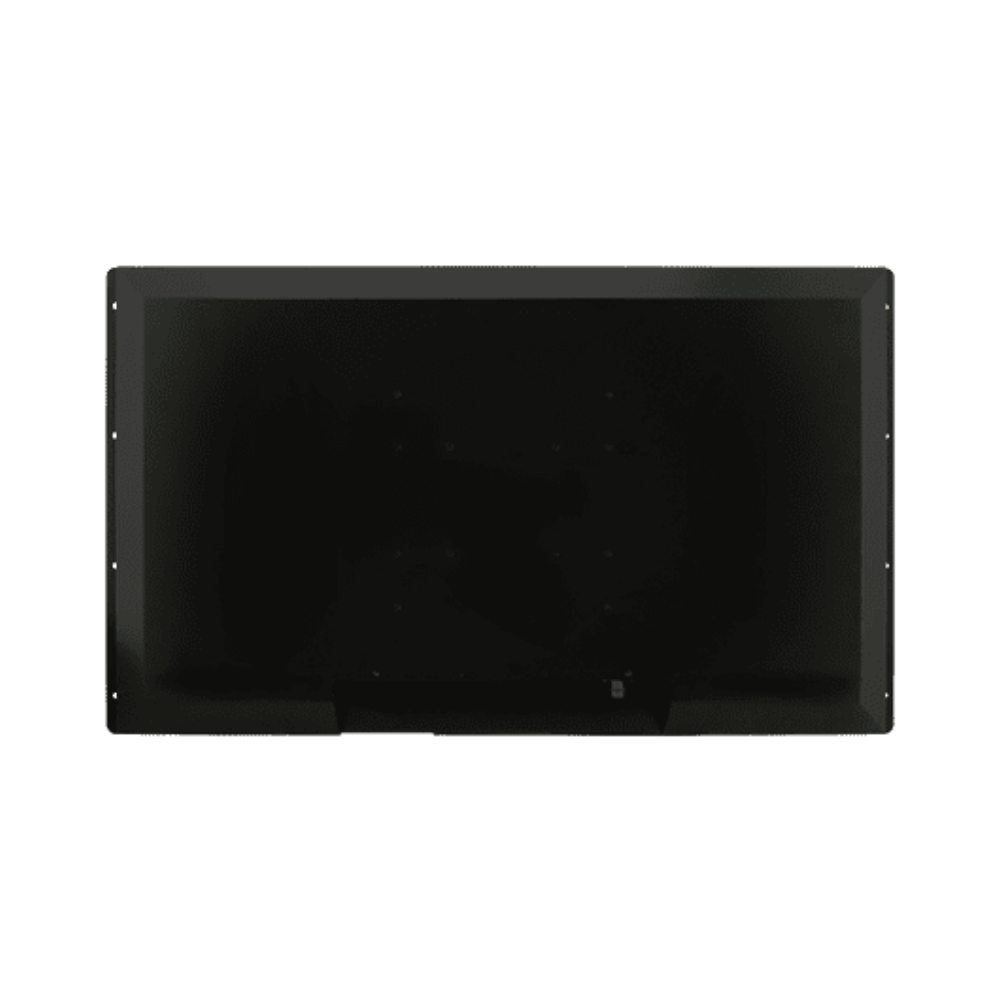

Power is 100 to 240 V AC universal on a MIL-DTL-38999/1 defence-grade connector, with 9 to 36 V DC as an ordering option for vehicle and shelter supplies. Winmate lists compliance with MIL-STD-810G methods for vibration (514.6), humidity (507.4) and transit drop (516.5) and with MIL-STD-461 emissions and susceptibility tests including RE101/RE102, CE101/CE102 and RS101/RS103. The monitor measures 825 x 500 x 87.2 mm, runs fanless from 0 to 50 °C at 10 to 95% humidity and carries CE and FCC marks. It mounts in a rack on its handles or on VESA 200 x 200 and 200 x 100 holes.
W32L100-MLA3FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L100-MLA3FP |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 32"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 7x Display Ports |
| Video Inputs | 1x VGA Input 1xDVI-D 5 x BNC |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 825mm x 500mm x 87mm (32.48" x 19.69" x 3.43") |
- W32L100-MLA3FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L100-MLA3FP configured for USA defense and training programs. Within the Winmate range the W32L100-MLA1FP moves the same PCAP touch format to 3840 x 2160, and the W32L100-MRA3FP is a 32 inch marine display with an isolated DC input.
With PCAP touch and a 400 nit panel, the W32L100-MLA3FP sits among our rugged monitors, our projected capacitive touch monitors and our rack mount monitors. Where a command or training room needs a 32 inch touch display on AC power, this is the model to specify.
