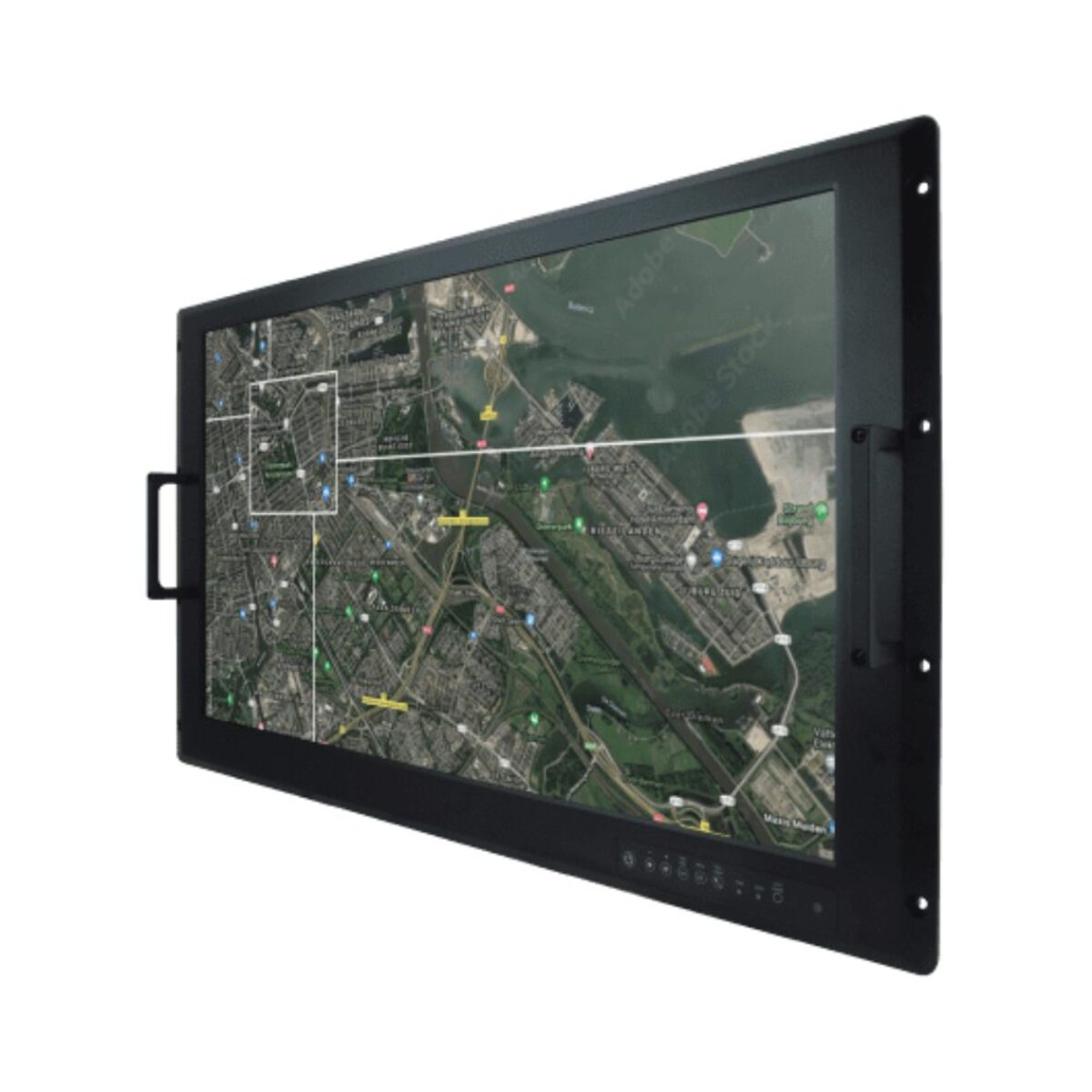

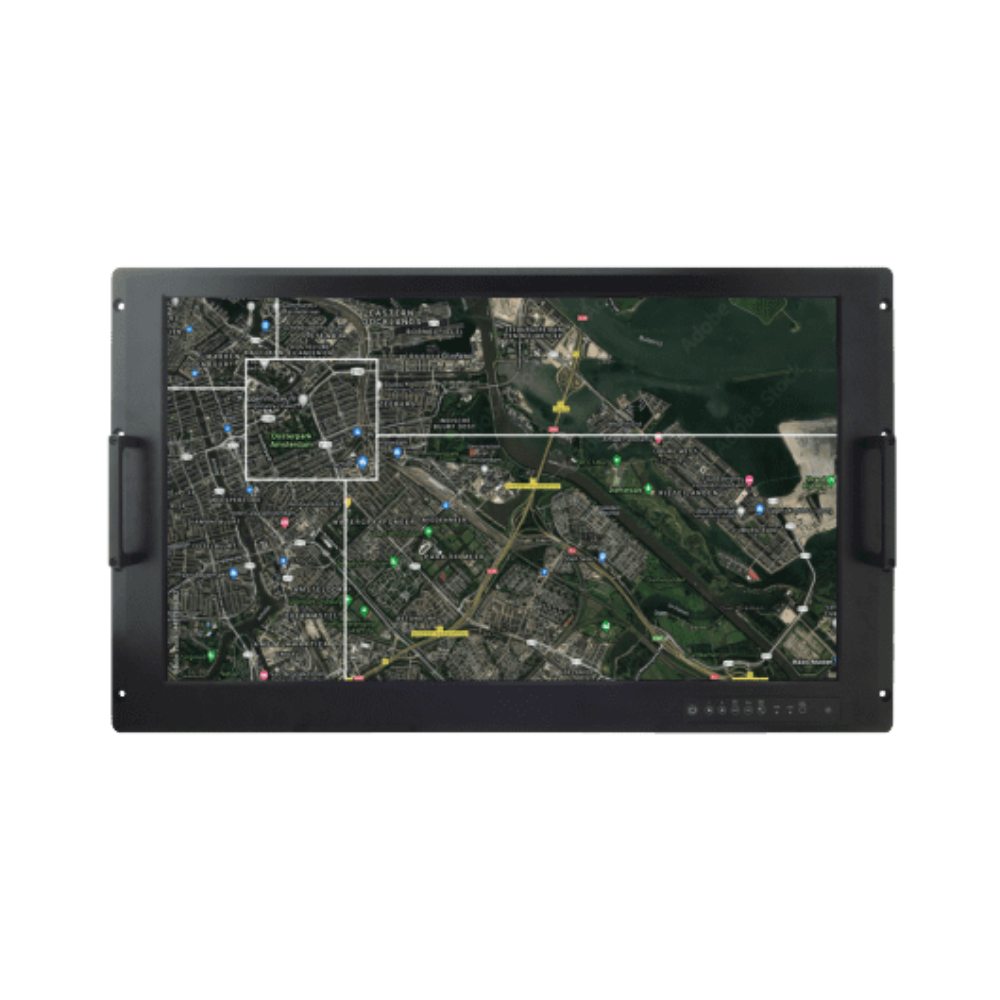

Winmate W32L100-RKA3ML 32″ Rack Mount Defense Monitor with 1920 x 1080 AR Glass and Light Sensor

Displays in a command room or vehicle rack are often read, not touched, and a hard glass front with automatic dimming suits them better than a touch layer. The W32L100-RKA3ML is Winmate’s 32 inch rack mount defense monitor: a fanless 1920 x 1080 display behind AR protection glass, with a built-in light sensor and a defence-grade power connector.

The 16:9 panel runs at 1920 x 1080 with 400 nits brightness, a 4000:1 contrast ratio and 178° viewing angles, showing 16.7 million colors. The AR protection glass cuts reflections from overhead lighting, and the light sensor sets brightness automatically as the room goes from day to night lighting. A seven-key panel handles power, brightness, menu, auto adjust, day/night mode and a control lock.

Video inputs are DVI and VGA as standard, with HDMI as an option, and 2 m VGA, DVI and HDMI cables come in the box. The W32L100-MLA3FP is the same 32 inch 1920 x 1080 format with PCAP touch, and the W24L100-RKS1ML gives a 24 inch 1920 x 1200 protective glass model with BNC inputs.

Power is 100 to 240 V AC universal on a MIL-DTL-38999/1 defence-grade connector, with 9 to 36 V DC as an ordering option for vehicle and shelter supplies. Winmate lists compliance with MIL-STD-810G methods for vibration (514.6), humidity (507.4) and transit drop (516.5) and with MIL-STD-461 emissions and susceptibility tests including RE101/RE102, CE101/CE102 and RS101/RS103. The monitor measures 825 x 486 x 88.5 mm, runs fanless from 0 to 50 °C at 10 to 95% humidity and carries CE and FCC marks. It mounts in a rack on its handles or on VESA 200 x 200, 200 x 100 or 100 x 100 holes.
