Winmate R21L100-MRM1 21.3″ Marine Monitor with Front IP66, Dimming Knob and 1000 Nit UXGA Panel
Resistive
High Bright
CE
FCCR21L100-MRM1 Overview

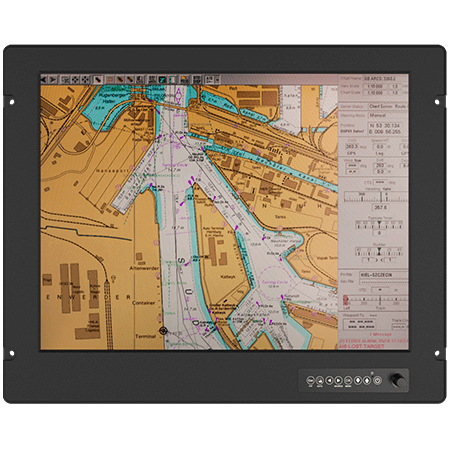

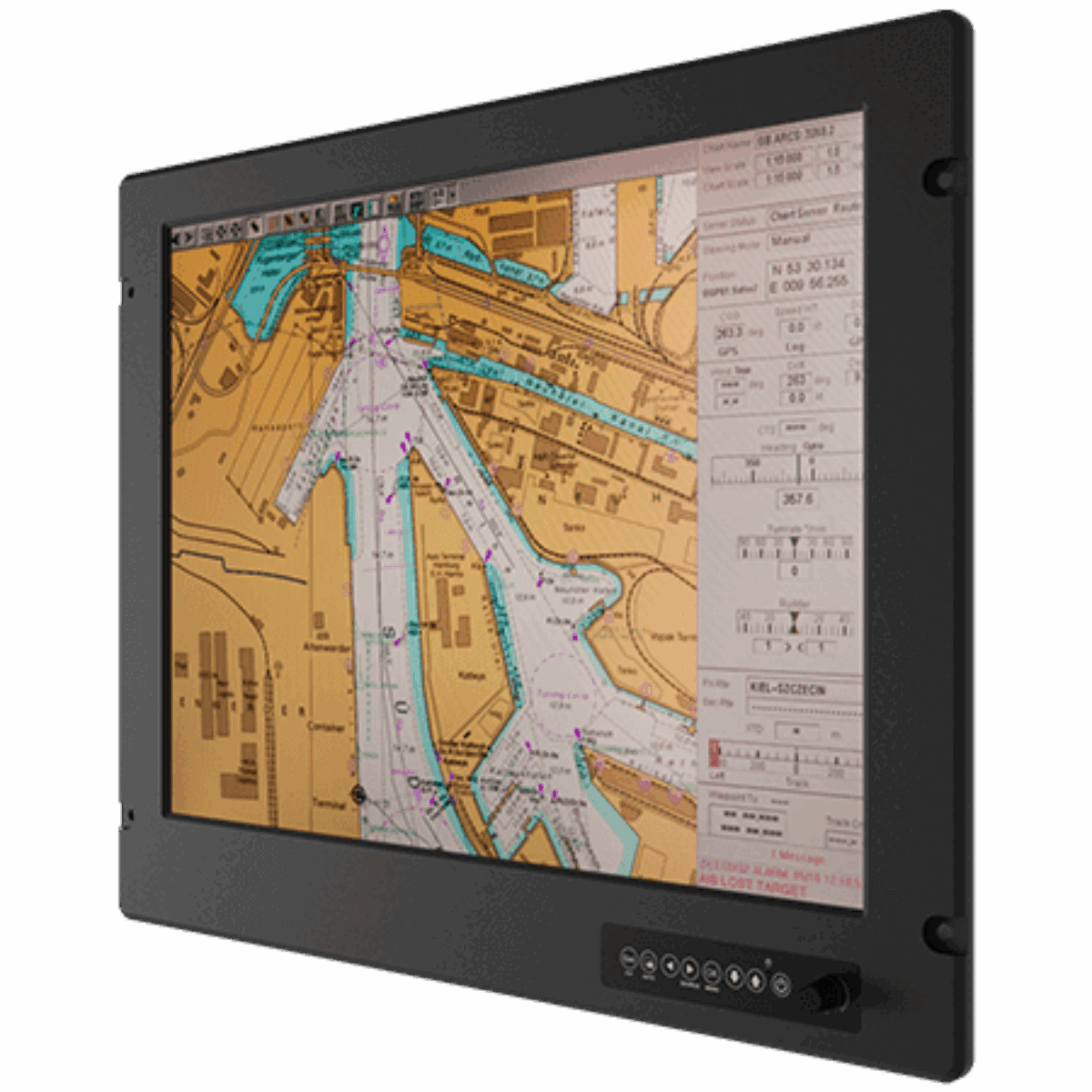

A bridge display has to be readable at noon and dim almost to black at night without spoiling the watch officer’s night vision. The R21L100-MRM1 is Winmate’s 21.3 inch marine monitor, with a 1000 nit 1600 x 1200 panel, a front dimming knob and an IP66 front, designed in compliance with DNVGL-CG-0339, IEC 60945 4th Edition and IACS E10.
The 4:3 UXGA panel pairs 1000 nits with an 1800:1 contrast ratio and 89 degree viewing angles in every direction, and the dimming knob takes the backlight from nearly 0% to 100%. Resistive touch is standard and connects over RS-232 or USB, and AR protection glass is available instead for display-only positions. An eight-key OSD sits beside the knob.
Video inputs are VGA, DVI-D, composite and S-Video, which covers chart systems, radar and camera sources, and a separate RS-232 port supports remote control. Where the same 21.3 inch panel is needed outside a marine housing, the R21L100-OFM1 is the open frame version, and the R21L100-MLM1FP is a rack mount defense build with PCAP touch.
The powder-coated aluminum housing is IP66 at the front and IP54 at the rear, measures 519 x 420 x 81.4 mm, weighs 7.5 kg and fits a 480 x 396 mm panel cut-out or VESA. It accepts 9 to 36 V DC through a 24 V DC isolated power module and draws 50 W typical. It operates from -15 to 55 °C at 5 to 95% humidity, withstands 15 g shock for 11 ms and 0.7 g vibration to DNV-CG-0339 Class A, and carries CE and FCC marks.
R21L100-MRM1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R21L100-MRM1 |
| Features | Fanless Industrial |
| Display | |
| Display | 21.3"[4:3, 1600 x 1200, UXGA] |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1800:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 24V DC |
| Environmental Conditions | |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 519mm x 420mm x 81mm (20.43" x 16.54" x 3.19") |
- R21L100-MRM1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R21L100-MRM1 configured for USA marine and offshore projects. Within the Winmate range the R21L100-OFM1 uses the same 21.3 inch 1000 nit panel in an open frame, and the R21L100-MLM1FP is the rack mount defense build with PCAP touch.
Designed to marine standards the R21L100-MRM1 sits among our marine monitors, our front IP66 monitors and our sunlight readable displays. Where a bridge screen must dim almost to black for night watches on the bridge, this is the model to specify.
