Winmate R21L100-MLM1FP 21.3″ Rack Mount PCAP Touch Defense Monitor with 1000 Nit UXGA Panel
PCAP
High Bright
CE
FCCR21L100-MLM1FP Overview

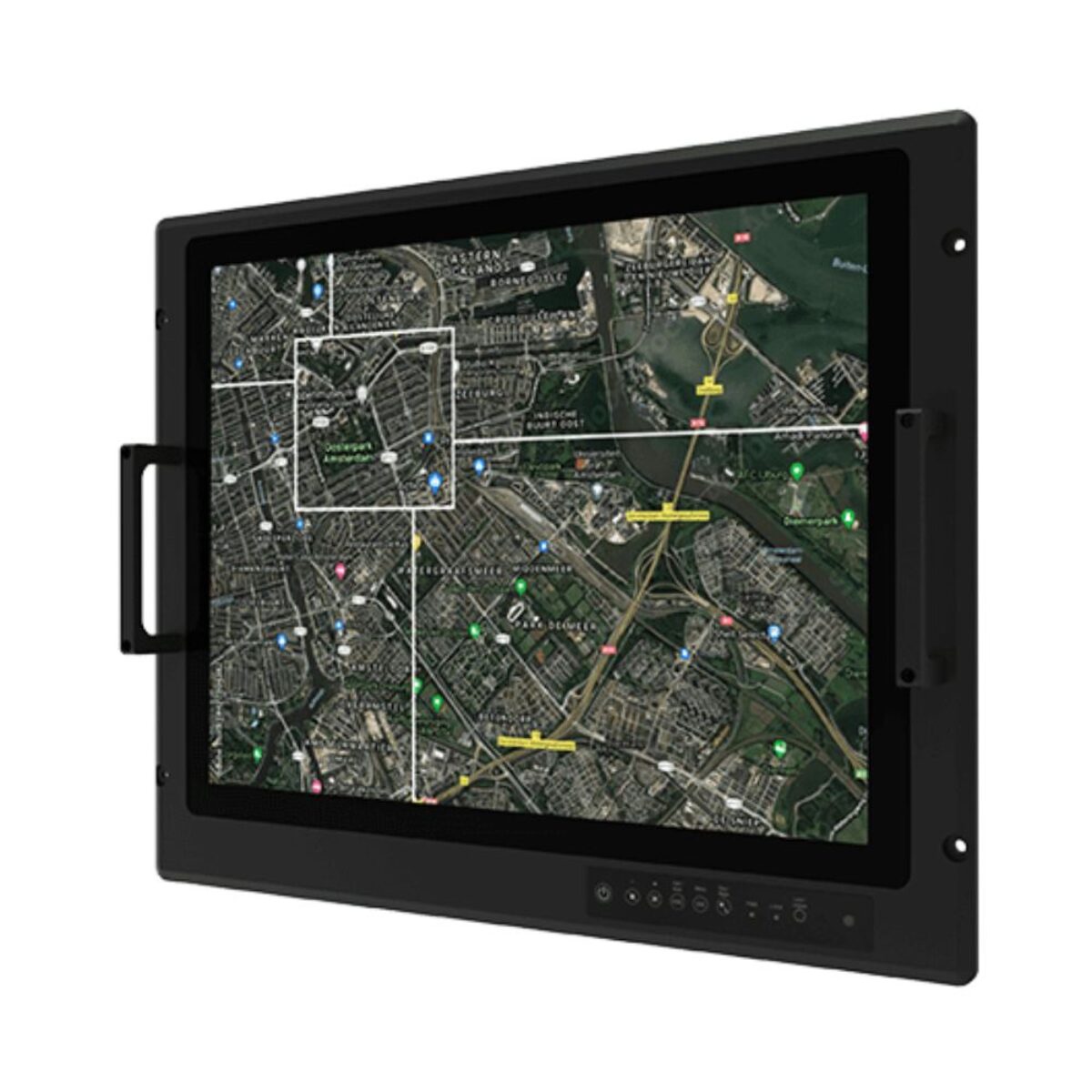

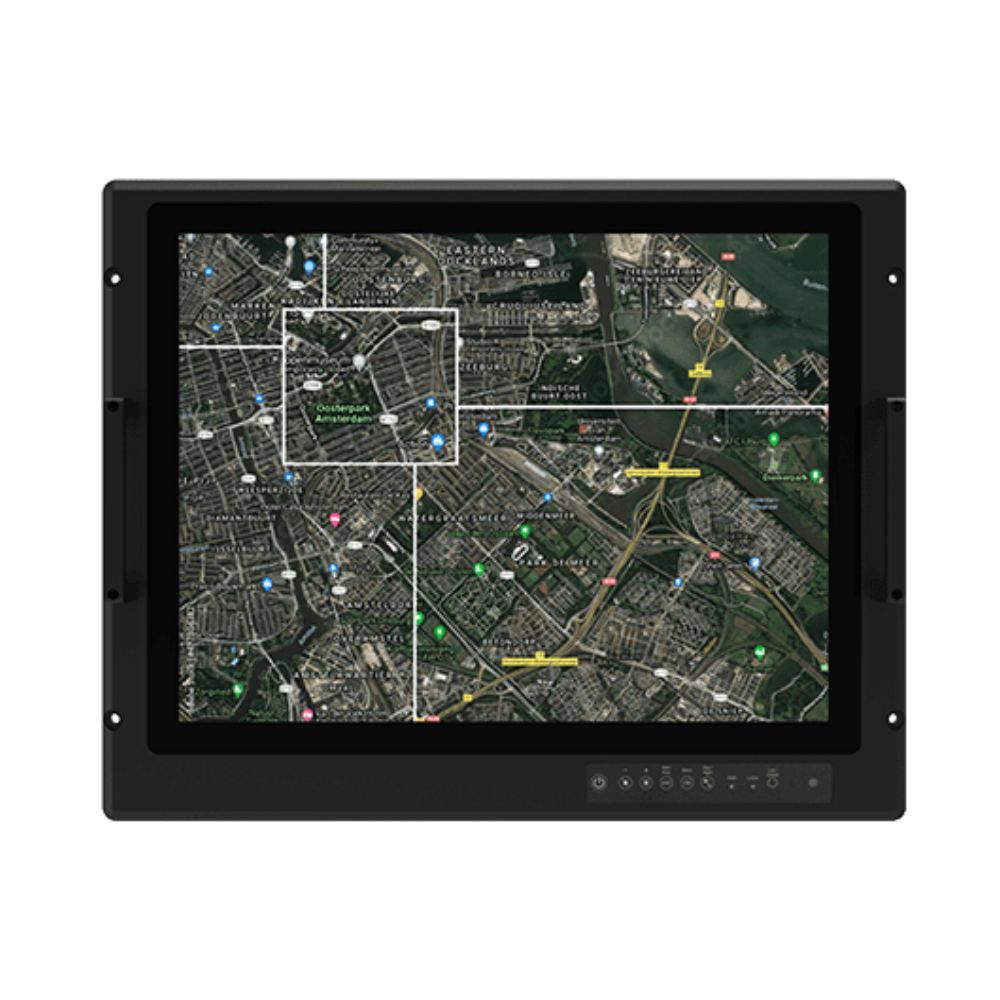

Operations rooms show dense maps and tracks that need both screen area and brightness. The R21L100-MLM1FP is Winmate’s 21.3 inch rack mount defense monitor, with PCAP multi-touch on a 1000 nit 1600 x 1200 panel and compliance with MIL-STD-810G and MIL-STD-461E.
The 4:3 UXGA panel pairs 1000 nits with an 1800:1 contrast ratio, 16.8 million colors and 89 degree viewing angles in every direction, so detail holds up for operators beside the screen as well as in front of it. Projected capacitive multi-touch connects over USB, and PCAP with ITO film is an option where EMI performance matters. A seven-key OSD includes day/night and lock/unlock keys. The active area measures 432 x 324 mm.
Video inputs are VGA, five BNC connectors for RGBHV and DVI-D, covering legacy radar and sensor sources as well as current computers. For a 19 inch console the R19L100-MLA3FP is the PCAP rack build at that size, and the R21L100-MRM1 puts a 21.3 inch 1000 nit panel into a marine housing.
The fanless metal housing with an aluminum bezel measures 539.1 x 430.3 x 71.4 mm, so check rack width before specifying, and mounts on its rack ears, in a 500 x 418 mm cut-out or on VESA. Power is 100 to 240 V AC universal through a MIL-DTL-38999/1 connector, with 9 to 36 V DC as an option. It operates from 0 to 50 °C at up to 95% RH, stores from -10 to 60 °C and carries CE and FCC marks. Winmate names command centres and air traffic control as target uses.
R21L100-MLM1FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R21L100-MLM1FP |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 21.3"[4:3, 1600 x 1200, UXGA] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1800:1 |
| Number of Display Inputs | 7x Display Ports |
| Video Inputs | 1x VGA Input 1xDVI-D 5 x BNC |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 580mm x 384mm x 71mm (22.83" x 15.12" x 2.8") |
- R21L100-MLM1FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R21L100-MLM1FP configured for USA defense and air traffic projects. Within the Winmate range the R19L100-MLA3FP is the 19 inch PCAP rack display, and the R21L100-MRM1 uses a 21.3 inch 1000 nit panel in a marine housing.
At 21.3 inches the R21L100-MLM1FP sits among our military displays, our sunlight readable monitors and our PCAP touch monitors. Where a command or air traffic console needs a large bright touch screen, this is the model to specify.
