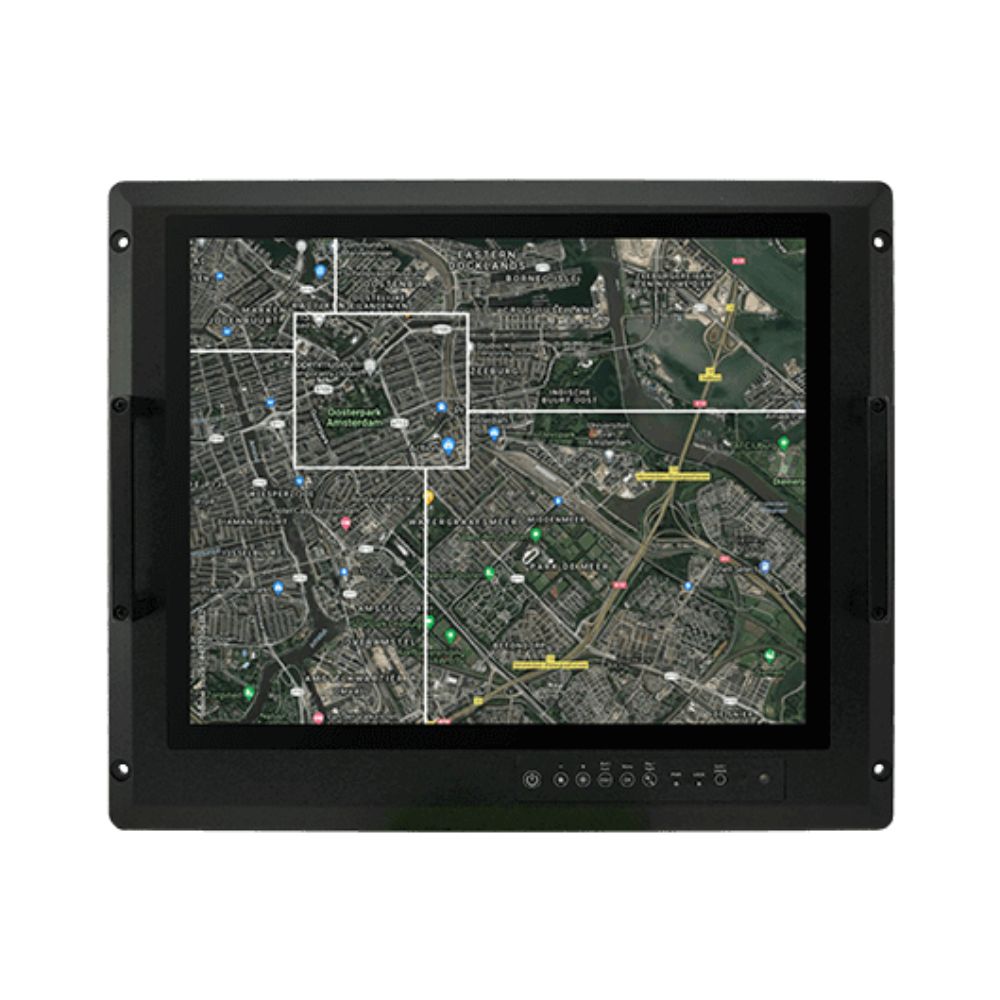

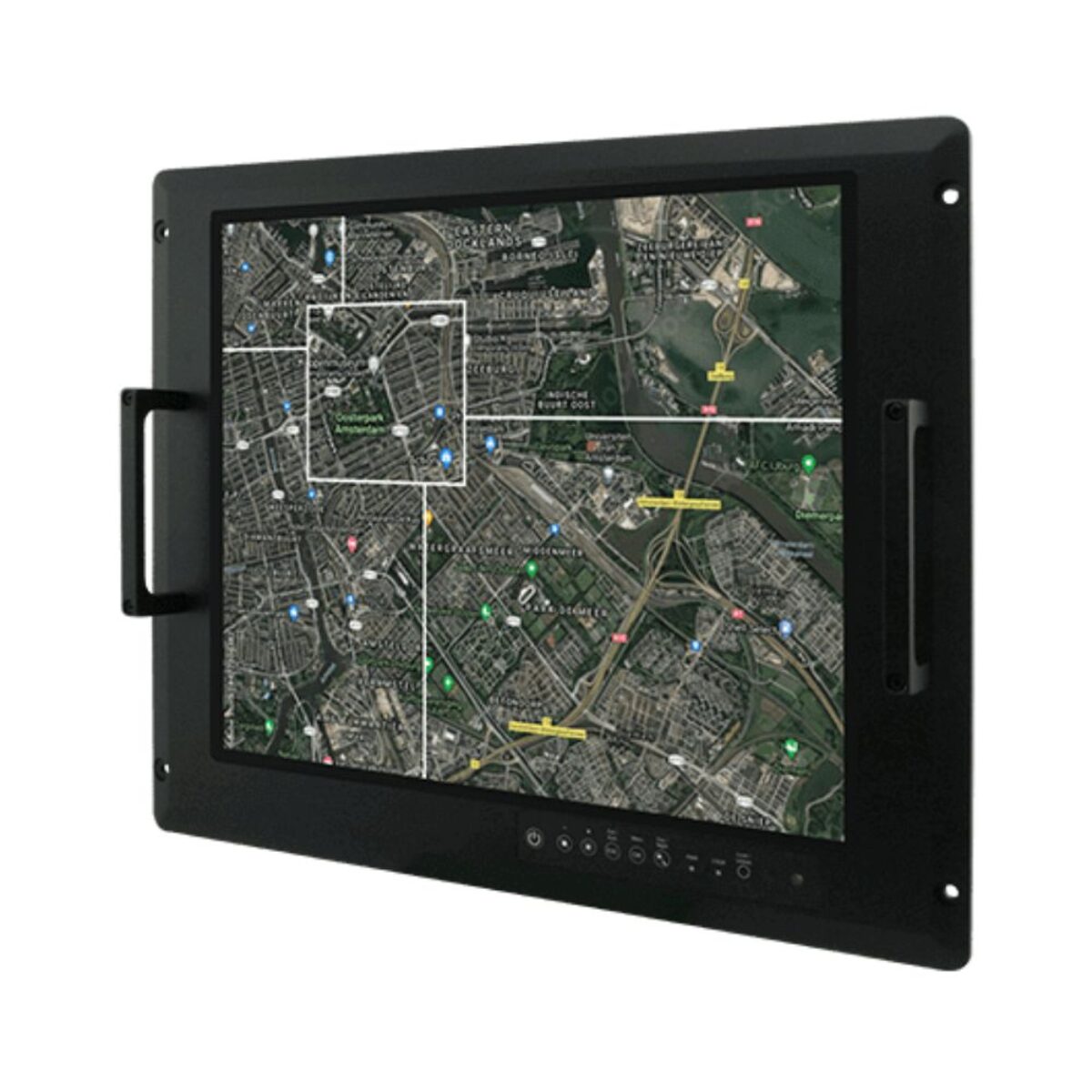

Winmate R19L100-MLA3FP 19″ Rack Mount PCAP Touch Defense Monitor with Front IP65 and MIL-STD-810G
PCAP
CE
FCCR19L100-MLA3FP Overview
Command and simulator consoles increasingly run touch-driven software, but the display still has to pass defense testing. The R19L100-MLA3FP is Winmate’s 19 inch rack mount defense monitor, with PCAP multi-touch, a front IP65 rating and compliance with MIL-STD-810G and MIL-STD-461E.
The 5:4 SXGA panel runs at 1280 x 1024 with 350 nits, a 1000:1 contrast ratio and 16.7 million colors. Projected capacitive multi-touch connects over USB, and PCAP with ITO film is an option where EMI performance matters. A seven-key OSD includes day/night and lock/unlock keys for darkened rooms and protected settings. The active area measures 376.3 x 301.1 mm.
Video inputs are VGA, five BNC connectors for RGBHV and DVI-D, covering radar and sensor sources as well as modern computers. Where operators read rather than touch the screen, the R19L100-RKA3ML is the AR protection glass build, and the R17L100-MLA1FP offers the PCAP rack design on a 17 inch panel. The front IP65 rating protects the console face from dust and spills.
The fanless metal housing with an aluminum bezel measures 482.6 x 399.3 x 79.6 mm and mounts in a rack or on 100 x 100 mm VESA. Power is 100 to 240 V AC universal through a MIL-DTL-38999/1 connector, with 9 to 36 V DC as an option. It operates from -20 to 60 °C at up to 95% RH, stores from -30 to 70 °C and carries CE and FCC marks. Winmate names defense operations, command centres, control rooms and training simulators as target uses. A MIL-DTL-38999/1 power cord, VGA and DVI cables and a VGA to five-BNC shielded cable are supplied.
R19L100-MLA3FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L100-MLA3FP |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 7x Display Ports |
| Video Inputs | 1x VGA Input 1xDVI-D 5 x BNC |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 482mm x 399mm x 80mm (18.98" x 15.71" x 3.15") |
- R19L100-MLA3FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19L100-MLA3FP configured for USA defense and simulation projects. Within the Winmate range the R19L100-RKA3ML is the 19 inch rack display with AR protection glass, and the R17L100-MLA1FP brings PCAP touch to a 17 inch rack panel.
With PCAP touch the R19L100-MLA3FP sits among our military displays, our 19 inch rack mount monitors and our capacitive touch monitors. Where a defense console needs touch and a sealed front, this is the model to specify.
