Winmate R10L600-VMP1 10.4″ Rugged Front IP65 Resistive Touch Monitor with 10 to 60 V DC Input

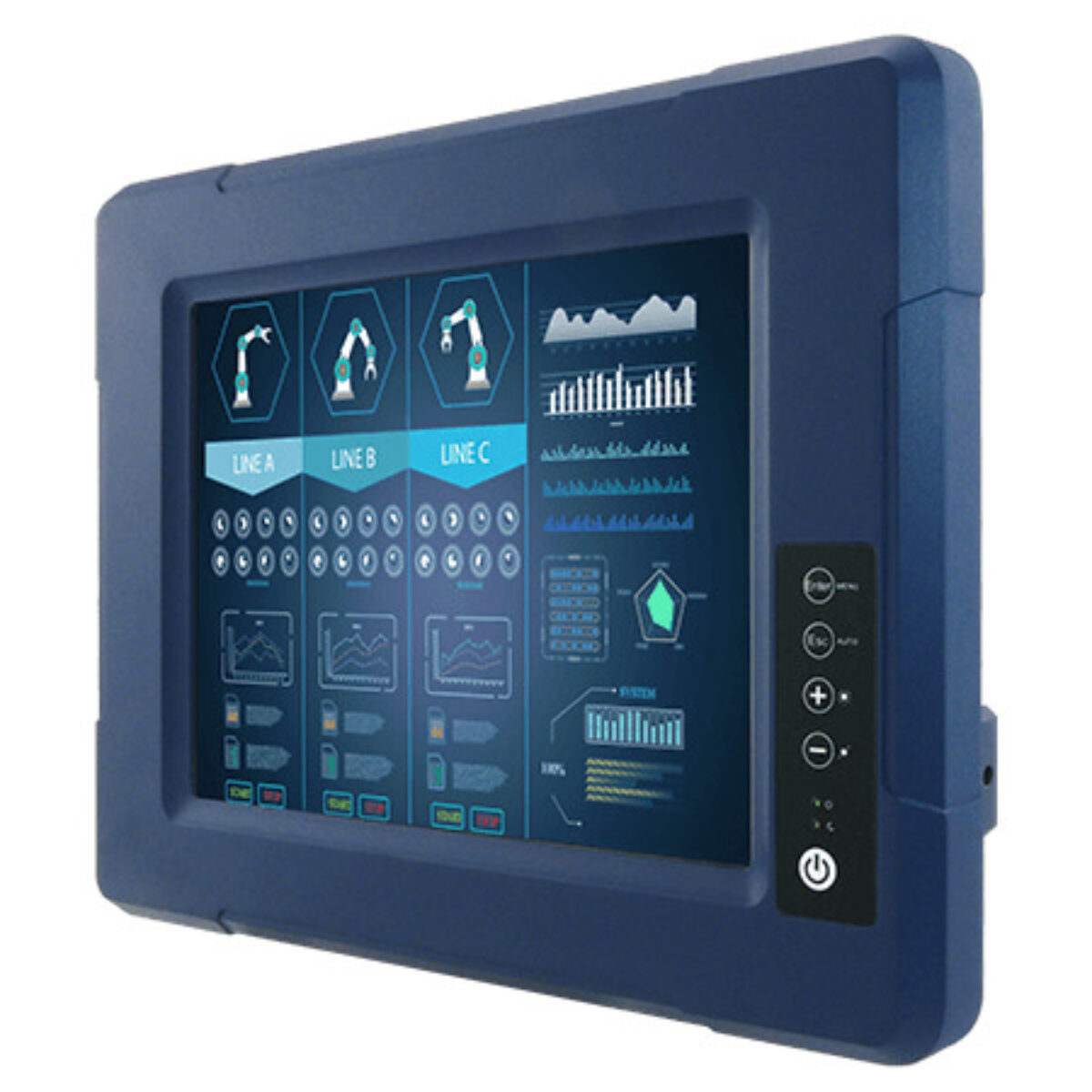

Screens in vehicles and mobile field equipment face vibration, dust, spray and supply voltages that swing with the engine. The R10L600-VMP1 is Winmate’s 10.4 inch G-WIN rugged monitor for those installs: a resistive touch display in an anti-corrosion aluminum housing with a front IP65 rating and an isolated 10 to 60 V DC input.

The panel is 800 x 600 SVGA, and Winmate’s product page lists 600 nits with a 400:1 contrast ratio and viewing angles of 140° horizontally and 130° vertically. The 5-wire resistive touch screen responds to gloved fingers and a stylus, connecting over an optional USB type-A port or an optional RS-232 D-sub port. Five front buttons handle power, adjustment and menu, with LED indicators for power and status.

Video comes in over one VGA input, with an optional HDMI input. The front IP65 rating covers the panel face but not the I/O ports, so plan cable entry on the protected side. Winmate also states compliance with EN 50155. For a smaller cab the R08T200-VMU1 offers 8.4 inches in the same G-WIN line, and the R12L100-VMM2 gives a 12.1 inch screen.

Power is isolated 10 to 60 V DC on a three-pin terminal block, with ignition on/off control as an option. The R10L600-VMP1 is fanless, operates from -10 to 55 °C, stores from -30 to 70 °C and is vibration-tested to MIL-STD-810G Method 514.6. It measures 315 x 250 x 67 mm, weighs 2.9 kg and takes 75 x 75 mm VESA or an optional yoke stand. Winmate names industrial visualization, control rooms and equipment monitoring.
