Winmate R10L210-MRM2 10.4″ Marine Panel Mount Monitor with Resistive Touch and Front IP66 Bezel
Resistive
Fanless
CE
FCCR10L210-MRM2 Overview

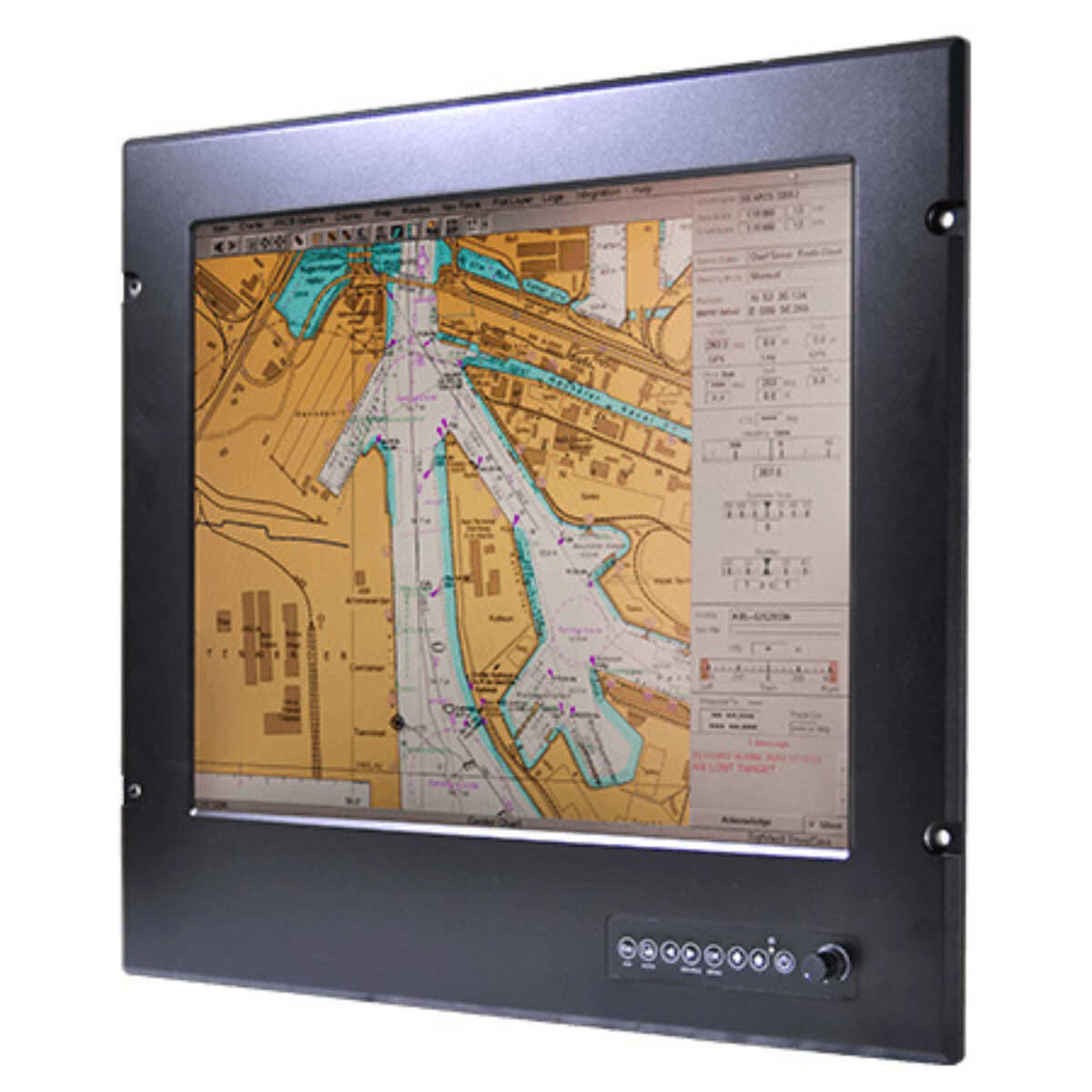

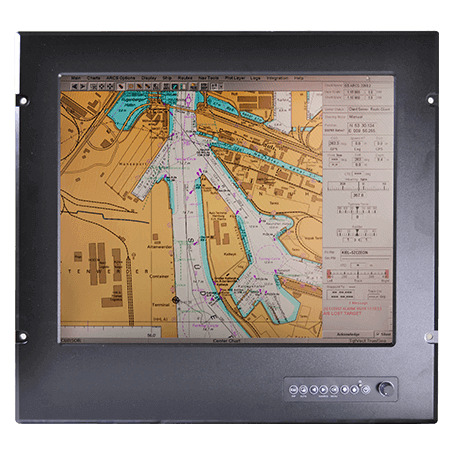

Screens on a ship’s bridge or in an engine control room face vibration, salt air and night-time watchkeeping, and the equipment usually has to carry marine approvals before it is fitted. The R10L210-MRM2 is Winmate’s 10.4 inch marine monitor: an 800 x 600 LCD with resistive touch in a powder-coated aluminum bezel rated IP66 at the front, certified to DNVGL-CG-0339, IEC 60945 4th edition and IACS E10.
The panel runs at 600 nits with a 400:1 contrast ratio and 262,000 colors across an active area of 211.2 x 158.4 mm. A dimming knob sets the backlight from nearly 0% to 100%, which lets the bridge team turn the screen right down for night passages. The resistive touch screen works with gloved hands, and an AR glass front is available as an option.
Video comes in over VGA, DVI-D, composite and S-Video, with picture-in-picture so a camera feed can sit alongside chart or alarm data. One RS-232 port handles remote control and a second RS-232/USB port carries the touch signal. A front-panel OSD keypad sets the picture. The R17L500-MRM1 offers a larger 17 inch SXGA screen in the same style, and the R19L300-MRA1 moves to 19 inch.
Power comes from an isolated 24 V DC input on a terminal block, the input approved by certificate, with 9 to 36 V DC acceptable, at 25 W typical. The monitor is fanless, operates from -15 °C to 55 °C at 5 to 95% humidity, and is rated for 15 G shock over 11 ms and 0.7 g vibration to DNVGL-CG-0339 Class A. It measures 339 x 256 x 72 mm and weighs 3.7 kg, and mounts in a panel or on 75 x 75 mm VESA holes. Winmate names marine bridge systems, shipboard automation and offshore operations as applications.
R10L210-MRM2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L210-MRM2 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 600 Nits |
| 140° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 400:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 9-36V DC Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE DNV GL FCC IEC 60945 |
| Mechanical Properties | |
| Dimensions | 339mm x 256mm x 72mm (13.35" x 10.08" x 2.83") |
- R10L210-MRM2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L210-MRM2 for USA marine and offshore projects. Within the Winmate range the R17L500-MRM1 offers a larger 17 inch SXGA screen in the same marine style, and the R19L300-MRA1 moves to 19 inch at 400 nits.
With its marine certification the R10L210-MRM2 sits among our marine monitors, our front IP66 monitors and our 10 inch industrial monitors. Where a bridge or engine room console needs a compact certified touch screen, this is the Winmate model to specify.
