Winmate R15L100-MRC3HB 15″ Marine Monitor with 1000 Nit XGA Display, Dimming Knob and Front IP66
Resistive
High Bright
Fanless
CE
FCCR15L100-MRC3HB Overview

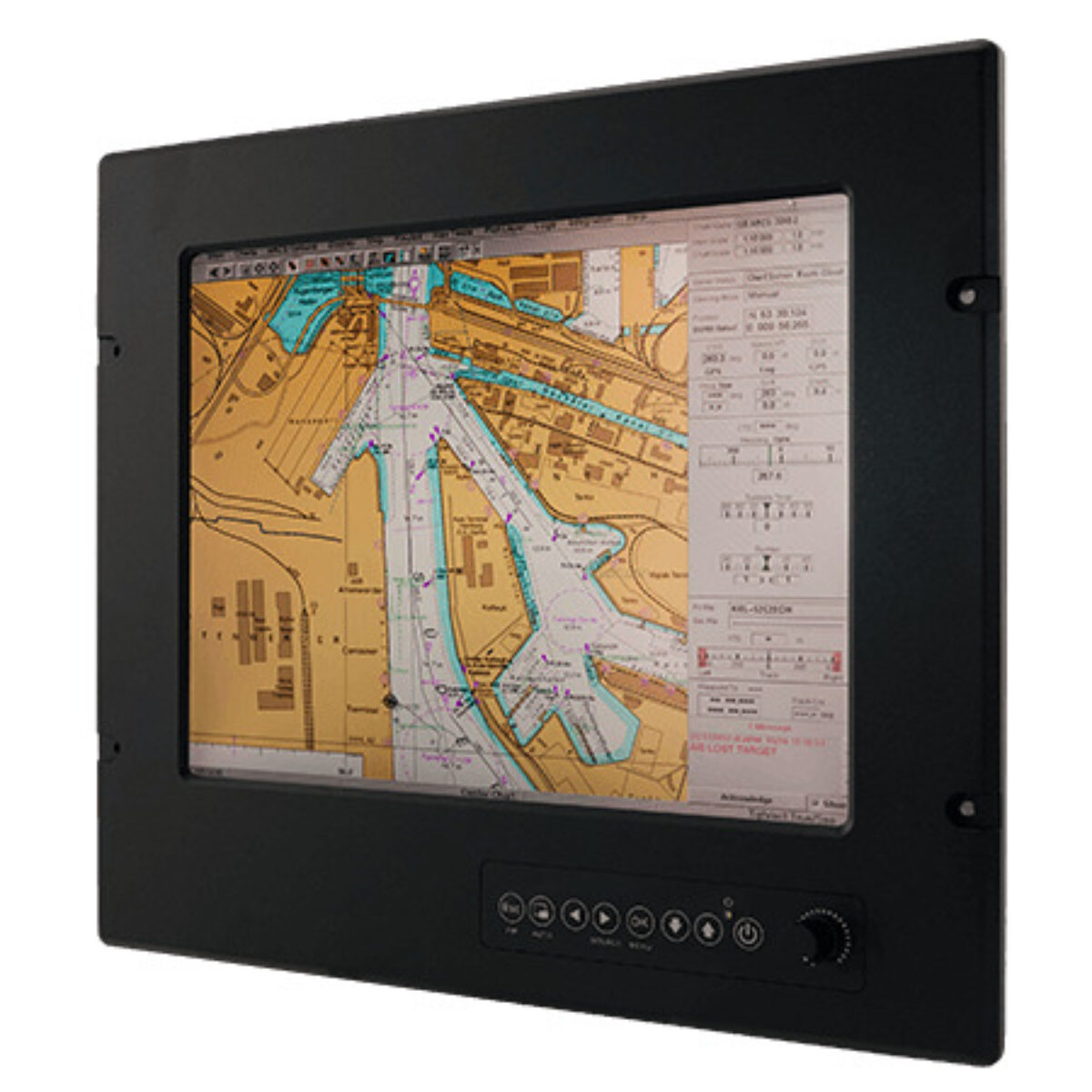

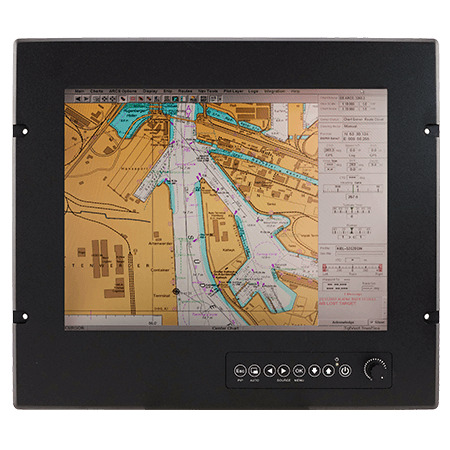

A bridge display has to be bright enough for a sunlit wheelhouse and dim enough not to spoil night vision on watch. The R15L100-MRC3HB is Winmate’s 15 inch marine display, pairing a 1000 nit panel with a dimming knob that takes the backlight from nearly 0% to 100%, in a flush panel mount housing with an IP66 front.
The 15 inch LCD runs at 1024 x 768 with 1000 nits, a 2000:1 contrast ratio, 16.2M colors and 176° viewing angles. A resistive touch screen is fitted as standard, with AR glass available as an option. Eight front keys control the on-screen display, source selection and picture-in-picture alongside the dimming knob.
The rear carries VGA, DVI-D, composite and S-Video inputs, so navigation charts and camera feeds can share one screen using picture-in-picture. An RS-232 port handles remote control and an RS-232/USB port handles touch. The R21L100-MRM1 offers the same marine approach on a 21.3 inch 1600 x 1200 panel, and the W24L100-MRA1 moves to a 24 inch widescreen.
Power is a 24 V DC isolated input that accepts 9 to 36 V DC, with AC power as an option, and typical consumption is 40 W. The monitor operates from -15 °C to 55 °C at 5 to 95% humidity, withstands 15 G shock for 11 ms and is vibration rated at 0.7 g to DNVGL CG-0339 Class A. Winmate states that its marine displays are built and tested according to DNVGL-CG-0339, IEC 60945 and IACS E10. It measures 412 x 345 x 79.7 mm, weighs 6.5 kg, fits a 338 x 288 mm cut-out or 75 x 75 mm VESA holes, and carries CE and FCC marks.
R15L100-MRC3HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-MRC3HB |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1x Composite 1x S-Video 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 9-36V DC Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP66 Front IP66 [Dustproof, Protection against powerful water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 412mm x 345mm x 80mm (16.22" x 13.58" x 3.15") |
- R15L100-MRC3HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-MRC3HB configured for USA marine and offshore projects. Within the Winmate range the R21L100-MRM1 gives a larger 21.3 inch marine screen, and the W24L100-MRA1 suits widescreen chart and camera layouts.
Built for the bridge the R15L100-MRC3HB sits among our marine displays, our front IP66 monitors and our sunlight readable monitors. Where a console needs a bright, dimmable 15 inch screen, this is the model to specify.
