Jetson Xavier

A Breakthrough for Compute Density in Embedded Edge Devices

NVIDIA Jetson Xavier modules offer high levels of compute density with supreme energy efficiency in compact form-factors. Available in two different series scaling different levels of performance, you have the Xavier NX, and AGX Xavier modules providing intelligent machines with end-to-end autonomous capabilities at the edge. Our Jetson Xavier embedded systems can be pre-configured to withstand any industry application in a box PC or carrier board assembly kit.

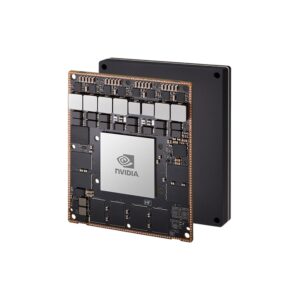

Jetson AGX Xavier

Jetson AGX Xavier is a small, power-efficient AI computing platform created to be used in autonomous machines and provides sizeable inferencing capabilities on edge devices. It has hardware that enables the use of artificial intelligence with up to 32 TeraOPS (TOPS) of peak compute performance and a diverse range of high-speed I/O, making it a perfect choice for developing edge AI applications. As part of an embedded roadmap with long-term availability, the Jetson AGX Xavier Industrial module has been designed with industrial-grade components offering an extended temperature range and shock and vibration protection, as well as additional functional safety features.

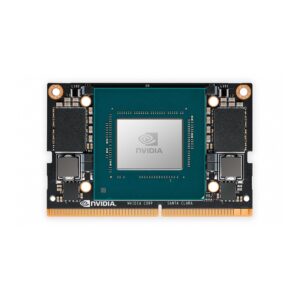

Jetson Xavier NX

The NVIDIA Jetson Xavier NX SOM is a miniaturized form factor that provides the computational power of a supercomputer. It can handle a large amount of data from multiple high-resolution sensors and execute multiple neural networks at the same time, which is necessary for AI-based devices such as robots, medical devices, smart cameras, automated vision inspection systems, and alternate Artificial Intelligence of Things (AIoT) applications.

Performance

Graphics

I/O

Expansion

Storage

Power

Environmental Conditions

AIE110-XNX

Nvidia Xavier NX Carrier Board

  • SOM: Xavier NX
  • OS: Linux
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [RJ45], 1 x GbE LAN [RJ45] [PoE]
  • USB: 1 x USB 2.0 [Type A], 1 x USB 3.2 Gen 2 [Type A]
  • M.2: 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x Micro SD
  • Power: 12V DC [Barrel Connector]
  • Temp: -10°C to 60°C [14°F to 147°F]
  • Certification: CE, FCC

AIE900-XNX

AMR Jetson Xavier NX Automotive Computer with 4 PoE and 4 FPD-LINK III

  • SOM: Xavier NX
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [RJ45] [PoE], 4 x GbE LAN [RJ45] [PoE]
  • USB: 2 x USB 3.2 Gen 2 [Type A]
  • Serial: 2x RS232/422/485 [DB9]
  • M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD
  • Power: 9-36V DC Input [Terminal Block]
  • Ignition Sensing: Supports Ignition Control
  • Temp: -30°C to 60°C [-22°F to 147°F]
  • Certification: CE, FCC
  • Mounting Options: DIN Mount, VESA Mount, Wall Mount

AIE800-904-FL

AC Powered Outdoor Waterproof NVIDIA Jetson Xavier NX Embedded System

  • SOM: Xavier NX
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [M12] [PoE]
  • USB: 1 x USB 2.0 [C3]
  • M.2: 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x Micro SD
  • Power: 100-240V AC [M12]
  • Temp: -30°C to 50°C [-22°F to 122°F]
  • Certification: CE, FCC
  • Mounting Options: VESA Mount, Wall Mount

AIE800-904-FL-DC

Rugged IP67 NVIDIA Jetson Xavier NX Computer with GbE PoE

  • SOM: Xavier NX
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [M12] [PoE]
  • USB: 1 x USB 2.0 [C3]
  • M.2: 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x Micro SD
  • Power: 9-36V DC Input [M12]
  • Temp: -30°C to 50°C [-22°F to 122°F]
  • Certification: CE, FCC
  • Mounting Options: VESA Mount, Wall Mount

AIE100-903-FL-NX

Wide Temperature NVIDIA Jetson Xavier NX PC with GbE PoE

  • SOM: Xavier NX
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [RJ45], 1 x GbE LAN [RJ45] [PoE]
  • USB: 1 x USB 2.0 [Type A], 1 x USB 3.2 Gen 2 [Type A]
  • M.2: 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x Micro SD
  • Power: 12V DC [Barrel Connector]
  • Temp: -30°C to 50°C [-22°F to 122°F]
  • Certification: CE, FCC
  • Mounting Options: DIN Mount, VESA Mount, Wall Mount
  • SOM: AGX Xavier
  • OS: Linux
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [RJ45]
  • USB: 2 x USB 3.1 Gen 1 [Type A]
  • Serial: 2 x RS232/422/485 [Terminal Block]
  • CANbus: 1 x CANbus [Terminal Block]
  • M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
  • Storage: 1x M.2 SSD, 1x Micro SD, 32GB eMMC
  • Power: 18-30V DC [Terminal Block]
  • Temp: -25°C to 85°C [-13°F to 185°F]
  • Certification: CE, FCC, RoHS
  • Mounting Options: DIN Mount, Wall Mount

eNVP-JAX-AI-V0008

Industrial AGX Xavier AI NVR with 8x PoE Channels

  • SOM: AGX Xavier
  • OS: Linux
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x Display Port, 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45], 8 x GbE LAN [RJ45] [PoE]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.0 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/485 [DB9]
  • CANbus: 1 x CANbus, DB9
  • M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
  • Storage: 1x M.2 SSD, 1x Micro SD, 2x 2.5" HDD/SSD, 32GB eMMC
  • Power: 9-36V DC Input [Terminal Block]
  • Temp: -20°C to 60°C [-4°F to 147°F]
  • Certification: CE, EN50155, FCC
  • Mounting Options: Desktop
  • SOM: AGX Xavier
  • OS: Linux
  • Display Outputs: 1x HDMI, 1x LVDS
  • Ethernet: 2 x GbE LAN [Board]
  • USB: 2 x USB 2.0 [Board], 2 x USB 3.1 Gen 1 [Board]
  • Serial: 4 x RS232/422/485 [Board]
  • CANbus: 2 x CANbus [Board]
  • M.2: 1x M.2 M-Key [PCIe x4] [2242]
  • Storage: 1x M.2 SSD, 64GB eMMC
  • Power: 9-20V DC [Terminal Block]
  • Temp: -40°C to 85°C [-40°F to 185°F]
  • Certification: CE, FCC
  • SOM: Xavier NX
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [RJ45]
  • USB: 2 x USB 3.1 Gen 1 [Type A]
  • Serial: 1 x RS232/422/485 [Terminal Block]
  • CANbus: 1 x CANbus [Terminal Block]
  • M.2: 1x M.2 B-Key [PCIe x2/USB 3.0/SATA] [2280/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
  • Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
  • Power: 9-28V DC [Terminal Block]
  • Temp: -25°C to 65°C [-13°F to 149°F]
  • Certification: CE, FCC
  • SOM: AGX Xavier
  • OS: Linux Ubuntu 18.04
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
  • Serial: 2 x RS232/422/485 [Board]
  • CANbus: 2 x CANbus [Board]
  • M.2: 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x Micro SD, 32GB eMMC
  • Power: 9-20V DC [Barrel Connector]
  • Temp: -25°C to 70°C [-13°F to 158°F]
  • Certification: CE, FCC
  • SOM: Xavier NX, Nano, TX2
  • OS: Linux Ubuntu 18.04
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [RJ45]
  • USB: 1 x USB 3.0 [Type A], 2 x USB 2.0 [Type A]
  • Serial: 1 x RS232 [Board], 1 x RS232/485 [Board]
  • M.2: 1x M.2 M-Key [PCIe x4] [2280]
  • Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
  • Power: 12-24V DC [Barrel Connector]
  • Temp: -25°C to 80°C [-13°F to 176°F]
  • Certification: CE, FCC
  • Mounting Options: Desktop, DIN Mount
  • SOM: Xavier NX
  • OS: Linux Ubuntu 18.04
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 1 x GbE LAN [RJ45]
  • USB: 1 x USB 3.0 [Type A], 2 x USB 2.0 [Type A]
  • Serial: 1 x RS232 [DB9], 1 x RS232/485 [DB9]
  • CANbus: 1 x CANbus, DB9
  • M.2: 1x M.2 M-Key [PCIe x4] [2280]
  • Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
  • Power: 7-28V DC [Barrel Connector], AC Power Supply Included
  • Temp: -25°C to 80°C [-13°F to 176°F]
  • Certification: CE, FCC
  • Mounting Options: Desktop, DIN Mount
  • SOM: AGX Xavier
  • OS: Linux Ubuntu 18.04
  • AI Accelerator: NVIDIA Jetson SOM
  • Display Outputs: 1x HDMI
  • Ethernet: 2 x GbE LAN [RJ45]
  • USB: 2 x USB 2.0 [Type A], 2 x USB 3.1 Gen 1 [Type A]
  • Serial: 4x RS232/422/485 [DB9]
  • CANbus: 2 x CANbus, DB9
  • M.2: 1x M.2 M-Key [PCIe x4] [2280]
  • mPCIe: 1 x mPCIe [PCIe/USB]
  • Storage: 1x M.2 SSD, 1x Micro SD, 32GB eMMC
  • Power: 9-20V DC [Terminal Block], AC Power Supply Included
  • Temp: -25°C to 70°C [-13°F to 158°F]
  • Certification: CE, FCC
  • Mounting Options: Desktop, DIN Mount
Showing 1–15 of 22 results
