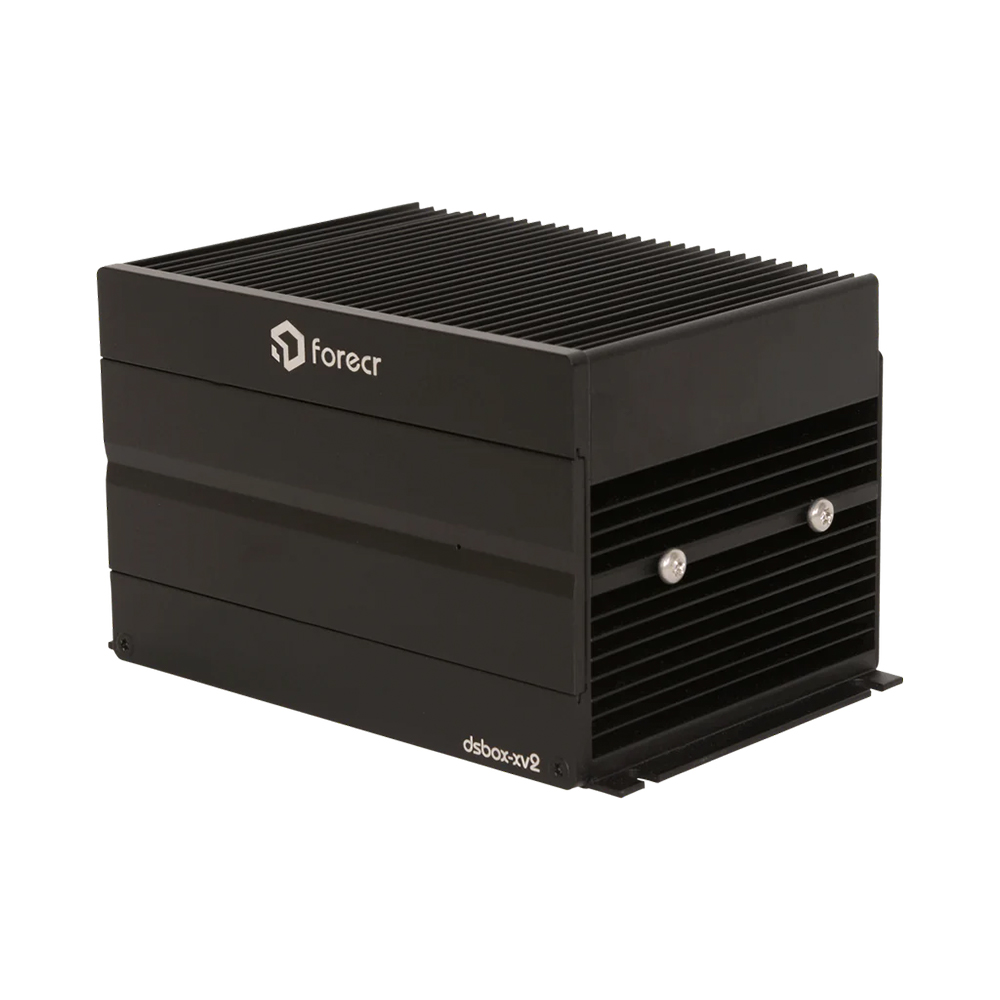

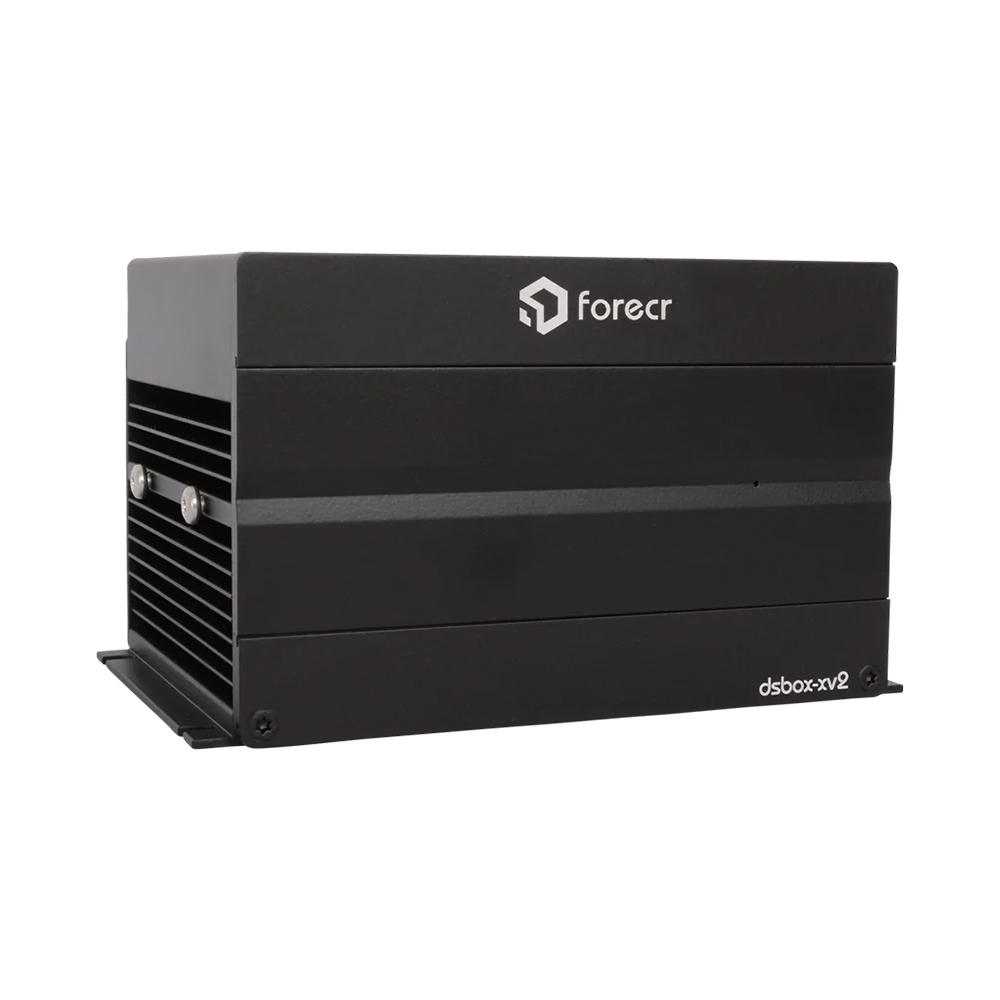

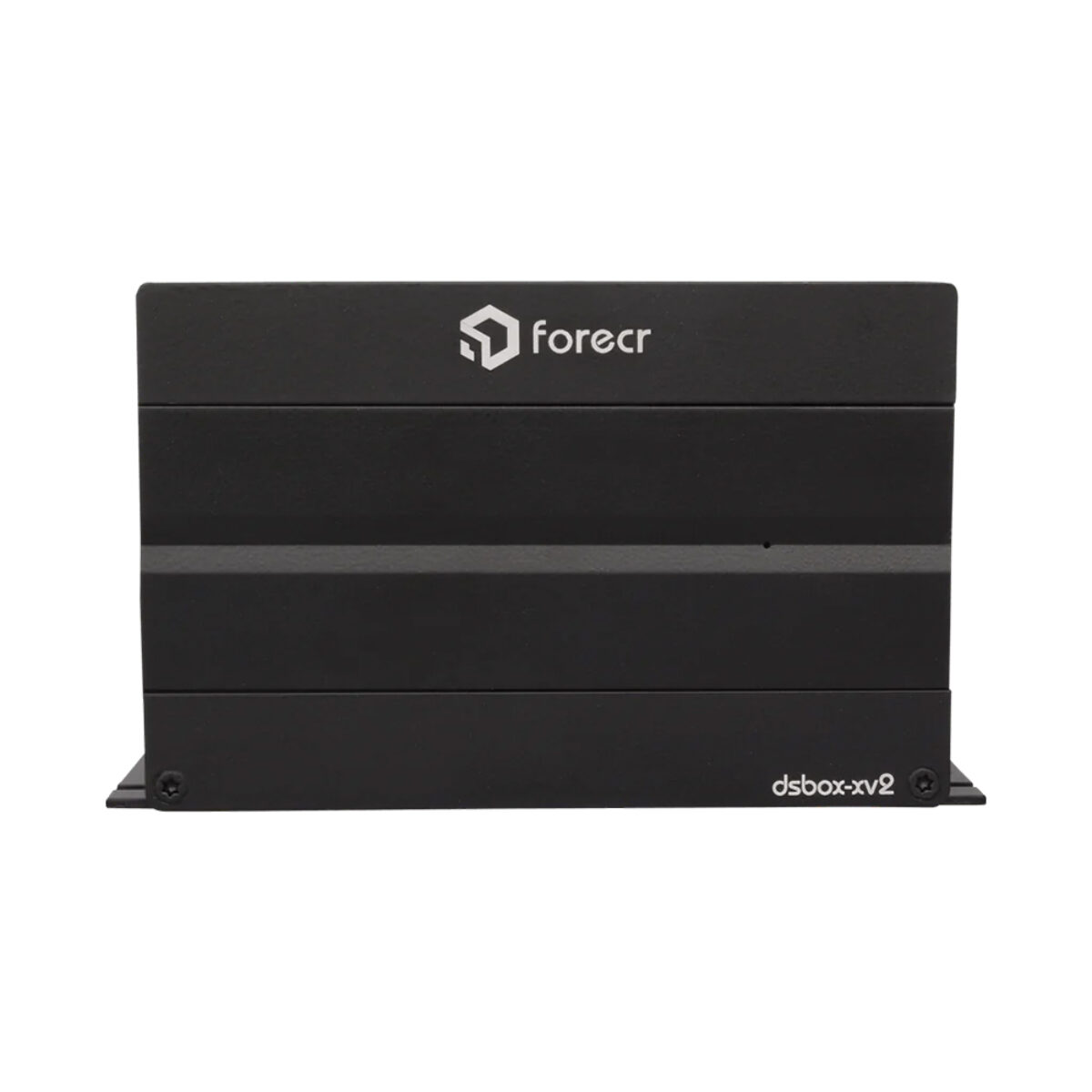

Forecr DSBOX-XV2 NVIDIA Jetson AGX Xavier Fanless Industrial PCs
The Forecr DSBOX-XV2 series is a family of fanless industrial PCs built on the NVIDIA Jetson AGX Xavier module in 32GB and 64GB versions. Each unit pairs 32 TOPS of AI performance from a 512-core Volta GPU with Gigabit Ethernet, CAN Bus, software-configurable RS-232/422/485, 4K HDMI and an 18-30 VDC input, and the DSBOX-XV2 series suits manufacturing, robotics and smart city deployments.
- NVIDIA Jetson AGX Xavier: The AGX Xavier module pairs a 512-core Volta GPU with an eight-core ARM64 CPU for 32 TOPS of AI performance.
- Industrial I/O: One CAN Bus port, a software-configurable RS-232/422/485 port and 2-in/3-out digital I/O connect controllers and field sensors directly.
- M.2 Storage and Wireless: An M.2 Key-M socket for an NVMe SSD and an M.2 Key-E socket for WiFi or Bluetooth sit alongside eMMC and MicroSD.
- 4K Display and Connectivity: One HDMI 2.0 output up to 3840 x 2160, Gigabit Ethernet and two USB 3.1 Type-A ports cover display and peripherals.
- Fanless Aluminum Enclosure: A fanless aluminum enclosure dissipates heat and protects against dust, shock and vibration, running from an 18-30 VDC input.
Linux
USB3- 2x M.2
- Wi-Fi
- NVMe SSD
- Fanless
- Extended Temp
- CE
- FCC
DSBOX-XV2 Description
Edge analytics in a factory or roadside cabinet needs a computer that keeps running through dust, vibration and temperature swings without a fan to service. The Forecr DSBOX-XV2 series meets that requirement with fanless industrial PCs built around the NVIDIA Jetson AGX Xavier module, housed in an aluminum enclosure that Forecr designed for heat dissipation and protection against dust, shock and vibration. Each unit measures 160 x 110 x 95 mm and weighs 1340 g, compact enough for machine-side and cabinet mounting in space-limited installs.
Every DSBOX-XV2 shares the same architecture. The AGX Xavier module combines an NVIDIA Volta GPU with 512 CUDA cores and an eight-core ARM64 CPU, delivering 32 TOPS of AI performance with 256-bit LPDDR4x memory for machine learning, computer vision and AI workloads. Storage combines eMMC 5.1 flash, a MicroSD slot and an M.2 Key-M socket for an NVMe SSD, while an M.2 Key-E socket adds WiFi or Bluetooth. Software support spans Ubuntu Linux 18.04 and 20.04 with JetPack 4.x and 5.x releases.
The range splits by module memory. The DSBOX-XV2-AA carries the NVIDIA Jetson AGX Xavier 32GB with 32 GB of LPDDR4x and 32 GB of eMMC, covering vision and analytics workloads within that budget. The DSBOX-XV2-AB uses the NVIDIA Jetson AGX Xavier 64GB, doubling memory and onboard eMMC to 64 GB for larger models and more concurrent video streams. Both share the same interfaces, enclosure and power input, so moving between them needs no change to wiring or mounting. Choosing the AB from the start leaves headroom for models that grow over the life of a deployment, while the AA keeps the bill of materials lower for fixed, well-defined tasks.

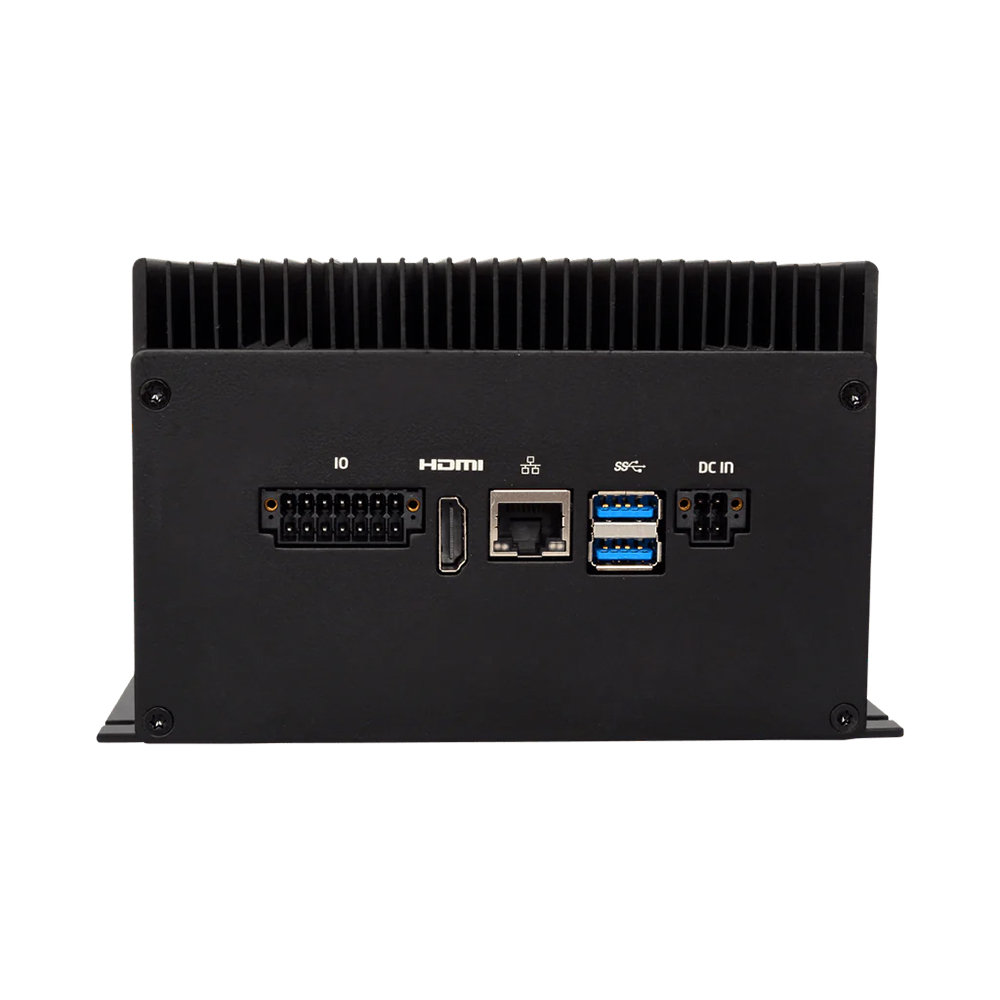

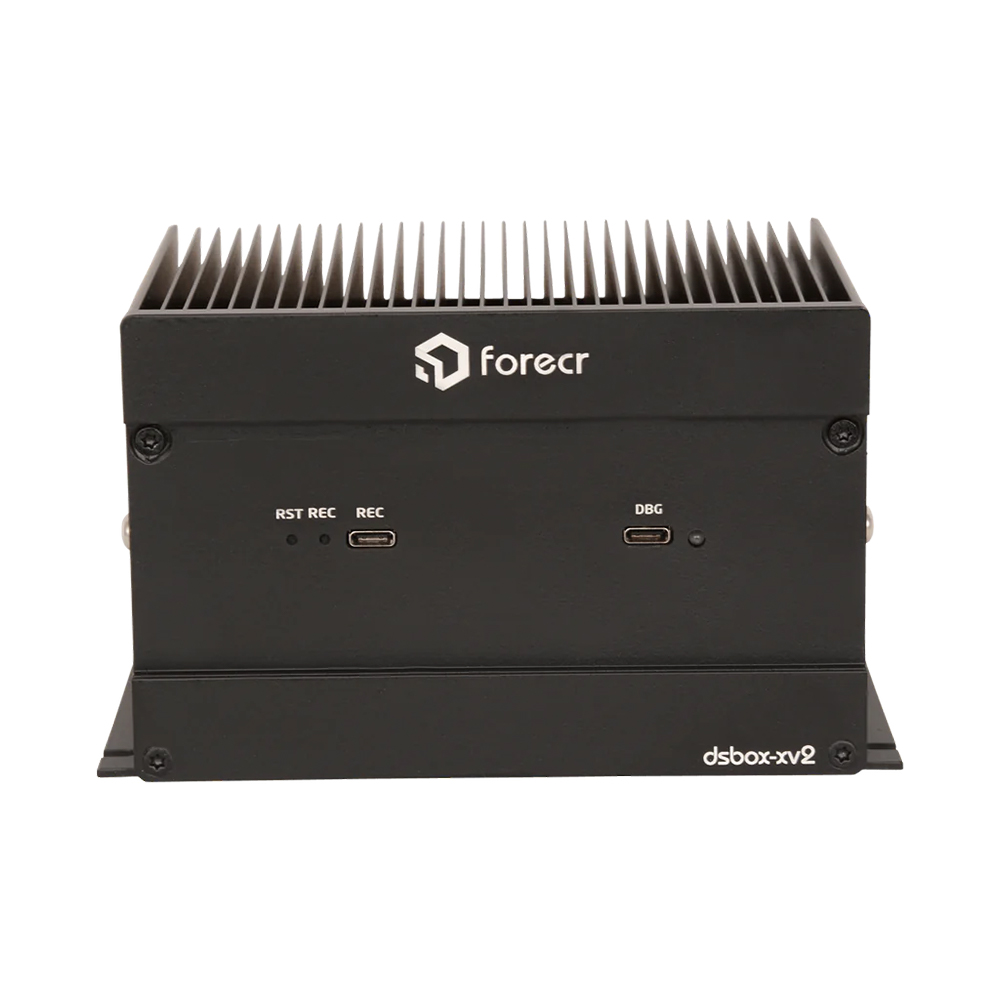

Industrial I/O on the DSBOX-XV2 covers one Gigabit Ethernet port, two USB 3.1 Type-A ports, one CAN Bus port, a software-configurable RS-232/422/485 port and 2-in/3-out digital I/O, with one HDMI 2.0 output at up to 3840 x 2160 and two Type-C ports for debug and recovery. An 18-30 VDC input and an extended temperature range from -25°C support transportation, agriculture, security and surveillance, smart city and manufacturing installs, and these fanless industrial PCs are designed for 24/7 operation.
DSBOX-XV2 Specifications
| Overview | |
|---|---|
| Brand & Model | Forecr DSBOX-XV2 |
| Features | Compact Embedded Fanless GPU Industrial |
| Performance | |
| AI Performance | 32 TOPS |
| System-on-Module | See Variant Specifications |
| Operating System | Linux |
| Jetpack Version | JetPack 4.6 |
| Graphics | |
| Display Outputs | 1x HDMI |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] | |
| USB | 2x USB Ports |
| 2x USB 3.1 Gen 1 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232/422/485 [Terminal Block] | |
| CANbus | 1x CANbus Ports |
| 1x CANbus [Terminal Block] | |
| Digital I/O | DIO [2-in, 3-out] |
| Remote Management | Allxon In-Band |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | See Variant Specifications |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 18-30V DC [Terminal Block] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -25°C to 85°C [-13°F to 185°F] |
| Storage Temperature | -20°C to 85°C [-4°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC RoHS |
| Mechanical Properties | |
| Weight | 1.4 KG (3.08 LBS) |
| Dimensions | 160mm x 65mm x 110mm (6.3" x 2.56" x 4.33") |
| Mounting Options | DIN Mount Wall Mount |
No specifications match your search.
See product variants.
DSBOX-XV2 Variants
Forecr DSBOX-XV2-AB NVIDIA Jetson AGX Xavier 64GB Fanless Industrial PC for Edge Analytics
DSBOX-XV2 with NVIDIA Jetson AGX Xavier 64GB, 64 GB LPDDR4x, 64 GB eMMC
| Overview | |
|---|---|
| Brand & Model | Forecr DSBOX-XV2-AB |
| Performance | |
| System-on-Module | AGX Xavier (64GB) |
| Storage | |
| Storage | 1x M.2 SSD, 1x Micro SD, 64GB eMMC |
Forecr DSBOX-XV2-AA NVIDIA Jetson AGX Xavier 32GB Fanless Industrial PC with CAN Bus and Serial
DSBOX-XV2 with NVIDIA Jetson AGX Xavier 32GB, 32 TOPS, CAN Bus, RS-232/422/485
| Overview | |
|---|---|
| Brand & Model | Forecr DSBOX-XV2-AA |
| Performance | |
| System-on-Module | AGX Xavier (32GB) |
| Storage | |
| Storage | 1x M.2 SSD, 1x Micro SD, 32GB eMMC |
No related media available for this product series.
Official Forecr USA Distributor
Things Embedded is an official Forecr USA distributor, and the DSBOX-XV2 is Forecr's boxed AGX Xavier range for industrial edge analytics, built for cabinets and machine-side mounting. Projects that need more AI throughput can move to the DSBOX-AGX on Jetson AGX Orin, which keeps a similar industrial I/O set and enclosure style. The DSBOX-NX2 offers Jetson Xavier NX compute in a smaller, lower-power enclosure for lighter workloads. Teams building their own housing can use the DSBOARD-XV2 carrier board, which takes the same AGX Xavier module.
Across our catalog, the DSBOX-XV2 family sits among our Jetson AGX Xavier computers and within our edge AI computers range, where on-device inference keeps video and sensor data close to its source. With CAN Bus and serial on board for vehicle and machine networks, these fanless units also appear in our Jetson CAN bus computers range, alongside other systems that connect AI directly to controllers, drives and field equipment on the factory floor and in vehicles.
