Forecr DSBOX-NX2 NVIDIA Jetson Xavier NX Fanless Embedded PCs

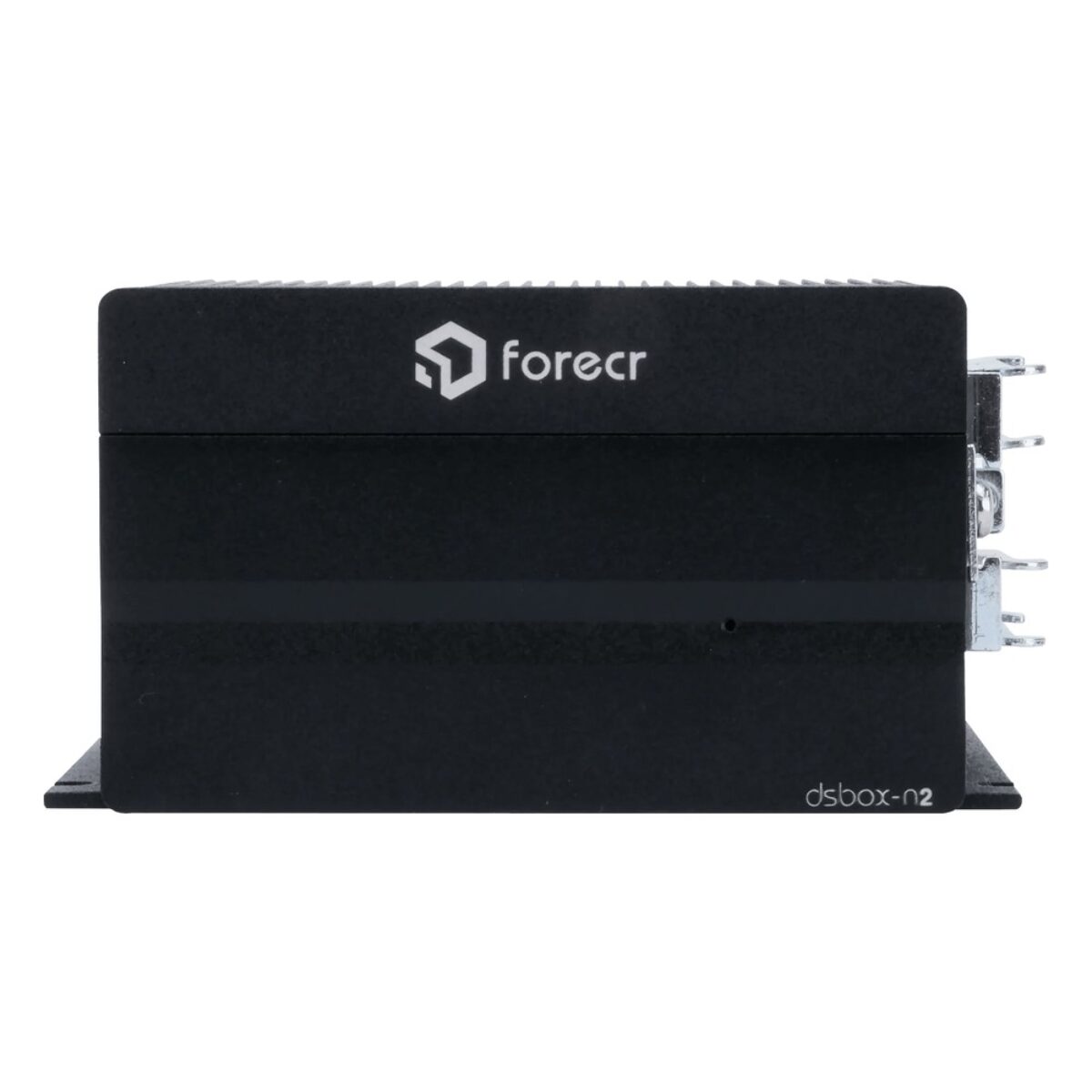

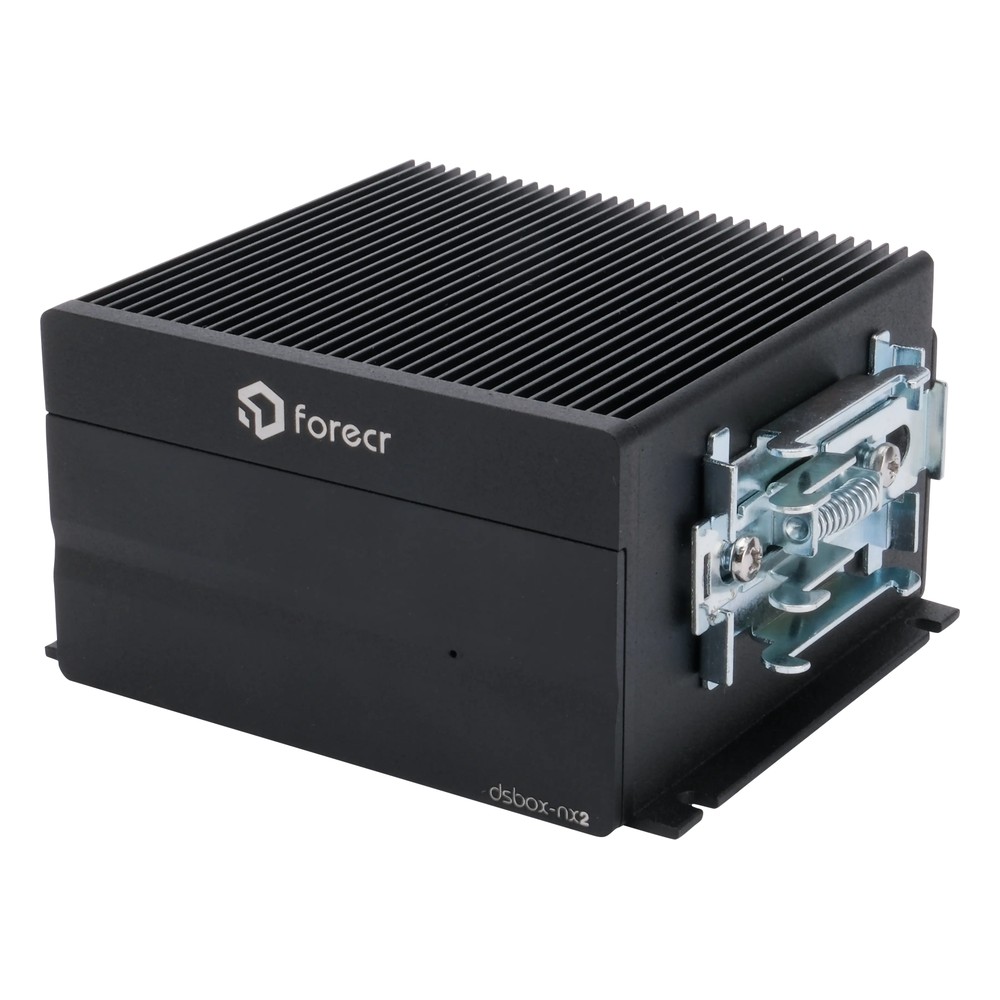

Edge analytics with many video streams needs more AI performance than an entry module offers, without a larger enclosure or a bigger power budget. The Forecr DSBOX-NX2 series delivers that with fanless embedded PCs built around the NVIDIA Jetson Xavier NX module, in a 110 x 130 x 60 mm enclosure that draws under 18 W and is designed for 24/7 operation. Forecr positions the range as an industrial box PC for deep learning based edge analytics and IIoT applications, with individual configurations and ODM branding available from the manufacturer.

Every DSBOX-NX2 shares the same design. The Jetson Xavier NX combines a six-core NVIDIA Carmel Arm v8.2 64-bit CPU with an NVIDIA Volta GPU with 48 Tensor Cores and 8 GB of 128-bit LPDDR4x memory, delivering 21 TOPS and processing up to 32 Full-HD video streams with the DeepStream SDK. Storage combines 16 GB of eMMC 5.1 flash, a MicroSD slot and an M.2 Key-M SSD socket, while M.2 Key-E and Key-B sockets add WiFi, Bluetooth, LTE or 5G modules, with a SIM slot for the cellular module on Key-B. The operating system is Ubuntu Linux 18.04, and two USB 3.1 Type-A ports plus Gigabit Ethernet handle cameras, storage and network links alongside the industrial I/O described below.

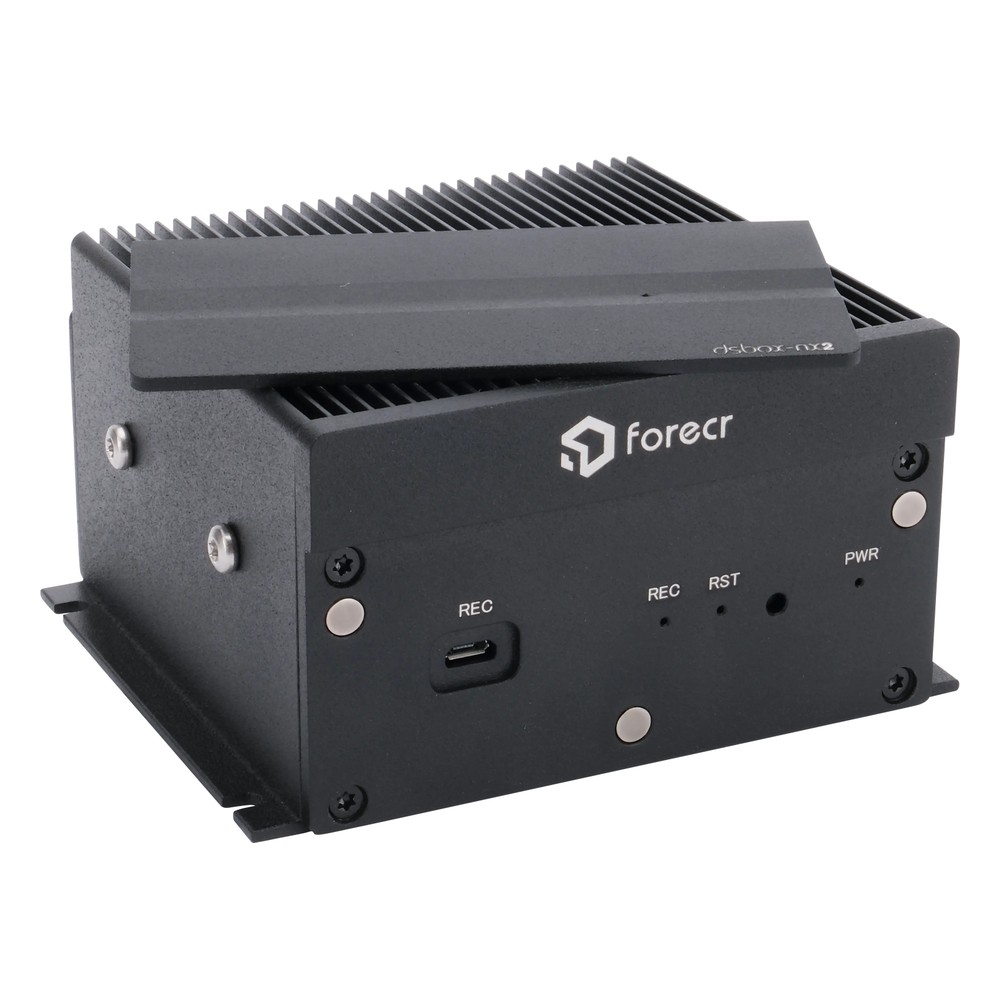

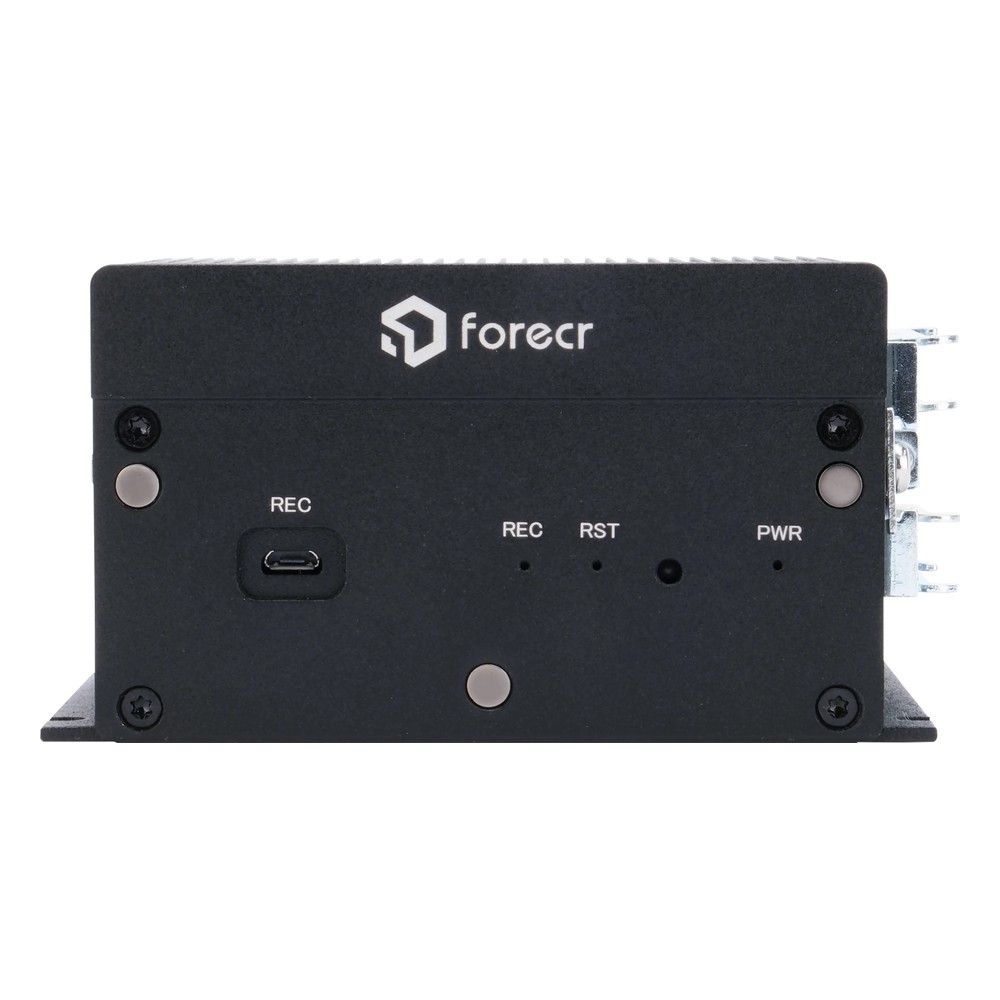

The range splits by power control. The DSBOX-NX2-AA is the standard industrial I/O build, without the power button option, for embedded and headless installs inside machines and cabinets. The DSBOX-NX2-XX-P adds the power button option for attended vision cells, quality control stations and test benches where operators switch the unit on and off locally. Compute, I/O, storage and enclosure are otherwise identical, so the choice depends only on how the unit will be operated on site.

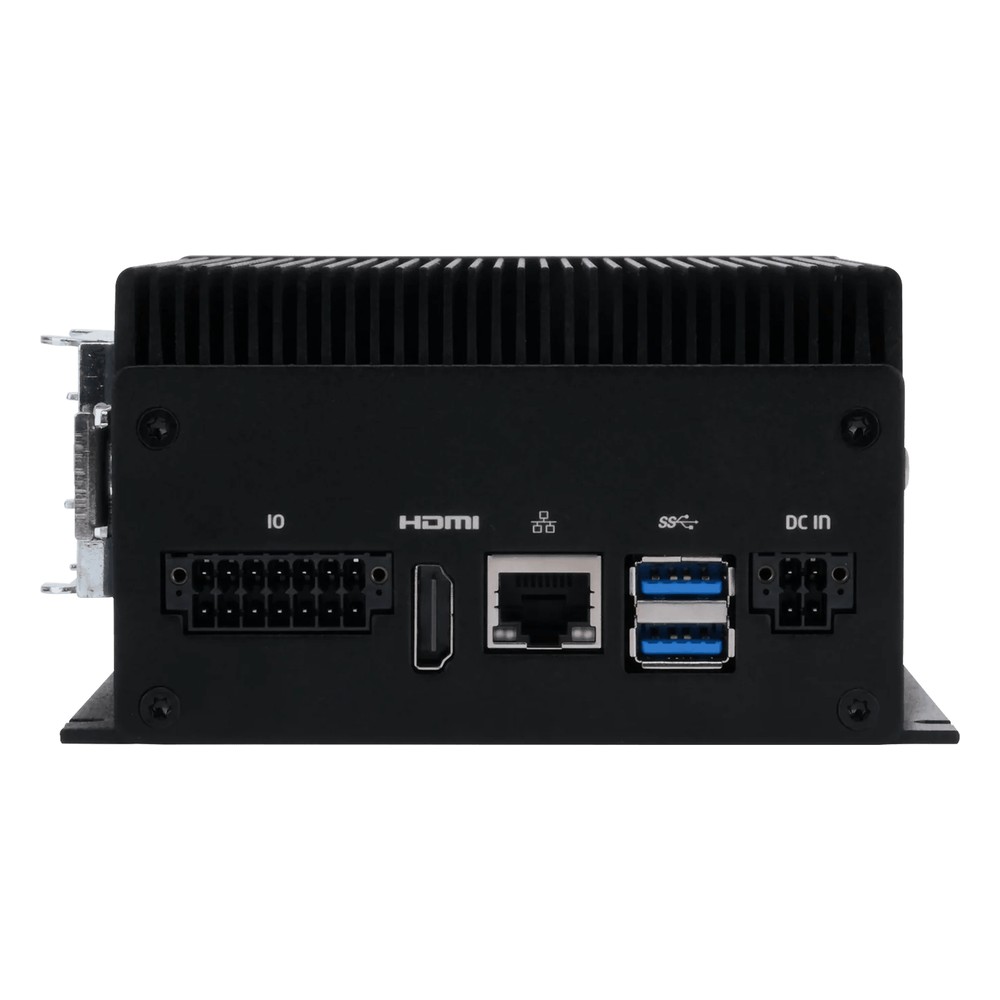

Industrial I/O on every DSBOX-NX2 covers one Gigabit Ethernet port, two USB 3.1 Type-A ports, one CAN Bus port, a software-configurable RS-232/422/485 port, two digital inputs and three digital outputs, with one HDMI 2.0 output for 4K display at 3840 x 2160. A 9-28 VDC input and an ambient rating of -25°C to +65°C suit these fanless embedded PCs to predictive maintenance, quality control and object recognition in size and power constrained systems across industrial environments, where a sealed, low-power unit keeps maintenance to a minimum.
