Forecr DSBOX-ORNX NVIDIA Jetson Orin NX and Orin Nano Fanless Embedded Computers

Moving AI inference onto a machine, a roadside cabinet or a mobile robot calls for a computer small enough to sit beside existing control gear, able to run without a fan through heat and vibration, and still equipped with the serial, CAN and wireless links the rest of the system expects. The Forecr DSBOX-ORNX series meets that brief with compact fanless embedded computers built on NVIDIA Jetson Orin NX and Orin Nano modules, reaching up to 100 TOPS of AI performance with the Orin NX 16GB.

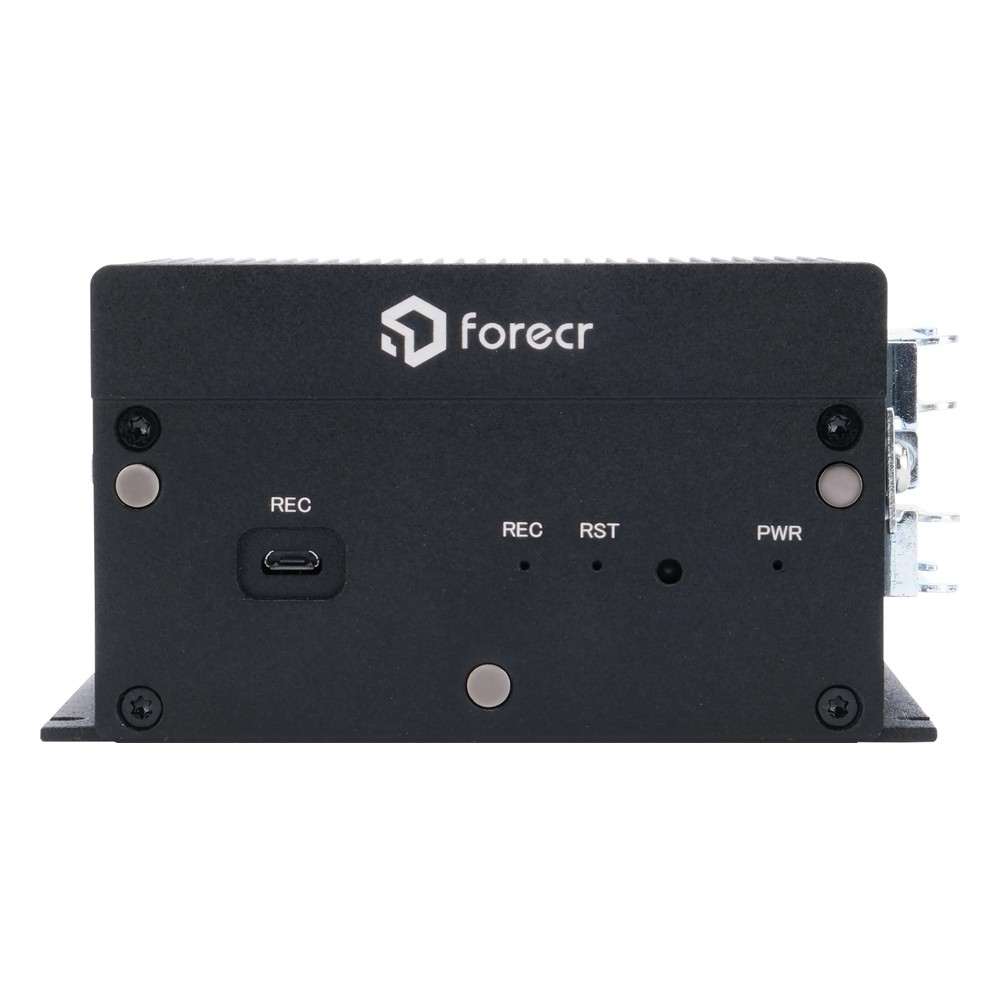

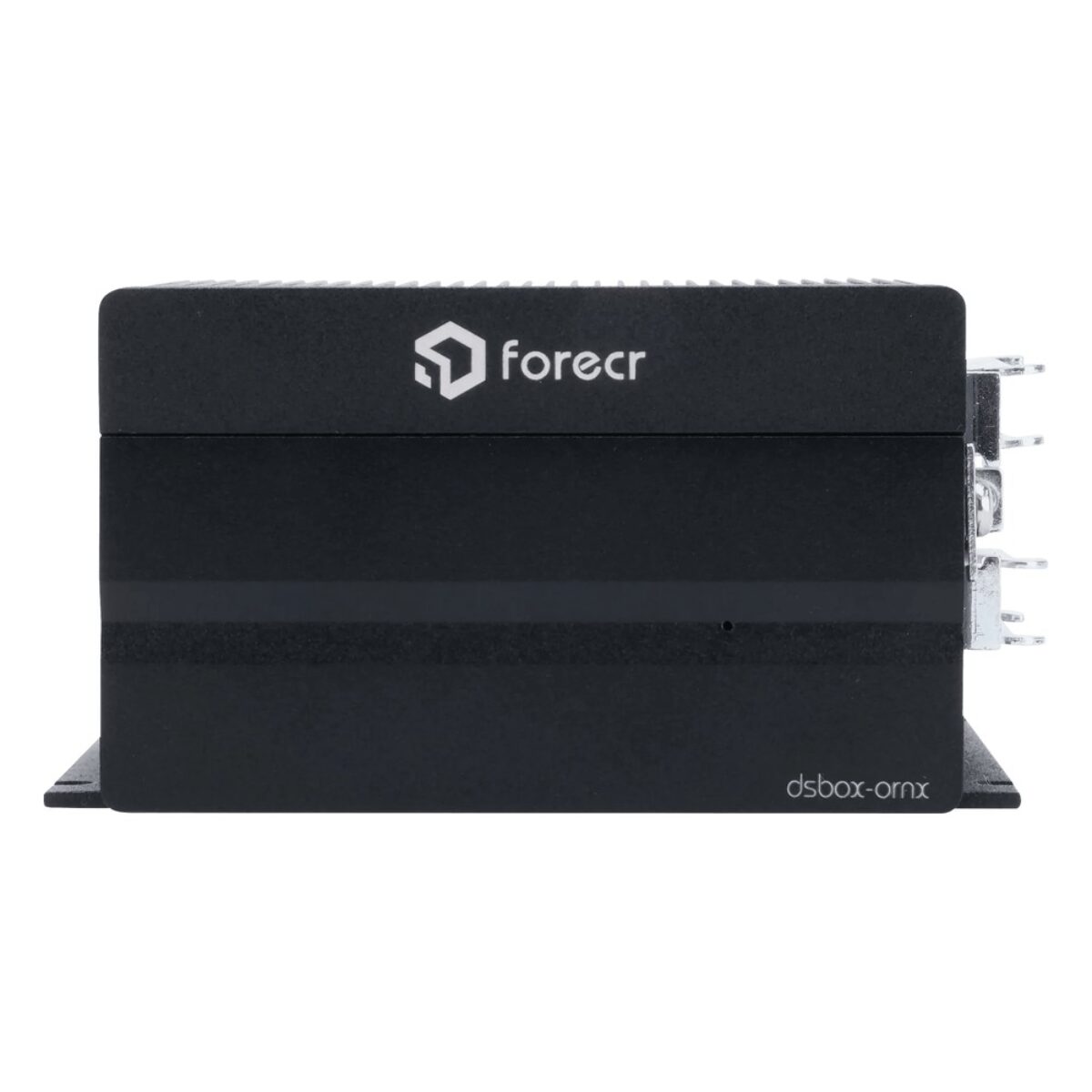

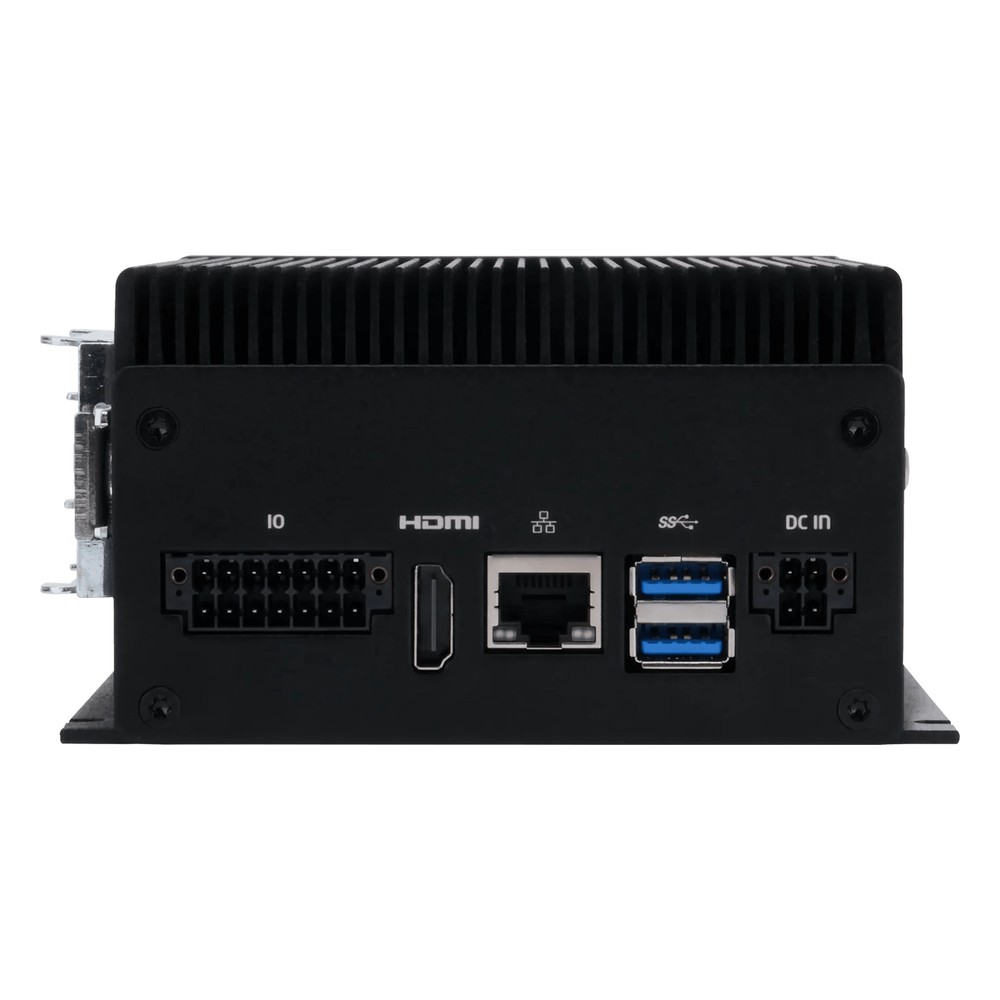

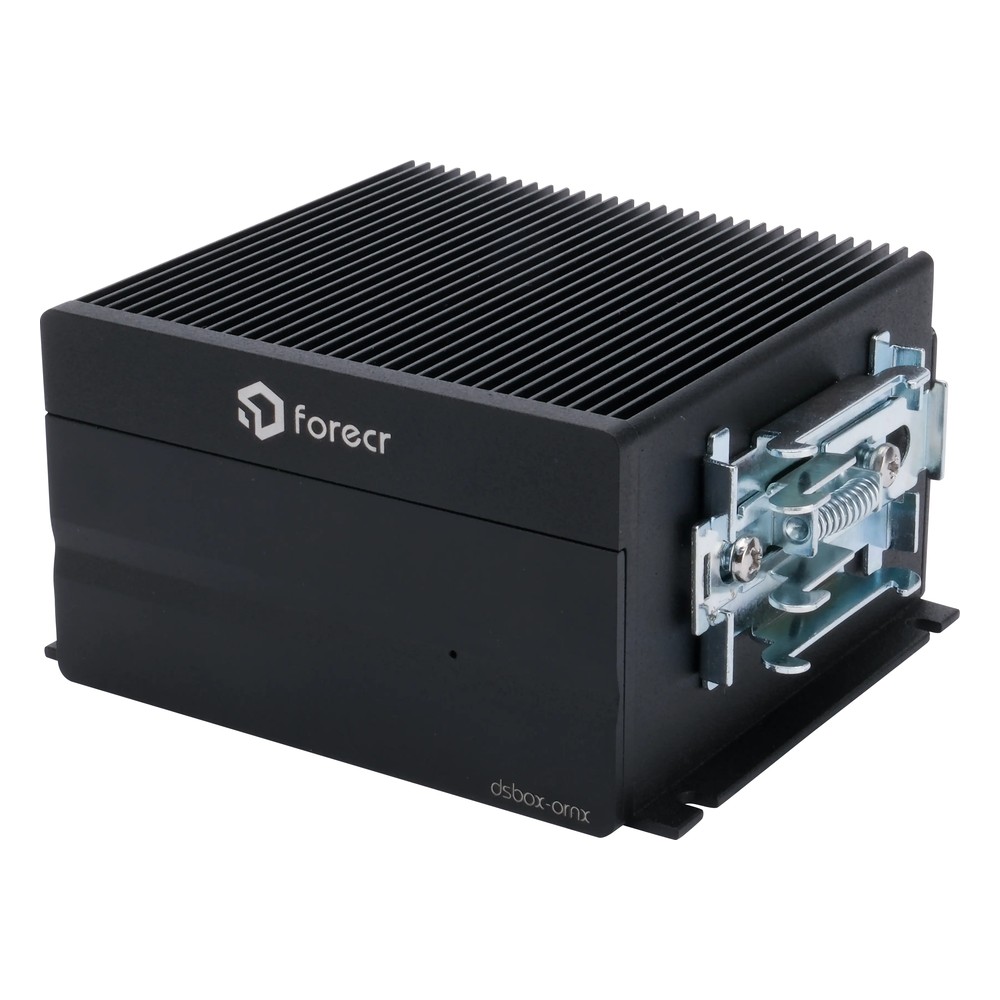

Every DSBOX-ORNX unit shares the same 110 x 130 x 60 mm enclosure, weighing 760 g, with thermal management that cools the module passively across a -25°C to +85°C ambient range. A 9-28 VDC input powers the board, and the I/O set is common to the whole range: one Gigabit Ethernet port, two USB 3.1 Type-A ports, an HDMI 2.0 output at up to 3840 x 2160, one CAN bus port, one RS232 and one RS422 port, two digital inputs, two digital outputs and a micro USB 2.0 recovery port. Storage sits on two M.2 Key-M slots, a 2280 socket on four PCIe lanes and a 2230 socket, while an M.2 Key-B socket with SIM slot and an M.2 Key-E socket take LTE, 5G or WiFi modules. Ubuntu Linux 20.04 and JetPack 5.1 are supported.

The range splits by Jetson module. The DSBOX-ORNX-AC4 carries the Jetson Orin Nano 4GB with 4 GB of LPDDR5 for single-stream vision and lighter models, and the DSBOX-ORNX-AC8 moves to the Orin Nano 8GB for more model headroom. The DSBOX-ORNX-AB8 steps up to the Jetson Orin NX 8GB for heavier inference, and the DSBOX-ORNX-AB16 fits the Orin NX 16GB, the module behind the 100 TOPS figure. The DSBOX-ORNX-AA is the configurable listing, built with whichever supported Orin module the project calls for.

Forecr lists transport and logistics, robotics, smart retail, industrial and manufacturing, smart city, energy, agriculture and autonomous systems as target applications for these embedded computers. The compact footprint suits retrofit into existing control cabinets and machine frames, the wide DC input matches common 12 V and 24 V supplies, and because the enclosure, power and I/O stay the same across the module options, a project can change Jetson tier without reworking its installation. Where two network ports are needed, the sister DSBOX-ORNX-LAN series keeps the same footprint with dual Gigabit Ethernet.
