Forecr DSBOX-ORNX-LAN NVIDIA Jetson Orin NX and Orin Nano Industrial Embedded Computers with Dual LAN

Many edge AI installs sit between two networks: a camera or sensor segment on one side and a plant, vehicle or building network on the other, which a single Ethernet port can only bridge through an extra switch or adapter. The Forecr DSBOX-ORNX-LAN series puts two Gigabit Ethernet ports on compact fanless industrial embedded computers built on NVIDIA Jetson Orin NX and Orin Nano modules, reaching up to 100 TOPS of AI performance with the Orin NX 16GB.

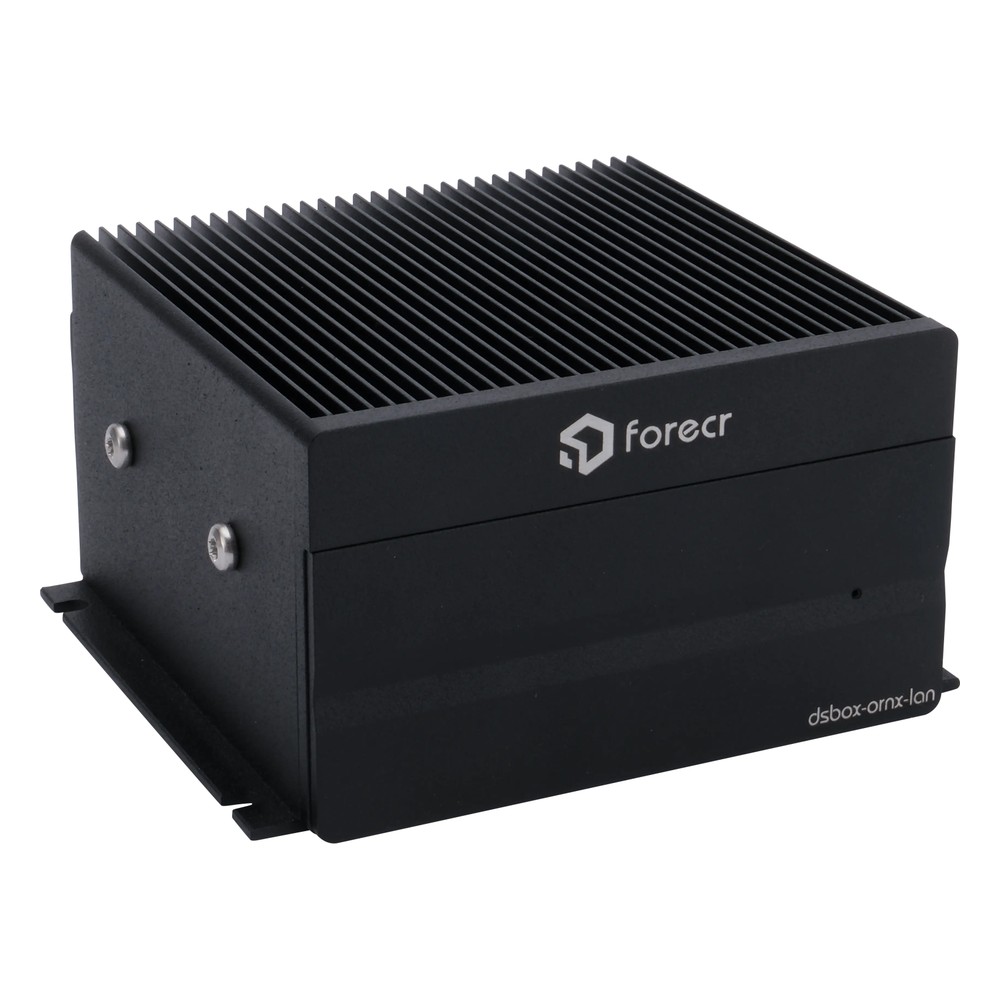

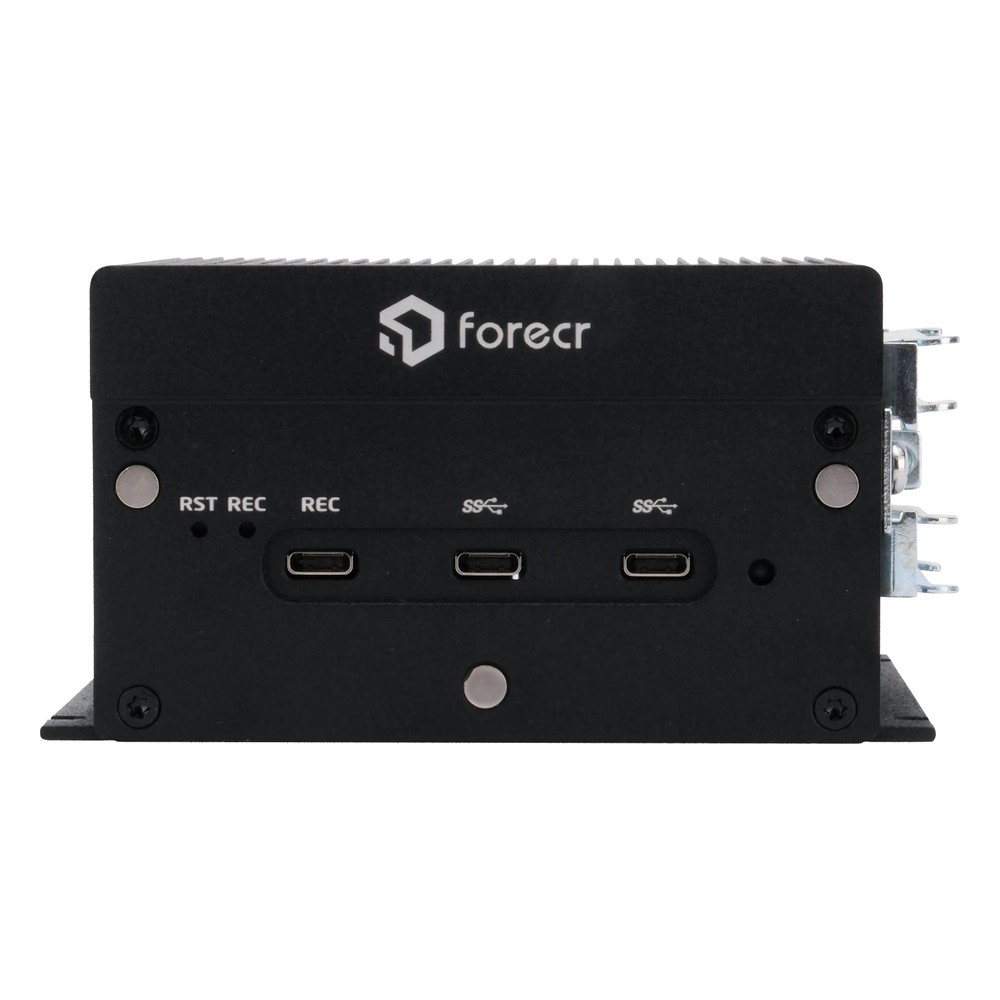

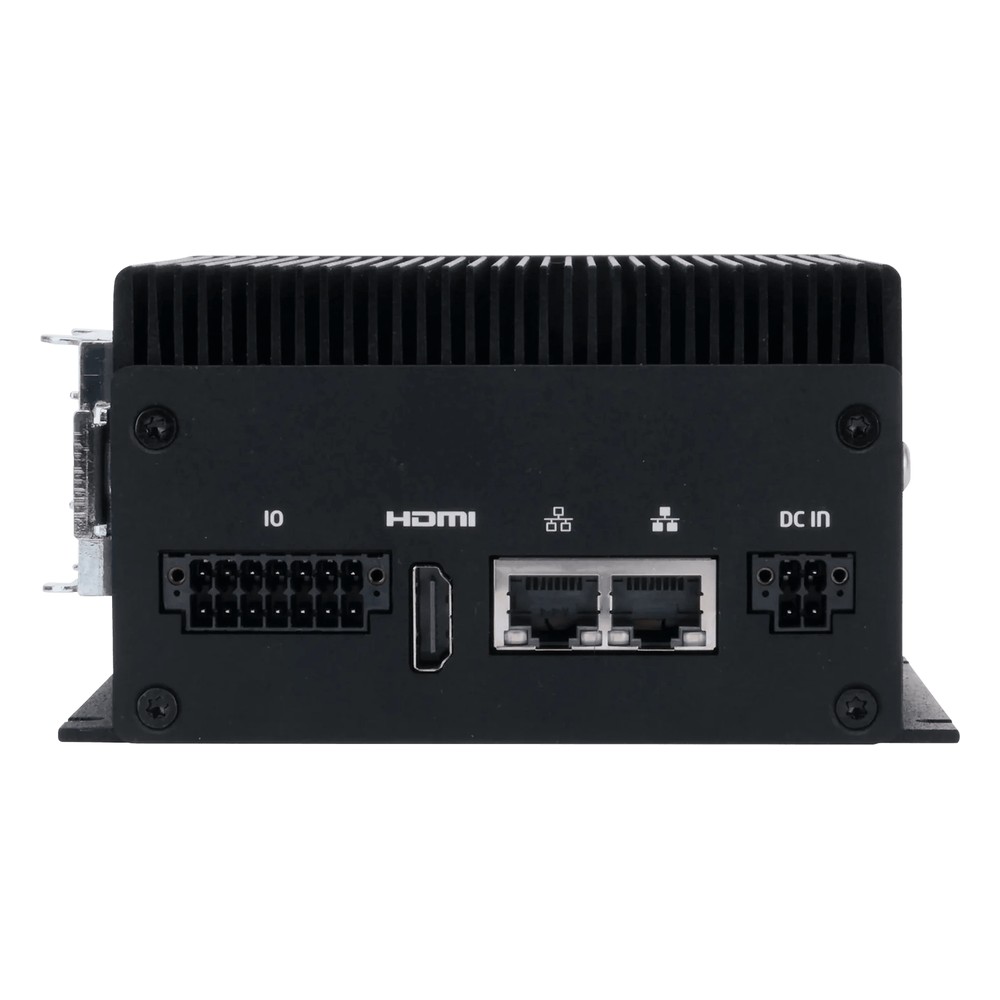

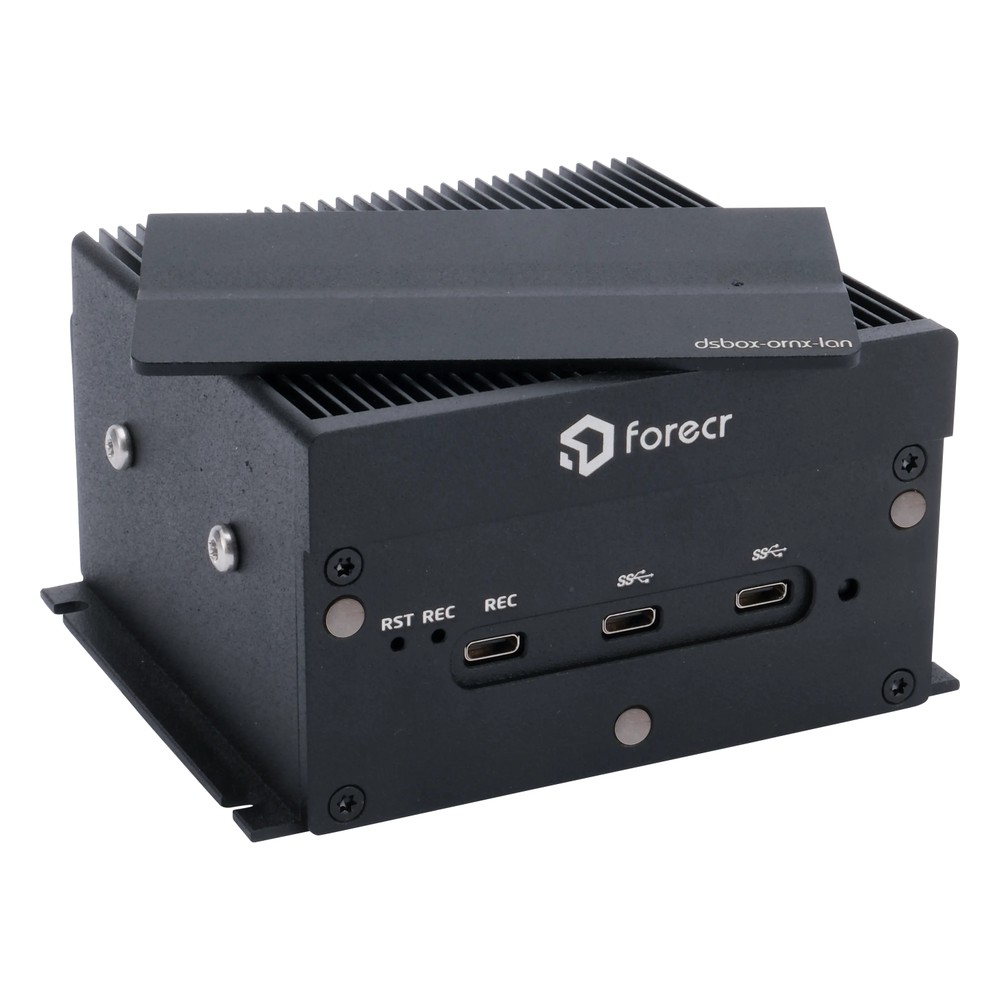

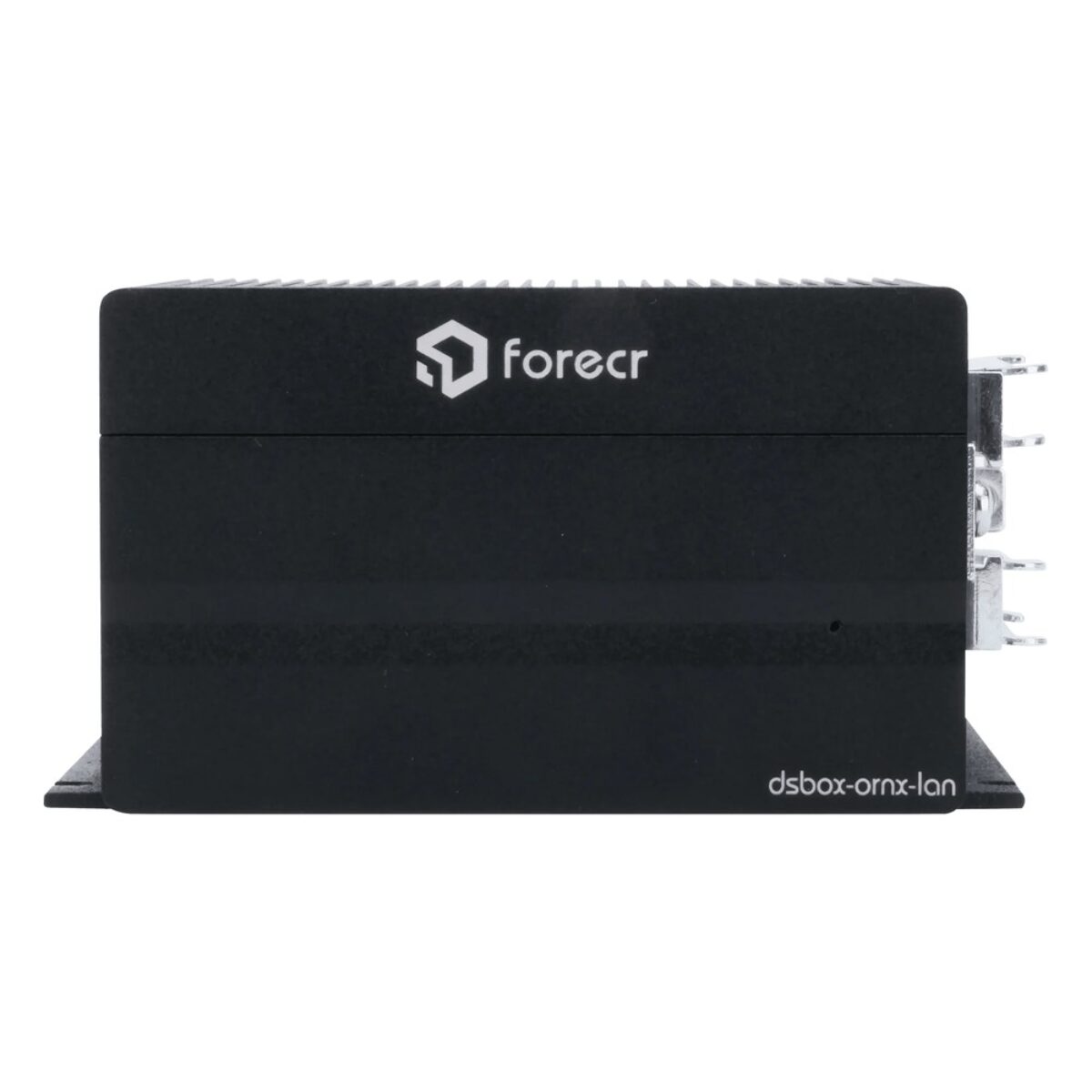

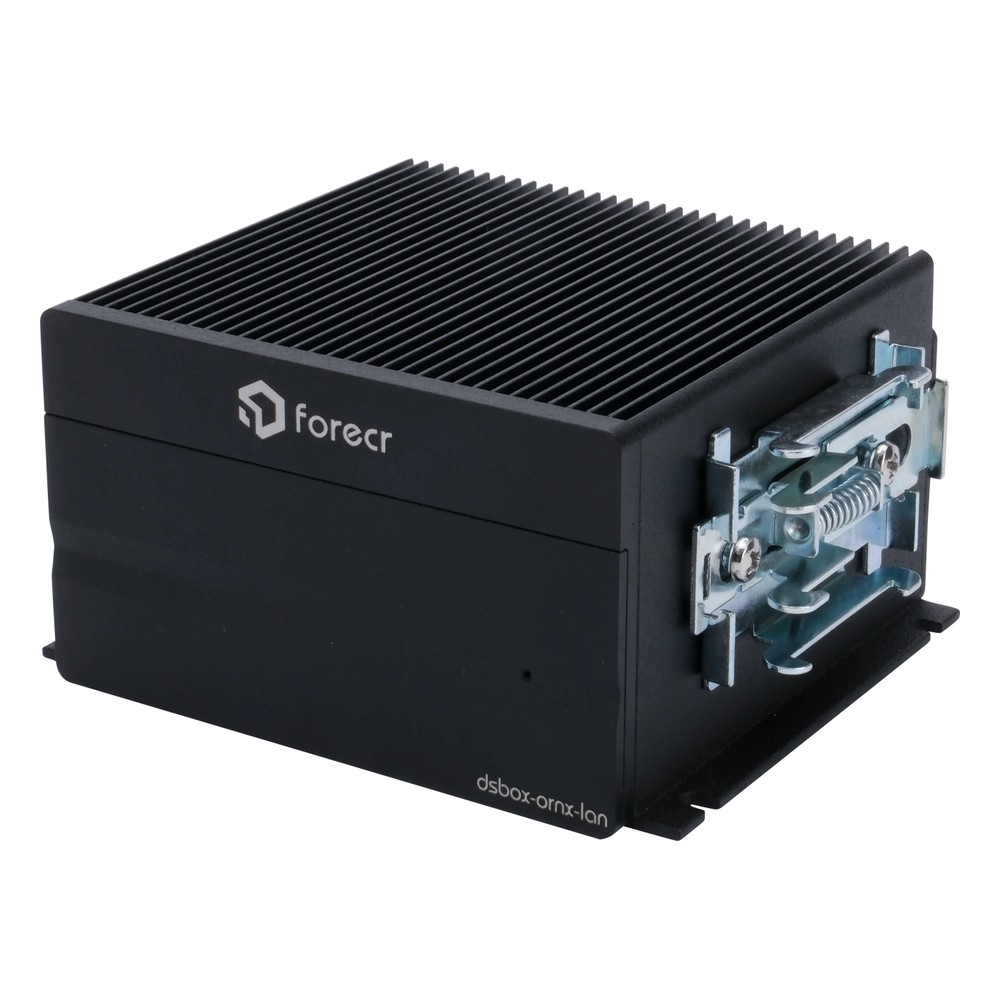

Every DSBOX-ORNX-LAN unit shares a 110 x 130 x 60 mm aluminum enclosure weighing 765 g, which Forecr designs to dissipate heat and protect against dust, shock and vibration, with a -25°C to +85°C ambient range and a 9-28 VDC input. The second Gigabit Ethernet port runs from its own PCIe-to-Ethernet controller. Alongside both LAN ports sit three USB 3.1 Type-C ports, one of which also serves for recovery, an HDMI 2.0 output at up to 3840 x 2160, one CAN bus port, one RS232 and one RS422 port, and two digital inputs with two digital outputs. Two M.2 Key-M slots take SSD storage and an M.2 Key-E socket adds WiFi and Bluetooth. Ubuntu Linux 20.04 and JetPack 5.1 are supported.

The range splits by Jetson module. The DSBOX-ORNX-LAN-AC4 carries the Jetson Orin Nano 4GB for single-stream vision on two networks, and the DSBOX-ORNX-LAN-AC8 moves to the Orin Nano 8GB for larger models. The DSBOX-ORNX-LAN-AB8 steps up to the Jetson Orin NX 8GB, and the DSBOX-ORNX-LAN-AB16 fits the Orin NX 16GB, the module behind the 100 TOPS figure. The DSBOX-ORNX-LAN-AA is the configurable listing, built with whichever supported Orin module the project needs.

Forecr positions these industrial embedded computers for autonomous systems, robotics and intelligent video analytics, with transportation, smart retail, industrial and manufacturing, and smart city among its listed applications. The dual LAN layout suits video analytics that pull streams from an IP camera network and report to a separate site network, and the wide DC input matches common 12 V and 24 V supplies. Where cellular backhaul matters more than a second LAN port, the sister DSBOX-ORNX series swaps in an M.2 Key-B socket with SIM slot in the same footprint.
