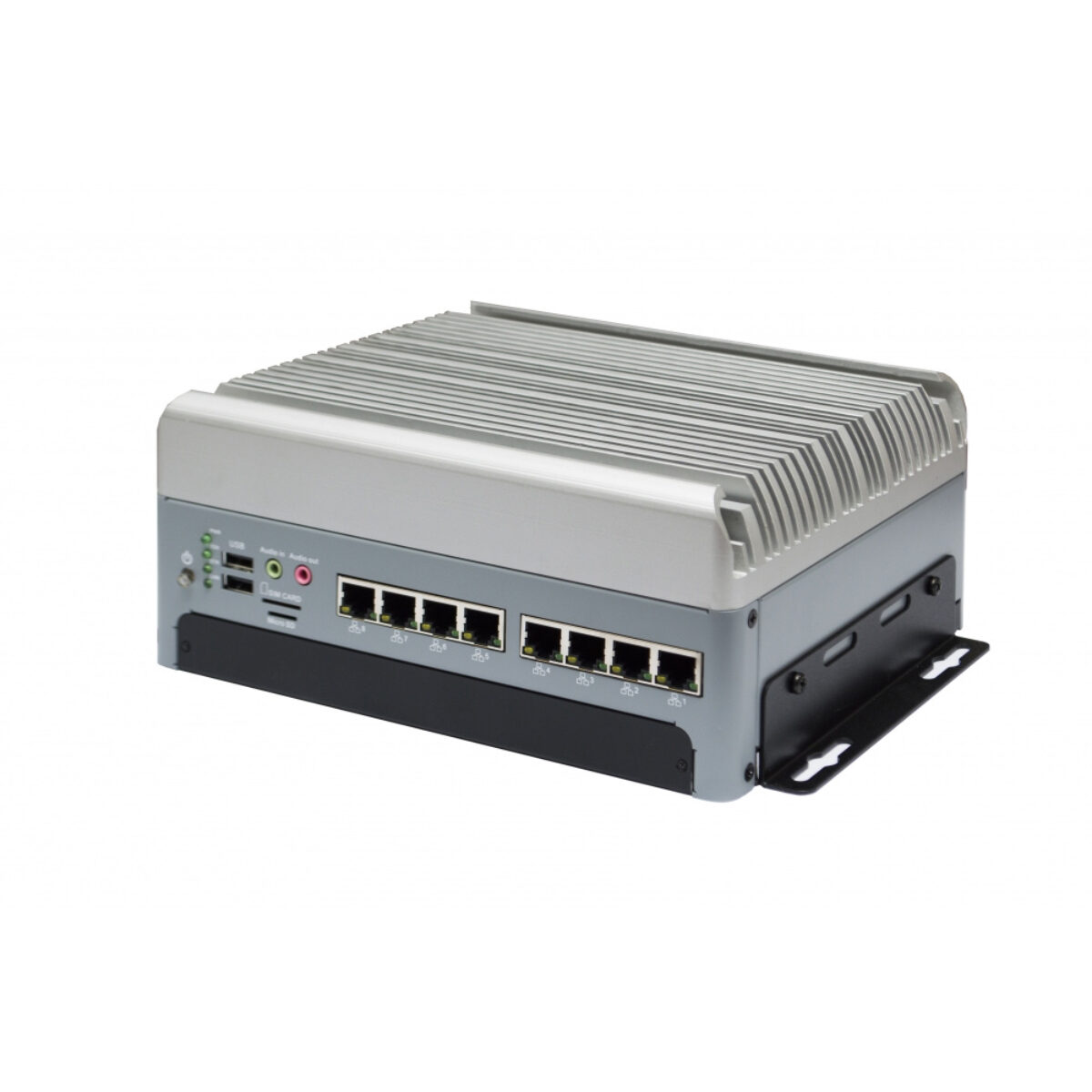

EverFocus eNVP-JAX-AI-V0008 NVIDIA Jetson AGX Xavier AI NVR with 8x PoE, Dual SATA and 9-36V DC
Linux
Dual Display Support
PoE Support
USB3
3x M.2
1x SIM
4G
5G
Wi-Fi
NVMe SSD
Fanless
Extended Temp
CE
EN50155
FCCeNVP-JAX-AI-V0008 Overview
An NVR that only records leaves the analysis to someone watching a screen later. The eNVP-JAX-AI-V0008 records and analyses in the same box: a fanless AI NVR from EverFocus that powers eight PoE cameras and runs the analytics on an NVIDIA Jetson AGX Xavier, so alerts can be raised while footage is being written.
The AGX Xavier pairs an 8-core NVIDIA Carmel Arm v8.2 CPU with a 512-core NVIDIA Volta architecture GPU and 64 Tensor Cores, on 32GB or 64GB of 256-bit LPDDR4x at 136.5 GB/s. Storage starts with 32GB of eMMC 5.1, and two SATA bays, an SD card slot and an M.2 M-Key 2280 NVMe slot add space for recordings. The eNVP-JAX-AI-V0008 supports Allxon out-of-band remote device management through an optional enabler.
Eight 10/100 PoE ports deliver up to 30 W each and 120 W in total, and two Gigabit ports carry the uplink. Eight alarm inputs and eight alarm outputs, one CAN bus port and either two RS-232 ports or one RS-232 and one RS-485 port, depending on the ordering code, connect doors, barriers and vehicle systems. HDMI and DisplayPort outputs, audio in and out, two USB 3.0 and two USB 2.0 ports complete the I/O, and M.2 slots with five antenna connectors take Wi-Fi, Bluetooth, 4G or 5G and GPS modules.
Power is 9 to 36 V DC on a 3-pin terminal block. EverFocus rates the eNVP-JAX-AI-V0008 from -20 to 60 °C to IEC 60068-2 with 0.5 m/s airflow, and lists MIL-STD-810G Method 514.7 Category 4 vibration and Method 516.7 Procedure I shock, with CE and FCC Class A. EN 50155, UL, BSMI and PSE are offered by project. The 242 x 177 x 94 mm unit weighs 4.5 kg. For Jetson AGX Orin and a 10GbE uplink, the eNVP-JAO-AI-V0008 uses the same size of enclosure.
eNVP-JAX-AI-V0008 Specifications
| Overview | |
|---|---|
| Brand & Model | EverFocus eNVP-JAX-AI-V0008 |
| Features | Embedded Fanless GPU Industrial Rugged |
| Performance | |
| AI Performance | 30–32 TOPS |
| System-on-Module | NVIDIA Jetson AGX Xavier 32GB: 32 TOPS, 512-core Volta GPU with 64 Tensor Cores, 8-core NVIDIA Carmel Armv8.2 2.2GHz, 32GB 256-bit LPDDR4x, 32GB eMMC, 10-30W NVIDIA Jetson AGX Xavier 64GB: 32 TOPS, 512-core Volta GPU with 64 Tensor Cores, 8-core NVIDIA Carmel Armv8.2 2.2GHz, 64GB 256-bit LPDDR4x, 32GB eMMC, 10-30W NVIDIA Jetson AGX Xavier Industrial 32GB: 30 TOPS, 512-core Volta GPU with 64 Tensor Cores, 8-core NVIDIA Carmel Armv8.2 2.0GHz, 32GB 256-bit LPDDR4x (ECC), 64GB eMMC, 20-40W |
| Operating System | Linux |
| Graphics | |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Interface | Line-In Line-Out |
| I/O | |
| Ethernet | 10x Ethernet Ports |
| 2x GbE LAN [RJ45] 8x GbE LAN [RJ45] [PoE] | |
| USB | 4x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.0 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/485 [DB9] | |
| CANbus | 1x CANbus Ports |
| 1x CANbus, DB9 | |
| Digital I/O | Alarm [8-in, 8-out] |
| Remote Management | Allxon In-Band |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2280] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x Micro SD 2x 2.5" HDD/SSD 32GB eMMC |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE EN50155 FCC |
| Mechanical Properties | |
| Weight | 4.5 Kg (9.9 Lbs) |
| Dimensions | 242mm x 95mm x 177mm (9.53" x 3.74" x 6.97") |
| Mounting Options | Desktop |
- eNVP-JAX-AI-V0008 Datasheet Download
Official EverFocus USA Distributor
Things Embedded is an official EverFocus USA distributor, and the eNVP-JAX-AI-V0008 is the AGX Xavier AI NVR in the EverFocus range we list. The eNVP-JAO-AI-V0008 moves to a Jetson AGX Orin with a 10GbE uplink, and for fewer cameras the eNVP-JOX-IV carries an Orin NX with PoE-PD input and up to five PoE outputs.
Within our wider range the eNVP-JAX-AI-V0008 sits among our industrial NVRs and PoE computers, next to Jetson AGX Xavier computers from several manufacturers. Its alarm I/O and SATA bays make it a practical choice where recording and analytics share one box, and both categories allow a side-by-side comparison with similar units.
