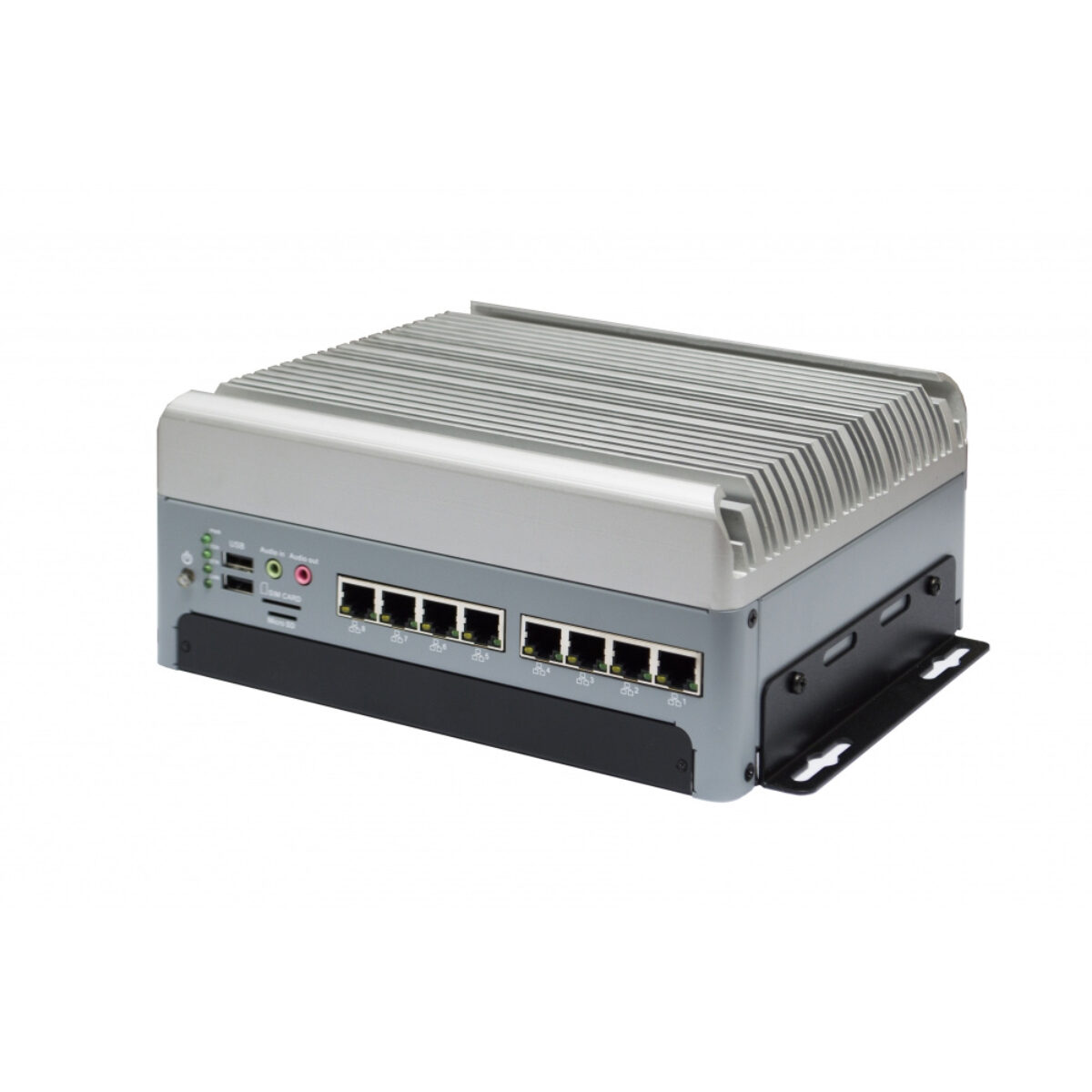

EverFocus eNVP-JAO-AI-V0008 NVIDIA Jetson AGX Orin 32GB/64GB Industrial AI Computer with 8x PoE and 10GbE

A city junction, a depot yard or a production hall can easily need eight cameras analyzed at once, and running those streams back to a server costs bandwidth and adds delay. The eNVP-JAO-AI-V0008 keeps the work at the edge: a fanless industrial AI computer from EverFocus that powers eight PoE cameras and runs the inference on an NVIDIA Jetson AGX Orin.

Two module options are offered. The AGX Orin 32GB pairs an 8-core Arm Cortex-A78AE CPU with a 1792-core NVIDIA Ampere architecture GPU and 56 Tensor Cores, while the AGX Orin 64GB moves to a 12-core CPU and a 2048-core GPU with 64 Tensor Cores. Memory is 256-bit LPDDR5 at 204.8 GB/s. The eNVP-JAO-AI-V0008 runs Linux with NVIDIA JetPack 5.0 and above, and supports Allxon out-of-band remote device management through an optional enabler.

Networking combines one 10GbE port and one Gigabit port for uplinks with eight 10/100 PoE ports, rated at 30 W per port and 120 W in total. Storage covers two SATA bays, an M.2 M-Key 2280 NVMe slot and an SD card slot, so recordings can stay on the box. Further I/O includes two USB 3.0 and two USB 2.0 ports, one RS-485 and two RS-232 ports on DB-9, eight GPIO, an HDMI 2.0 output and audio in and out. M.2 slots and five SMA antenna connectors take Wi-Fi, Bluetooth and cellular modules, with a SIM slot fitted.

Power is 9 to 55 V DC on a 3-pin terminal block with ACC ignition control, which suits vehicles and rolling stock as well as cabinets. EverFocus rates the eNVP-JAO-AI-V0008 from -20 to 60 °C to IEC 60068-2 with 0.5 m/s airflow, and lists MIL-STD-810G Method 514.7 Category 4 vibration and Method 516.7 Procedure I shock. The 242 x 177 x 94 mm unit weighs 4.5 kg, with CE and FCC Class A listed. For an AGX Xavier option, the eNVP-JAX-AI-V0008 offers eight PoE ports in the same size of enclosure.
