Premio RCO-6000-RPL-2E16-4B7M Intel 14th Gen Core Rugged Industrial PC with 4x SATA Drive Bays and PCIe x16 Gen4
Intel
Linux
Windows
Triple Display Support
2.5GbE
USB3
2x M.2
1x mPCIe
2x PCIe
2x SIM
4G
5G
Wi-Fi
NVMe SSD
Ignition Control
Extended Temp
CE
FCCRCO-6000-RPL-2E16-4B7M Overview

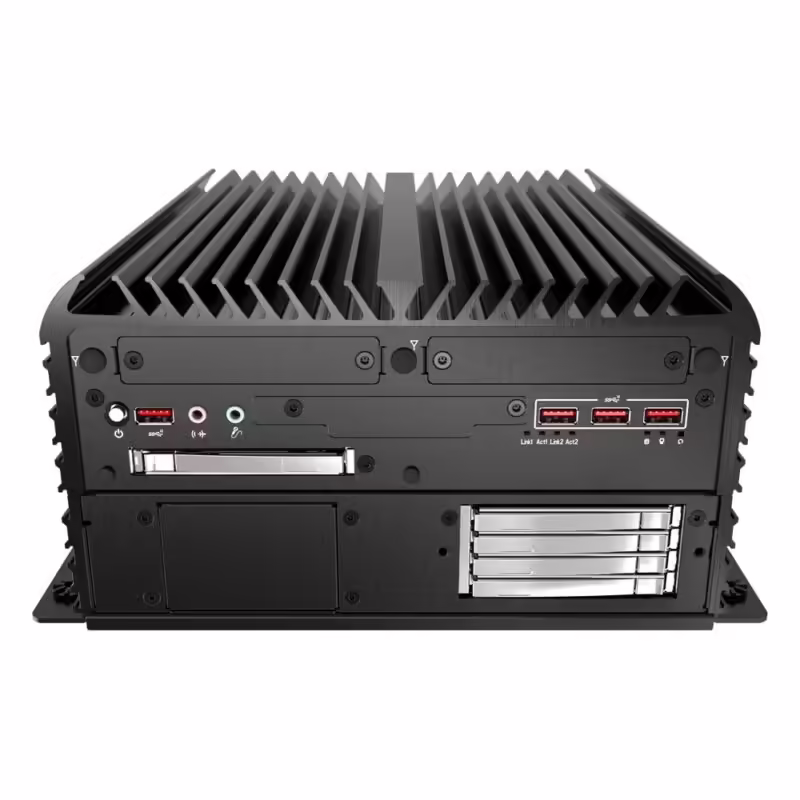

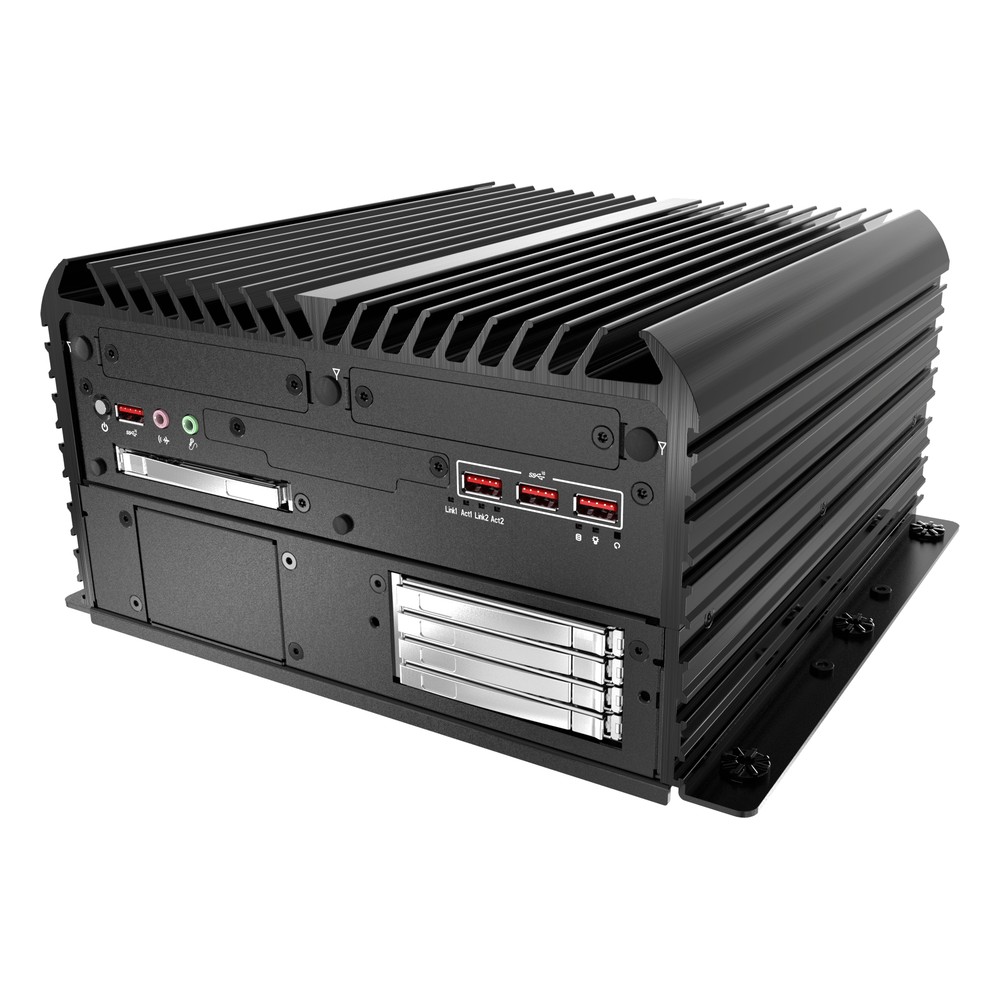

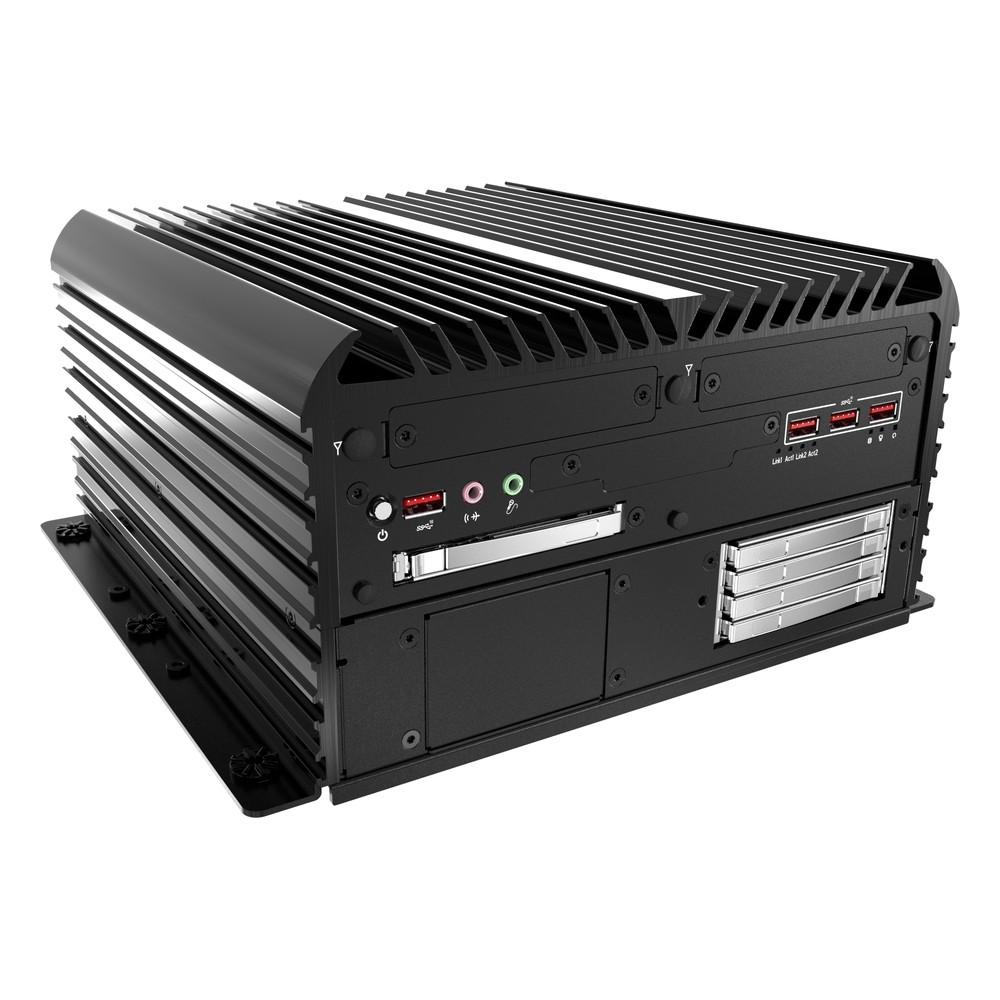

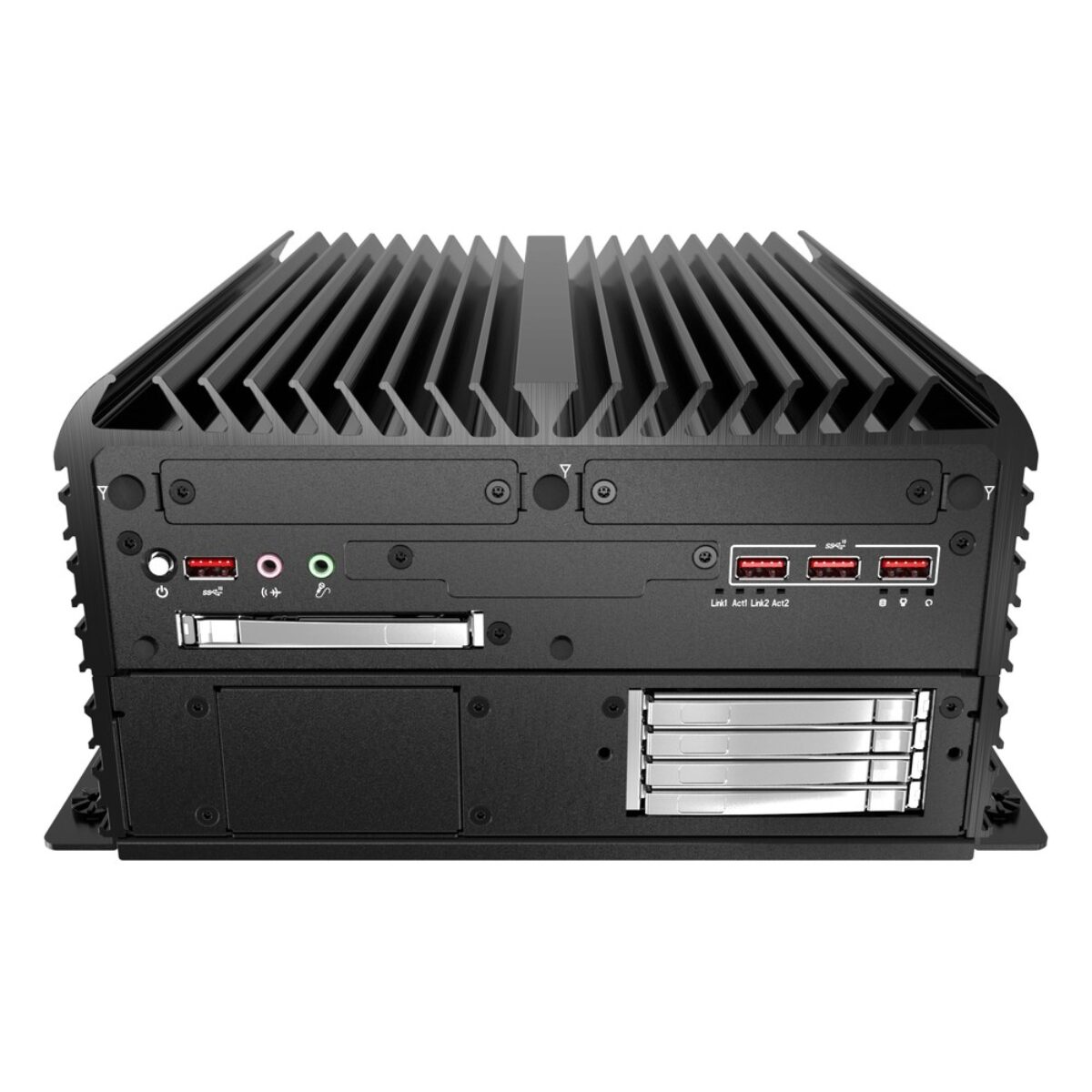

Vision inspection and in-vehicle recording often need a GPU and several swappable drives in the same rugged box. The Premio RCO-6000-RPL-2E16-4B7M is a rugged industrial PC in the RCO-6000-RPL series that adds an EDGEBoost Node below the CPU section, with four hot-swappable 2.5-inch SATA SSD bays and a PCIe x16 Gen4 slot and a PCIe x1 Gen3 slot.
The RCO-6000-RPL-2E16-4B7M takes Core Series 2 and 12th to 14th Gen Intel Core processors in an LGA1700 socket on the R680E chipset, from 35 W standard parts such as the i7-13700TE up to 65 W project builds. Up to 96 GB of DDR5 ECC or non-ECC memory, TPM 2.0 and Windows 11 or Linux support complete the CPU section. Compatible cards include the NVIDIA RTX PRO 4000 Blackwell SFF, RTX PRO 2000 Blackwell, RTX 4000 SFF Ada, RTX 2000 Ada and RTX A1000.

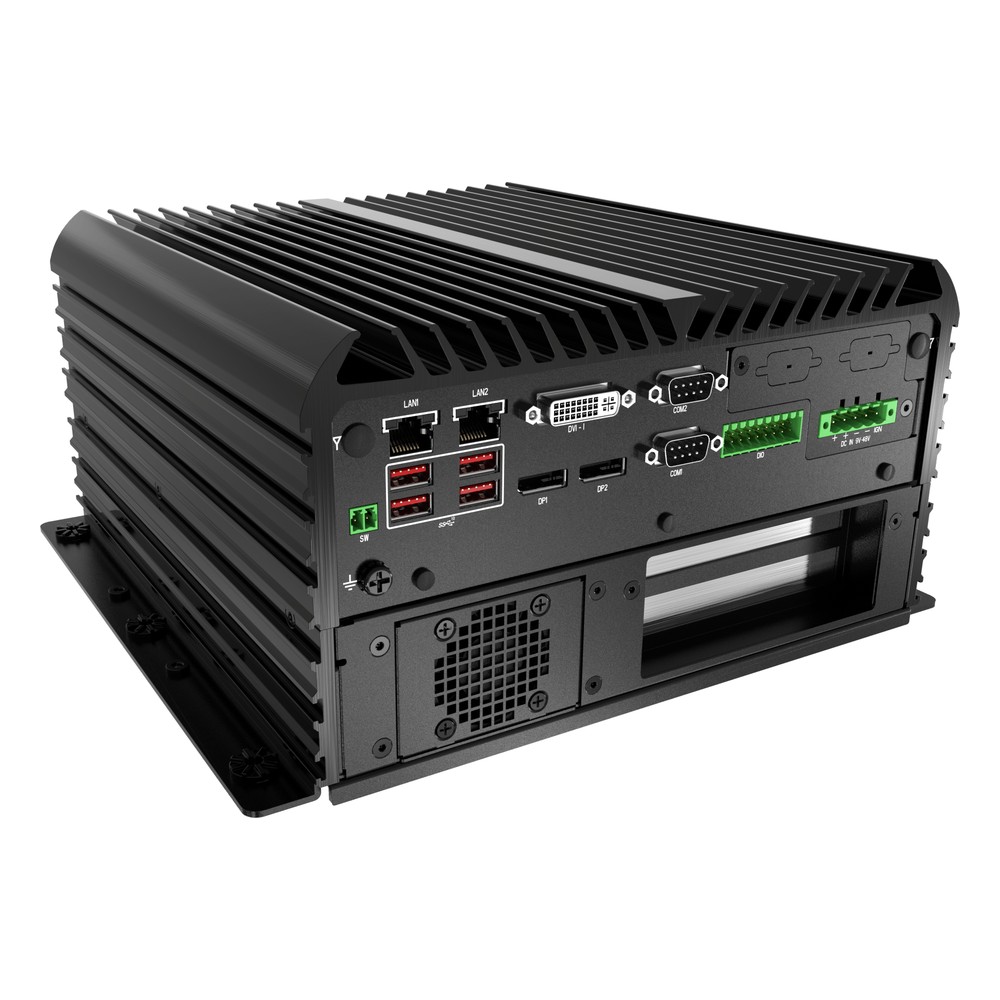

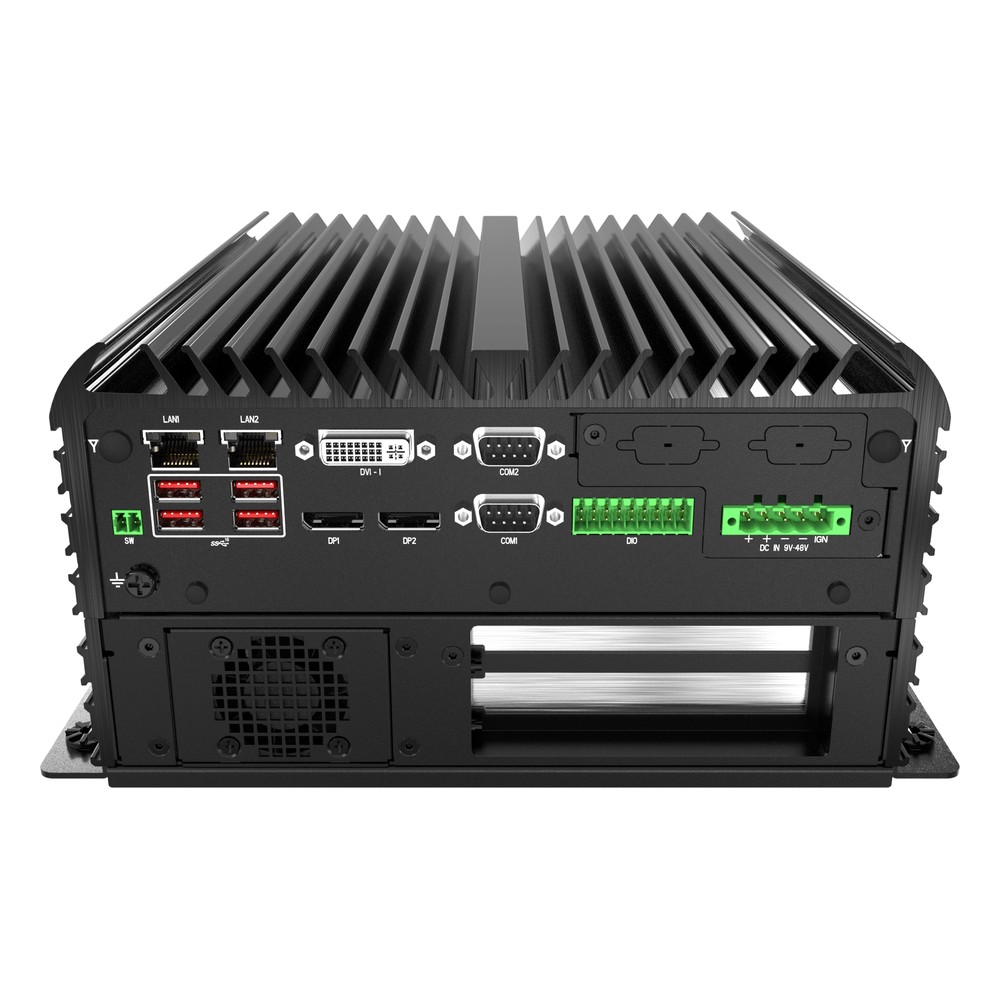

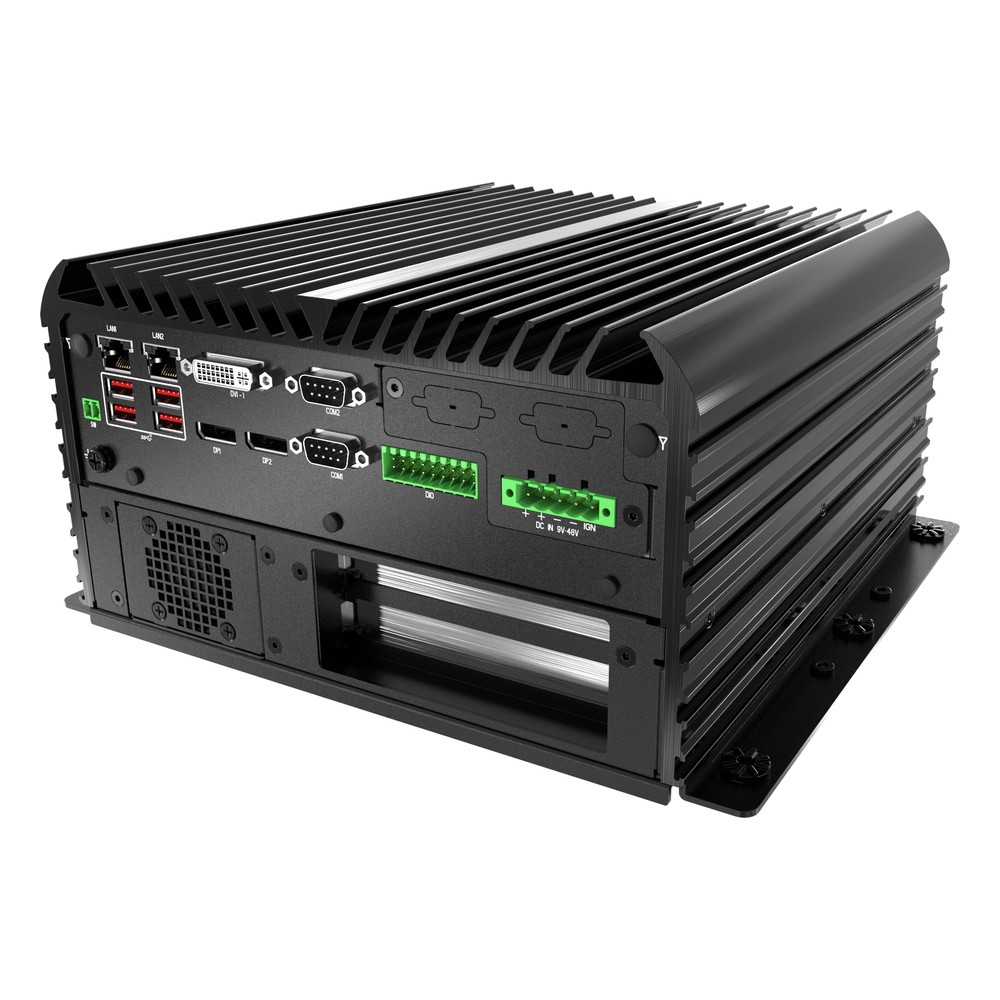

Two Intel I226 2.5GbE ports support TSN and PXE, with eight USB 3.2 Gen 2 ports, two DisplayPort 1.4a outputs and a DVI-I port for triple display. Field I/O covers six RS-232/422/485 ports (four internal), two CAN headers and isolated 8-in/8-out DIO. An M.2 B key socket takes NVMe, an AI module or a 4G/5G modem, and two EDGEBoost I/O brackets take optional GbE, 10GbE, USB or 5G modules. The CPU section adds an internal and a hot-swappable SATA bay.
Main power is 9 to 48 V DC on a terminal block with ignition management and a PC/Car mode switch, with an optional 280 W or 360 W adapter. The RCO-6000-RPL-2E16-4B7M runs from -25 °C to 70 °C with 35 W or 45 W processors and to 60 °C with 65 W. It is designed to comply with MIL-STD-810H for shock and vibration, with UL 62368-1, CE, FCC and UKCA marks. The CPU section is fanless, and the node has a hot-swappable rear fan. We supply it configured and tested, with memory, drives, any GPU card and the OS image fitted. See also the RCO-6000-RPL-2E8-4B7M and the RCO-6000-RPL-2E16-2N15M.
RCO-6000-RPL-2E16-4B7M Specifications
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-RPL-2E16-4B7M |
| Features | Embedded Expandable Industrial Rugged |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake |
| Processor Models | Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | RTX 4000 SFF Ada RTX A1000 NVIDIA RTX PRO 2000 Blackwell: 4352 CUDA Cores, 16GB GDDR7 ECC, 70W NVIDIA RTX PRO 4000 Blackwell SFF Edition: 8960 CUDA Cores, 24GB GDDR7 ECC, 70W NVIDIA RTX 2000 Ada Generation: 2816 CUDA Cores, 88 Tensor Cores, 16GB GDDR6 ECC, 70W |
| AI Performance | 54–770 TOPS |
| Number of GPUs | Single GPU Support |
| GPU Family | NVIDIA RTX Ada NVIDIA RTX Ampere NVIDIA RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace NVIDIA Blackwell NVIDIA Ampere |
| Memory | 2x DDR5 5600MHz SO-DIMM Slot, 96GB |
| Chipset | Intel R680E |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x DVI 2x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | 9x USB Ports |
| 1x USB 2.0 [Board] 8x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [DB9] 4x RS232/422/485 [Board] | |
| CANbus | 2x CANbus Ports |
| 2x CANbus [Board] | |
| Digital I/O | Isolated DIO [8-in, 8-out] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] | |
| PCIe | 2x PCIe Slots |
| 1x PCIe [x1 Slot] [Gen3] 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x mSATA 6x 2.5" HDD/SSD |
| NVMe | NVMe SSD Support |
| Front Accessible Storage | Front Accessible Storage |
| Hot Swap SSD Support | Hot Swappable SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) RAID 5 (Striping & Distributed Parity) RAID 10 (Mirroring & Striping) |
| Power | |
| Power Input | 9-48V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F] |
| Storage Temperature | -30°C to 85°C [-22°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | IEC 62368-1 CB CE FCC IC (ICES-003) UKCA UL 62368-1 |
| Mechanical Properties | |
| Weight | 7.5 Kg (16.5 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 240mm x 261mm x 127mm (9.45" x 10.28" x 4.99") |
| Mounting Options | Wall Mount |
Official Premio USA Distributor
Things Embedded is an official Premio USA distributor, and we supply the RCO-6000-RPL-2E16-4B7M configured and tested, with the memory, storage, GPU cards and operating system image fitted before it ships. Within the Premio range, the RCO-6000-RPL-2E16-2B15M has two hot-swap SATA bays for thicker drives in place of four.
Across our range, the RCO-6000-RPL-2E16-4B7M sits with our rugged GPU computers, industrial GPU computers and Intel Raptor Lake systems.
