Vecow HEC-1000 Intel Core 200S and 12th to 14th Gen Military Computer with MIL-DTL-38999 I/O, MIL-STD-810G and 9-50V DC

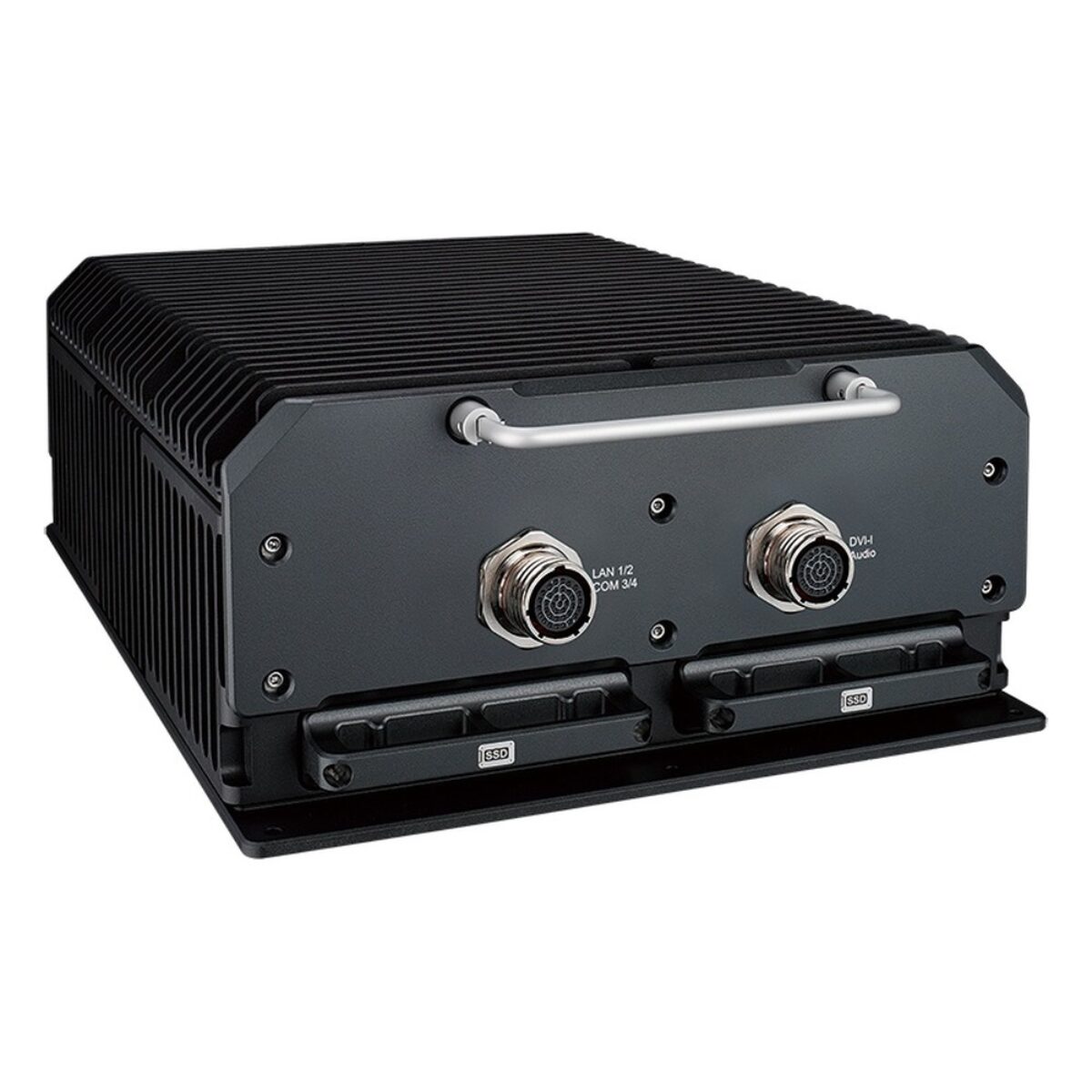

Vehicle electronics bays, robotic control cabinets and defense installations put a computer through shock, vibration, altitude and temperature extremes, and every cable entry is a route in for water and dust. The Vecow HEC-1000 is a rugged military computer built for that environment, with all I/O on MIL-DTL-38999 circular connectors carrying an IP66 rating and a fanless design rated from -40 °C to 65 °C.

The HEC-1000 takes a socketed processor from the Vecow CPU list on an Intel R680E chipset: Intel Core 200S (Bartlett Lake-S) parts, plus 14th Gen Core T, 13th Gen Core TE and 12th Gen Core TE processors from Core i3 to i9, all listed with ECC support. Intel UHD Graphics 770 or 730 handles display output, and two DDR4 3200 MHz SO-DIMM slots take up to 64 GB of ECC or non-ECC memory under Windows 11 or Linux.

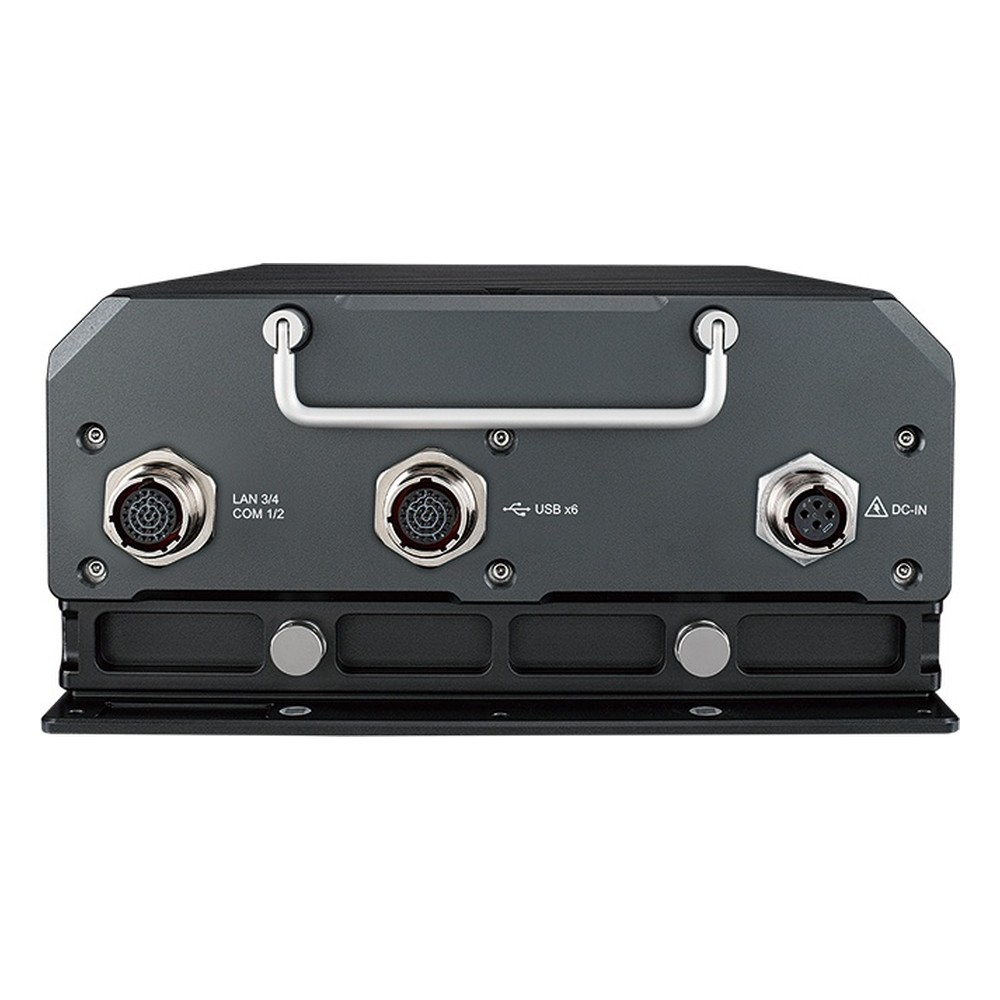

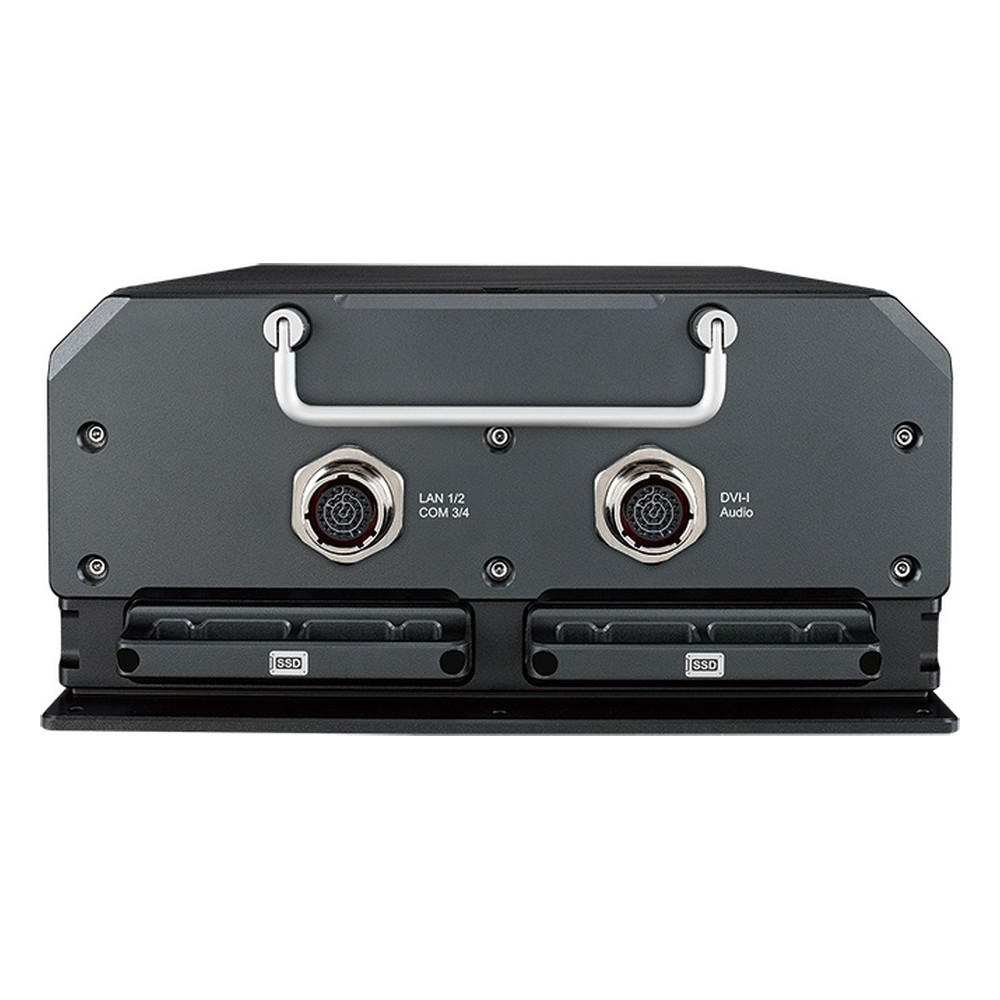

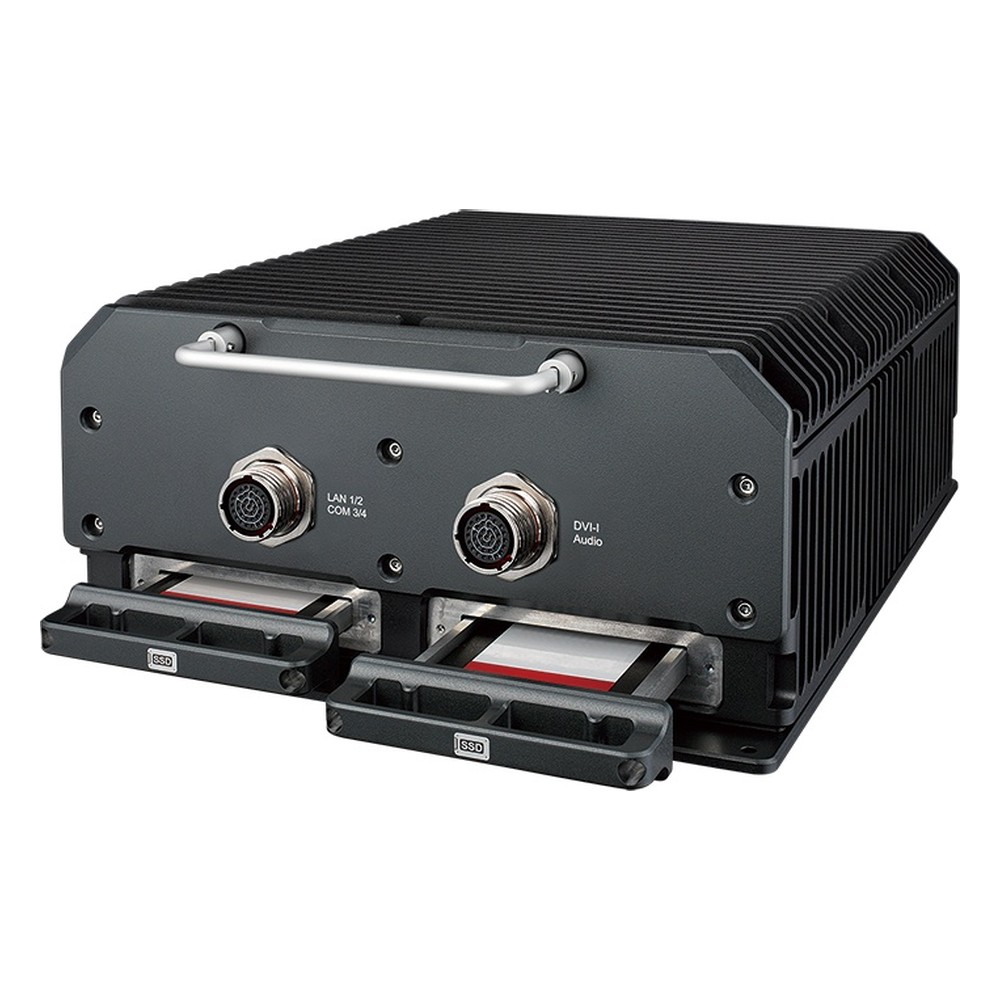

Five MIL-DTL-38999 connectors carry one Intel I219LM Gigabit port with Intel AMT support, three Intel I226 2.5GbE ports with TSN, four RS-232/422/485 COM ports, six USB 2.0 ports, a DVI-I output at up to 1920 x 1080 at 60 Hz, audio and the DC input. Storage is two front-access SSD or HDD trays on SATA III with software RAID 0 and 1, an M.2 M key socket on PCIe x4 and mSATA through the Mini PCIe socket. The Mini PCIe, M.2 B key and M.2 E key sockets, and 5G, 4G or Wi-Fi modules, are optional customizations by request.

Power is 9 to 50 V DC in AT mode through a four-pin MIL-DTL-38999 connector. The HEC-1000 is designed to MIL-STD-810G requirements for low pressure, high and low temperature, vibration (Method 514.6, Category 24) and shock (Method 516.6, Procedure I), and to MIL-STD-461G, with CE and FCC marks. TPM 2.0 is onboard, the storage temperature range is -55 °C to 85 °C and it fixes with a wall mount bracket. For less demanding sites, the VCM-2000AF takes the same Core 200S processors on 9 to 36 V DC, and the VCM-2000A runs 35 W parts fanless.
