Advantech MIC-770 V3 Intel 12th to 14th Gen and Core Series 2 Fanless Industrial PCs with LGA1700 Socket

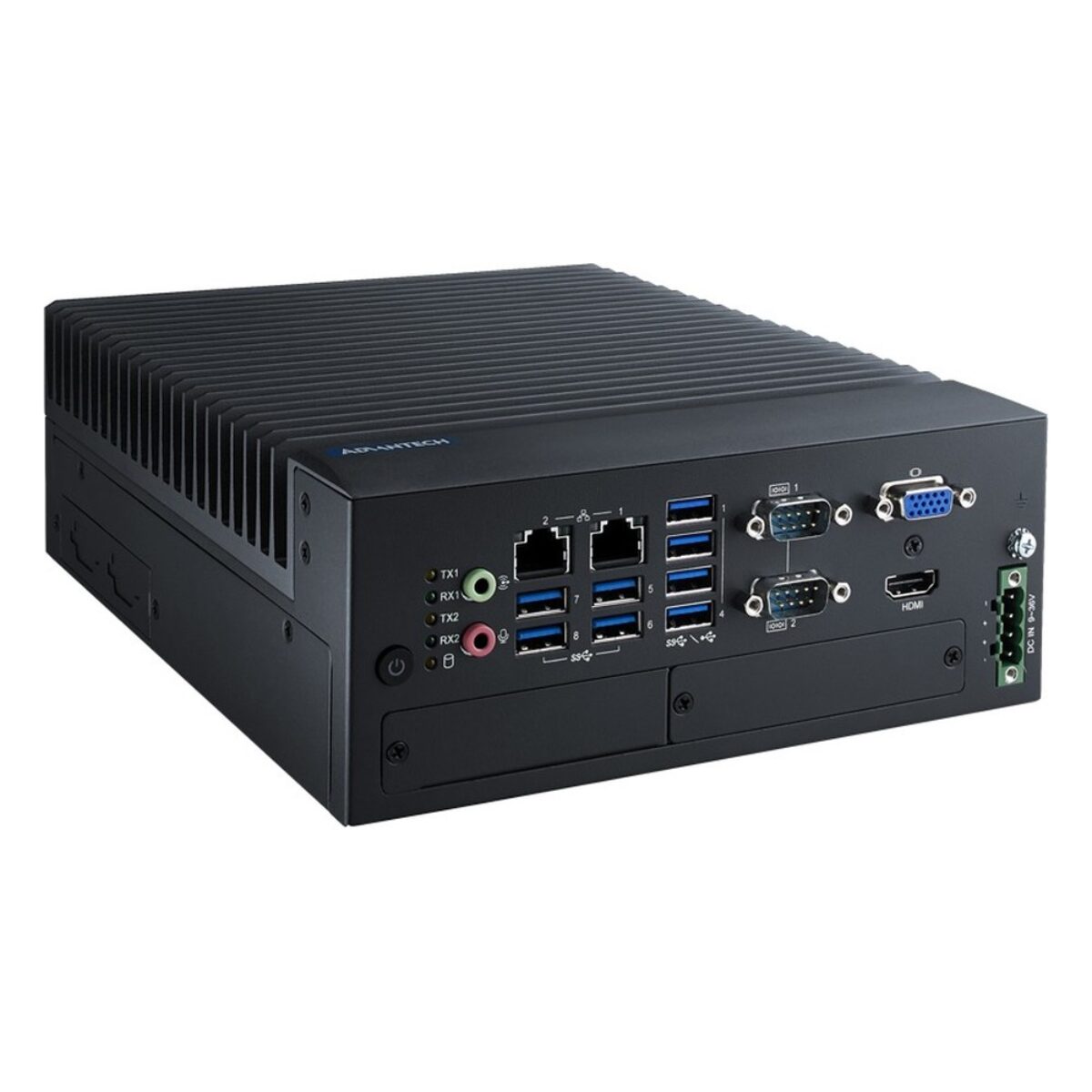

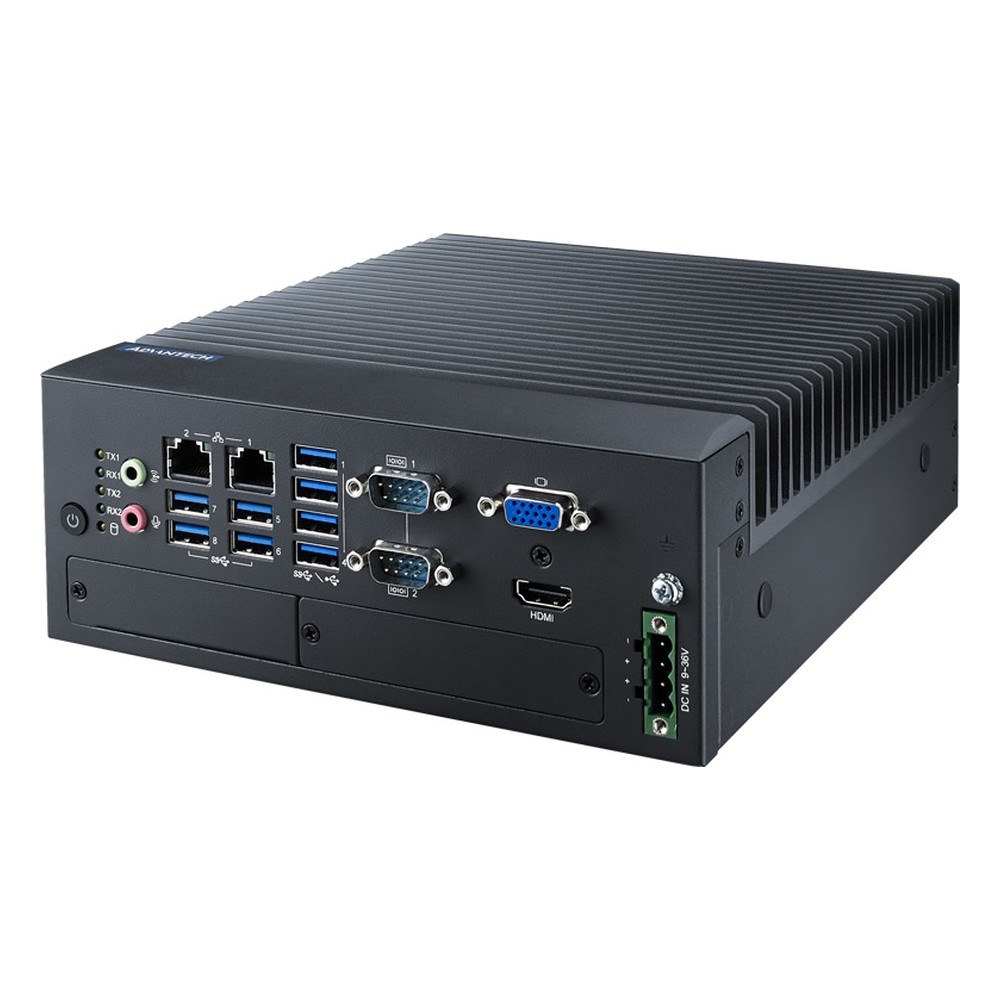

Industrial projects rarely know their final compute load on day one. The Advantech MIC-770 V3 series answers that with a socketed LGA1700 board in a compact, fanless aluminum chassis, so one rugged fanless PC can carry anything from a two-core Celeron G6900E to a 24-core Core i9-14900 or Core Series 2 251E. Advantech groups it with its modular IPCs: the base unit works on its own, and the Extreme chassis takes expansion modules when the job grows.

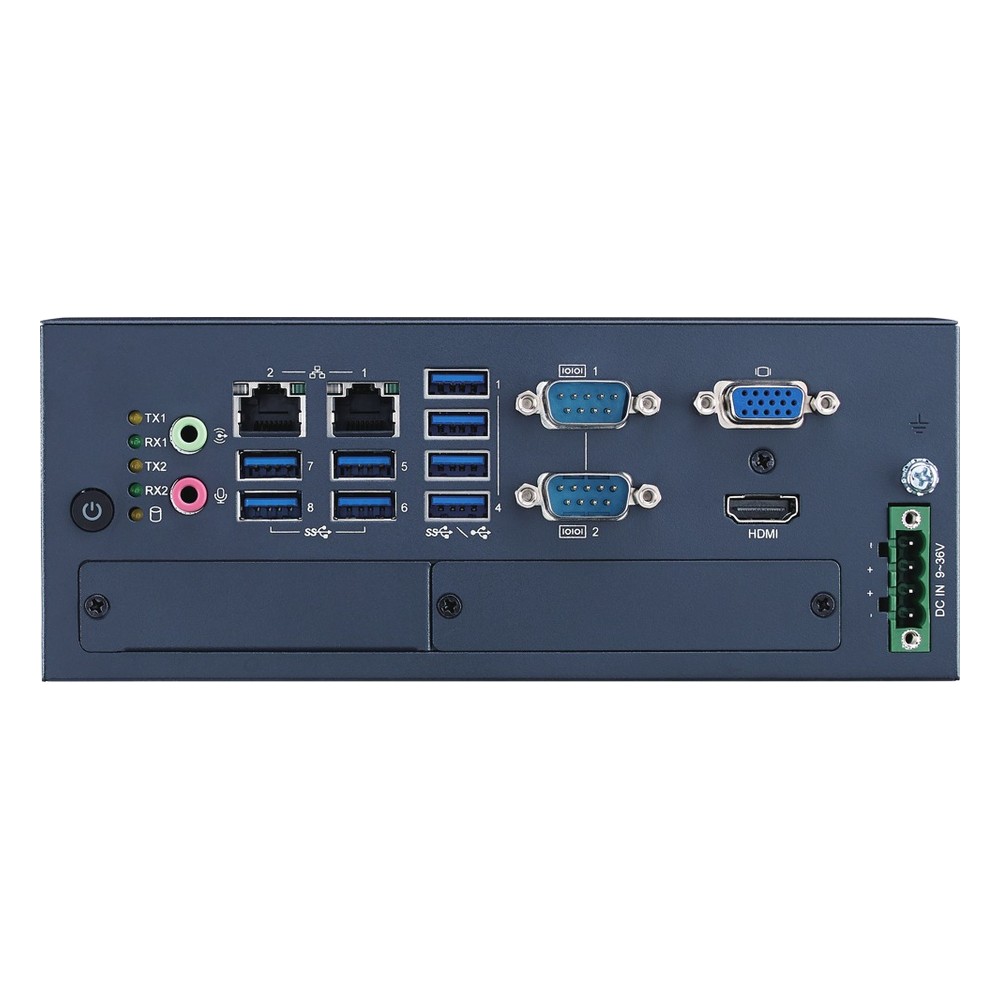

Every MIC-770 V3 model shares the same core design. Two DDR5-4800 SO-DIMM sockets take up to 128 GB, Intel UHD Graphics 770 drives VGA and HDMI at up to 4096 x 2160, and two Intel Gigabit ports, two RS-232/422/485 ports and line and mic audio come as standard, with four more RS-232 ports optional. Storage starts with a 2.5-inch bay and mSATA. Flex I/O and iDoor slots take optional DVI, DisplayPort, HDMI, COM, GPIO and remote switch kits, and a TPM 2.0 module is optional. The chipset decides the rest: R680E adds ECC memory, an NVMe M.2 slot on PCIe Gen4 x4, RAID 0/1/5/10, Intel vPro and AMT, WISE-iBMC out-of-band power control and four displays, while H610E uses non-ECC memory and drives three displays.

The MIC-770V3W-00A1 is the R680E model in the 77 mm Standard chassis, with two USB 3.2 Gen 2 and six USB 3.2 Gen 1 ports. The MIC-770V3W-E0A1 puts the same R680E board in the 107.3 mm Extreme chassis, which accepts optional i-Modules for one to three PCIe slots, PCI slots, GPU cards or an MXM GPU. The MIC-770V3H-00A1 is the H610E Standard model, with four USB 3.2 Gen 1 and four USB 2.0 ports and Intel I219V and I210IT networking. The MIC-770V3H-E0A1 is the H610E Extreme model, taking most i-Modules apart from the MIC-75M20-01 and MIC-75G30.

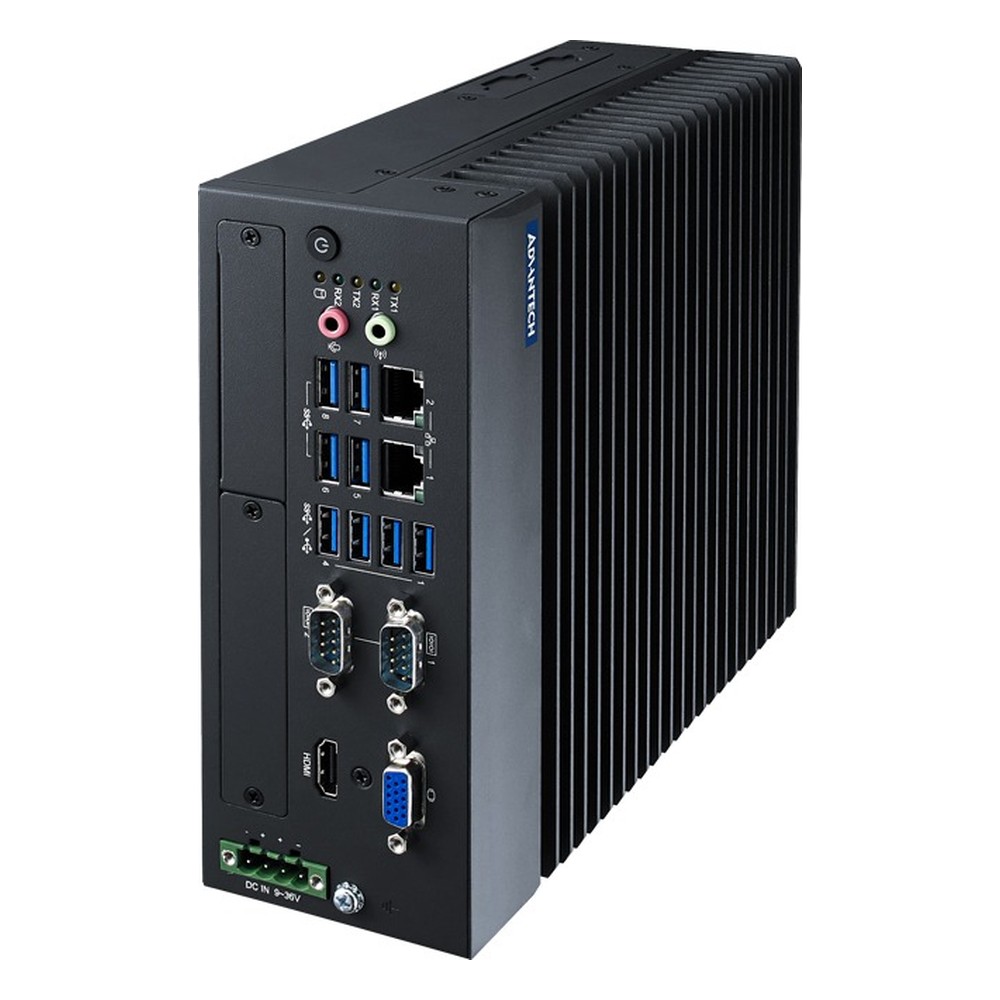

Temperature depends on chassis and processor. With 35 W CPUs and 0.7 m/s airflow, Standard models run from -20 °C to 60 °C and Extreme models to 70 °C, while 65 W CPUs bring those limits to 50 °C and 65 °C. All four MIC-770 V3 models run from 9 to 36 V DC, carry IP40, handle 3 Grms vibration and 20 G shock with an SSD, and mount on a desk or wall, with a DIN-rail kit optional and a fan kit for Standard models. They carry CE, FCC Class A and UL marks and run Windows 11 or Ubuntu, which suits machine control, test stands, vision inspection and edge data collection.
