Arestech SB-5512 Intel Core Series 2 (Bartlett Lake) Fanless Industrial PC with Triple Display and 4x M.2

Machine vision and data analytics projects often start small and then add a camera network, a 4G link or a second storage drive part way through, so the box PC has to leave room to grow. The Arestech SB-5512 is a fanless industrial PC with an LGA1700 socket, the Intel Q670 chipset, four M.2 slots and two flexible I/O windows, built for edge AI computing, factory automation, motion control and machine vision.

The SB-5512 takes 13 listed processors: the Intel Core Series 2 (Bartlett Lake) Core 7 251TE, Core 5 221TE, Core 5 211TE and Core 3 201TE at 45 W, the 14th Gen i7-14700T, i5-14500T and i3-14100T at 35 W, and 13th and 12th Gen Core i7, i5 and i3 TE parts at 35 W. Dual-channel DDR5 at 4800 or 5600 MHz reaches 96 GB across two SO-DIMM sockets, Intel UHD Graphics drives the screens, and TPM 2.0 is fitted on the board.

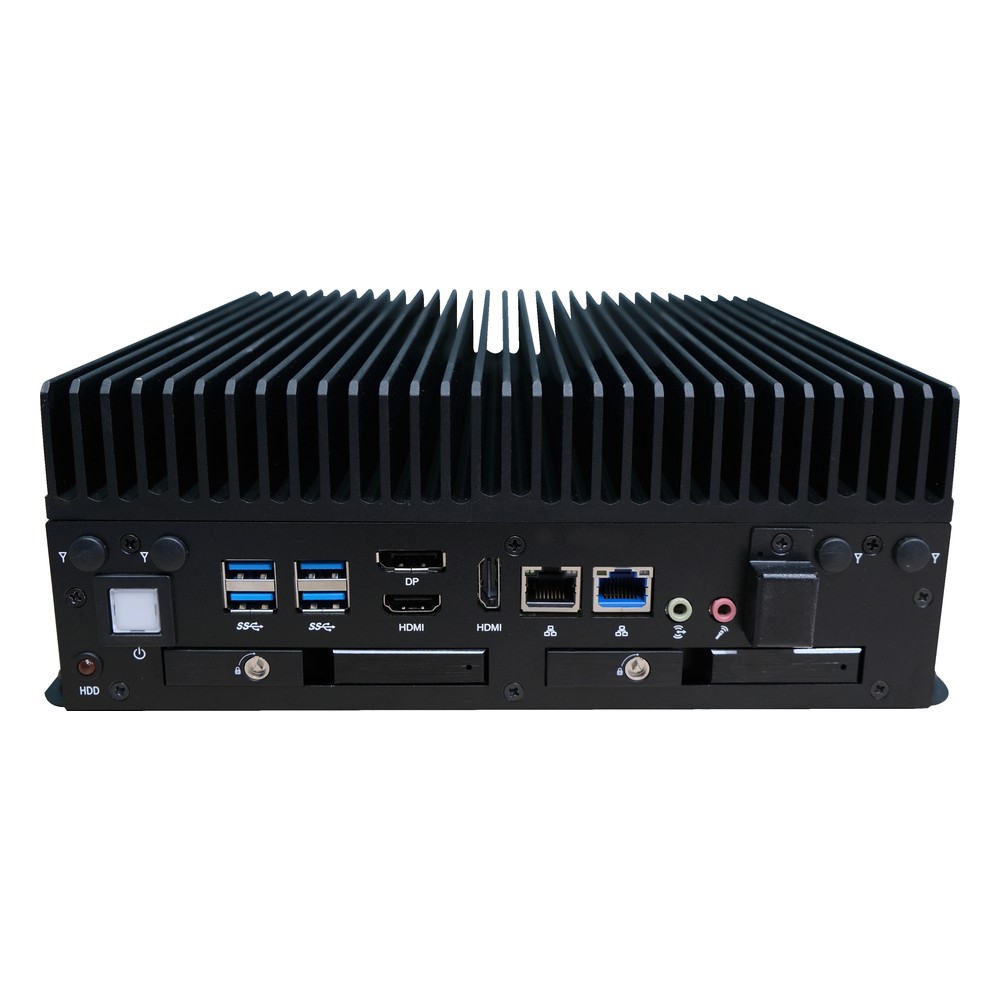

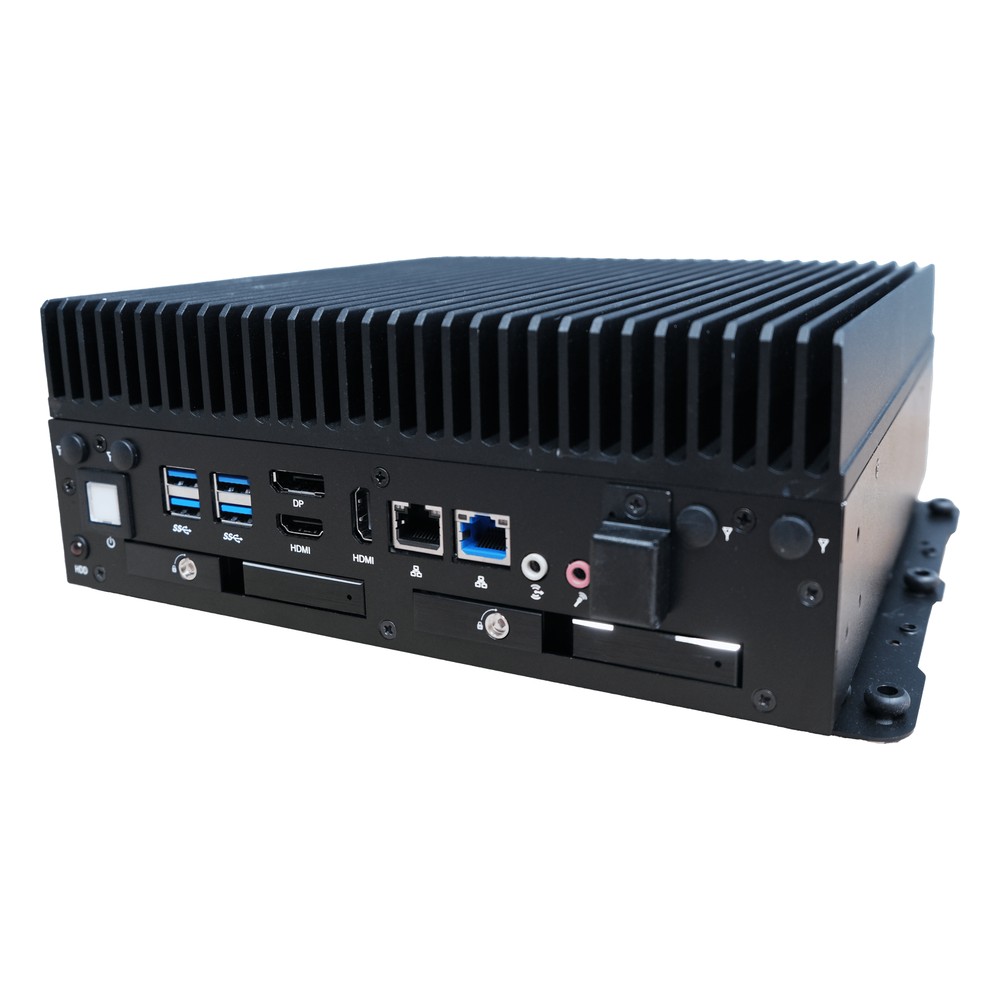

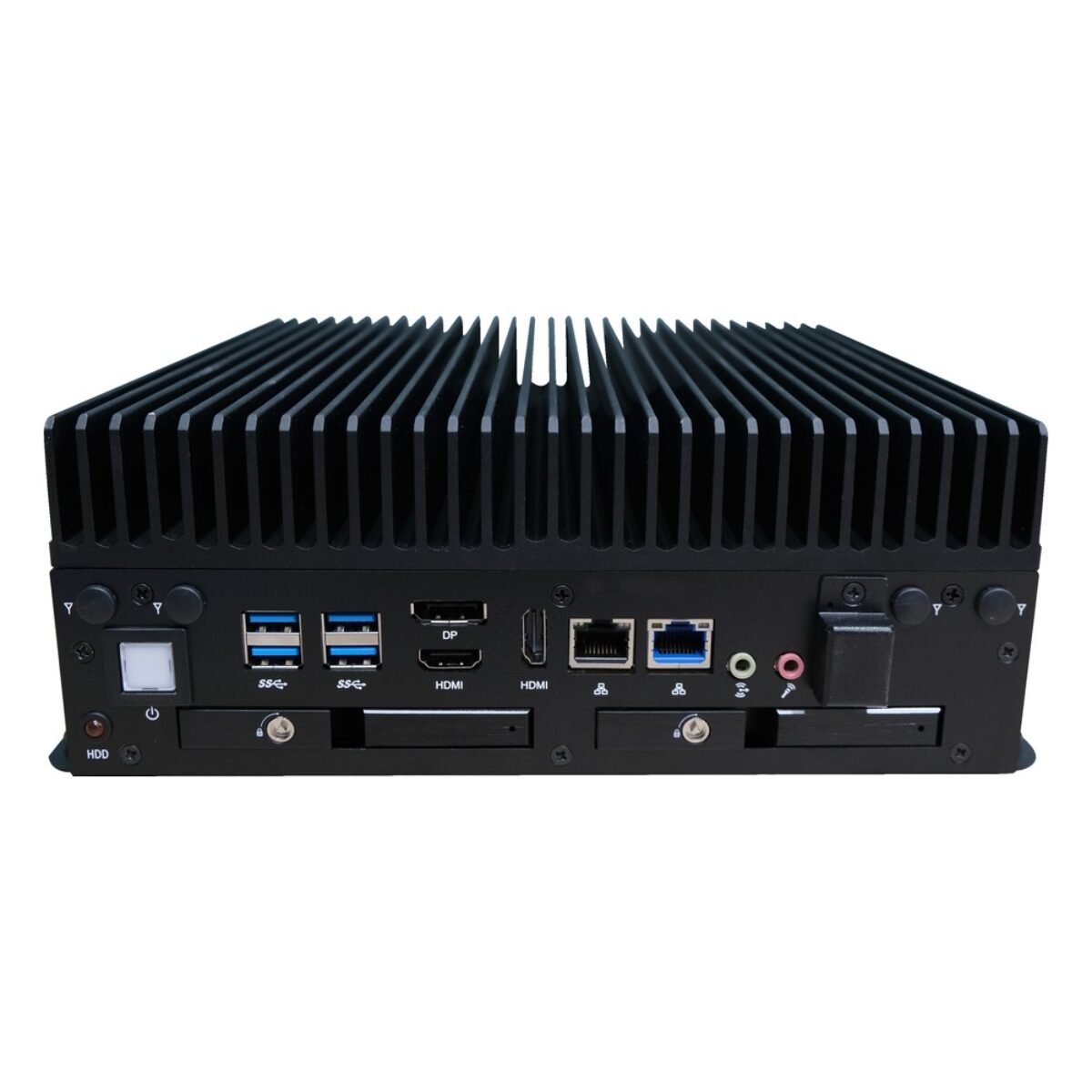

Two HDMI 2.0b outputs and one DisplayPort output support three independent displays. One Intel I226V 2.5GbE and one Intel I219LM GbE port separate camera and plant traffic, with four USB 3.2 Gen2 ports, two RS-232/422/485 ports, a four-in, four-out GPIO connector, line-out and mic-in. An M.2 2242 M-Key slot holds the operating system, two removable 2.5″ SATA SSD trays support Intel VMD RAID 0/1, and a second M-Key slot with PCIe Gen4 x4, an E-Key slot for optional Wi-Fi and a B-Key slot for an optional 4G module cover expansion, with seven antenna holes.

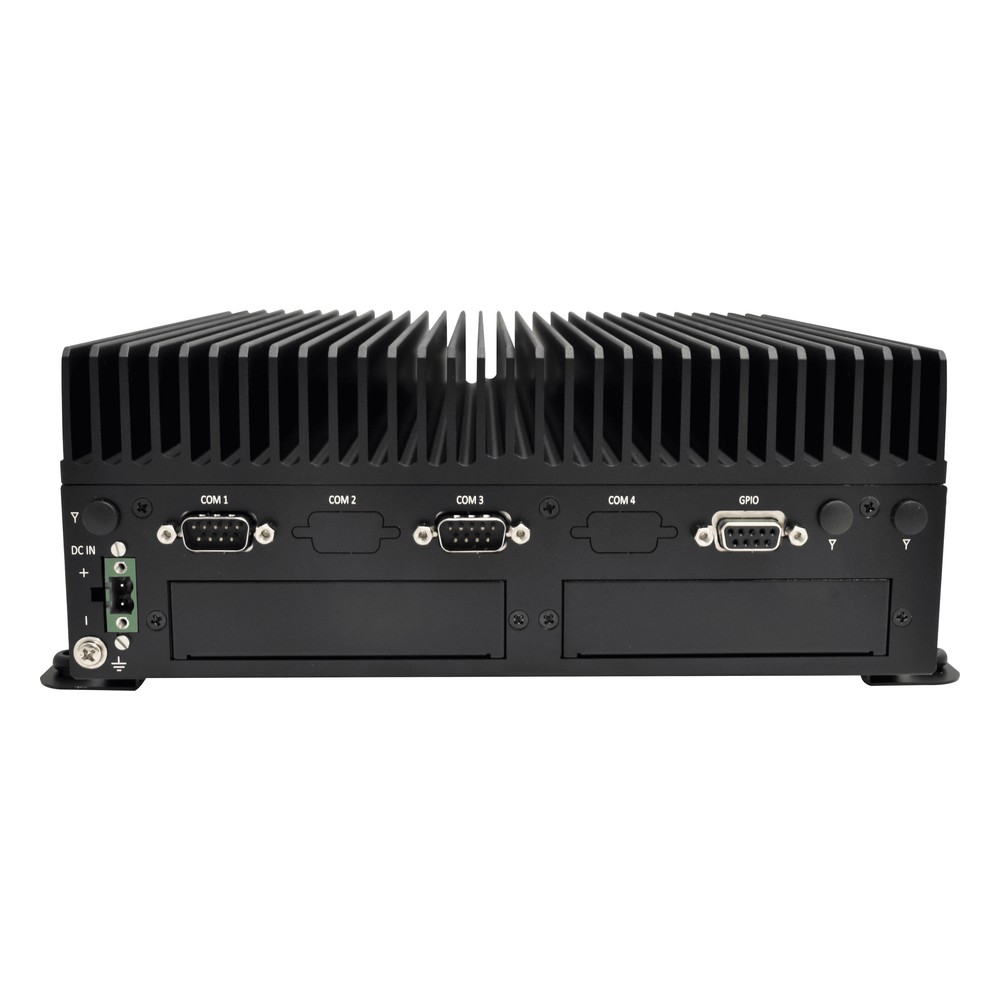

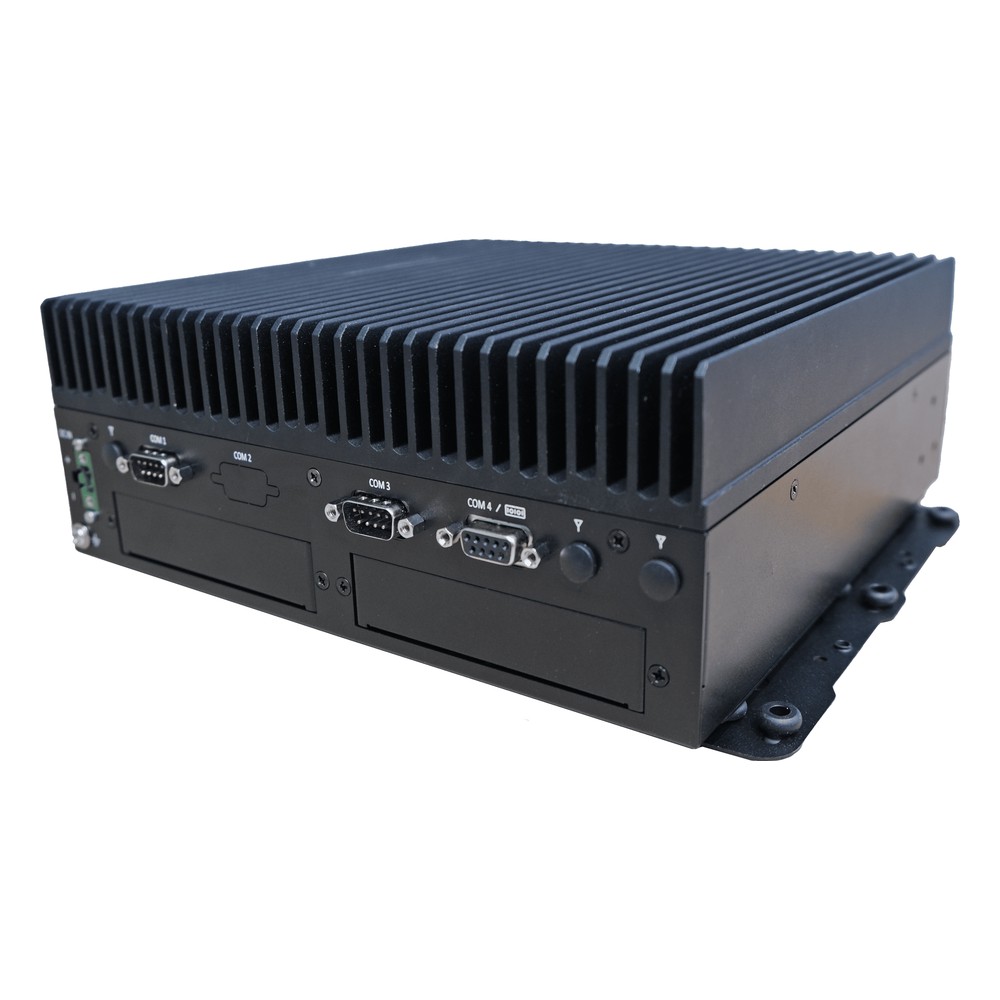

Power is 12 to 28 V DC on a two-pin terminal block with AT and ATX modes. The SB-5512 runs fanless from -20 °C to 60 °C, is tested under IEC 60068 for vibration and shock, carries CE and FCC Class A marks and wall mounts. We supply it configured, with Windows 11 or Linux installed, and tested. The BPC-5112-1A1 takes the same processors in a smaller enclosure with fixed SATA bays, and the SB-5516-1A1 moves to Core Ultra 200S with an integrated NPU.
