DFI RPS103 Intel 14th Gen Core Thin ITX Motherboards with 12 to 28 V DC Input and Dual 2.5GbE
The DFI RPS103 series is a family of Thin ITX motherboards for the LGA1700 socket, taking Intel Core Series 2 (Bartlett Lake-S), 14th, 13th and 12th Gen Core, Pentium and Celeron processors at up to 65 W. The boards accept 12 to 28 V DC and carry dual 2.5GbE, DDR5 5600 MHz, eDP or LVDS, three M.2 slots and a PCIe x16 slot. The RPS103 series suits 24 V control cabinets, machine-mounted HMIs and industrial panel PCs.
- 12 to 28 V DC Input: Accepts 12 to 28 V DC on a DC jack or 4-pin connector, so the board runs from 24 V cabinet rails or 12 V adapters.
- LGA1700 Socket up to 65 W: Takes Intel Core Series 2 (Bartlett Lake-S), 14th, 13th and 12th Gen Core, Pentium and Celeron processors from two to 24 cores.

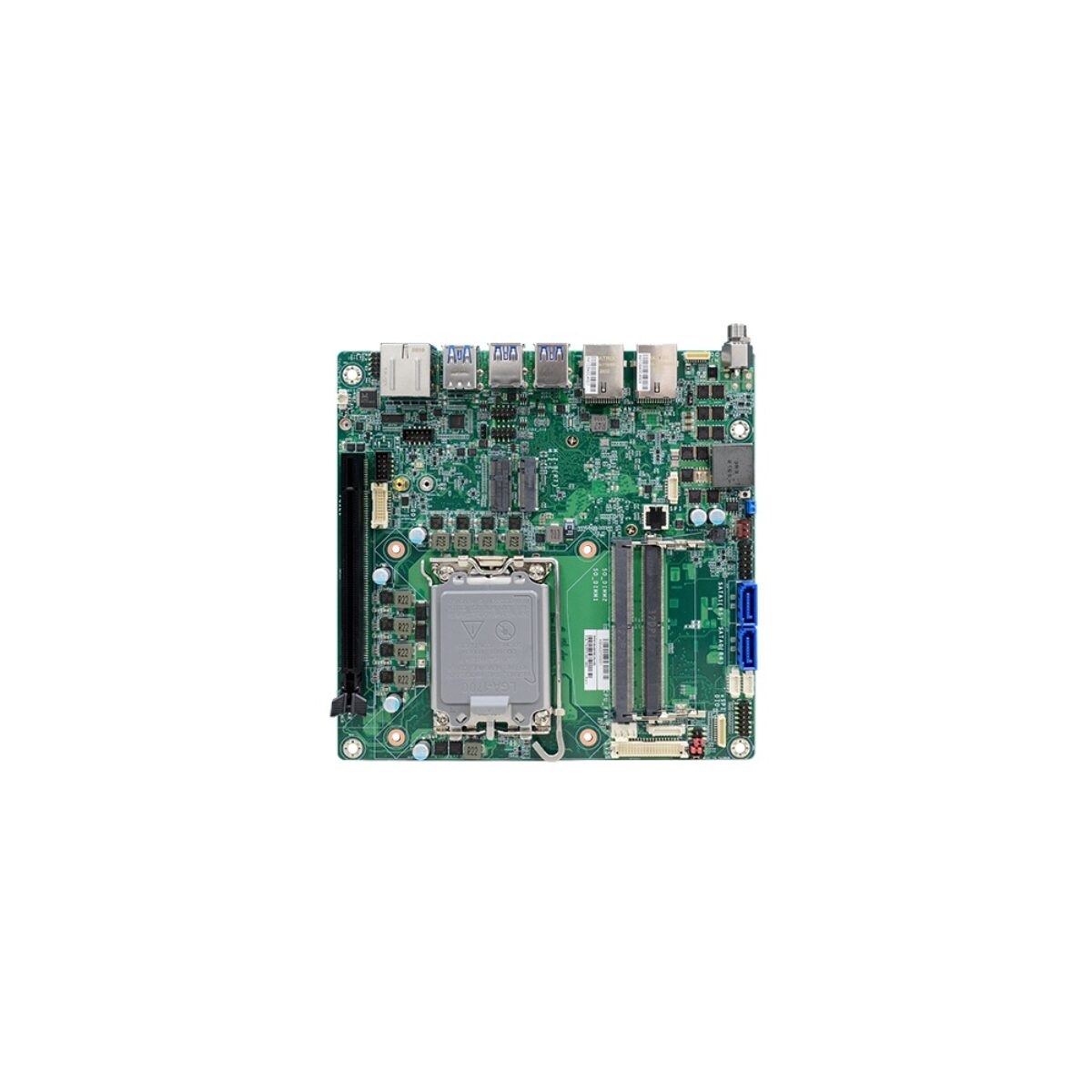

- Thin Mini-ITX Profile: 170 x 170 mm with 19 mm top-side and 4.5 mm bottom-side height for panel PCs and shallow machine enclosures.
- DDR5 and Quad Display: Up to 64 GB DDR5 5600 MHz, internal eDP or LVDS, HDMI 2.0, DP++ and DFI’s display extension port for four screens.
- Dual 2.5GbE and Industrial I/O: Two 2.5GbE ports on Intel I226, two RS-232/422/485 ports, 8-bit DIO, three M.2 slots and a PCIe x16 slot.
Intel- Linux
- Windows
Quad Display Support
2.5GbE
USB3- 3x M.2
- 1x PCIe
- Wi-Fi
- NVMe SSD
- CE
- FCC
Type C
RPS103 Description

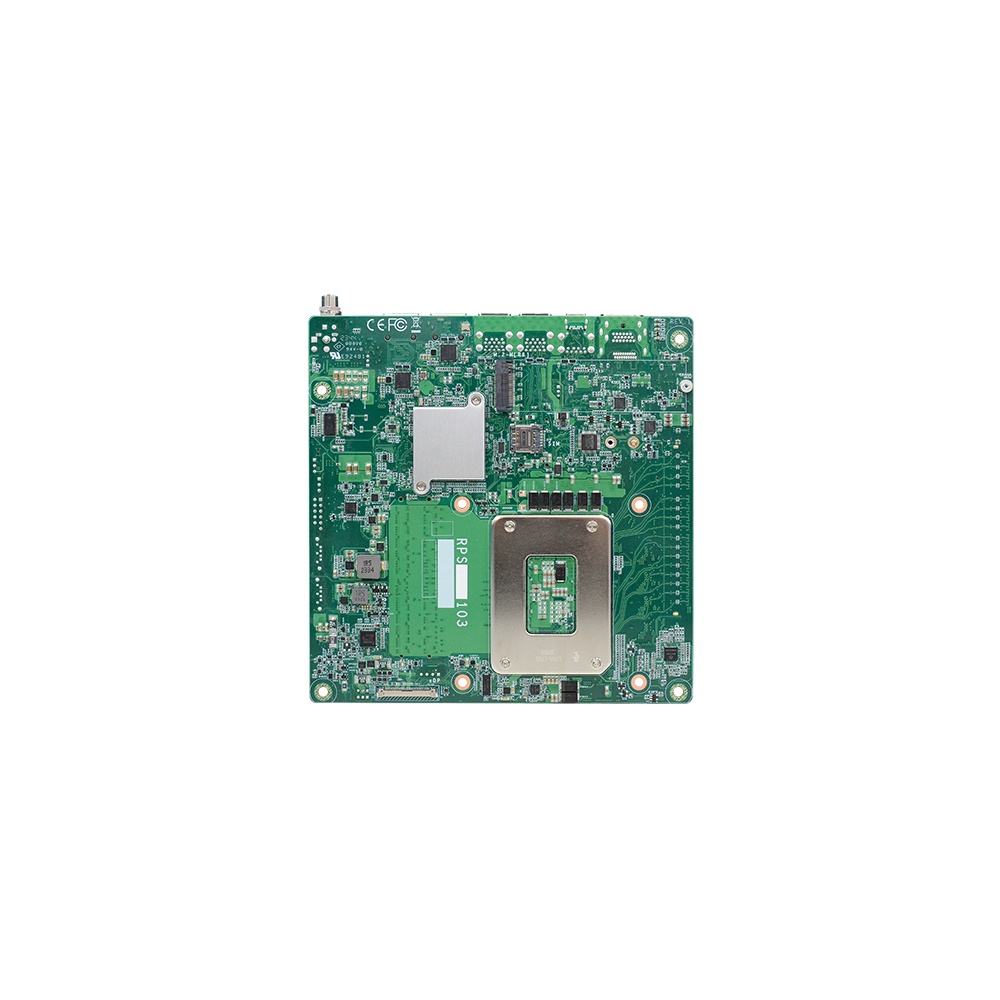

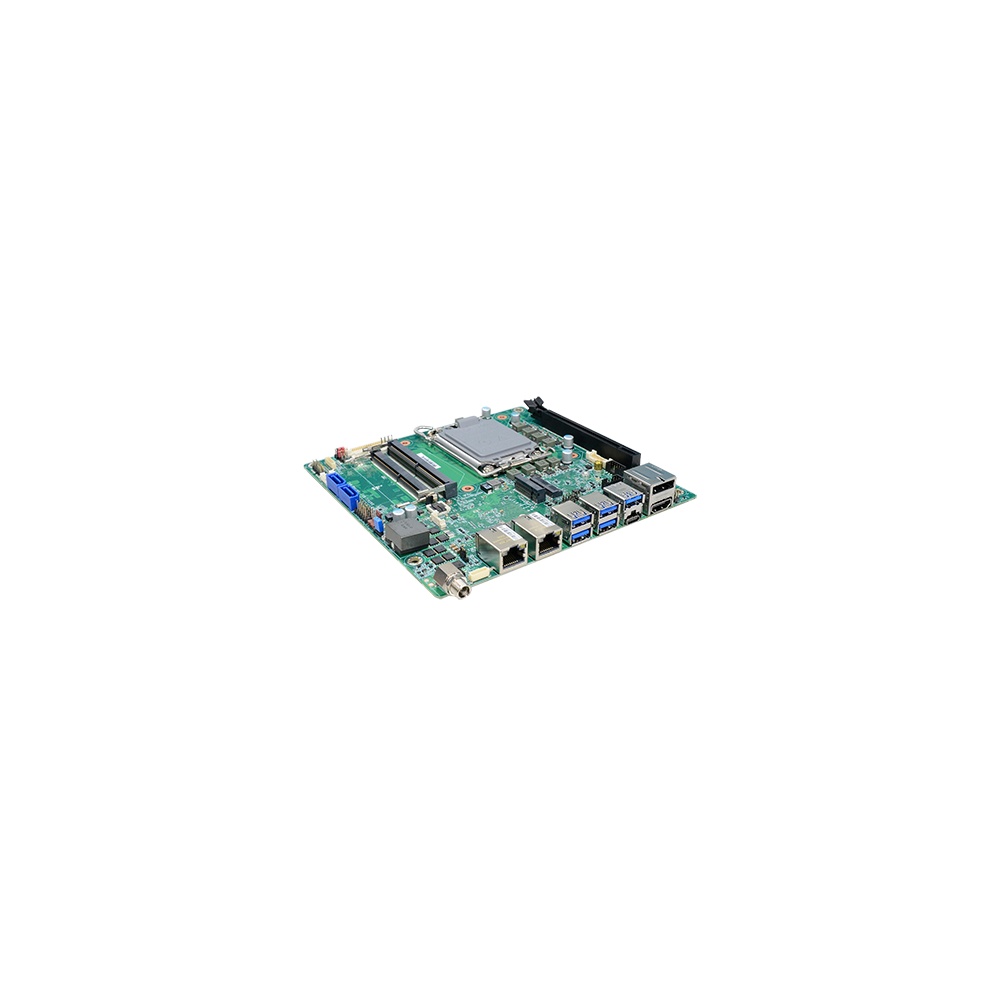

Control cabinets and machine frames are usually wired for 24 V DC, and a panel PC mounted on them often has to take that supply as it is. The DFI RPS103 series accepts 12 to 28 V DC directly, so a Thin Mini-ITX board with a socketed LGA1700 processor can run from a 24 V rail or a 12 V adapter without a separate converter. The board measures 170 x 170 mm and stands 19 mm on the top side and 4.5 mm underneath.
Every RPS103 board takes Intel Core Series 2 (Bartlett Lake-S) processors, 14th, 13th and 12th Gen Intel Core, Intel Processor 300 and Pentium and Celeron parts, from two to 24 cores at up to 65 W TDP. Two DDR5 5600 MHz SO-DIMMs hold up to 64 GB in dual channel. Intel UHD Graphics drives an internal eDP or LVDS panel, HDMI 2.0 and DP++ at the rear and DFI’s display extension port for DP, HDMI or VGA, up to four displays at once, and decodes HEVC and VP9 at up to 8K60.
Three chipset builds are listed. RPS103-R680E supports ECC memory, and together with RPS103-Q670E it adds Intel AMT, a USB-C port with DisplayPort Alt Mode, five rear USB 3.2 Gen 2 ports, four internal USB 2.0, RAID 0, 1, 5 and 10, NVMe at PCIe Gen4 x4 and a Gen5 x16 slot that splits into two x8 links. RPS103-H610E carries two USB 3.2 Gen 2, one USB 3.2 Gen 1 and two USB 2.0 rear ports, two internal USB 2.0 and a PCIe x16 slot for one card.
All three have two 2.5GbE ports on Intel I226 controllers, two RS-232/422/485 ports on internal headers, 8-bit DIO and two SATA 3.0 ports. An M.2 E-key (2230) takes Wi-Fi with Intel CNVi, an M.2 B-key with a Nano SIM slot takes a cellular module, and an M.2 M-key (2280) takes the boot drive.

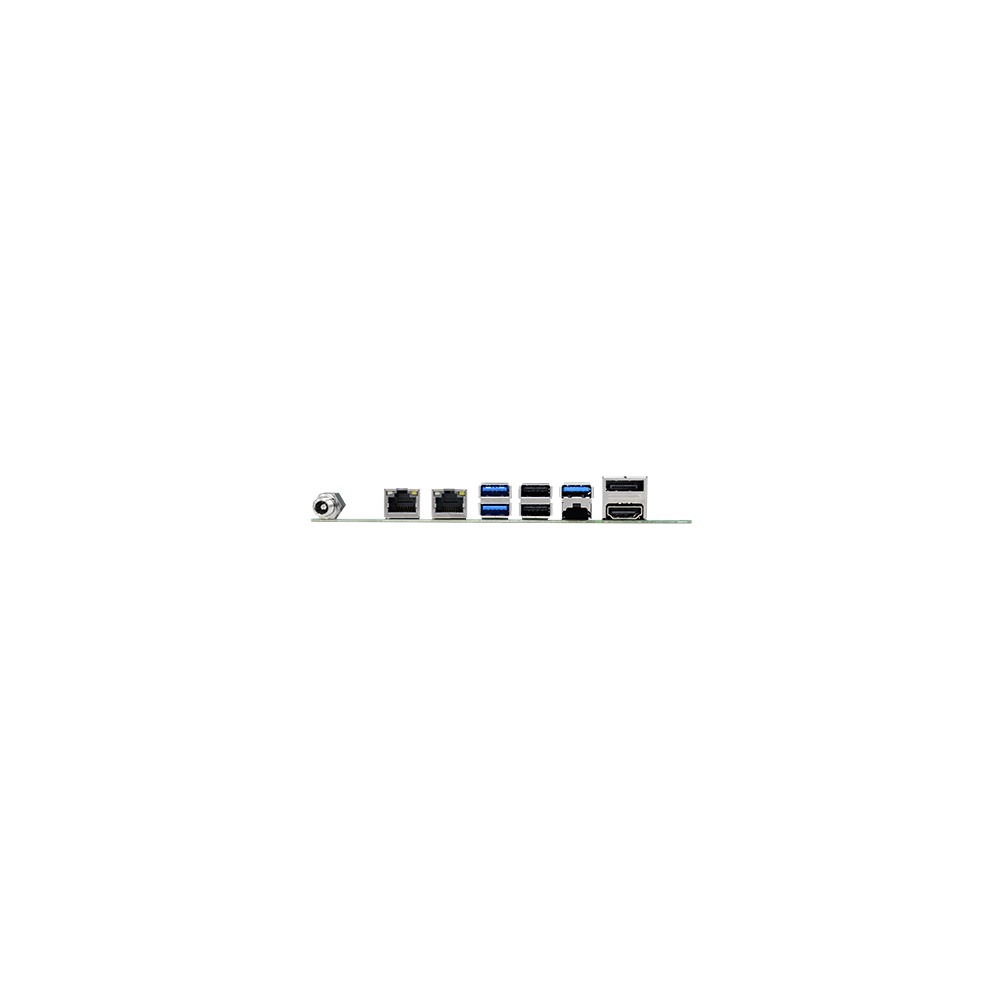

Power arrives on a DC jack or a 4-pin connector, both rated 12 to 28 V DC. The boards operate from -5 to 65 °C and carry CE, FCC, UKCA and RoHS compliance, a Nuvoton TPM 2.0, a watchdog programmable from 1 to 255 seconds and Realtek ALC888 audio. DFI lists Windows 10 IoT Enterprise, Windows 11 LTSC and Linux. Where the supply is a regulated 12 V, the RPS101 series is the same board with a 12 V input.
RPS103 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI RPS103 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | See Variant Specifications |
| Processor Models | Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Processor 300: 3.9GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Processor 300T: 3.4GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400: 2.5~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-12400: 2.5~4.4GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100: 3.3~4.3GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100: 3.4~4.5GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500: 3.0~4.6GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500: 2.5~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700: 2.1~4.9GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700: 2.1~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900: 2.4~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900: 2.0~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 5600MHz SO-DIMM Slots, 64GB |
| Chipset | See Variant Specifications |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ Dual Channel LVDS HDMI 2.0 |
| Multi Display Support | Quad Display Support |
| Display Outputs | See Variant Specifications |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | See Variant Specifications |
| Serial | 2x Serial Ports |
| 2x RS232/422/485 [Board] | |
| Digital I/O | DIO [8-lines] |
| Expansion | |
| M.2 | See Variant Specifications |
| PCIe | See Variant Specifications |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12-28V DC [4-Pin] 12-28V DC [Barrel Connector] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC RoHS UKCA |
| Mechanical Properties | |
| Dimensions | 170mm x 170mm (6.69" x 6.69") |
No specifications match your search.
See product variants.
RPS103 Variants
DFI RPS103-H610E Intel 12th to 14th Gen Core Thin Mini-ITX Motherboard with H610E Chipset, Dual 2.5GbE and 12 to 28 V DC Input
RPS103 with Intel H610E, dual 2.5GbE, 12 to 28~V DC and PCIe x16
| Overview | |
|---|---|
| Brand & Model | DFI RPS103-H610E |
| Performance | |
| Processor Series | Pentium G Series Alder Lake, Processor Series Raptor Lake, 12th Gen Alder Lake, 13th Gen Raptor Lake, Celeron G Series Alder Lake |
| Chipset | Intel H610E |
| Graphics | |
| Display Outputs | 1x Display Port, 1x eDP, 1x HDMI, 1x VGA |
| I/O | |
| USB | 7x USB Ports |
| 1x USB 3.2 Gen 1 [Type A], 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A] | |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 1/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
DFI RPS103-Q670E Intel Bartlett Lake and 14th Gen Core Thin ITX Motherboard with Q670E Chipset, Dual 2.5GbE and 12 to 28 V DC Input
RPS103 with Intel Q670E, Intel AMT, 12 to 28~V DC and USB-C display
| Overview | |
|---|---|
| Brand & Model | DFI RPS103-Q670E |
| Performance | |
| Processor Series | 14th Gen Raptor Lake Refresh, Core Series 2 Bartlett Lake, Pentium G Series Alder Lake, Processor Series Raptor Lake, 12th Gen Alder Lake, 13th Gen Raptor Lake, Celeron G Series Alder Lake |
| Chipset | Intel Q670E |
| Graphics | |
| Display Outputs | 1x Display Port, 1x eDP, 1x HDMI, 1x USB Type C, 1x VGA |
| I/O | |
| USB | 10x USB Ports |
| 1x USB 3.2 Gen 2 [Type C], 4x USB 2.0 [Board], 5x USB 3.2 Gen 2 [Type A] | |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] | |
DFI RPS103-R680E Intel 14th Gen Core Thin Mini-ITX SBC with R680E Chipset, Dual 2.5GbE and 12 to 28 V DC Input
RPS103 with Intel R680E, ECC DDR5, 12 to 28~V DC and PCIe Gen5 x16
| Overview | |
|---|---|
| Brand & Model | DFI RPS103-R680E |
| Performance | |
| Processor Series | 14th Gen Raptor Lake Refresh, Core Series 2 Bartlett Lake, Pentium G Series Alder Lake, Processor Series Raptor Lake, 12th Gen Alder Lake, 13th Gen Raptor Lake, Celeron G Series Alder Lake |
| Chipset | Intel R680E |
| Graphics | |
| Display Outputs | 1x Display Port, 1x eDP, 1x HDMI, 1x USB Type C, 1x VGA |
| I/O | |
| USB | 10x USB Ports |
| 1x USB 3.2 Gen 2 [Type C], 4x USB 2.0 [Board], 5x USB 3.2 Gen 2 [Type A] | |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] | |
