DFI RPS101 Intel 14th Gen Core Thin Mini-ITX Motherboards with Dual 2.5GbE and 12 V DC Input
The DFI RPS101 series is a family of Thin Mini-ITX motherboards for the LGA1700 socket, taking Intel Core Series 2 (Bartlett Lake-S), 14th, 13th and 12th Gen Core, Pentium and Celeron processors at up to 65 W. The boards run from 12 V DC and pair dual 2.5GbE with DDR5 5600 MHz, eDP or LVDS, three M.2 slots and a PCIe x16 slot. The RPS101 series suits panel PCs, slim kiosks, all-in-one HMIs and signage.
- 12 V DC Thin Mini-ITX: A 170 x 170 mm Thin Mini-ITX board, 19 mm tall on the top side, powered from a single 12 V DC input.
- LGA1700 Socket up to 65 W: Takes Intel Core Series 2 (Bartlett Lake-S), 14th, 13th and 12th Gen Core, Pentium and Celeron processors from two to 24 cores.
- DDR5 5600 and Quad Display: Up to 64 GB DDR5 5600 MHz, HDMI 2.0 and DP++ at the rear, internal eDP or LVDS and a display extension port.
- Dual 2.5GbE and Serial I/O: Two 2.5GbE ports on Intel I226, two RS-232/422/485 ports, 8-bit DIO and a discrete Nuvoton TPM 2.0 on every board.
- Three M.2 and PCIe x16: M.2 E-key Wi-Fi, B-key cellular with Nano SIM, M-key NVMe, two SATA 3.0 ports and a PCIe x16 slot for one card.
Intel- Linux
- Windows
Quad Display Support
2.5GbE
USB3- 3x M.2
- 1x PCIe
- Wi-Fi
- NVMe SSD
- CE
- FCC
Type C
RPS101 Description

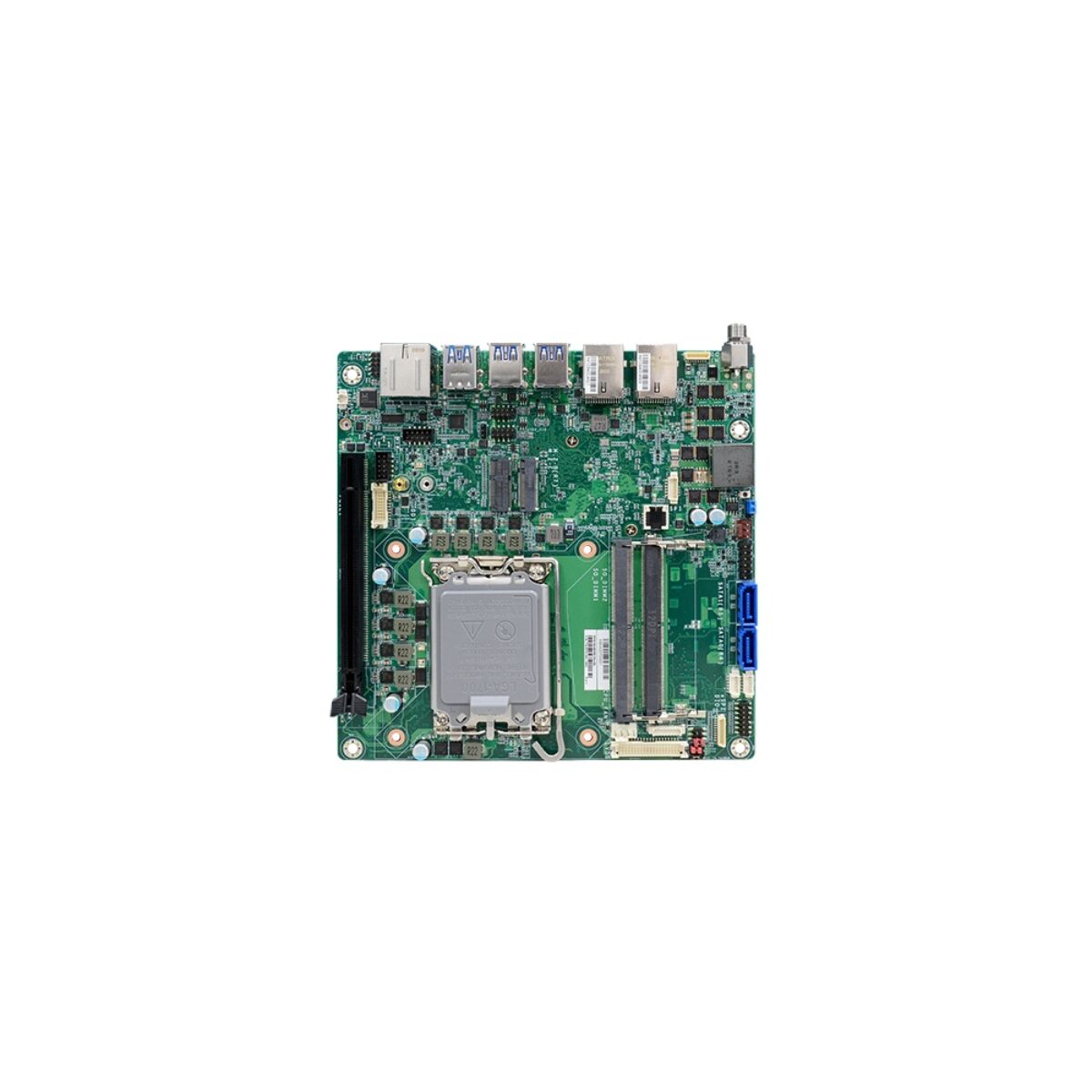

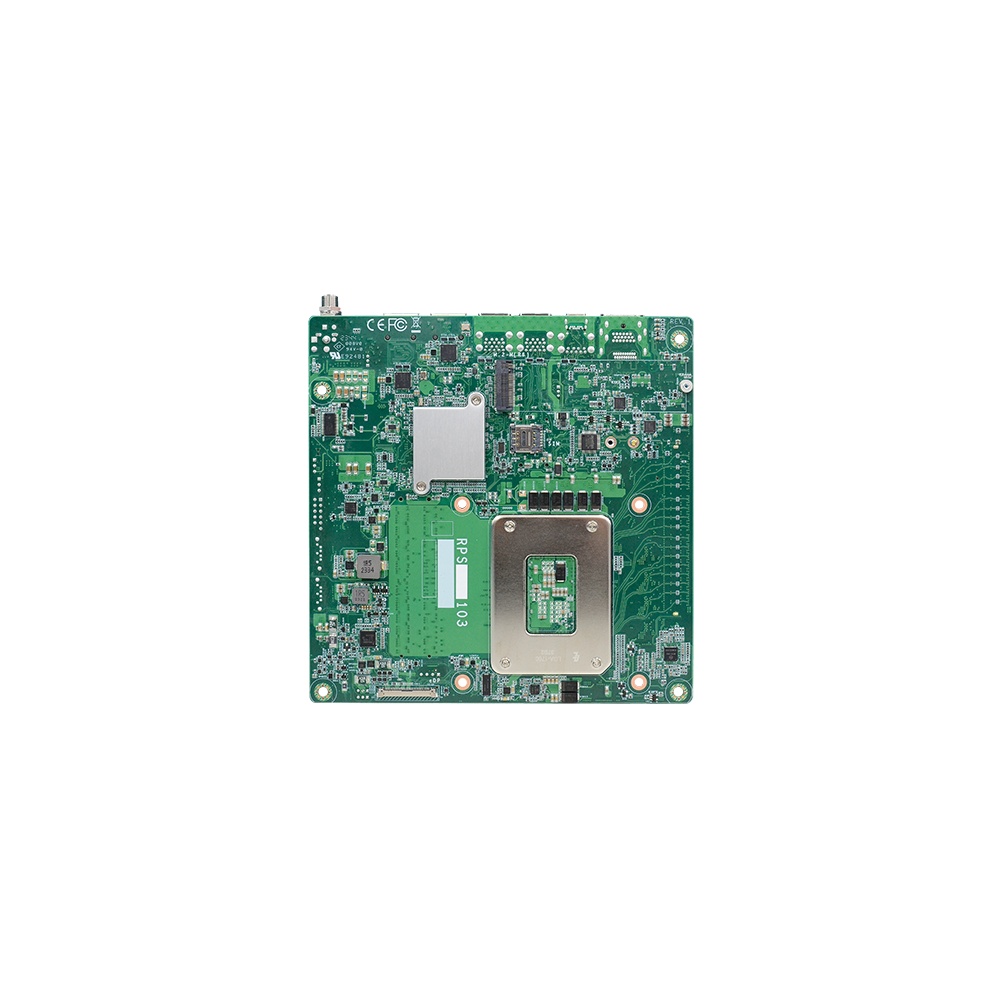

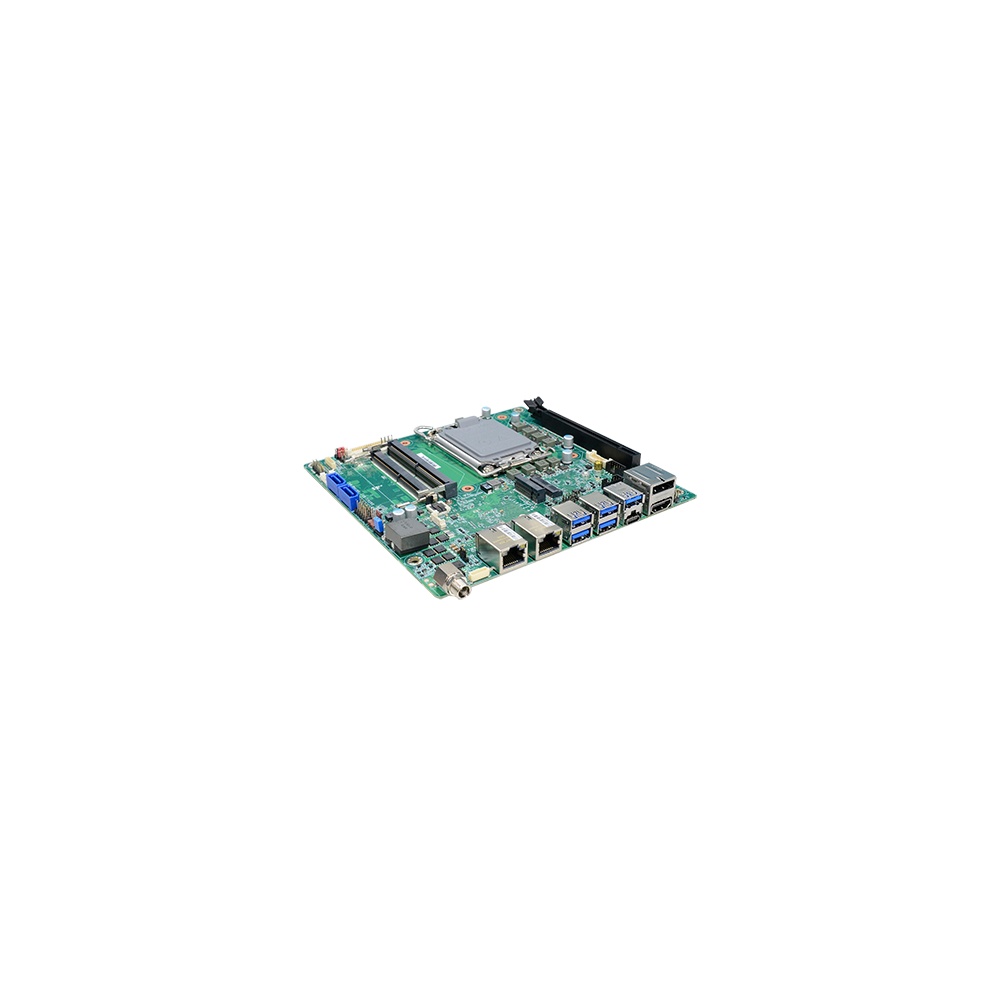

Panel PCs, all-in-one HMIs and slim kiosks leave little depth behind the display, and most take their power from a 12 V adapter or supply. The DFI RPS101 series is designed for that space: a Thin Mini-ITX board of 170 x 170 mm that stands 19 mm on the top side and 4.5 mm underneath, runs from a single 12 V DC input and takes a socketed LGA1700 processor.

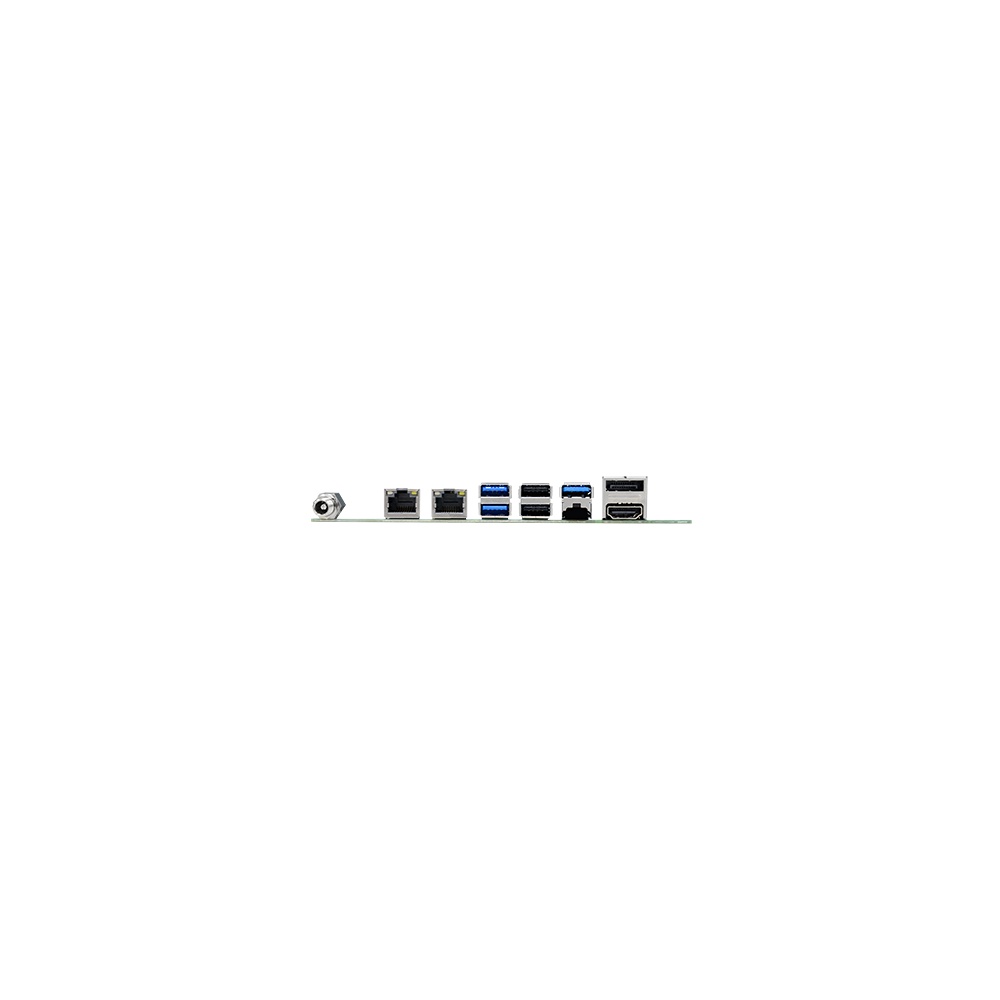

Each RPS101 board accepts Intel Core Series 2 (Bartlett Lake-S) processors, 14th, 13th and 12th Gen Intel Core, Intel Processor 300 and Pentium and Celeron parts, from two to 24 cores at up to 65 W TDP. Two DDR5 5600 MHz SO-DIMMs hold up to 64 GB in dual channel. Intel UHD Graphics decodes HEVC and VP9 at up to 8K60 and drives HDMI 2.0 and DP++ at the rear, an internal eDP or LVDS connector for the panel and DFI’s display extension port for DP, HDMI or VGA, with up to four displays at once.
RPS101-R680E and RPS101-Q670E add a USB-C port with DisplayPort Alt Mode, five rear USB 3.2 Gen 2 ports, four internal USB 2.0, Intel AMT, RAID 0, 1, 5 and 10, and a PCIe Gen5 x16 slot that splits into two x8 links. The R680E build also supports ECC memory. RPS101-H610E has two USB 3.2 Gen 2, one USB 3.2 Gen 1 and two USB 2.0 ports at the rear, two internal USB 2.0 and a PCIe x16 slot for a single card.
Every board has two 2.5GbE ports on Intel I226 controllers, two RS-232/422/485 ports on internal headers, 8-bit DIO and two SATA 3.0 ports. An M.2 E-key (2230) takes Wi-Fi with Intel CNVi, an M.2 B-key with a Nano SIM slot takes a cellular or SATA module, and an M.2 M-key (2280) takes NVMe storage, at PCIe Gen4 x4 on the R680E and Q670E builds.
Power arrives at 12 V DC on a DC jack or a 4-pin connector. The boards operate from -5 to 65 °C and carry CE, FCC, UKCA and RoHS compliance, a Nuvoton TPM 2.0, a watchdog programmable from 1 to 255 seconds and Realtek ALC888 audio. DFI lists Windows 10 IoT Enterprise, Windows 11 LTSC and Linux. For a 12 to 28 V supply, the RPS103 series is the same board with a wide-range input.
RPS101 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI RPS101 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | See Variant Specifications |
| Processor Models | Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Processor 300: 3.9GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Processor 300T: 3.4GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400: 2.5~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-12400: 2.5~4.4GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100: 3.3~4.3GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100: 3.4~4.5GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500: 3.0~4.6GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500: 2.5~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700: 2.1~4.9GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700: 2.1~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900: 2.4~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900: 2.0~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 5600MHz SO-DIMM Slots, 64GB |
| Chipset | See Variant Specifications |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ Dual Channel LVDS HDMI 2.0 |
| Multi Display Support | Quad Display Support |
| Display Outputs | See Variant Specifications |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | See Variant Specifications |
| Serial | 2x Serial Ports |
| 2x RS232/422/485 [Board] | |
| Digital I/O | DIO [8-lines] |
| Expansion | |
| M.2 | See Variant Specifications |
| PCIe | See Variant Specifications |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC [4-Pin] 12V DC [Barrel Connector] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC RoHS UKCA |
| Mechanical Properties | |
| Dimensions | 170mm x 170mm (6.69" x 6.69") |
No specifications match your search.
See product variants.
RPS101 Variants
DFI RPS101-H610E Intel 12th to 14th Gen Core Thin Mini-ITX Motherboard with H610E Chipset, Dual 2.5GbE and 12 V DC Input
RPS101 with Intel H610E, dual 2.5GbE, eDP or LVDS and PCIe x16
| Overview | |
|---|---|
| Brand & Model | DFI RPS101-H610E |
| Performance | |
| Processor Series | Pentium G Series Alder Lake, Processor Series Raptor Lake, 12th Gen Alder Lake, 13th Gen Raptor Lake, Celeron G Series Alder Lake |
| Chipset | Intel H610E |
| Graphics | |
| Display Outputs | 1x Display Port, 1x eDP, 1x HDMI, 1x VGA |
| I/O | |
| USB | 7x USB Ports |
| 1x USB 3.2 Gen 1 [Type A], 2x USB 2.0 [Board], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A] | |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 1/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
DFI RPS101-Q670E Intel Bartlett Lake and 14th Gen Core Thin ITX Motherboard with Q670E Chipset, Dual 2.5GbE and 12 V DC Input
RPS101 with Intel Q670E, Intel AMT, USB-C display and five USB 3.2 Gen 2
| Overview | |
|---|---|
| Brand & Model | DFI RPS101-Q670E |
| Performance | |
| Processor Series | 14th Gen Raptor Lake Refresh, Core Series 2 Bartlett Lake, Pentium G Series Alder Lake, Processor Series Raptor Lake, 12th Gen Alder Lake, 13th Gen Raptor Lake, Celeron G Series Alder Lake |
| Chipset | Intel Q670E |
| Graphics | |
| Display Outputs | 1x Display Port, 1x eDP, 1x HDMI, 1x USB Type C, 1x VGA |
| I/O | |
| USB | 10x USB Ports |
| 1x USB 3.2 Gen 2 [Type C], 4x USB 2.0 [Board], 5x USB 3.2 Gen 2 [Type A] | |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] | |
DFI RPS101-R680E Intel 14th Gen Core Thin Mini-ITX SBC with R680E Chipset, Dual 2.5GbE and 12 V DC Input
RPS101 with Intel R680E, ECC DDR5, USB-C display and PCIe Gen5 x16
| Overview | |
|---|---|
| Brand & Model | DFI RPS101-R680E |
| Performance | |
| Processor Series | 14th Gen Raptor Lake Refresh, Core Series 2 Bartlett Lake, Pentium G Series Alder Lake, Processor Series Raptor Lake, 12th Gen Alder Lake, 13th Gen Raptor Lake, Celeron G Series Alder Lake |
| Chipset | Intel R680E |
| Graphics | |
| Display Outputs | 1x Display Port, 1x eDP, 1x HDMI, 1x USB Type C, 1x VGA |
| I/O | |
| USB | 10x USB Ports |
| 1x USB 3.2 Gen 2 [Type C], 4x USB 2.0 [Board], 5x USB 3.2 Gen 2 [Type A] | |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] | |
