DFI ARS101 Intel Core Ultra 200S LGA 1851 Thin Mini-ITX Motherboards with W880, Q870 or H810 Chipset and 12 V DC Input
The DFI ARS101 series is a family of Thin Mini-ITX motherboards for Intel Core Ultra 200S (Arrow Lake-S) processors in the LGA 1851 socket, from the 10-core Core Ultra 5 225T to the 24-core Core Ultra 9 285, on a 12 V DC input. Every board carries dual 2.5GbE, two DDR5 SO-DIMMs up to 96 GB, a PCIe x16 slot and four M.2 slots. The ARS101 series suits slim panel PCs, kiosks, medical carts and compact vision enclosures.
- Intel Core Ultra 200S on LGA 1851: Socketed Arrow Lake-S processors from the 10-core Core Ultra 5 225T to the 24-core Core Ultra 9 285, at up to 65 W TDP.
- Thin Mini-ITX at 170 x 170 mm: A low-profile Thin Mini-ITX board for slim enclosures, panel PCs and kiosks where the height above the board is limited.
- Dual 2.5GbE and DDR5: Two 2.5GbE ports on Intel I226 controllers and two DDR5 SO-DIMMs in dual channel, holding up to 96 GB.
- PCIe x16 and Four M.2 Slots: A PCIe x16 slot for a graphics or capture card, plus M.2 M, B, E and A keys for NVMe, cellular, Wi-Fi and display modules.
- 12 V DC Input: A single 12 V DC input on a barrel jack or 4-pin connector, -5 to 65 °C operation and CE, FCC, UKCA and RoHS compliance.
Intel- Linux
- Windows
Quad Display Support
2.5GbE
USB3- 4x M.2
- 1x PCIe
- Wi-Fi
- NVMe SSD
- CE
- FCC
Type C
ARS101 Description

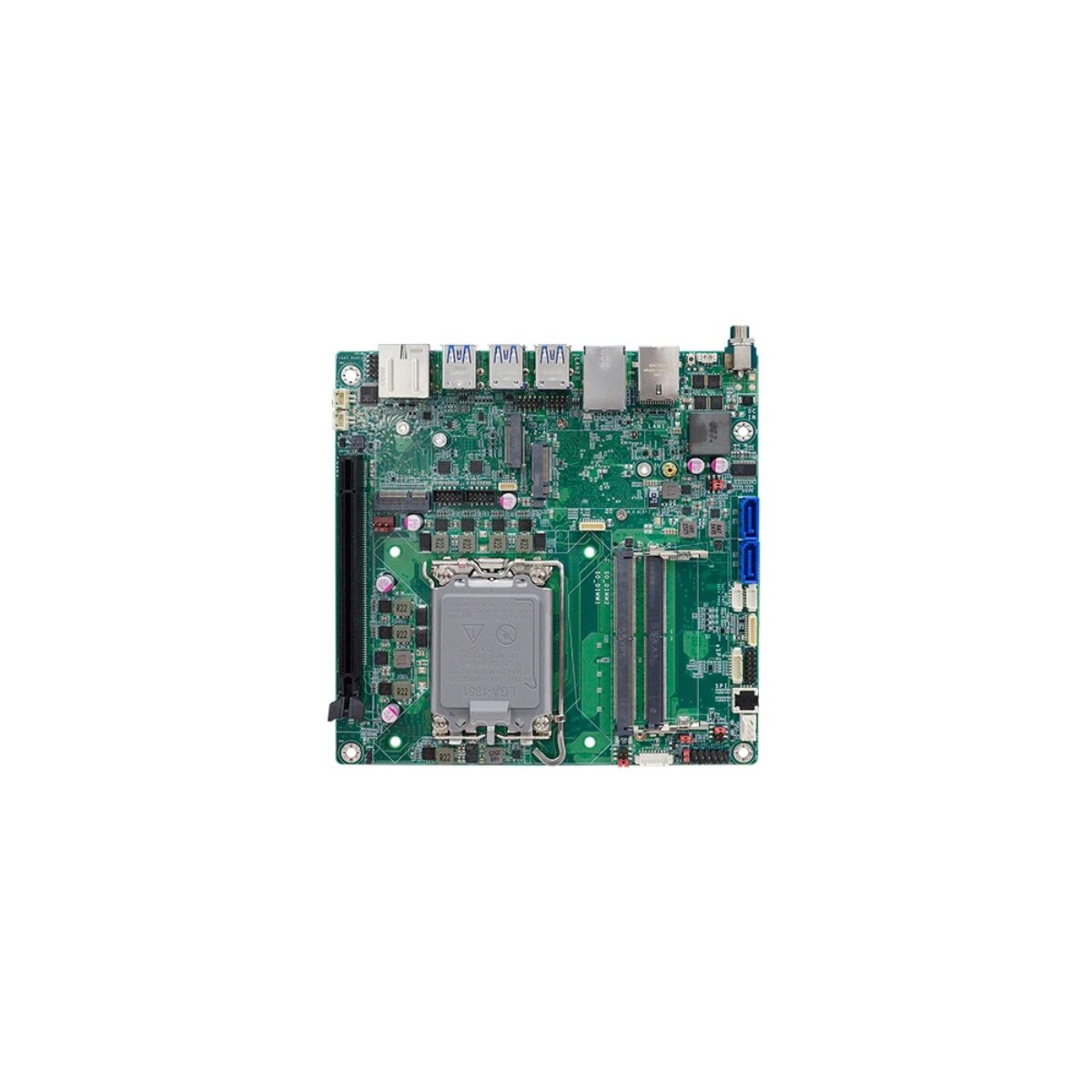

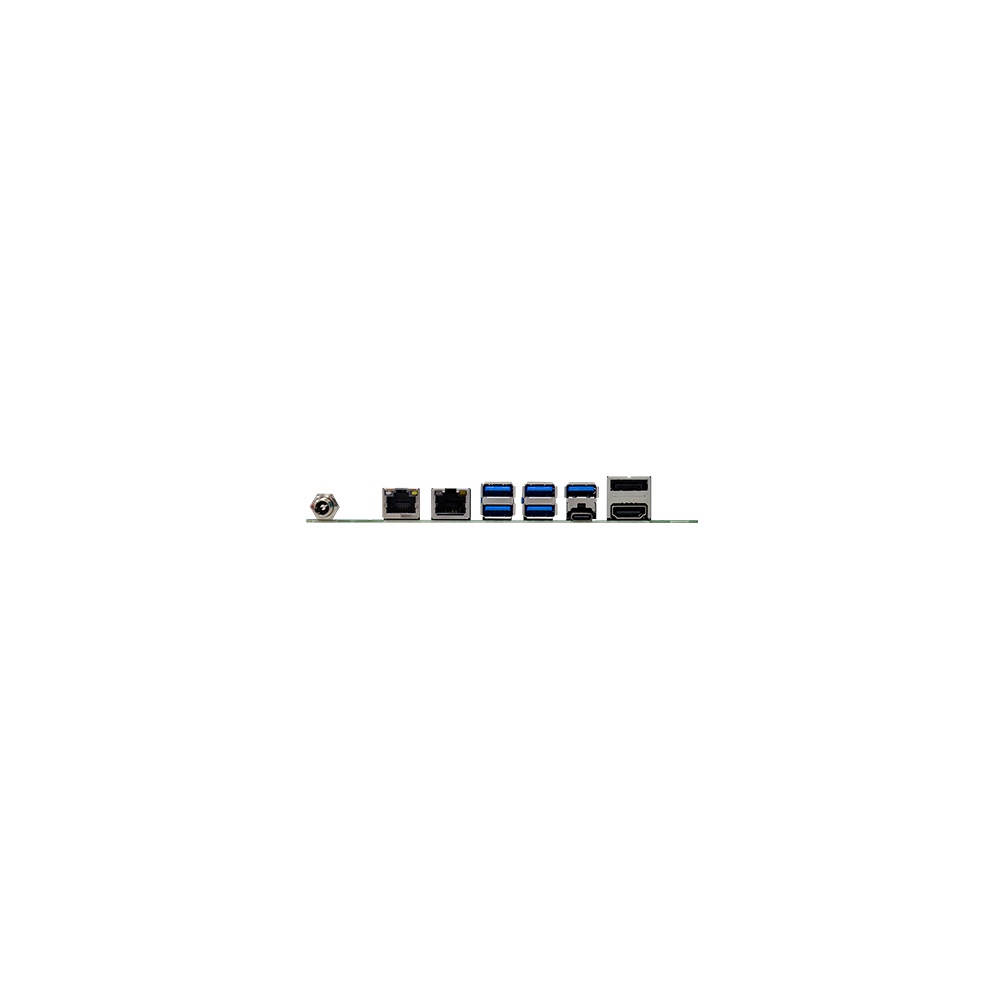

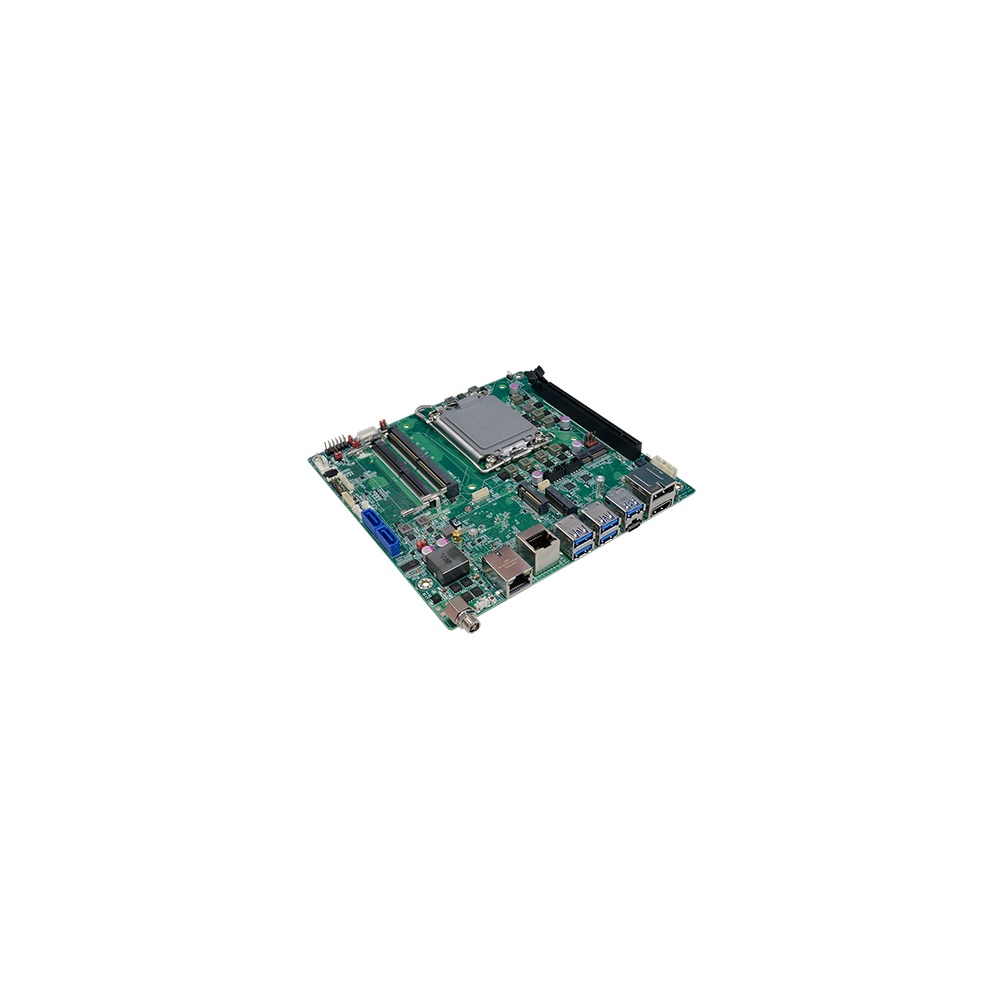

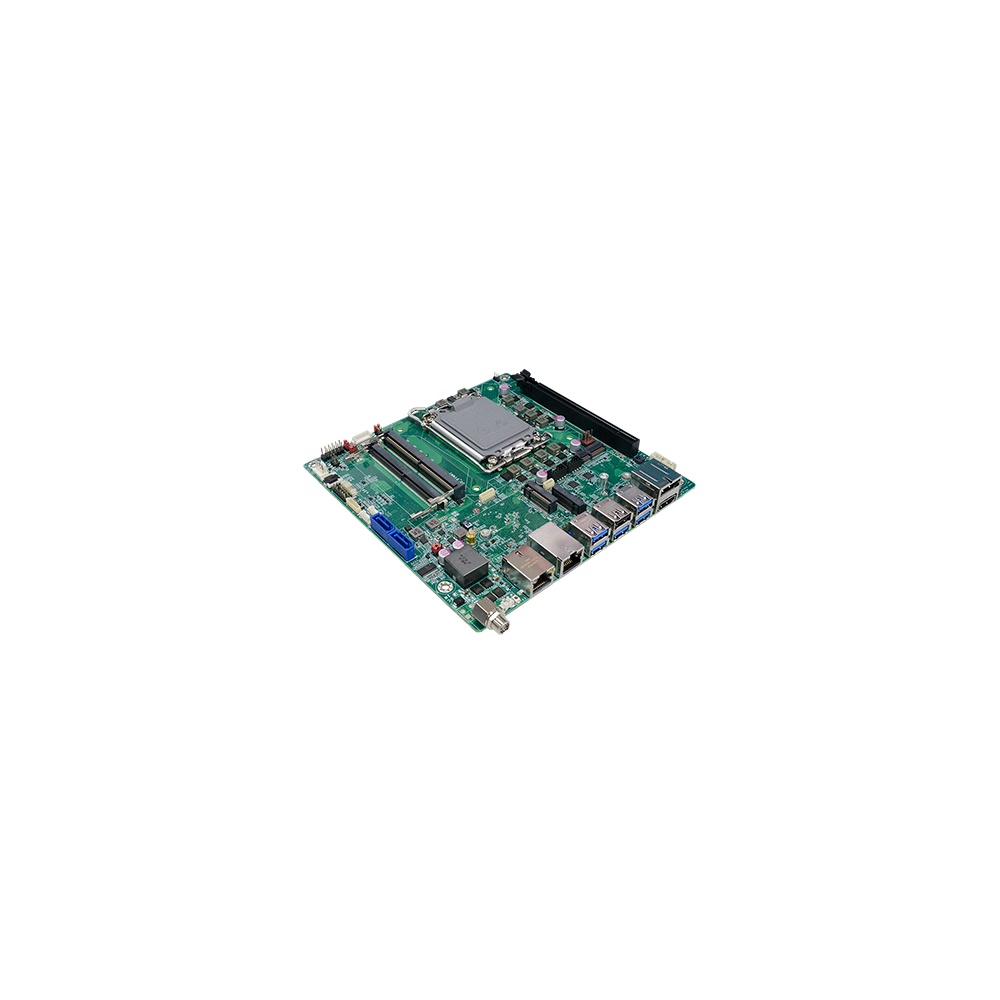

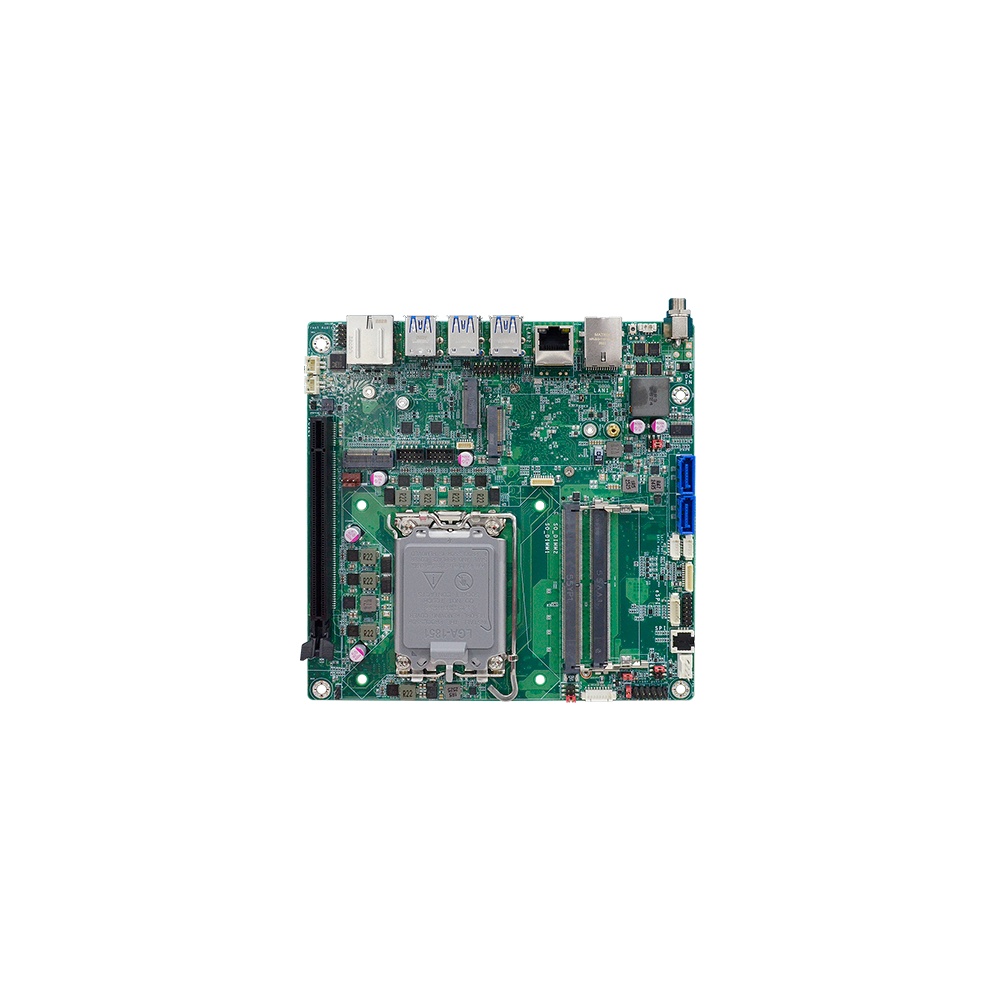

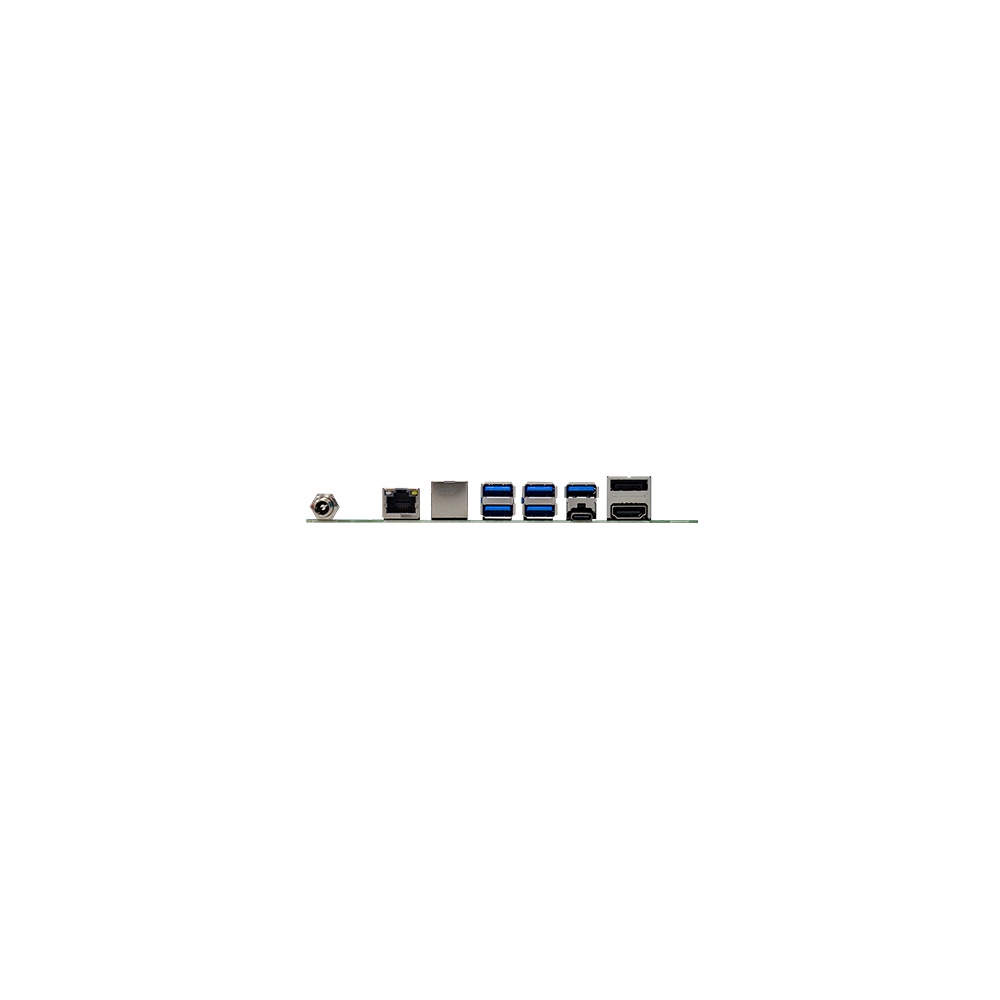

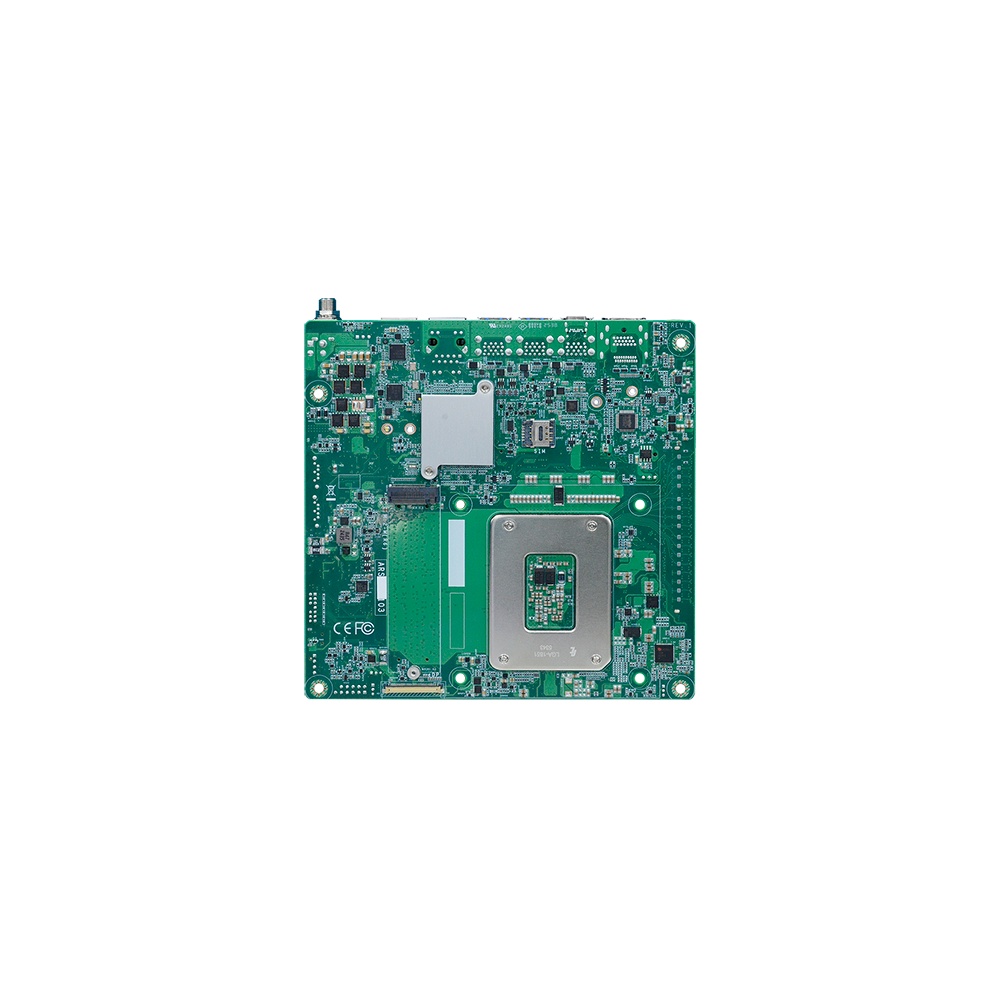

A slim enclosure or panel PC leaves little height above the board, yet the application inside may still need a current desktop processor, a graphics or capture card and several displays. The DFI ARS101 series answers that with a Thin Mini-ITX motherboard, 170 x 170 mm, built around the LGA 1851 socket for Intel Core Ultra 200S (Arrow Lake-S) processors and powered from a single 12 V DC input.
Because the processor is socketed, it is chosen per project rather than fixed by the board. DFI lists the Core Ultra 9 285 and 285T with 24 cores, the Core Ultra 7 265 and 265T with 20, the Core Ultra 5 245 and 245T with 14 and the Core Ultra 5 225 and 225T with 10, at up to 65 W TDP, or 35 W for the T parts. Two DDR5 SO-DIMMs run in dual channel up to 96 GB, at up to 6400 MHz with Core Ultra 7 and 9 processors. Integrated Intel graphics drives HDMI 1.4b and DP++ outputs at 4K, and DFI’s optional M2A module on the M.2 A-key adds an eDP or LVDS panel.
Three chipset builds make up the range. ARS101-W880 uses the Intel W880 chipset with ECC memory support, Intel AMT on the I226-LM port, a USB-C display output and a PCIe x16 Gen5 slot that splits into two x8 links. ARS101-Q870 keeps AMT, USB-C display and the bifurcating Gen5 slot on the Q870 chipset, with six rear USB 3.2 Gen 2 ports and non-ECC memory. ARS101-H810 is the H810 build for simpler designs, with HDMI and DP++, a PCIe x16 slot, a mix of USB 3.2 Gen 1 and USB 2.0 ports and an M.2 M-key at PCIe x1.
Every board has two 2.5GbE ports on Intel I226 controllers, two internal RS-232/422/485 headers, 8-bit DIO, two SATA 3.0 ports and four M.2 sockets: an M-key for an NVMe or SATA SSD, a B-key with a Nano SIM slot for a cellular module, a 2230 E-key for Wi-Fi and the A-key for the display module. Realtek ALC888 audio, a Nuvoton TPM 2.0 and a watchdog programmable from 1 to 255 seconds complete the board.
Power arrives on a barrel jack or a 4-pin connector at 12 V DC. The ARS101 series operates from -5 to 65 °C and carries CE, FCC, UKCA and RoHS compliance, with support for Windows 10 and Windows 11 IoT Enterprise LTSC and Ubuntu 24.04. Where the supply is 24 V or less tightly regulated, the ARS103 series is the same board on a 12 to 28 V DC input.
ARS101 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI ARS101 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | Intel Core Ultra Series 2 Arrow Lake-S |
| Processor Models | Intel Core Ultra 5 225: 3.3~4.9GHz, 10 Cores, 10 Threads, 20MB Cache, 65W Intel Core Ultra 5 245: 3.5~5.1GHz, 14 Cores, 14 Threads, 24MB Cache, 65W Intel Core Ultra 5 225T: 2.5~4.9GHz, 10 Cores, 10 Threads, 20MB Cache, 35W Intel Core Ultra 5 245T: 2.2~5.1GHz, 14 Cores, 14 Threads, 24MB Cache, 35W Intel Core Ultra 7 265: 2.4~5.3GHz, 20 Cores, 20 Threads, 30MB Cache, 65W Intel Core Ultra 7 265T: 1.5~5.3GHz, 20 Cores, 20 Threads, 30MB Cache, 35W Intel Core Ultra 9 285: 2.5~5.6GHz, 24 Cores, 24 Threads, 36MB Cache, 65W Intel Core Ultra 9 285T: 1.4~5.4GHz, 24 Cores, 24 Threads, 36MB Cache, 35W |
| Performance Cores | 10 Cores 14 Cores 20 Cores 24 Cores |
| AI Performance | 13 TOPS |
| Memory | 2x DDR5 6400MHz SO-DIMM Slot, 96GB |
| Chipset | See Variant Specifications |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ HDMI 1.4b |
| Multi Display Support | Quad Display Support |
| Display Outputs | See Variant Specifications |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | See Variant Specifications |
| Serial | 2x Serial Ports |
| 2x RS232/422/485 [Board] | |
| Digital I/O | DIO [8-lines] |
| Expansion | |
| M.2 | See Variant Specifications |
| PCIe | See Variant Specifications |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC [4-Pin] 12V DC [Barrel Connector] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC RoHS UKCA |
| Mechanical Properties | |
| Dimensions | 170mm x 170mm (6.69" x 6.69") |
No specifications match your search.
See product variants.
ARS101 Variants
DFI ARS101-H810 Intel LGA 1851 Core Ultra 200S Thin Mini-ITX Motherboard with H810 Chipset, Dual 2.5GbE and 12 V DC Input
ARS101 with Intel H810, dual 2.5GbE, HDMI, DP++ and 12~V DC
| Overview | |
|---|---|
| Brand & Model | DFI ARS101-H810 |
| Performance | |
| Chipset | Intel H810 |
| Graphics | |
| Display Outputs | 1x Display Port, 1x HDMI |
| I/O | |
| USB | 8x USB Ports |
| 2x USB 2.0 [Board], 3x USB 3.2 Gen 1 [Type A], 3x USB 2.0 [Type A] | |
| Expansion | |
| M.2 | 4x M.2 Expansion Slots |
| 1x M.2 A-Key [PCIe x1 Gen4] [3030], 1x M.2 B-Key [PCIe x1 Gen4/USB 3.2 Gen 1/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen4/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
DFI ARS101-Q870 Intel Arrow Lake-S Core Ultra Thin ITX Motherboard with Q870 Chipset, Dual 2.5GbE and 12 V DC Input
ARS101 with Intel Q870, Intel AMT, six USB 3.2 Gen 2 and 12~V DC
| Overview | |
|---|---|
| Brand & Model | DFI ARS101-Q870 |
| Performance | |
| Chipset | Intel Q870 |
| Graphics | |
| Display Outputs | 1x Display Port, 1x HDMI, 1x USB Type C |
| I/O | |
| USB | 10x USB Ports |
| 1x USB 3.2 Gen 2x2 [Type C], 4x USB 2.0 [Board], 5x USB 3.2 Gen 2 [Type A] | |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 4x M.2 Expansion Slots |
| 1x M.2 A-Key [PCIe x1 Gen4/USB 3.2 Gen 1/USB 2.0] [3030], 1x M.2 B-Key [PCIe x1 Gen4/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] | |
DFI ARS101-W880 Intel Core Ultra 200S LGA 1851 Thin Mini-ITX SBC with W880 Chipset, Dual 2.5GbE and 12 V DC Input
ARS101 with Intel W880, ECC memory support, Intel AMT and 12~V DC
| Overview | |
|---|---|
| Brand & Model | DFI ARS101-W880 |
| Performance | |
| Chipset | Intel W880 |
| Graphics | |
| Display Outputs | 1x Display Port, 1x HDMI, 1x USB Type C |
| I/O | |
| USB | 10x USB Ports |
| 1x USB 3.2 Gen 2x2 [Type C], 4x USB 2.0 [Board], 5x USB 3.2 Gen 2 [Type A] | |
| Remote Management | Intel AMT |
| Expansion | |
| M.2 | 4x M.2 Expansion Slots |
| 1x M.2 A-Key [PCIe x1 Gen4/USB 3.2 Gen 1/USB 2.0] [3030], 1x M.2 B-Key [PCIe x1 Gen4/USB 3.2 Gen 2/USB 2.0/SATA] [2242/3042/3052], 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4/SATA] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] | |
