DFI RPS631 Intel 12th to 14th Gen Core ATX Embedded Motherboards with H610 Chipset and Dual LAN
The DFI RPS631 series is a single ATX embedded motherboard for LGA1700 processors, covering 12th to 14th Gen Intel Core, Intel Core Series 2 (Bartlett Lake-S), Pentium and Celeron, with DFI listing TDPs up to 125 W. It pairs the Intel H610 chipset with four PCI slots, a PCIe x16 Gen4 slot, six COM ports and 2.5GbE plus GbE. The RPS631 series suits legacy card retrofits, machine control and test equipment.
- Four PCI Slots: Four PCI slots take existing motion, data acquisition and custom I/O cards, beside a PCIe x16 Gen4 slot and two PCIe x4 slots.
- LGA1700 Processor Choice: 12th to 14th Gen Core, Core Series 2 Bartlett Lake-S, Pentium and Celeron, from two to 24 cores at up to 125 W.
- Six COM with Two Rear DB9: Two RS-232/422/485 ports on rear DB9 connectors and four RS-232 headers, plus 4-in/8-out digital I/O.
- DDR5 5600 MHz: Two DDR5 5600 MHz DIMM slots take up to 96 GB in dual channel for control, HMI and logging software.
- 2.5GbE and GbE: One Intel I226-V 2.5GbE and one Intel I219-V GbE port for a machine network and a plant connection.
Intel- Linux
- Windows
Dual Display Support
2.5GbE
USB3- 1x M.2
- 3x PCIe
- 4x PCI
- NVMe SSD
- CE
- FCC
RPS631 Description

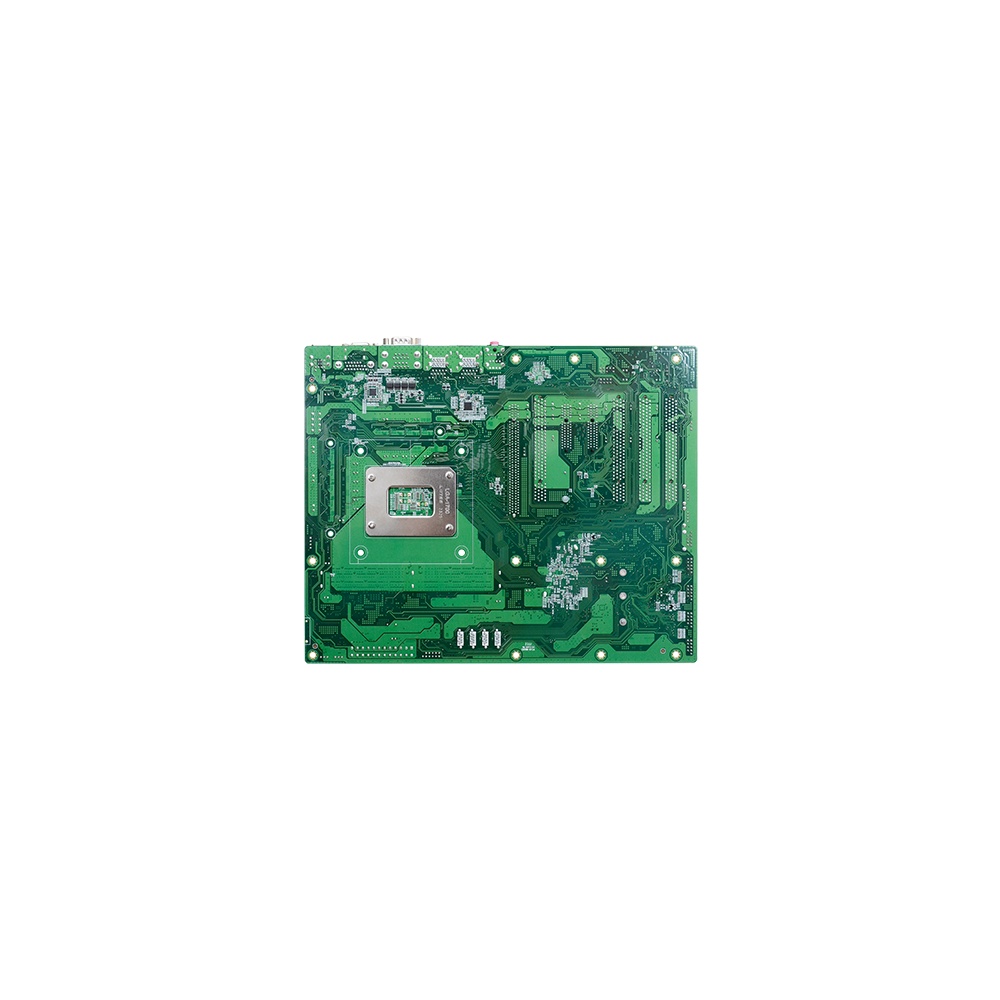

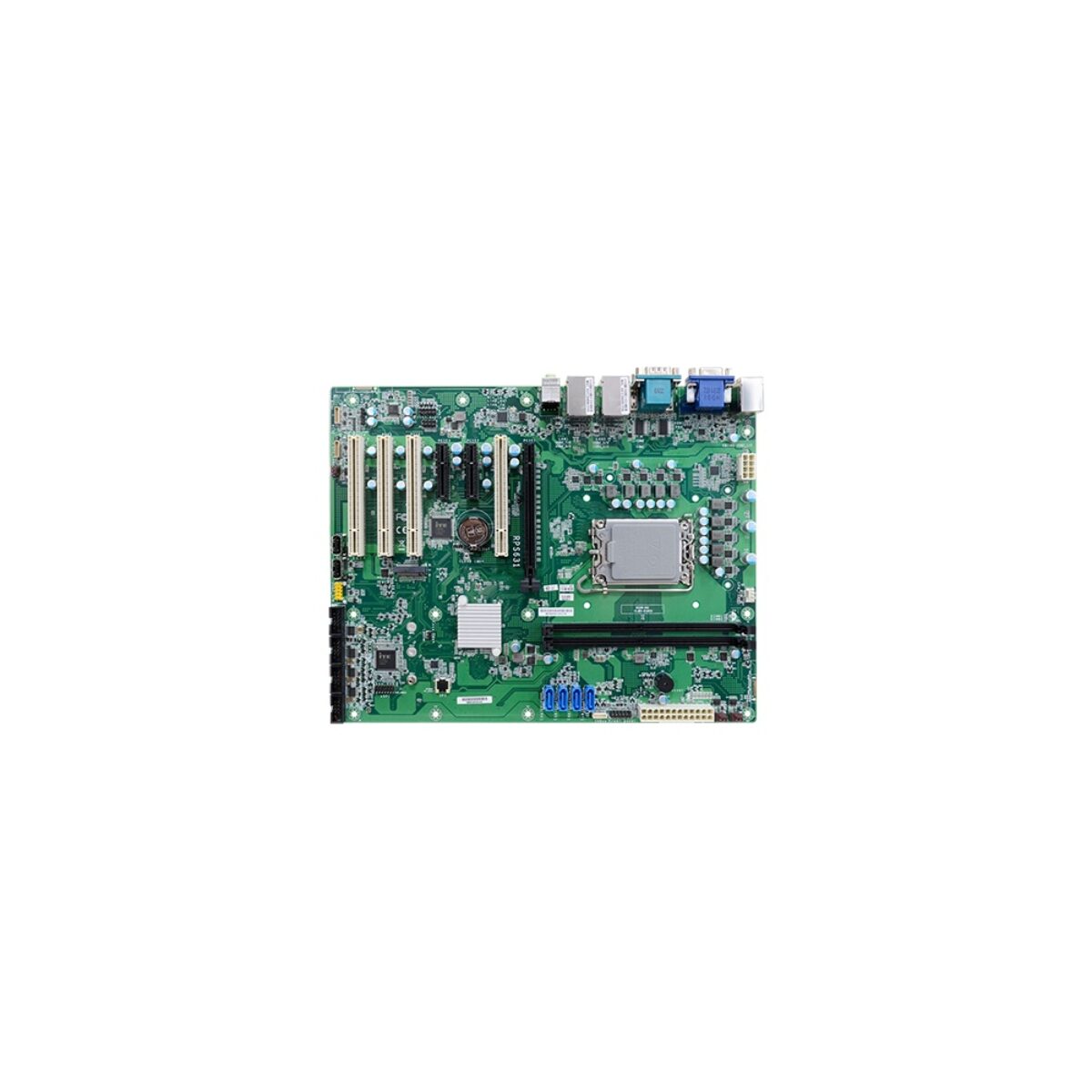

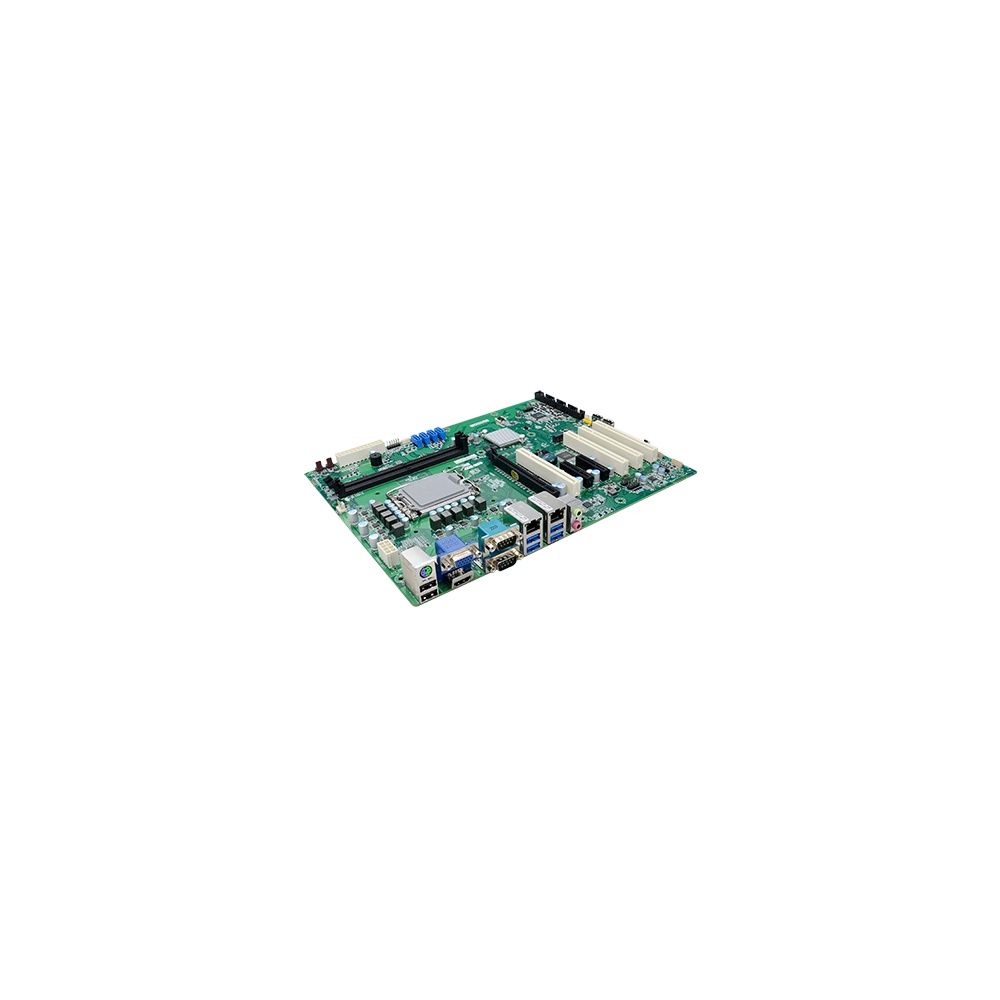

Older machines and test systems often carry several PCI cards, for motion, data acquisition or custom I/O, that nobody wants to redesign. When the original computer fails, the board replacing it needs enough PCI slots to take the whole set. The DFI RPS631 series is an ATX embedded motherboard with four PCI slots and an LGA1700 socket, so those cards can move to a current Intel processor on the 305 x 244 mm ATX footprint.
The socket supports 12th, 13th and 14th Gen Intel Core, Intel Core Series 2 (Bartlett Lake-S), Intel Processor 300, Pentium and Celeron parts, from two to 24 cores, and DFI lists TDPs up to 125 W. Two DDR5 5600 MHz DIMM slots take up to 96 GB in dual channel. Intel UHD Graphics drives two independent displays through VGA and HDMI 2.0a, and DFI lists Windows 10 IoT Enterprise, Windows 11 LTSC and Linux support. A low-power T-series processor suits a closed cabinet, while a 65 W part gives more headroom for newer HMI software.
The series has one board, the RPS631-H610, built on the Intel H610 chipset. Beside the four PCI slots it has a PCIe x16 Gen4 slot, which runs as x16 or x8/x8 through a riser, and two PCIe x4 slots wired at x2 Gen3. Storage covers an M.2 M-key socket for a PCIe x2 NVMe SSD and four SATA 3.0 ports, which leaves room for a fast boot drive plus separate data or archive disks.

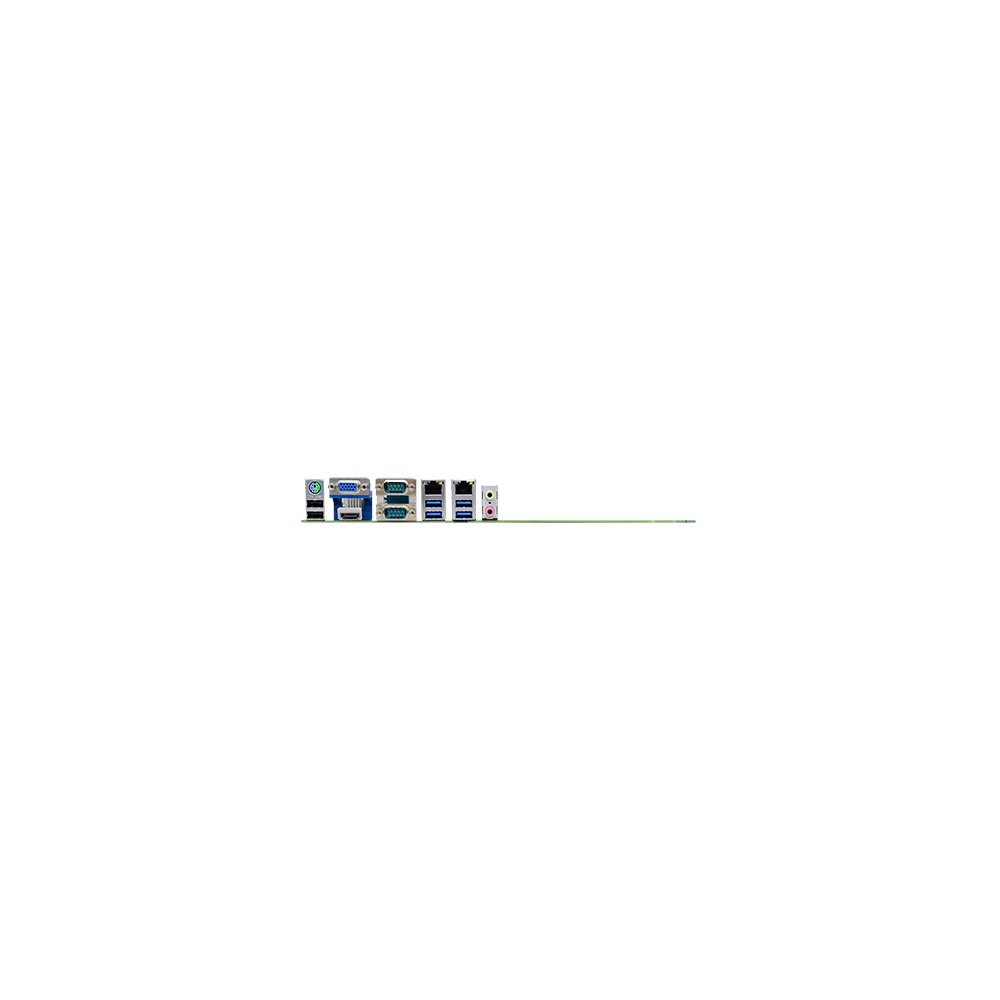

Networking is one Intel I226-V 2.5GbE and one Intel I219-V GbE port. The rear panel has four USB 3.2 Gen 1 and two USB 2.0 Type-A ports, with four more USB 2.0 inside. The six COM ports are split between two RS-232/422/485 ports on rear DB9 connectors and four RS-232 headers, with 4-in/8-out digital I/O and a PS/2 port for older keyboards and mice.
Power comes from a standard ATX supply over 24-pin and 8-pin connectors, and the board runs from -5 to 65 °C in indoor cabinets, benches and equipment rooms. A TPM 2.0 and a watchdog timer programmable from 1 to 255 seconds support unattended operation, and the series carries CE, FCC, UKCA, KC and RoHS compliance.
RPS631 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI RPS631 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Processor Series Raptor Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Processor 300: 3.9GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Processor 300T: 3.4GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PQE: 4.0~5.5GHz, 8 Cores, 16 Threads, 24MB Cache, 125W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PQE: 3.5~5.7GHz, 10 Cores, 20 Threads, 33MB Cache, 125W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PQE: 3.4~5.9GHz, 12 Cores, 24 Threads, 36MB Cache, 125W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 5600MHz LONG-DIMM Slots, 96GB |
| Chipset | Intel H610 |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | HDMI 2.0 |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x HDMI 1x VGA |
| Audio | |
| Interface | Line-In Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Intel i219V Intel I226V |
| USB | 10x USB Ports |
| 2x USB 2.0 [Type A] 4x USB 2.0 [Board] 4x USB 3.2 Gen 1 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [DB9] 4x RS232 [Board] | |
| Digital I/O | DIO [4-in, 8-out] |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x2] | |
| PCI Description | 4x PCI |
| PCIe | 3x PCIe Slots |
| 1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4] 2x PCIe [x4 Slot] [x2 Signal] [Gen3] | |
| PCI | 4 |
| Storage | |
| Storage | 1x M.2 SSD 4x SATA Ports |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Certification | CE FCC KC RoHS UKCA |
| Mechanical Properties | |
| Dimensions | 305mm x 244mm (12.01" x 9.61") |
No specifications match your search.
See product variants.
RPS631 Variants
DFI RPS631-H610 Intel 14th Gen Core Industrial ATX Motherboard with H610 Chipset and Dual LAN
RPS631 with Intel H610, four PCI slots, six COM ports and dual LAN
| Overview | |
|---|---|
| Brand & Model | DFI RPS631-H610 |
