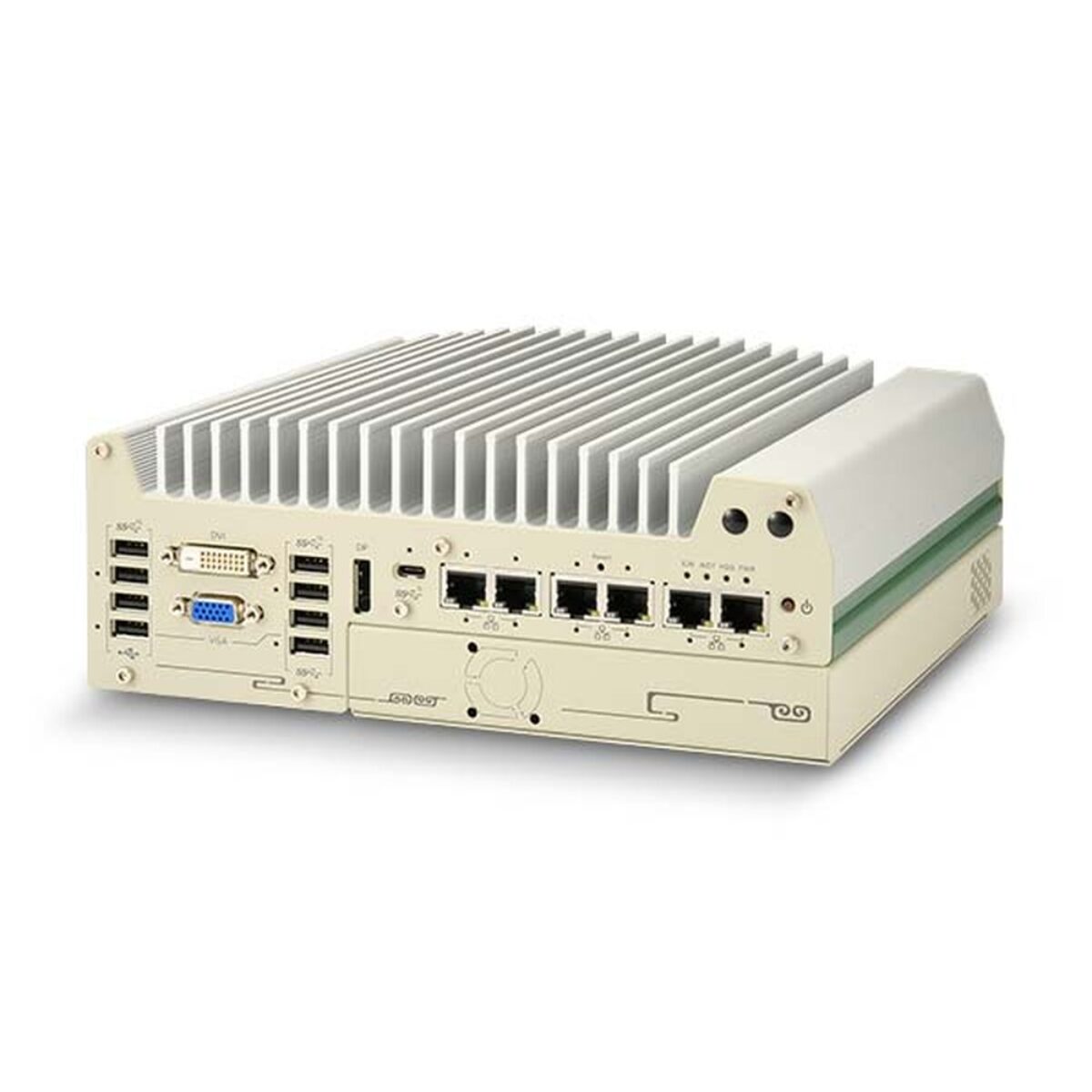

Neousys Nuvo-9000 Intel 14th/13th/12th Gen Core Fanless Rugged Computers with Cassette Expansion

The Neousys NUVO-9000 series is a family of rugged computers built on Intel 14th, 13th and 12th Gen Core and Core Series 2 processors, with up to 128 GB of DDR5-4800, PCIe or PCI Cassette expansion or a hot-swap drive tray, up to six LAN ports with optional PoE+ and fanless -25°C to 70°C operation. The NUVO-9000 series suits machine vision, factory automation, test and measurement, surveillance recording and in-vehicle deployments.

Intel 14th/13th/12th Gen Core LGA1700: Processors up to 24 cores and 32 threads at 35W or 65W TDP on the Q670E chipset, plus Intel Core Series 2 support.
Patented Cassette or Hot-Swap Tray: Choose a single PCIe, dual PCIe or PCI Cassette for add-on cards, or a hot-swap 2.5" drive tray on the low-profile build.
Fanless -25°C to 70°C Operation: Fin-cooled design with no moving parts, rated -25°C to 70°C with 35W CPUs and tested to MIL-STD-810H vibration and shock.
Up to 128 GB DDR5 and Gen4 NVMe: Two DDR5-4800 SODIMM slots and an M.2 Gen4 x4 NVMe socket, plus internal SATA with RAID 0 or 1 for data.
Rich I/O with MezIO Expansion: USB 3.2 Gen2x2 Type-C, triple independent display, four COM ports, mini-PCIe, M.2 for 5G or 4G and a MezIO port for extra I/O.

Datasheet

Intel
Linux
Windows
Triple Display Support
2.5GbE
Type C
USB3
2x M.2
1x mPCIe
1x SIM
4G
5G
RAID
NVMe SSD
Ignition Control
Fanless
Extended Temp
CE
FCC
1x PCI
1x PCIe

Description Compare Variants MezIO Modules Downloads

USA Support Team: +1 407 214 9446 Call

USA Support Team: +1 407 214 9446

Nuvo-9000 Description

Industrial computers rarely fail on processor speed. They fail when the card the project depends on does not fit, when a drive cannot be swapped without opening the enclosure, or when the fan clogs in a dusty cabinet. The Neousys NUVO-9000 series answers those problems with one fanless rugged computer design and a choice of expansion builds, so the same compute, I/O and software image can serve a vision cell, a recording cabinet and a legacy test rig. Every NUVO-9000 shares Intel 14th, 13th and 12th Gen Core processors on the LGA1700 socket.

The family is built around the Q670E chipset with up to 128 GB of DDR5-4800 in two SODIMM slots, an M.2 Gen4 x4 NVMe socket, Intel vPro with AMT 16.0 and dTPM 2.0. Neousys adds its patented expansion Cassette for PCIe or PCI add-on cards and the MezIO interface for COM, isolated DIO, ignition control or extra LAN. Front I/O includes a 20 Gbps USB 3.2 Gen2x2 Type-C port, six USB 3.2 Type-A ports, VGA, DVI-D and DisplayPort outputs and four serial ports, with mini-PCIe and an M.2 B key socket for 5G or 4G.

The range splits by expansion and port count. The E builds, NUVO-9002E and NUVO-9006E, carry a single-slot PCIe Cassette. The DE builds, NUVO-9002DE and NUVO-9006DE, add a second PCIe x16 slot in a 110.5 mm enclosure. The P builds, NUVO-9002P and NUVO-9006P, keep one legacy PCI slot for long-life cards. The LP builds, NUVO-9002LP and NUVO-9006LP, replace the Cassette with a hot-swap 2.5″ tray in a 79 mm enclosure. Each “9006” model has 5x 2.5GbE plus 1x GbE with optional PoE+ on ports 3 to 6, and each “9002” model has one 2.5GbE and one GbE port. UL builds with a 24V DC input and UL 62368-1 certification are NUVO-9002E-UL, NUVO-9006E-UL, NUVO-9002DE-UL, NUVO-9006DE-UL, NUVO-9002P-UL, NUVO-9006P-UL, NUVO-9002LP-UL and NUVO-9006LP-UL.

In practice NUVO-9000 rugged computers go into machine vision and inspection, line-side automation, test and measurement, surveillance recording and vehicle or trackside cabinets. Standard builds take 8 to 48V DC, and every model runs from -25°C to 70°C with 35W CPUs, or to 50°C with a 65W CPU at full TDP. MIL-STD-810H vibration and shock testing, CE/FCC Class A and wall or DIN-rail mounting suit most industrial cabinets, and the shared design means one software image can follow a project across NUVO-9000 builds.

Nuvo-9000 Specifications

Overview
Brand & Model	Neousys Nuvo-9000
Features	Embedded Expandable Fanless Industrial Rugged

Performance
Processor Series	Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake
Processor Models	Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Performance Cores	4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores
Memory	2x DDR5 4800MHz SO-DIMM Slot, 64GB
Chipset	Intel Q670E
PCIe Gen Support	PCIe 4.0
BIOS	UEFI
Secure Crypto Processor	TPM 2.0 (Trusted Platform Module)
Operating System	Linux Windows 10 Windows 11

Graphics
Integrated GPU	Intel UHD Series
Display Standards	Display Port 1.4a
Multi Display Support	Triple Display Support
Display Outputs	1x Display Port 1x DVI 1x VGA

Audio
Interface	Line-Out Mic-In

I/O
Ethernet	See Variant Specifications
LAN Controllers	Intel I219LM Intel I225IT Intel I226IT
USB	9x USB Ports
	1x USB 3.2 Gen 2x2 [Type C] 2x USB 2.0 [Type A] 2x USB 3.2 Gen 1 [Type A] 4x USB 3.2 Gen 2 [Type A]
Serial	4x Serial Ports
	2x RS232 [DB9] 2x RS232/422/485 [DB9]
Remote Management	Intel AMT Intel vPro

Expansion
M.2	2x M.2 Expansion Slots
	1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052] 1x M.2 M-Key [PCIe x4 Gen4] [2280]
mPCIe	1x mPCIe Slots
	1x mPCIe [PCIe/USB]
SIM Slots	1x SIM Slots
Wireless Connectivity	Optional 4G/5G
PCI	See Variant Specifications
PCIe	See Variant Specifications

Storage
Storage	1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4] 2x 2.5" HDD/SSD [SATA]
NVMe	NVMe SSD Support
RAID	RAID 0 (Striping) RAID 1 (Mirroring)

Power
Power Input	See Variant Specifications
Power Support Modes	AT: PWR on Input ATX: Press Button to Power
Ignition Sensing	Supports Ignition Control

Environmental Conditions
Thermal Dissipation	Fanless Passively Cooled Chassis
Operating Temperature	-25°C to 70°C [-13°F to 158°F]
Storage Temperature	-40°C to 85°C [-40°F to 185°F]
Humidity	10-90% (Non-condensing)
Shock	MIL-STD-810H
Vibration	MIL-STD-810H
EMC	EN55032 EN55035
Certification	See Variant Specifications

Mechanical Properties
Weight	See Variant Specifications
Chassis Material	Aluminum
Dimensions	See Variant Specifications
Mounting Options	DIN Mount Wall Mount

Nuvo-9000 Variants

Neousys Nuvo-9006LP-UL UL-Certified Intel 14th/13th/12th Gen Core Low-Profile Fanless Rugged Computer with 6x 2.5GbE

NUVO-9000 with hot-swap 2.5" drive tray, 5x 2.5GbE plus GbE, PoE+ option, UL 62368-1

Overview
Brand & Model	Neousys Nuvo-9006LP-UL

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9002LP-UL UL-Certified Intel 14th/13th/12th Gen Core Low-Profile Fanless Rugged Computer with Hot-Swap HDD

NUVO-9000 with hot-swap 2.5" drive tray, 2.5GbE plus GbE, UL 62368-1

Overview
Brand & Model	Neousys Nuvo-9002LP-UL

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9006LP Intel 14th/13th/12th Gen Core Low-Profile Fanless Rugged Computer with 6x 2.5GbE

NUVO-9000 with hot-swap 2.5" drive tray, 5x 2.5GbE plus GbE, PoE+ option

Overview
Brand & Model	Neousys Nuvo-9006LP

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9002LP Intel 14th/13th/12th Gen Core Low-Profile Fanless Rugged Computer with Hot-Swap HDD Tray

NUVO-9000 with hot-swap 2.5" drive tray, 2.5GbE plus GbE

Overview
Brand & Model	Neousys Nuvo-9002LP

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9006DE-UL UL-Certified Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Dual Cassette and 6x 2.5GbE

NUVO-9000 with dual-slot PCIe Cassette, 5x 2.5GbE plus GbE, PoE+ option, UL 62368-1

Overview
Brand & Model	Neousys Nuvo-9006DE-UL

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9002DE-UL UL-Certified Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Dual-Slot Cassette

NUVO-9000 with dual-slot PCIe Cassette, 2.5GbE plus GbE, UL 62368-1

Overview
Brand & Model	Neousys Nuvo-9002DE-UL

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9006DE Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Dual-Slot Cassette and 6x 2.5GbE

NUVO-9000 with dual-slot PCIe Cassette, 5x 2.5GbE plus GbE, PoE+ option

Overview
Brand & Model	Neousys Nuvo-9006DE

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9002DE Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Dual-Slot PCIe Cassette

NUVO-9000 with dual-slot PCIe Cassette, 2.5GbE plus GbE

Overview
Brand & Model	Neousys Nuvo-9002DE

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]

Power
Power Input	24V DC [Terminal Block]

Environmental Conditions
Certification	IEC 62368-1, CE, FCC, UL 62368-1

Mechanical Properties
Weight	3.89 Kg (8.58 Lbs)
Dimensions	240mm x 225mm x 110.5mm (9.45″ x 8.86″ x 4.35″)

Neousys Nuvo-9006P-UL UL-Certified Intel 14th/13th/12th Gen Core Fanless Rugged Computer with PCI and 6x 2.5GbE

NUVO-9000 with single-slot PCI Cassette, 5x 2.5GbE plus GbE, PoE+ option, UL 62368-1

Overview
Brand & Model	Neousys Nuvo-9006P-UL

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Expansion
PCI Description	1x PCI
PCI	1

Neousys Nuvo-9006E-UL UL-Certified Intel 14th/13th/12th Gen Core Fanless Rugged Computer with PCIe and 6x 2.5GbE

NUVO-9000 with single-slot PCIe Cassette, 5x 2.5GbE plus GbE, PoE+ option, UL 62368-1

Overview
Brand & Model	Neousys Nuvo-9006E-UL

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9002P-UL UL-Certified Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Legacy PCI Cassette

NUVO-9000 with single-slot PCI Cassette, 2.5GbE plus GbE, UL 62368-1

Overview
Brand & Model	Neousys Nuvo-9002P-UL

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]

Power
Power Input	24V DC [Terminal Block]

Environmental Conditions
Certification	IEC 62368-1, CE, FCC, UL 62368-1

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Expansion
PCI Description	1x PCI
PCI	1

Neousys Nuvo-9002E-UL UL-Certified Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Single-Slot Cassette

NUVO-9000 with single-slot PCIe Cassette, 2.5GbE plus GbE, UL 62368-1

Overview
Brand & Model	Neousys Nuvo-9002E-UL

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]

Power
Power Input	24V DC [Terminal Block]

Environmental Conditions
Certification	IEC 62368-1, CE, FCC, UL 62368-1

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Neousys Nuvo-9006P Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Legacy PCI and 6x 2.5GbE

NUVO-9000 with single-slot PCI Cassette, 5x 2.5GbE plus GbE, PoE+ option

Overview
Brand & Model	Neousys Nuvo-9006P

I/O
Ethernet	6x Ethernet Ports
	1x GbE LAN [RJ45], 5x 2.5 GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Expansion
PCI Description	1x PCI
PCI	1

Neousys Nuvo-9006E Intel 14th/13th/12th Gen Core Fanless Rugged Computer with PCIe Cassette and 6x 2.5GbE

NUVO-9000 with single-slot PCIe Cassette, 5x 2.5GbE plus GbE, PoE+ option

Overview
Brand & Model	Neousys Nuvo-9006E

I/O
Ethernet	6x Ethernet Ports
	1x GbE LAN [RJ45], 5x 2.5 GbE LAN [RJ45]
PoE Standard	PoE+ [IEEE 802.3at]
PoE Power Budget	25.5W

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Expansion
PCIe	1x PCIe Slots
	1x PCIe [x16 Slot] [x8 Signal] [Gen3]

Neousys Nuvo-9002P Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Legacy PCI Cassette

NUVO-9000 with single-slot PCI Cassette, 2.5GbE plus GbE

Overview
Brand & Model	Neousys Nuvo-9002P

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Expansion
PCI Description	1x PCI
PCI	1

Neousys Nuvo-9002E Intel 14th/13th/12th Gen Core Fanless Rugged Computer with Single-Slot PCIe Cassette

NUVO-9000 with single-slot PCIe Cassette, 2.5GbE plus GbE

Overview
Brand & Model	Neousys Nuvo-9002E

I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]

Power
Power Input	8-48V DC [Terminal Block]

Environmental Conditions
Certification	CE, FCC

Mechanical Properties
Weight	3.58 Kg (7.89 Lbs)
Dimensions	240mm x 225mm x 90mm (9.45″ x 8.86″ x 3.54″)

Expansion
PCIe	1x PCIe Slots
	1x PCIe [x16 Slot] [x8 Signal] [Gen3]

Nuvo-9000 MezIO Modules

Add serial, digital I/O, Ethernet, USB, storage or ignition control to the Nuvo-9000 with a Neousys MezIO module. We fit and test the module inside the system before it ships. Each system takes one MezIO module. Where a module fits only some models in the series, its card names them.

MezIO-C180-508-Port Serial MezIO Module with 4x RS-232/422/485 and 4x RS-232

MezIO-C181-508-Port Serial MezIO Module with 4x RS-232/422/485 and 4x RS-422/485

MezIO-D33032-Channel Isolated DIO MezIO Module with Sink or Source Outputs

MezIO-D230-5032-Channel Isolated Digital I/O MezIO Module with 16 DI and 16 DO

MezIO-D220-5016-Channel Isolated Digital I/O MezIO Module with 8 DI and 8 DO

MezIO-G44-Port Gigabit Ethernet MezIO Module with Intel I210 Controllers

MezIO-G4P4-Port Gigabit 802.3at PoE+ MezIO Module for Cameras and Sensors

Fits the Nuvo-9006DE, Nuvo-9006DE-UL, Nuvo-9006E, Nuvo-9006E-UL, Nuvo-9006LP, Nuvo-9006LP-UL, Nuvo-9006P, Nuvo-9006P-UL. Requires the PoE+ build of this system.

MezIO-U4-504-Port USB 3.1 MezIO Module with 5 Gbps per Port

MezIO-V20Ignition Power Control MezIO Module with USB Mini PCIe Socket

Fits the Nuvo-9002LP, Nuvo-9002LP-UL, Nuvo-9006LP, Nuvo-9006LP-UL.

MezIO-V20-EPIgnition Power Control MezIO Module for In-Vehicle Nuvo Computers

Fits the Nuvo-9002DE, Nuvo-9002DE-UL, Nuvo-9002E, Nuvo-9002E-UL, Nuvo-9002P, Nuvo-9002P-UL, Nuvo-9006DE, Nuvo-9006DE-UL, Nuvo-9006E, Nuvo-9006E-UL, Nuvo-9006P, Nuvo-9006P-UL.

MezIO-V21Ignition Power Control MezIO Module with PCIe and USB Mini PCIe Socket

Fits the Nuvo-9002LP, Nuvo-9002LP-UL, Nuvo-9006LP, Nuvo-9006LP-UL.

Nuvo-9000 Datasheet Download
Nuvo-9000 User Manual Download

No related media available for this product series.

Official Neousys USA Distributor

Things Embedded is an official Neousys USA distributor, supplying the full Neousys range of rugged and fanless computers to USA OEMs and integrators. Within that range, the NUVO-11000 series keeps the Cassette and MezIO design but moves to Intel Core Ultra 200S processors with an NPU and DDR5-6400. The NUVO-10000 series takes up to seven expansion slots for projects that need more cards than a Cassette holds, and the NUVO-9531 series puts the same Intel 14th/13th/12th Gen Core processors into a compact box with 4x 2.5GbE.

Across categories, NUVO-9000 models sit with the rugged computers we stock for factory, transport and outdoor installs, and the six-port builds also appear with our PoE computers because ports 3 to 6 can power cameras directly. For vehicle projects, the NUVO-9200VTC series is the closer match, while the NUVO-9000 remains the better fit for fixed cabinets and machine-side installs. Where a sealed enclosure is needed, the NUVO-9650AWP series brings the same processor generations into an IP66 design with M12 connectors.

Shop Neousys

Consult. Design. Integrate.

Things Embedded is a leading USA supplier of industrial computing and edge AI systems. We combine technical expertise with a collaborative approach to deliver optimal solutions for your application. Whether it’s an off-the-shelf platform or a custom design, we stay at the forefront of the latest technologies to ensure your success at the edge. Our team works closely with you from concept through deployment, providing guidance, engineering support, and integration expertise every step of the way.

Connect with our solutions experts today to review your requirements and find the ideal solution fit for your application.

Services

Your Quote List ()
