Neousys Nuvo-9650AWP Intel 14th/13th/12th Gen Core IP66 Waterproof PCs with M12

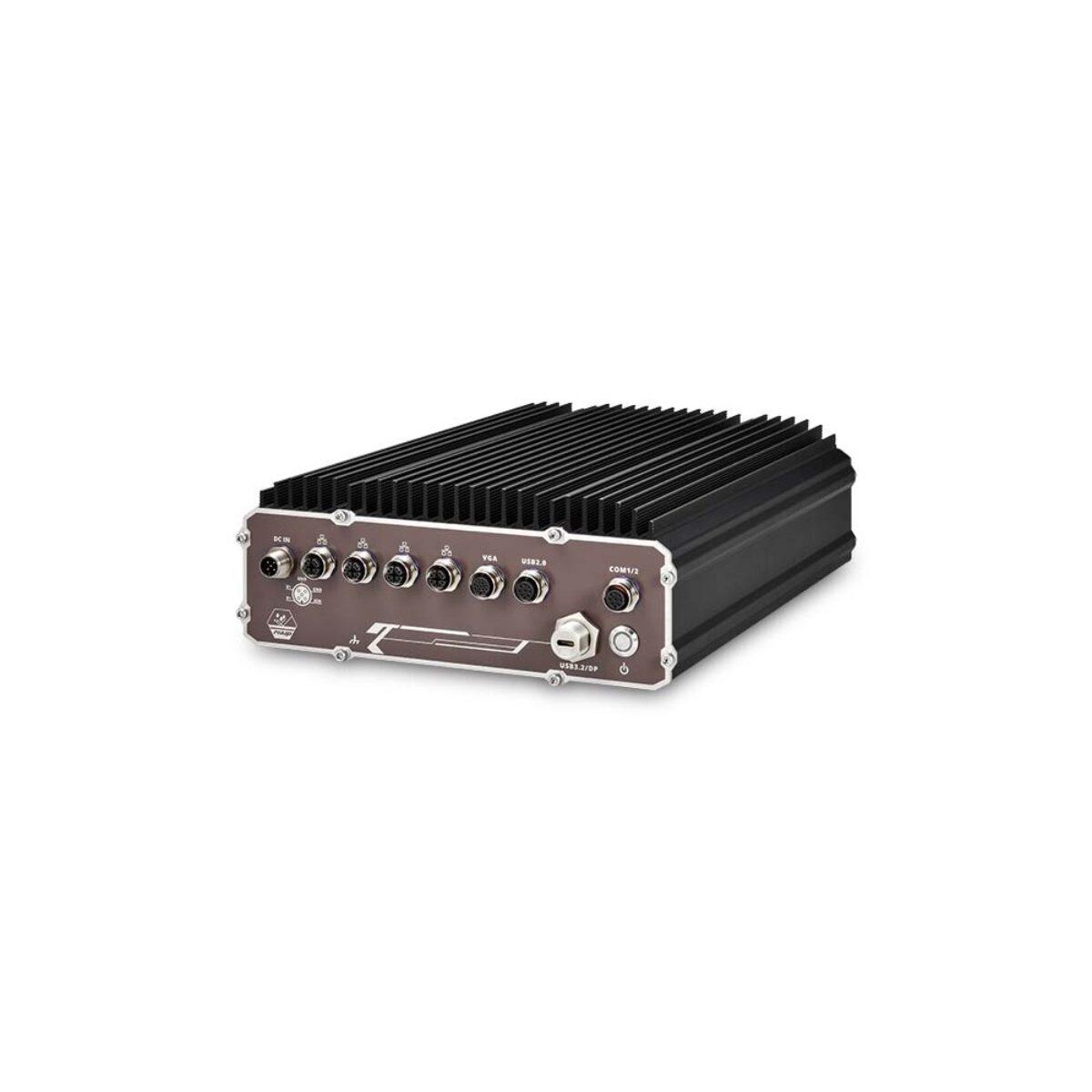

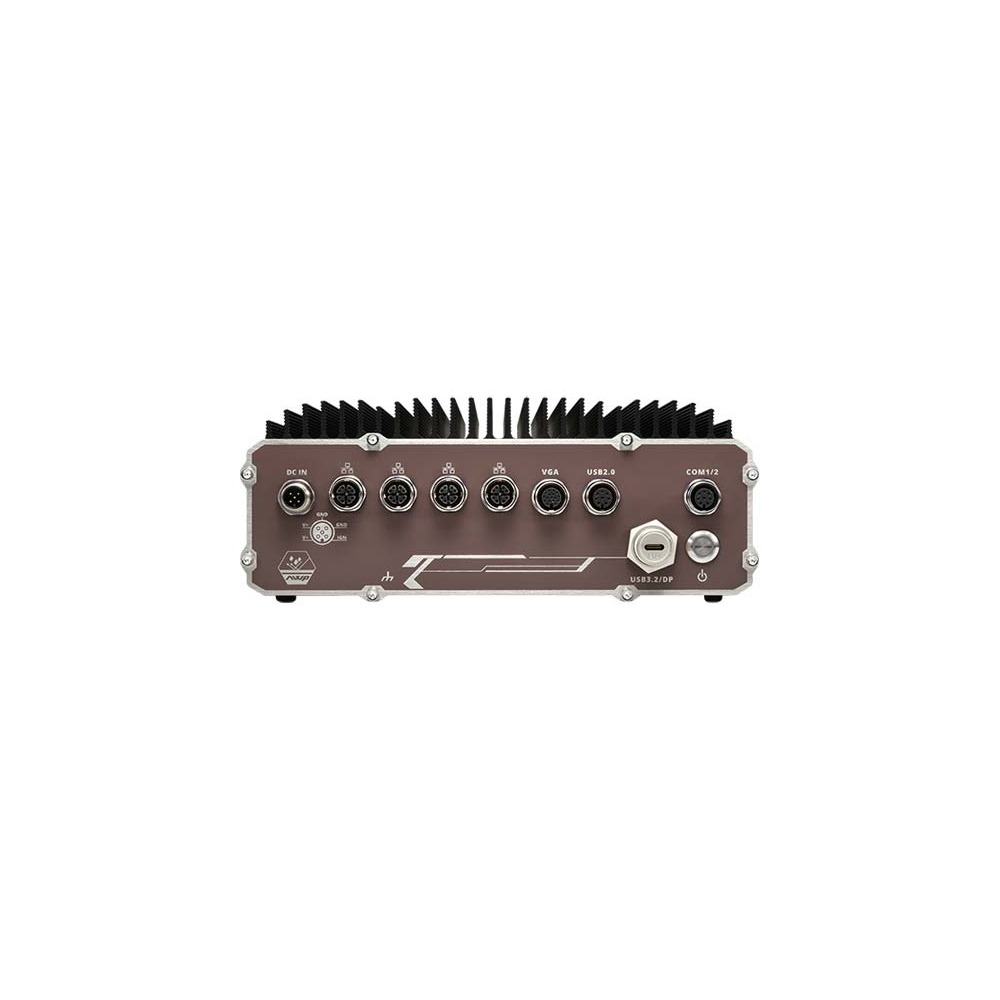

The Neousys NUVO-9650AWP series is a family of IP66 waterproof PCs built on Intel 14th/13th/12th Gen Core LGA1700 processors. Each model has four M12 X-coded Ethernet ports with a PoE+ option, a waterproof USB Type-C port with DisplayPort output, isolated serial ports and an 8 to 48 V DC input with ignition control. The NUVO-9650AWP series suits mining trucks, farm vehicles, port equipment and other outdoor installs.
- IP66 Sealed Chassis: Dustproof and protected against powerful water jets, with every external port on an M12 or waterproof Type-C connector.
- Intel 14th/13th/12th Gen Core: Socketed LGA1700 processors up to the Core i9-14900 on the H610E chipset, with DDR5-4800 up to 128 GB.
- 4x M12 X-Coded Ethernet: Three 2.5GbE ports and one GbE port on X-coded M12 connectors, with 802.3at PoE+ on the PoE build.
- Waterproof Type-C with DisplayPort: A sealed Type-C port carries USB 3.2 Gen1 data and DisplayPort output at up to 4096 x 2304.
- 8 to 48 V with Ignition Control: Wide-range DC with built-in ignition power control, -25 °C to 70 °C operation and MIL-STD-810H vibration and shock.
Intel- Linux
- Windows
Dual Display Support
2.5GbE
PoE Support
Type C
USB3- 2x M.2
- 2x mPCIe
- 1x SIM
- 4G
- 5G
- Wi-Fi
- NVMe SSD
- Ignition Control
- Fanless
- Extended Temp
- CE
- FCC
Nuvo-9650AWP Description
Outdoor and vehicle projects often end up building a sealed box around an ordinary industrial computer, with glands, filters and a heater, and that enclosure can cost as much as the computer. Neousys designed the NUVO-9650AWP to remove that step: an IP66 waterproof PC with every external connection on a sealed M12 or waterproof Type-C connector, at a price aimed at budget-conscious projects.
Inside, the NUVO-9650AWP takes socketed Intel 14th/13th/12th Gen Core processors on the H610E chipset, up to the Core i9-14900 with 24 cores and 32 threads, and two DDR5-4800 SODIMMs up to 128 GB with dTPM 2.0. Storage is an M.2 2280 NVMe socket at PCIe Gen4 x4 plus two internal SATA ports for 2.5-inch drives. Two mini PCIe sockets and an M.2 B key socket with a SIM slot take Wi-Fi, 4G or 5G modules, so the sealed chassis does not need opening to add a link. The waterproof Type-C port carries USB 3.2 Gen1 and DisplayPort at up to 4096 x 2304, and VGA plus two USB 2.0 ports sit on M12 A-coded connectors.
Two models make up the series. The NUVO-9650AWP has three 2.5GbE ports and one GbE port on M12 X-coded connectors for cameras and sensors with their own power, with DC input on an A-coded M12. The NUVO-9650AWP-PoE adds 802.3at PoE+ on all four ports from a 100 W budget and moves the power input to an L-coded M12, so exposed cameras run from one sealed cable each.
Both NUVO-9650AWP models share an isolated RS-232 port and an isolated RS-422/485 port on M12, an 8 to 48 V DC input with built-in ignition power control, and a 225 x 286 x 90 mm chassis weighing 5.25 kg. Neousys rates them from -25 °C to 70 °C with 35 W processors, or with 65 W parts in 35 W mode, and tests vibration and shock to MIL-STD-810H. The combination suits these waterproof PCs to mining and farming vehicles, port equipment and outdoor installs where dust, rain, salt and water jets are daily conditions. Wall mounting is optional, and optional M12 cable kits from Neousys convert the sealed ports to RJ45, USB, VGA and DB9 for installation.
Nuvo-9650AWP Specifications
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-9650AWP |
| Features | Compact Embedded Fanless Industrial M12 Connectors Rugged Waterproof |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 128GB |
| Chipset | Intel H610E |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | UEFI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 Windows 11 |
| Graphics | |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x USB Type C 1x VGA |
| I/O | |
| Ethernet | See Variant Specifications |
| LAN Controllers | Intel I219LM Intel I226IT |
| USB | 4x USB Ports |
| 1x USB 3.2 Gen 1 [Type C] 1x USB 3.2 Gen 1 [Type A] 2x USB 2.0 [M12] | |
| Serial | 2x Serial Ports |
| 1x Isolated RS232 [M12] 1x Isolated RS422/485 [M12] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052] 1x M.2 M-Key [PCIe x4 Gen4] [2280] | |
| mPCIe | 2x mPCIe Slots |
| 2x mPCIe [PCIe/USB] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4] 2x 2.5" HDD/SSD [SATA] |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 8-48V DC [M12] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP66 IP66 [Dustproof, Protection against powerful water jets spraying from any direction] |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| EMC | EN55032 EN55035 |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 5.25 Kg (11.57 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 225mm x 286mm x 90mm (8.86″ x 11.26″ x 3.54″) |
| Mounting Options | Wall Mount |
No specifications match your search.
See product variants.
Nuvo-9650AWP Variants
Neousys Nuvo-9650AWP-PoE Intel 14th/13th/12th Gen Core IP66 Outdoor Waterproof PC with 4x M12 PoE+ and Ignition Control
NUVO-9650AWP with 4x M12 802.3at PoE+, waterproof Type-C DisplayPort and L-coded M12 DC input
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-9650AWP-PoE |
| I/O | |
| Ethernet | 4x Ethernet Ports |
| 3x 2.5 GbE LAN [M12] [PoE], 1x GbE LAN [M12] [PoE] | |
| PoE Standard | PoE+ [IEEE 802.3at] |
| PoE Power Budget | 25.5W |
Neousys Nuvo-9650AWP Intel 14th/13th/12th Gen Core IP66 Waterproof PC with 4x M12 Ethernet and Type-C DisplayPort
NUVO-9650AWP with 3x M12 2.5GbE, 1x M12 GbE and waterproof Type-C DisplayPort
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-9650AWP |
| I/O | |
| Ethernet | 4x Ethernet Ports |
| 3x 2.5 GbE LAN [M12], 1x GbE LAN [M12] | |
