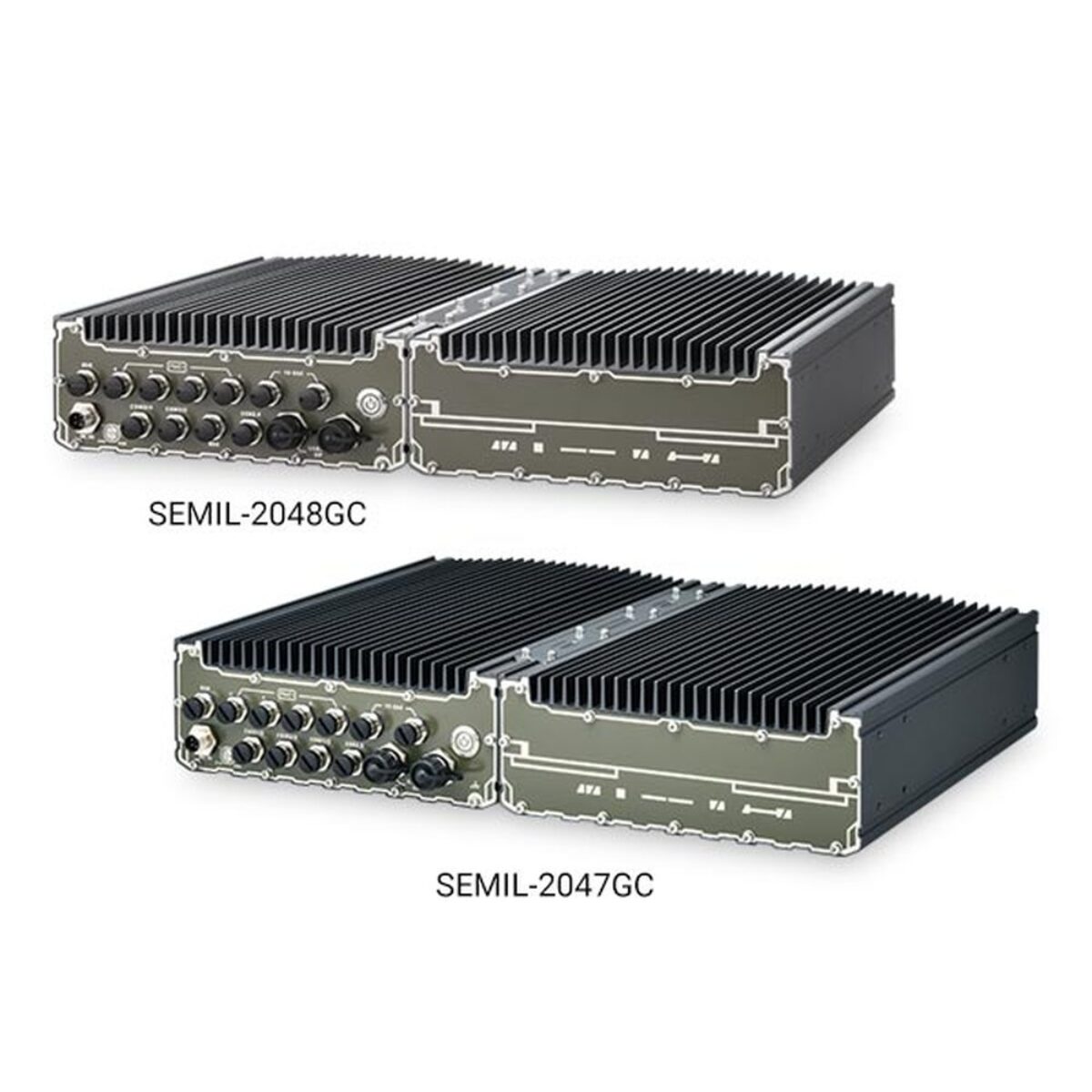

Neousys SEMIL-2000GC Intel 14th Gen Core IP69K Computers with NVIDIA L4 GPU
The Neousys SEMIL-2000GC series is a family of IP69K computers with an NVIDIA L4 GPU and Intel 14th/13th/12th Gen Core processors in a 2U 19-inch stainless steel and aluminum chassis. Each model has two 10GbE ports and four 2.5GbE PoE+ ports on M12, isolated CAN and an 8 to 48 V input with ignition control. The SEMIL-2000GC series suits mining, agriculture, port and washdown deployments.
- NVIDIA L4 GPU, Fanless: An NVIDIA L4 cooled passively, with GPU performance held up to a 58 °C throttling point and up to 2.5 times a Tesla T4.
- IP69K Stainless and Aluminium: Dustproof and protected against high-pressure, high-temperature water jets, with a corrosion-proof chassis and M12 connectors throughout.
- Intel 14th/13th/12th Gen Core: Socketed LGA1700 processors up to the Core i9-14900 with DDR5-4800 up to 128 GB and vPro/AMT 16.0.
- 2x 10GbE and 4x 2.5GbE PoE+: Two 10GbE ports and four 2.5GbE ports with 802.3at PoE+ from 100 W, all on X-coded M12 connectors.
- -40 °C to 70 °C on 8 to 48 V: Fanless wide-temperature operation, 8 to 48 V DC with ignition control and reverse polarity protection, and MIL-STD-810H.
Intel- Linux
- Windows
Dual Display Support
2.5GbE- 10GbE
PoE Support
Type C
USB3- 2x M.2
- 3x mPCIe
- 4G
- 5G
RAID- NVMe SSD
- Ignition Control
- Fanless
- Extended Temp
IP69K [Dustproof, Protection against close range, high temperature and high pressure water jets]- CE
- FCC
- 3x M.2
SEMIL-2000GC Description
GPU inference has usually meant a fan-cooled server in a clean room, which leaves vehicles, quarries and food plants without a practical option. Neousys built the SEMIL-2000GC to close that gap: an IP69K computer that cools an NVIDIA L4 GPU and an Intel 14th/13th/12th Gen Core processor without fans, rated from -40 °C to 70 °C, with GPU performance held up to its 58 °C throttling point.
Neousys quotes up to 2.5 times the performance of a Tesla T4 for the L4. The SEMIL-2000GC series pairs it with socketed LGA1700 processors up to the Core i9-14900, two DDR5-4800 SODIMMs up to 128 GB, vPro/AMT 16.0 and dTPM 2.0. Storage combines an M.2 2280 NVMe socket at PCIe Gen4 x4 with two internal SATA ports for 2.5-inch drives in RAID 0 or 1. Three mini PCIe sockets with SIM slots and an M.2 B key socket with dual SIM slots take 4G or 5G modules, and two Type-C ports carry USB 3.2 Gen1 with DisplayPort output. The chassis is corrosion-proof stainless steel and aluminum, with every external connection on M12.

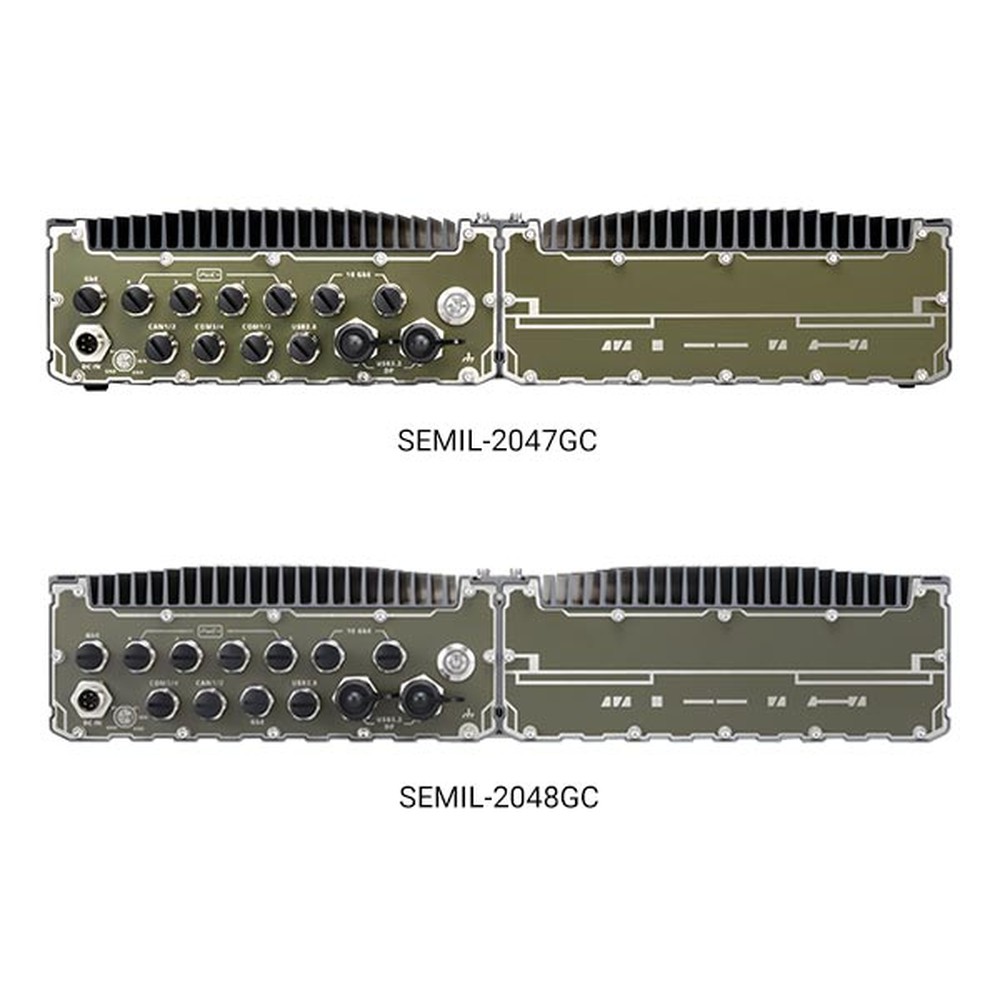

Two models make up the range. The SEMIL-2047GC runs on the Q670E chipset with seven Ethernet ports: two 10GbE, four 2.5GbE with 802.3at PoE+ from a 100 W budget, and one GbE, plus four COM ports and an M.2 E key socket for Wi-Fi. The SEMIL-2048GC moves to the R680E chipset for ECC memory and adds an eighth Ethernet port, a further 2.5GbE, with two COM ports.
Both SEMIL-2000GC models share two isolated CAN 2.0 ports with SocketCAN, two USB 2.0 ports on M12 and an 8 to 48 V DC input with reverse polarity protection and built-in ignition control on an L-coded M12. Vibration and shock are tested to MIL-STD-810H, EMC to EN 50121, and the chassis measures 440 x 310 x 90.5 mm at 12 kg, for wall mounting or an optional 19-inch rack kit. These IP69K computers suit autonomous mining and farm vehicles, port automation and food processing lines that are cleaned with hot, high-pressure water. Neousys holds a Taiwanese patent on the chassis design, with a Chinese patent pending.
SEMIL-2000GC Specifications
| Overview | |
|---|---|
| Brand & Model | Neousys SEMIL-2000GC |
| Features | Embedded Fanless GPU M12 Connectors Rugged USB C Waterproof |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Supported GPUs | NVIDIA L4: 7424 CUDA Cores, 240 Tensor Cores, 24GB GDDR6 ECC, 72W |
| AI Performance | 485 TOPS |
| Number of GPUs | Single GPU Support |
| GPU Family | NVIDIA Data Center |
| GPU Architecture | NVIDIA Ada Lovelace |
| System GPU Power Budget | 72W |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 64GB |
| Chipset | See Variant Specifications |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | UEFI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Multi Display Support | Dual Display Support |
| Display Outputs | 2x USB Type C |
| I/O | |
| Ethernet | See Variant Specifications |
| LAN Controllers | Intel X550-AT2 Intel I219LM Intel I226IT |
| PoE Standard | PoE+ [IEEE 802.3at] |
| PoE Power Budget | 25.5W |
| USB | 4x USB Ports |
| 2x USB 2.0 [M12] 2x USB 3.2 Gen 1 [Type C] | |
| Serial | See Variant Specifications |
| CANbus | 2x CANbus Ports |
| 2x Isolated CANbus [M12] | |
| Remote Management | Intel AMT Intel vPro |
| Expansion | |
| M.2 | See Variant Specifications |
| mPCIe | 3x mPCIe Slots |
| 3x mPCIe [PCIe/USB/SIM] | |
| Wireless Connectivity | See Variant Specifications |
| Storage | |
| Storage | 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4] 2x 2.5" HDD/SSD [SATA] |
| NVMe | NVMe SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 8-48V DC [M12] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -40°C to 70°C [-40°F to 158°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP69K IP69K [Dustproof, Protection against close range, high temperature and high pressure water jets] |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| EMC | EN55032 EN55035 EN50121 |
| Certification | CE EN50121-3-2 FCC |
| Mechanical Properties | |
| Weight | 12 Kg (26.4 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 440mm x 310mm x 90.5mm (17.32″ x 12.20″ x 3.56″) |
| Mounting Options | 19" Rack Mount DIN Mount Wall Mount |
No specifications match your search.
See product variants.
SEMIL-2000GC Variants
Neousys SEMIL-2048GC Intel 14th Gen Core IP69K Computer with NVIDIA L4 GPU and 8x M12 LAN
SEMIL-2000GC with NVIDIA L4, 8x M12 Ethernet including 4x PoE+ and ECC memory
| Overview | |
|---|---|
| Brand & Model | Neousys SEMIL-2048GC |
| Performance | |
| Chipset | Intel R680E |
| I/O | |
| Ethernet | 8x Ethernet Ports |
| 2x 10 GbE LAN [M12], 1x 2.5 GbE LAN [M12], 1x GbE LAN [M12], 4x 2.5 GbE LAN [M12] [PoE] | |
| Serial | 2x Serial Ports |
| 1x RS422/485 [M12], 1x Isolated RS232 [M12] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280] | |
| Wireless Connectivity | Optional 4G/5G |
Neousys SEMIL-2047GC Intel 14th Gen Core IP69K Computer with NVIDIA L4 GPU and 4x M12 PoE+
SEMIL-2000GC with NVIDIA L4, 2x 10GbE, 4x M12 2.5GbE PoE+ and 4x COM
| Overview | |
|---|---|
| Brand & Model | Neousys SEMIL-2047GC |
| Performance | |
| Chipset | Intel Q670E |
| I/O | |
| Ethernet | 7x Ethernet Ports |
| 2x 10 GbE LAN [M12], 1x GbE LAN [M12], 4x 2.5 GbE LAN [M12] [PoE] | |
| Serial | 4x Serial Ports |
| 1x RS422/485 [M12], 1x Isolated RS232 [M12], 2x Isolated RS232 [M12] | |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 E-Key [PCIe] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280] | |
| Wireless Connectivity | Optional 4G/5G, Optional WiFi/Bluetooth |
No related media available for this product series.
Official Neousys USA Distributor
Things Embedded is an official Neousys USA distributor, and the SEMIL-2000GC is the Neousys IP69K answer for GPU inference outdoors. The SEMIL-2200GC keeps the L4 and IP69K sealing but adds MIL-STD-461G and MIL-STD-1275D for defense vehicles. Without a GPU, the SEMIL-2000 offers the same sealed chassis class, and the GT-92GC is the 2U rack GPU option for drier locations. All of these share the M12 connector approach for sealed cabling and wide-range DC inputs for vehicle supplies.
Across our range, the SEMIL-2000GC series sits with our IP69K computers and our rugged GPU computers, where a fanless NVIDIA L4 behind IP69K sealing is unusual. The four 2.5GbE PoE+ ports place both models among our PoE camera computers, and the L4 adds them to our edge AI computers for multi-camera inference on vehicles and lines. The -40 °C to 70 °C rating with 35 W processors also places the family among our wide-temperature computers for exposed sites.
