Neousys GT-92GC Intel 14th/13th/12th Gen Core 2U Fanless Rackmount GPU Computer with RTX 2000 Ada
Intel
Linux
Windows
Dual Display Support
PoE Support
USB3
1x M.2
2x mPCIe
2x SIM
4G
5G
Wi-Fi
RAID
NVMe SSD
Ignition Control
Fanless
CE
EN50155

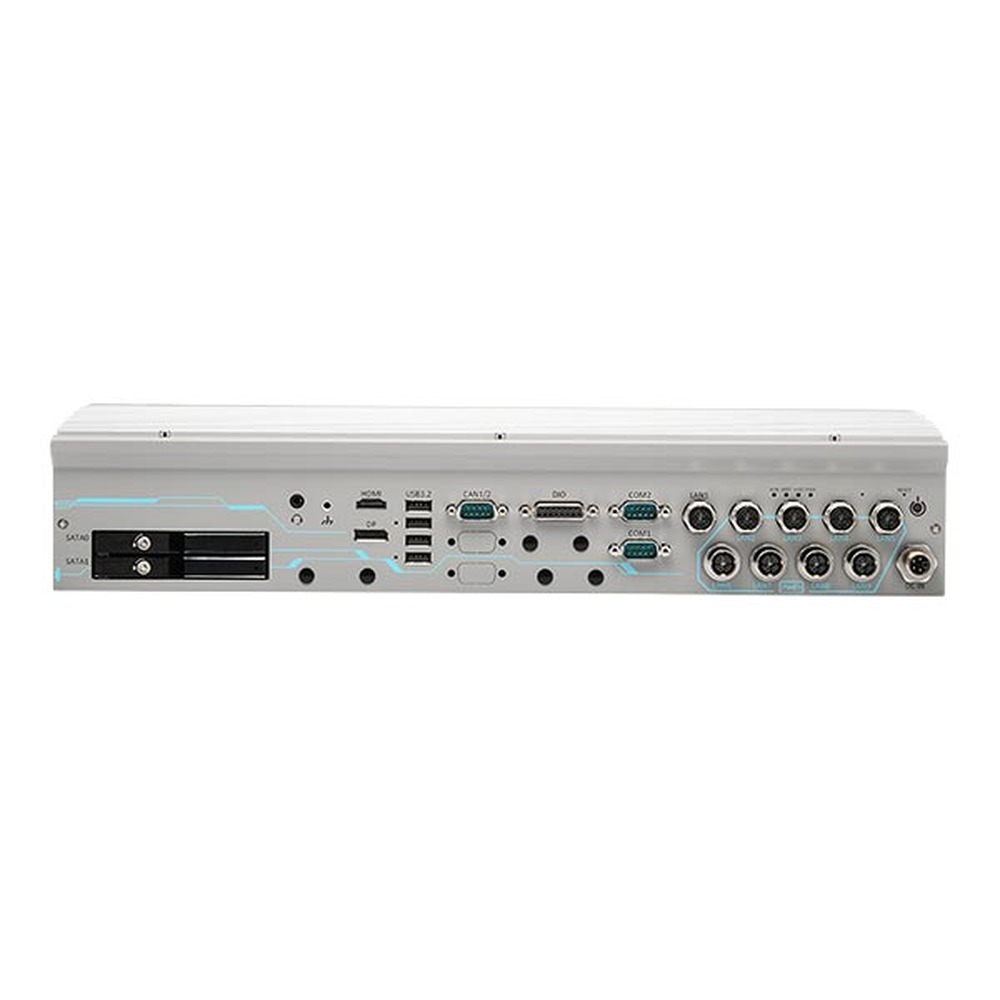

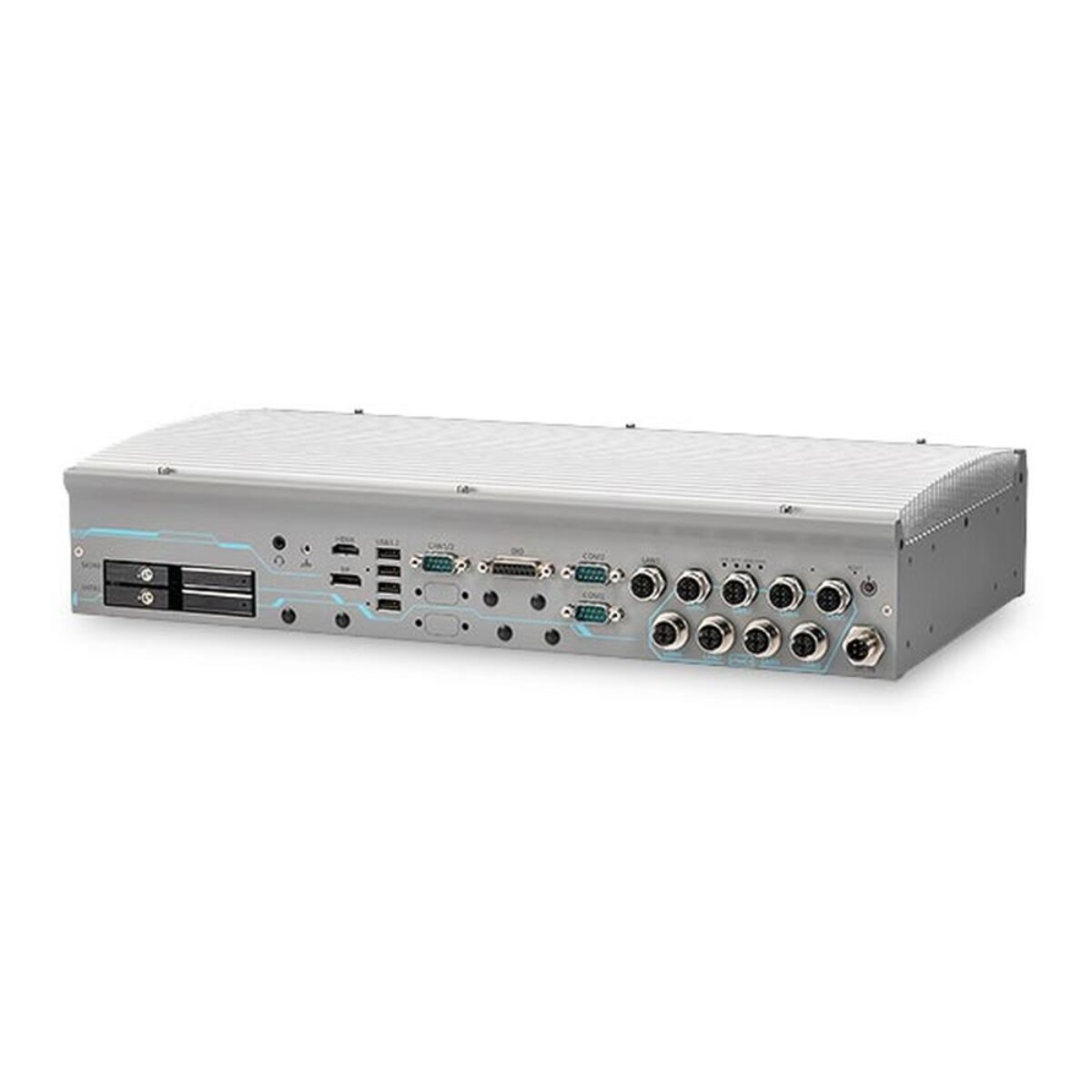

FCCGT-92GC Overview
Multi-camera inspection vehicles, robotic cells and autonomous machines often need GPU inference in a rack, yet a fan-cooled GPU server rarely copes with dust, vibration and a vehicle battery supply. The Neousys GT-92GC is a 2U 19-inch rackmount GPU computer that cools an NVIDIA RTX 2000 Ada card and an Intel 14th/13th/12th Gen Core processor passively, so the whole unit runs fanless from -25 °C to 55 °C with 35 W CPUs.
Compute comes from socketed LGA1700 processors up to the Core i9-14900 on the R680E chipset, with two DDR5-4800 SODIMM slots that take ECC or non-ECC memory, Intel vPro/AMT 16.0 and dTPM 2.0. The RTX 2000 Ada handles deep-learning inference across many camera streams, while HDMI and DisplayPort outputs drive local displays. Storage pairs an M.2 2280 NVMe socket at PCIe Gen4 x4 with two hot-swappable 2.5-inch trays that support RAID 0 or 1, so recorded data can be pulled from the GT-92GC without opening it.
Camera connectivity is the main reason to choose this rackmount GPU computer. Eight Intel I350-AM4 GbE ports on X-coded M12 connectors deliver 802.3at PoE+ to GigE or IP cameras, with a 70 W budget on a 12 V vehicle supply and 100 W on 24 V, plus a separate M12 GbE uplink with Wake-on-LAN. Four USB 3.2 Gen2 ports add USB3 cameras, and two isolated CAN 2.0 ports with SocketCAN, two isolated RS-232/422/485 ports and 4-channel isolated DI and DO connect the vehicle or machine controller. Two full-size mini PCIe sockets with SIM slots take wireless modules.
Power arrives at 8 to 48 V DC on an M12 L-coded connector, with built-in ignition control for vehicle installs; Neousys recommends 18 to 48 V for 65 W processors. The GT-92GC measures 440 x 250 x 88 mm, weighs 7.7 kg and mounts in a 19-inch rack or on a wall with the optional kits. Vibration and shock are tested to EN 50155:2021 and IEC 61373 Category I Class B, with EN 50121 EMC, which suits rolling-stock, agricultural and inspection-vehicle deployments.
GT-92GC Specifications
| Overview | |
|---|---|
| Brand & Model | Neousys GT-92GC |
| Features | Embedded Fanless GPU Industrial M12 Connectors Rugged |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Supported GPUs | NVIDIA RTX 2000 Ada Generation: 2816 CUDA Cores, 88 Tensor Cores, 16GB GDDR6 ECC, 70W |
| AI Performance | 192 TOPS |
| Number of GPUs | Single GPU Support |
| GPU Family | NVIDIA RTX Ada |
| GPU Architecture | NVIDIA Ada Lovelace |
| System GPU Power Budget | 70W |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 128GB |
| Chipset | Intel R680E |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | UEFI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | HDMI 1.4b |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 9x Ethernet Ports |
| 8x GbE LAN [M12] [PoE] 1x GbE LAN [M12] | |
| LAN Controllers | Intel I219LM Intel i350AM4 |
| PoE Standard | PoE+ [IEEE 802.3at] |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| CANbus | 2x CANbus Ports |
| 2x Isolated CANbus [M12] | |
| Digital I/O | Isolated DIO [4-in, 4-out] |
| Remote Management | Intel AMT Intel vPro |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4 Gen4] [2280] | |
| mPCIe | 2x mPCIe Slots |
| 2x mPCIe [PCIe/SIM/USB] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4] 2x 2.5" HDD/SSD [SATA] |
| NVMe | NVMe SSD Support |
| Front Accessible Storage | Front Accessible Storage |
| Hot Swap SSD Support | Hot Swappable SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 8-48V DC [M12] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -25°C to 55°C [-13°F to 131°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 10-90% (Non-condensing) |
| Shock | IEC 61373 |
| Vibration | IEC 61373 |
| EMC | EN55032 EN55035 EN50121 |
| Certification | CE EN50121-3-2 EN50155 FCC |
| Mechanical Properties | |
| Weight | 7.7 Kg (16.94 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 440mm x 250mm x 88mm (17.32″ x 9.84″ x 3.46″) |
| Mounting Options | 19" Rack Mount Wall Mount |
Official Neousys USA Distributor
Things Embedded is an official Neousys USA distributor, and the GT-92GC is the Neousys answer for GPU inference in a standard 2U rack. Where the installation is washed down or fully exposed, the SEMIL-2000GC moves to an IP69K rack chassis with an NVIDIA L4 GPU and M12 PoE+. For defense vehicles that must meet MIL-STD-461G and MIL-STD-1275D, the SEMIL-2200GC is the closer fit, and the GT-92RL-H is the railway build of the GT-92 family. Each of these shares the M12 connector approach, so cabling stays sealed from camera to computer.
Across our range, the GT-92GC sits with our rugged GPU computers and the wider set of industrial PCs with GPU, where its fanless RTX 2000 Ada card and wide-temperature rating set it apart. The eight PoE+ M12 ports also place it among our PoE camera computers, and the ignition-controlled 8 to 48 V input suits it to in-vehicle computers on inspection and agricultural vehicles. Rack and wall kits are optional, so the same unit can go into a cabinet or onto a bulkhead.
