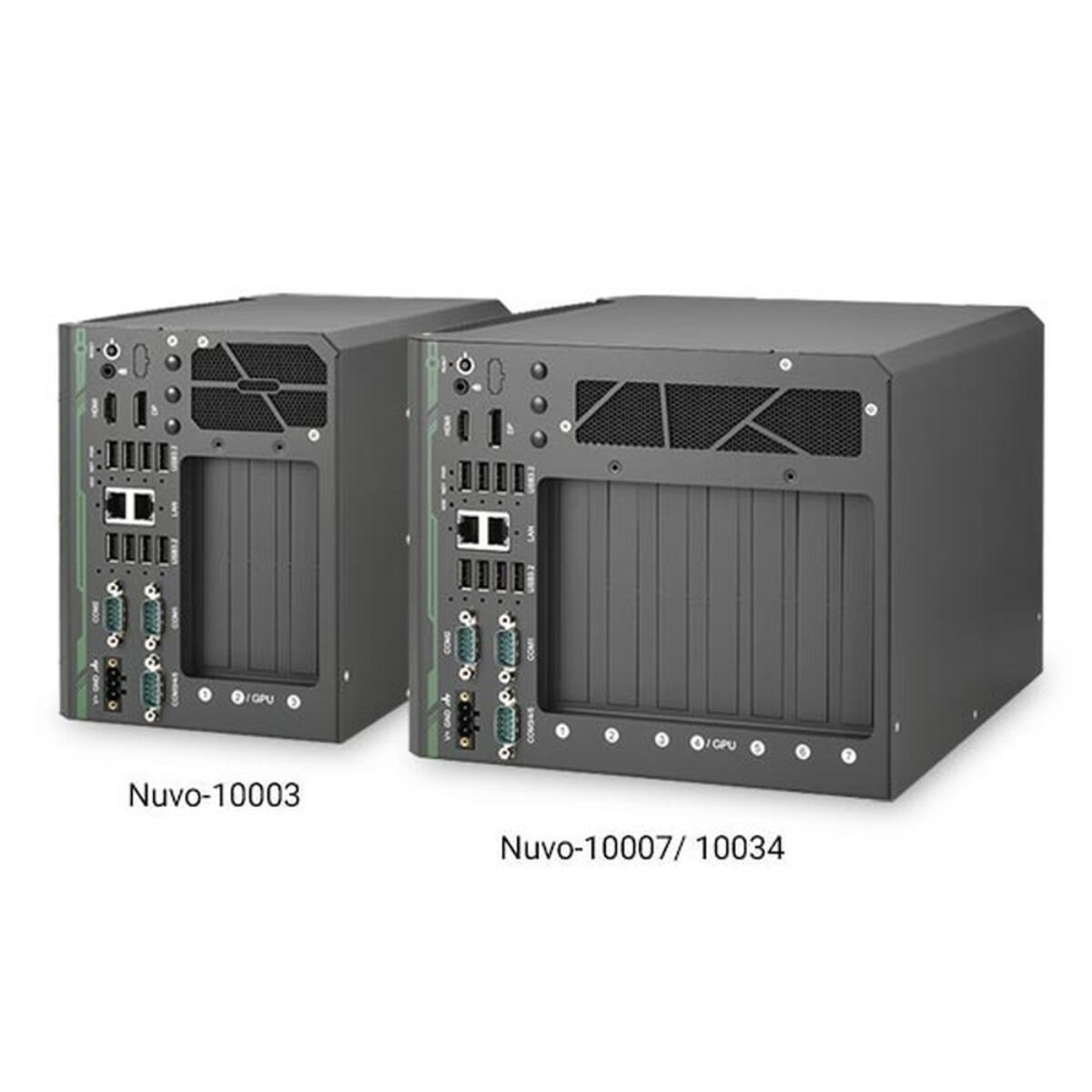

Neousys Nuvo-10000 Intel 14th/13th/12th Gen Core Expansion Box PCs with up to 7 Slots
The Neousys NUVO-10000 series is a family of expansion box PCs built on Intel 14th/13th/12th Gen Core LGA1700 processors with the Q670E chipset and up to seven PCIe or PCI slots. Each model has eight screw-lock USB 3.2 ports, 2.5GbE and GbE, five COM ports, RAID-capable 2.5-inch bays and support for a 115 W NVIDIA GPU. The NUVO-10000 series suits vision inspection, motion control, test and measurement and machine automation deployments.
- Up to Seven PCIe or PCI Slots: Seven, four plus three PCI, or three slots by model, with Gen3 PCIe wiring from x2 to a full x16.
- Intel 14th/13th/12th Gen Core: Socketed LGA1700 processors up to the Core i9-14900 on Q670E, with DDR5-4800 up to 64 GB and vPro/AMT 16.0.
- Single 115 W NVIDIA GPU Support: An 8-pin power connector feeds one NVIDIA GPU card of up to 115 W for deep-learning inference.
- 8x USB 3.2 and 5x COM: Four USB 3.2 Gen2 and four Gen1 ports with screw-lock, plus two programmable and three RS-232 COM ports.
- RAID Storage and 12 to 35 V Input: Two 2.5-inch SATA bays with RAID 0 or 1, an M.2 SATA socket and 12 to 35 V DC with remote on/off.
Intel- Linux
- Windows
Dual Display Support
2.5GbE
USB3- 1x M.2
- 2x mPCIe
- 4x PCIe
- 3x PCI
- 1x SIM
- 4G
- 5G
RAID- Extended Temp
- CE
- FCC
- 3x PCIe
- 7x PCIe
Nuvo-10000 Description
Many test rigs and automation cells still rely on a cabinet-sized 4U industrial PC for one reason: they need several add-in cards, such as frame grabbers, motion controllers, DIO and legacy PCI boards. Neousys built the NUVO-10000 to replace those bulky rack-mount and wall-mount systems with expansion box PCs that offer the same slot count in a much smaller chassis.
Every NUVO-10000 takes socketed Intel 14th/13th/12th Gen Core processors on the Q670E chipset, up to the Core i9-14900, with two DDR5-4800 SODIMMs up to 64 GB, vPro/AMT 16.0 and dTPM 2.0. An 8-pin connector powers a single NVIDIA GPU card of up to 115 W, so deep-learning inference can run beside the I/O cards. Storage is two internal 2.5-inch SATA bays with RAID 0 or 1 and an M.2 2280 SATA socket, and two full-size mini PCIe sockets with micro SIM slots take Wi-Fi or cellular modules.
Three models set the slot mix. The NUVO-10007 has seven PCIe slots: two x16 at 8 lanes, three x8 at 4 lanes and two x4 at 2 lanes, all Gen3. The NUVO-10034 keeps two x16 and two x8 PCIe slots and adds three 33 MHz 32-bit 5 V PCI slots for legacy cards. Both measure 241 x 280 x 188 mm. The NUVO-10003 is the narrow build at 157 mm wide, with one x16 slot wired at the full 16 lanes and two x8 slots at 4 lanes, which suits a single GPU or high-bandwidth capture card.
All NUVO-10000 models share four USB 3.2 Gen2 and four USB 3.2 Gen1 ports with screw-lock, one 2.5GbE port by Intel I226-IT, one GbE port by Intel I219-LM, two software-programmable RS-232/422/485 ports and three RS-232 ports, plus HDMI 1.4b and DisplayPort outputs. Power is 12 to 35 V DC, rising to 24 to 35 V when a GPU takes the load above 150 W, with a 10-pin wafer for remote on/off and status LEDs. Neousys rates the series from -25 °C to 60 °C with MIL-STD-810H vibration and shock, and the chassis includes a fan with BIOS-configurable control. These expansion box PCs mount on a wall as standard and suit vision inspection, motion control and test benches.
Nuvo-10000 Specifications
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-10000 |
| Features | Expandable GPU Industrial Rugged |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 32GB |
| Chipset | Intel Q670E |
| PCIe Gen Support | PCIe 3.0 |
| BIOS | UEFI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a HDMI 1.4b |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Intel I219LM Intel I226IT |
| USB | 9x USB Ports |
| 1x USB 2.0 [Type A] 4x USB 3.2 Gen 1 [Type A] 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 5x Serial Ports |
| 2x RS232/422/485 [DB9] 3x RS232 [DB9] | |
| Remote Management | Intel AMT Intel vPro |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 M-Key [SATA] [2280] | |
| mPCIe | 2x mPCIe Slots |
| 2x mPCIe [PCIe/SIM/USB] | |
| PCIe | See Variant Specifications |
| PCI | See Variant Specifications |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD [SATA] 2x 2.5" HDD/SSD [SATA] |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 12-35V DC [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 10-90% (Non-condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| EMC | EN55032 EN55035 |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | See Variant Specifications |
| Chassis Material | Aluminum |
| Dimensions | See Variant Specifications |
| Mounting Options | Wall Mount |
No specifications match your search.
See product variants.
Nuvo-10000 Variants
Neousys Nuvo-10034 Intel 14th/13th/12th Gen Core Expansion Box PC with 4 PCIe and 3 PCI Slots
NUVO-10000 with 4x PCIe Gen3 and 3x legacy PCI slots, single 115 W GPU support
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-10034 |
| Expansion | |
| PCI Description | 3x PCI |
| PCIe | 4x PCIe Slots |
| 2x PCIe [x16 Slot] [x8 Signal] [Gen3], 2x PCIe [x8 Slot] [4-Lane Signal] [Gen3] | |
| PCI | 3 |
| Mechanical Properties | |
| Weight | 5.2 Kg (11.46 Lbs) |
| Dimensions | 241mm x 280mm x 188mm (9.49″ x 11.02″ x 7.40″) |

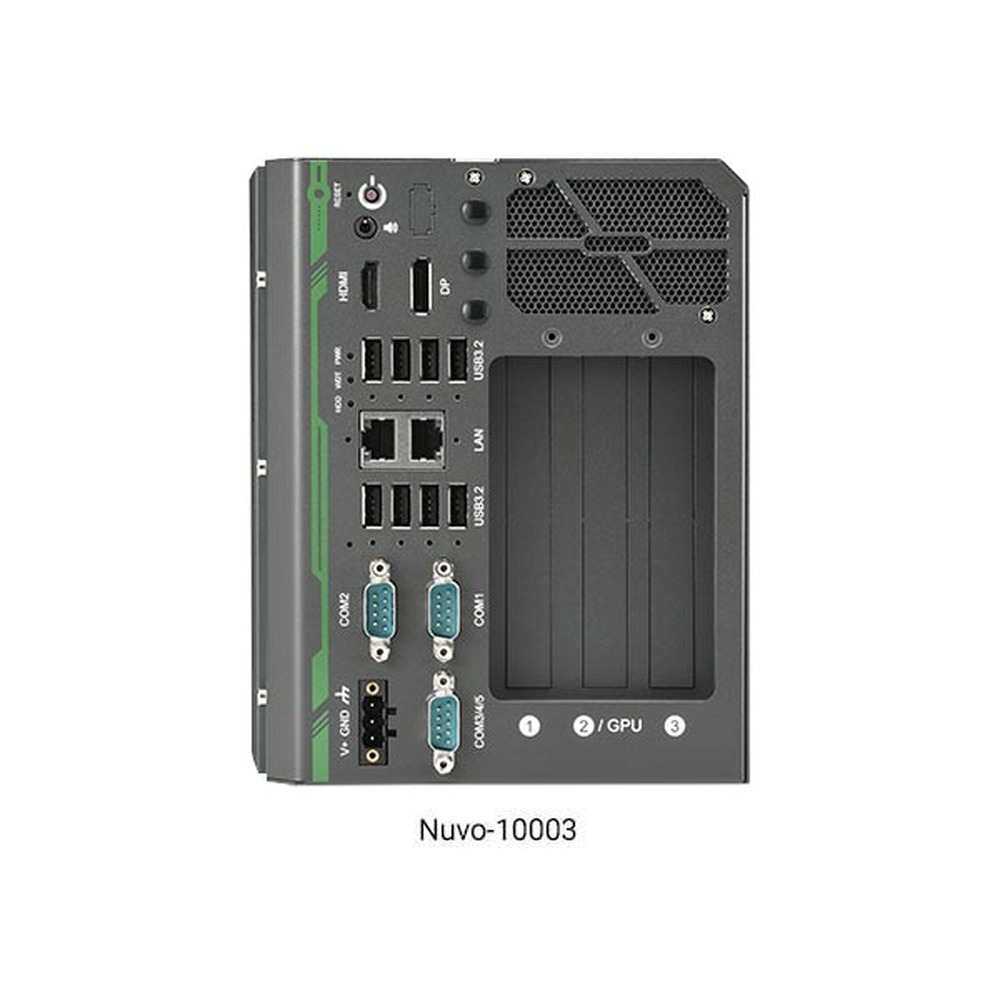

Neousys Nuvo-10003 Intel 14th/13th/12th Gen Core Compact Expansion Box PC with 3 PCIe Slots
NUVO-10000 with 3x PCIe Gen3 slots including a full x16, 157 mm wide
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-10003 |
| Expansion | |
| PCIe | 3x PCIe Slots |
| 1x PCIe [x16 Slot] [x16 Signal] [Gen3], 2x PCIe [x8 Slot] [4-Lane Signal] [Gen3] | |
| Mechanical Properties | |
| Weight | 4.2 Kg (9.24 Lbs) |
| Dimensions | 157mm x 280mm x 188mm (6.18″ x 11.02″ x 7.40″) |

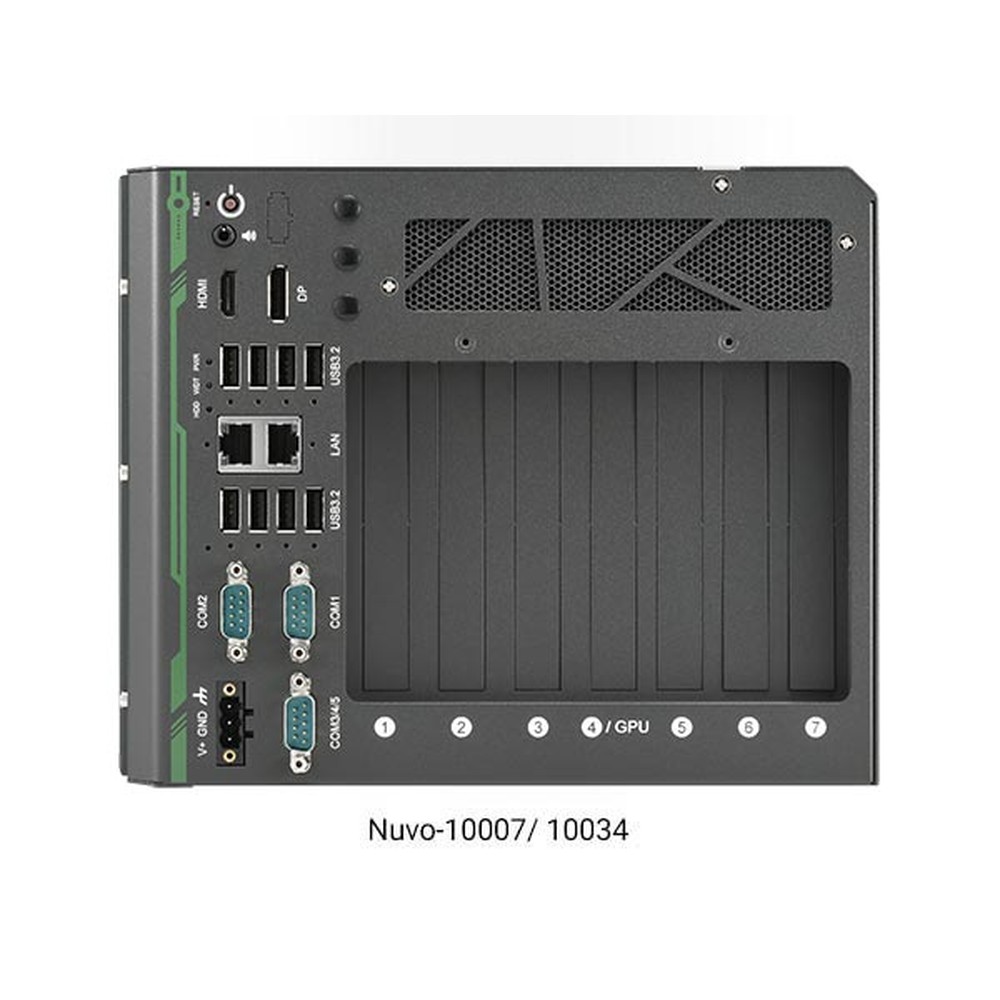

Neousys Nuvo-10007 Intel 14th/13th/12th Gen Core Expansion Box PC with 7 PCIe Slots
NUVO-10000 with 7x PCIe Gen3 slots, single 115 W GPU support and RAID bays
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-10007 |
| Expansion | |
| PCIe | 7x PCIe Slots |
| 2x PCIe [x16 Slot] [x8 Signal] [Gen3], 2x PCIe [x4 Slot] [2-Lane Signal] [Gen3], 3x PCIe [x8 Slot][4-Lane Signal][Gen3] | |
| Mechanical Properties | |
| Weight | 5.2 Kg (11.46 Lbs) |
| Dimensions | 241mm x 280mm x 188mm (9.49″ x 11.02″ x 7.40″) |
