Neousys Nuvo-9501 Intel 14th/13th/12th Gen Core Small Industrial PCs
The Neousys NUVO-9501 series is a family of small industrial PCs built on Intel 14th/13th/12th Gen Core LGA1700 processors in a 212 x 165 x 80 mm chassis. Each model has two 2.5GbE ports, four screw-lock USB 3.2 ports, an M.2 NVMe socket at PCIe Gen4 x4 and a bay for a 3.5-inch or 2.5-inch drive. The NUVO-9501 series suits data collection, surveillance recording, machine control and general automation deployments.
- Intel 14th/13th/12th Gen Core: Socketed LGA1700 processors up to the Core i9-14900 with 24 cores and 32 threads, on the H610E chipset with DDR4-3200.
- 3.5-Inch or 2.5-Inch Drive Bay: An internal SATA port takes a 3.5-inch hard drive or 2.5-inch SSD for high-capacity recording and data logging.
- Gen4 NVMe System Drive: An M.2 2280 M key socket at PCIe Gen4 x4 takes an NVMe SSD for the operating system and applications.

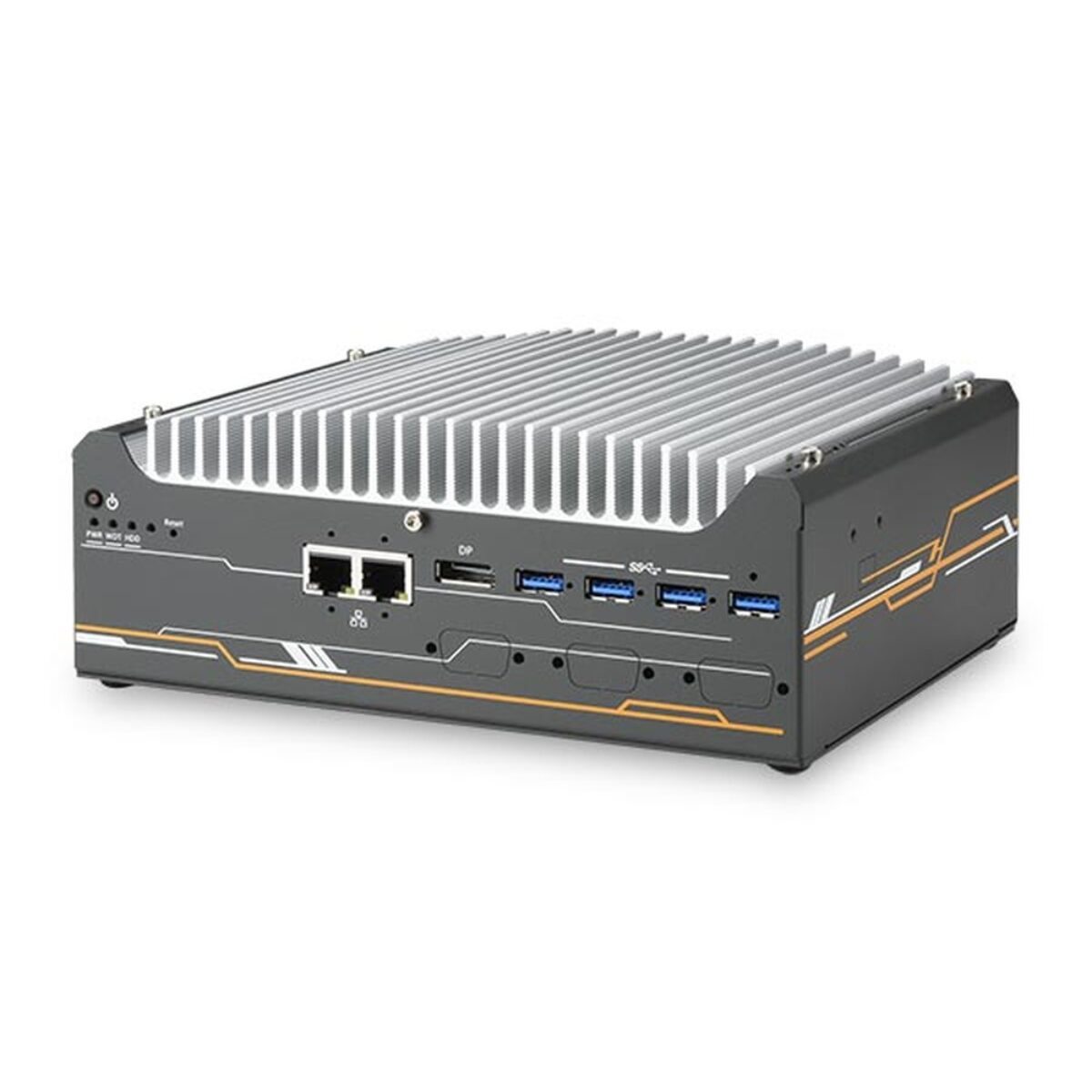

- 2x 2.5GbE and 4x USB 3.2: Two 2.5GbE ports plus four USB 3.2 Gen1 and two USB 2.0 ports, with screw-lock retention on the USB 3.2 ports.
- Compact 80 mm Tall Chassis: A 212 x 165 x 80 mm design at 2.5 kg with 8 to 35 V DC input, remote on/off and MIL-STD-810H testing.
Intel- Linux
- Windows
Dual Display Support
2.5GbE
USB3- 2x M.2
- 2x mPCIe
- 2x SIM
- 4G
- 5G
- Wi-Fi
- NVMe SSD
- Fanless
- Extended Temp
- CE
- FCC
Nuvo-9501 Description
Many automation projects need a capable Core processor and a large hard drive more than they need a long list of ports. Neousys built the NUVO-9501 around that brief: two 2.5GbE ports, four USB 3.2 ports and room for a 3.5-inch drive, in a small industrial PC that still takes socketed Intel 14th/13th/12th Gen Core processors with up to 24 cores and 32 threads. Neousys positions it as its cost-effective compact Core computer, quoting up to twice the performance of its previous 10th and 11th Gen designs, so projects can standardize on one current processor generation across simple and demanding stations alike.
Every NUVO-9501 uses the H610E chipset with LGA1700 processors from Celeron G6900E to Core i9-14900, one DDR4-3200 SODIMM up to 32 GB and firmware TPM 2.0. Storage combines an M.2 2280 NVMe socket at PCIe Gen4 x4, rated by Neousys at up to 7000 MB/s, with an internal SATA port for a 3.5-inch hard drive or a 2.5-inch SSD, which suits high-capacity recording and data logging. Two full-size mini PCIe sockets with SIM slots and an M.2 E key socket take Wi-Fi, 4G or 5G modules, and VGA plus DisplayPort drive local displays.
Two models make up the range. The NUVO-9501 is the standard build with two 2.5GbE ports by Intel I226-V, rated from -10 °C to 60 °C, for indoor cabinets and control rooms. The NUVO-9505D moves to Intel I226-IT controllers, adds 4-channel isolated DI and 4-channel isolated DO, and extends the fanless range to -25 °C to 60 °C for colder sites and machine-side installs.

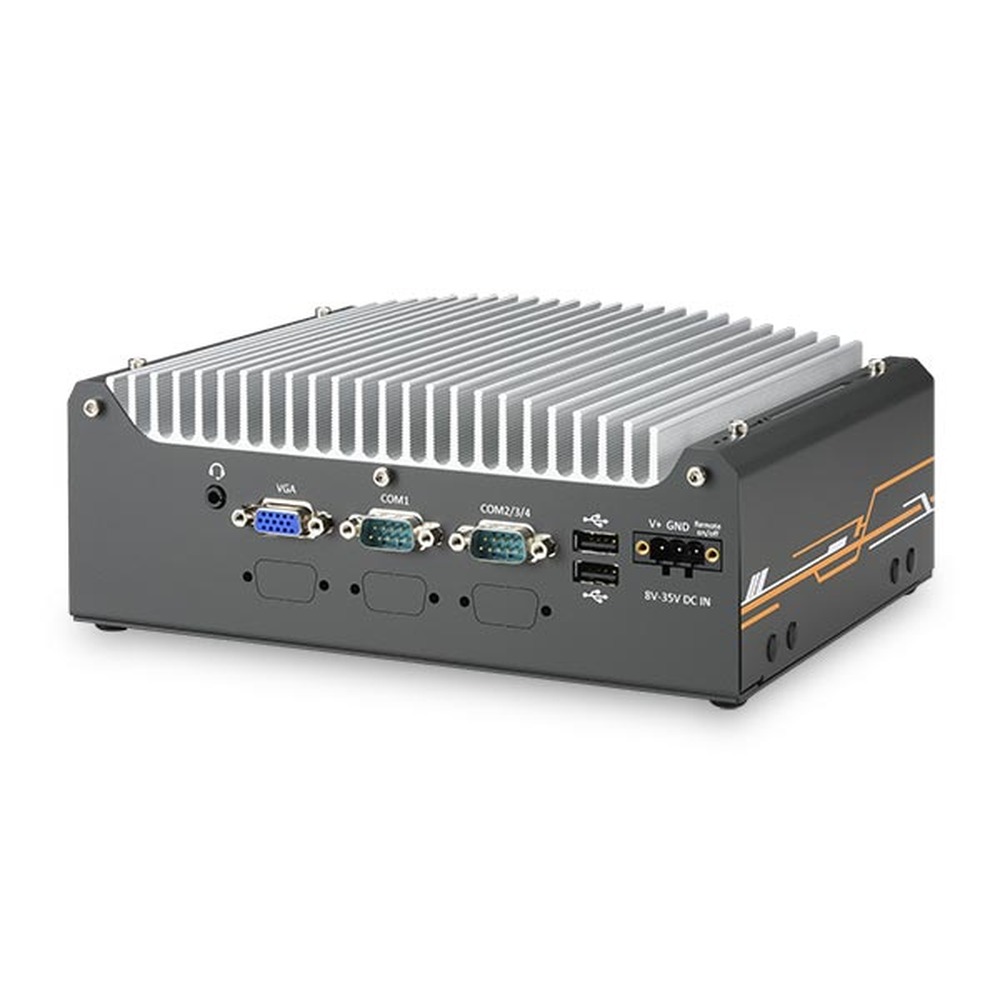

Both NUVO-9501 models share four screw-lock USB 3.2 Gen1 ports, two USB 2.0 ports, a software-programmable RS-232/422/485 port and further RS-232 ports. Power is 8 to 35 V DC on a terminal block with remote on/off control. Neousys recommends its optional fan kit for 65 W processors above 50 °C and tests vibration and shock to MIL-STD-810H. Wall-mount and DIN-rail kits are optional, which lets these small industrial PCs sit in a control cabinet, a surveillance rack or beside a machine, and the 2.5 kg weight keeps either mounting option simple.
Nuvo-9501 Specifications
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-9501 |
| Features | Compact Embedded Fanless Industrial Low Profile Rugged |
| Performance | |
| Processor Series | Intel Pentium G Series Alder Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 1x DDR4 3200MHz SO-DIMM Slot, 32GB |
| Chipset | Intel H610E |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | UEFI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x VGA |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | See Variant Specifications |
| USB | 6x USB Ports |
| 2x USB 2.0 [Type A] 4x USB 3.1 Gen 1 [Type A] | |
| Serial | 5x Serial Ports |
| 1x RS422/485 [DB9] 1x RS232/422/485 [DB9] 3x RS232 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4 Gen4] [2280] | |
| mPCIe | 2x mPCIe Slots |
| 2x mPCIe [PCIe/SIM/USB] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD [SATA] 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4] |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 8-35V DC [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | See Variant Specifications |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 10-90% (Non-condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| EMC | EN55032 EN55035 |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 2.5 Kg (5.5 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 212mm x 165mm x 80mm (8.35″ x 6.50″ x 3.15″) |
| Mounting Options | DIN Mount Wall Mount |
No specifications match your search.
See product variants.
Nuvo-9501 Variants
Neousys Nuvo-9505D Intel 14th/13th/12th Gen Core Wide Temperature Small Industrial PC with 8x Isolated DIO
NUVO-9501 with 8x isolated DIO, 2x 2.5GbE by I226-IT and -25 °C to 60 °C
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-9505D |
| I/O | |
| LAN Controllers | Intel I226IT |
| Digital I/O | Isolated DIO [4-in, 4-out] |
| Environmental Conditions | |
| Operating Temperature | -25°C to 60°C [-13°F to 140°F], Extended Temperature |
Neousys Nuvo-9501 Intel 14th/13th/12th Gen Core Small Industrial PC with 2x 2.5GbE and 4x USB 3.2
NUVO-9501 with 2x 2.5GbE, 4x USB 3.2, 3.5-inch drive bay and -10 °C to 60 °C
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-9501 |
| I/O | |
| LAN Controllers | Intel I226V |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F], Extended Temperature |
