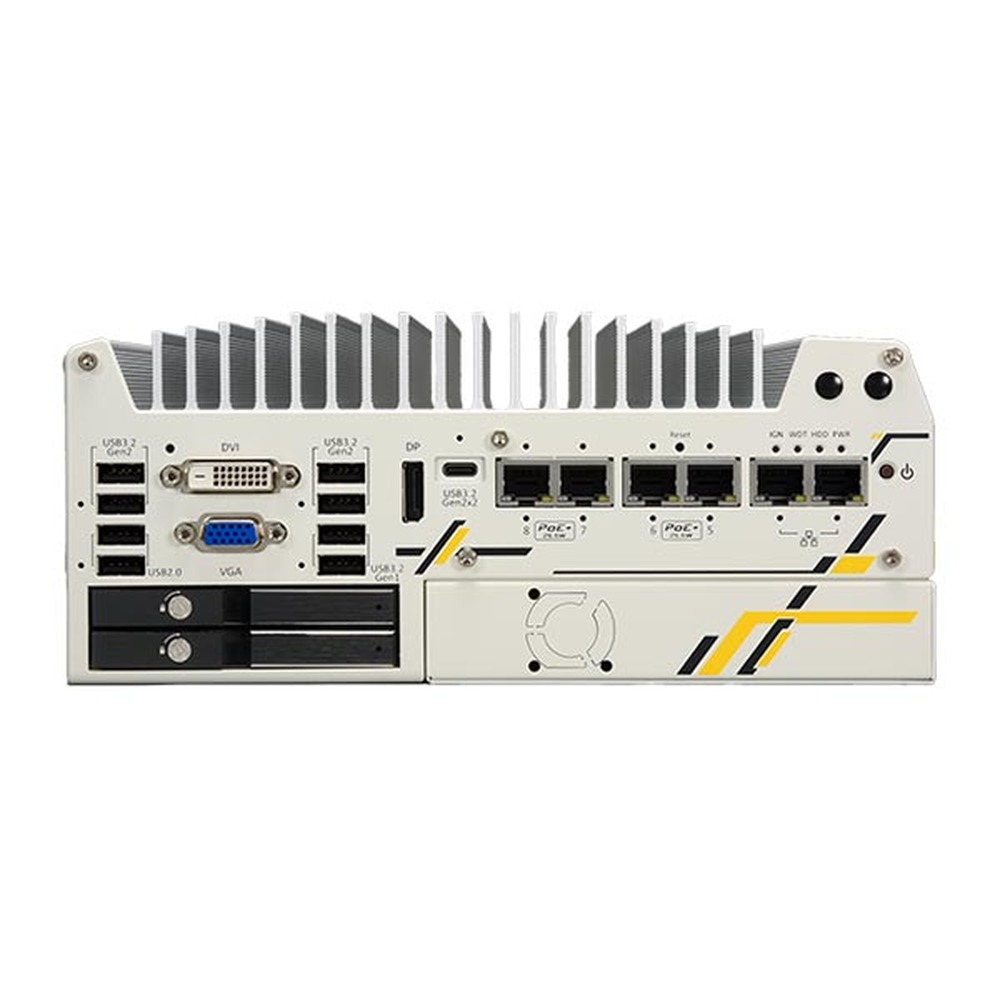

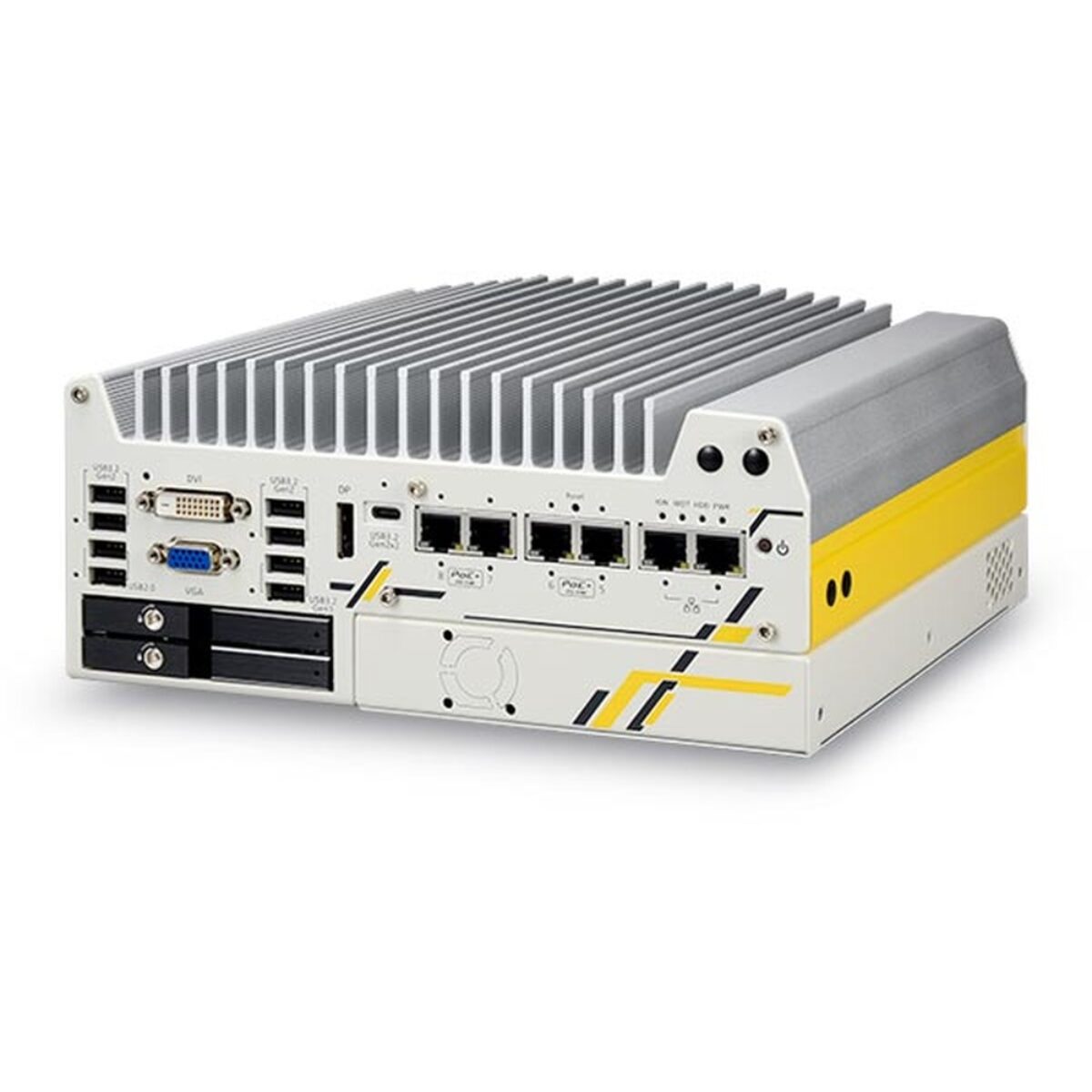

Neousys Nuvo-9200VTC Intel 14th/13th/12th Gen Core Rugged Vehicle Computers with PoE+ and PCIe

Vehicle projects often need one add-in card alongside camera power and recording: a capture card, a frame grabber or extra network ports. The Neousys Nuvo-9200VTC series is a family of rugged vehicle computers built for that combination: Intel 14th/13th/12th Gen Core compute, four or eight PoE+ camera ports, two hot-swap RAID trays and a patented single-slot PCIe cassette, with an isolated CAN bus and an 8 to 48 V ignition-controlled input, in a 240 x 225 x 103 mm fanless enclosure on a damping wall-mount bracket.

Every Nuvo-9200VTC shares the same core design. The LGA1700 socket on the Intel Q670E chipset takes 14th Gen Core i3 to i9 processors and 13th and 12th Gen Core, Pentium and Celeron E-series parts at 35 W or 65 W, up to 24 cores and 32 threads, with two DDR5-4800 SO-DIMM slots to 128 GB and Intel UHD Graphics 770 on VGA, DVI-D and DisplayPort. The cassette carries a PCIe x16 slot with 16 lanes of Gen3 signals, and a 25 mm fan kit is listed as an option for it. Storage pairs an M.2 2280 PCIe Gen4 x4 NVMe socket with two hot-swappable 2.5-inch trays in RAID 0 or 1, and two M.2 B-key and three mini-PCIe sockets take 5G, 4G, Wi-Fi, GPS and CAN modules.

The series splits on the camera ports. The Nuvo-9200VTC carries four Gigabit 802.3at PoE+ ports on X-coded M12 connectors that lock against vibration. The Nuvo-9204VTC puts the same four ports on RJ45 for standard camera cabling, and the Nuvo-9208VTC adds four 2.5GbE PoE+ ports for eight on RJ45, suited to multi-camera recording. Each port supplies 25 W to an IP camera or sensor.

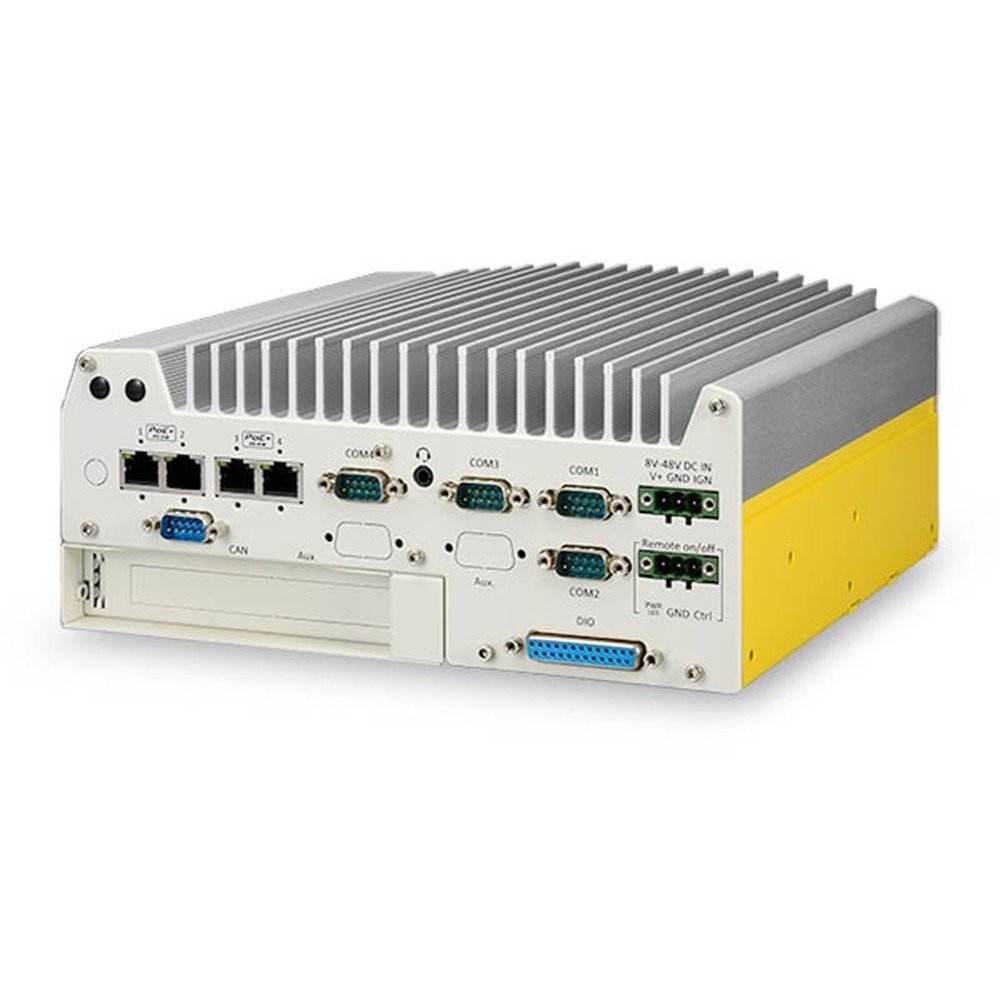

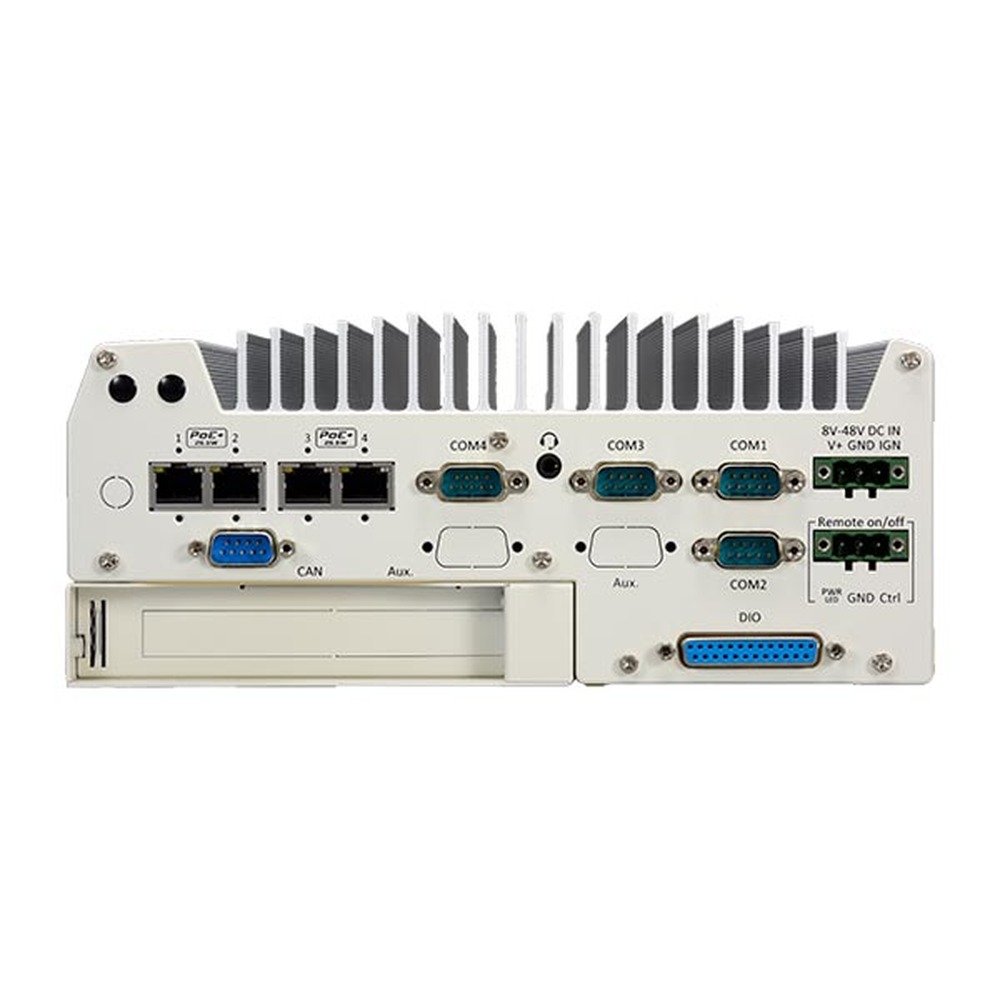

All three rugged vehicle computers share screw-lock 2.5GbE and Gigabit Ethernet, a screw-lock 20 Gbps USB-C port, eight USB Type-A ports, four serial ports, an isolated CAN 2.0 port and 4-channel isolated DI and DO, with built-in ignition power control on the 8 to 48 V input. With a 35 W processor and one memory module they run from -40 °C to 70 °C, or to 60 °C with both slots filled and 50 °C at 65 W. Neousys lists E-Mark and EN 45545-2 certification, EN 50155 EMC compliance through EN 50121 and EN 50155:2017 / IEC 61373 body-mounted shock and vibration, so the Nuvo-9200VTC series suits buses, rail vehicles and mobile machines that need an add-in card.
