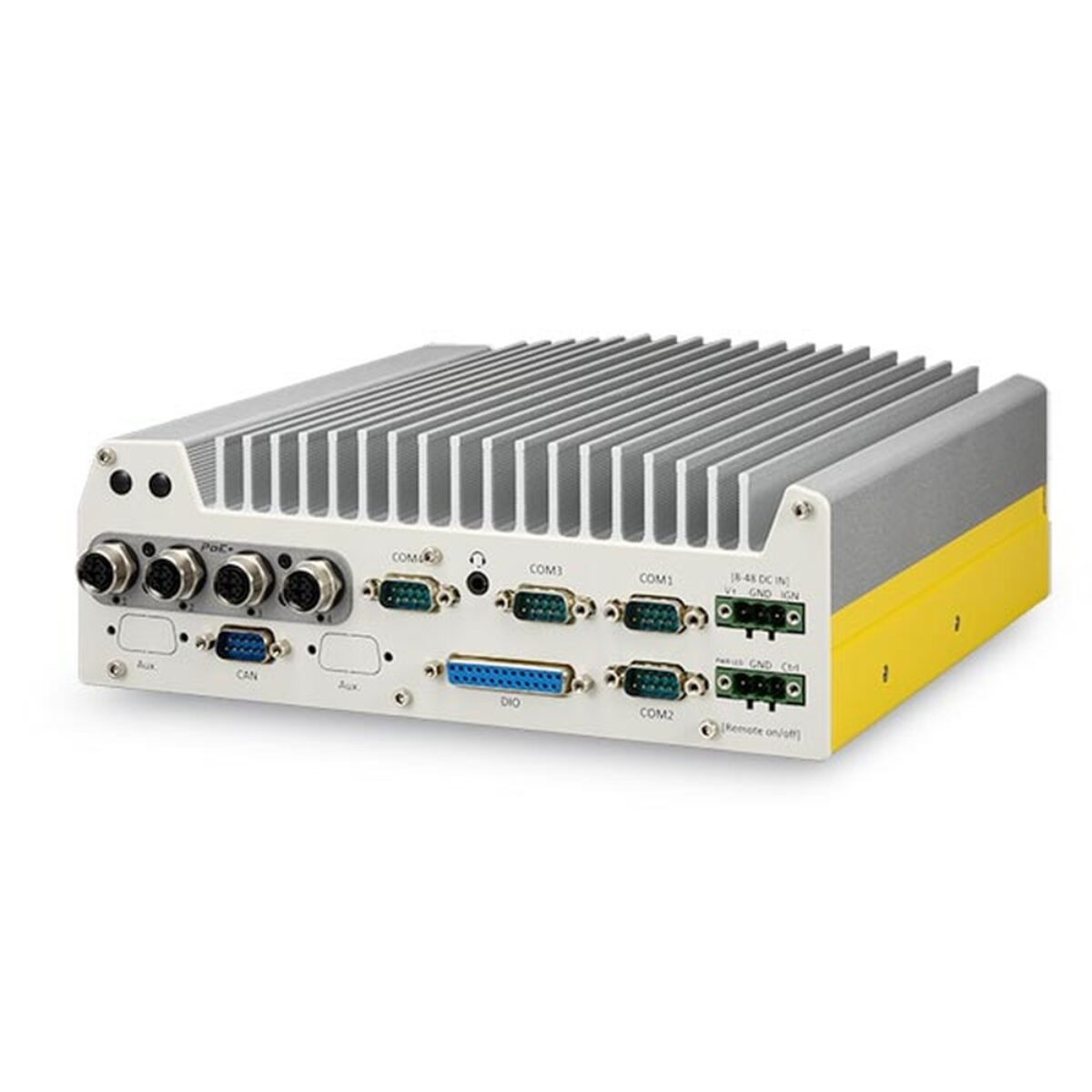

Neousys Nuvo-9100VTC Intel 14th/13th/12th Gen Core In-Vehicle PCs with PoE+

A computer in a vehicle has to start and stop with the ignition, run from the vehicle’s own DC supply and keep its camera links connected through constant shock and vibration. The Neousys Nuvo-9100VTC series is a family of in-vehicle PCs built around those conditions: Intel 14th/13th/12th Gen Core compute, four or eight 802.3at PoE+ camera ports, an isolated CAN bus and an 8 to 48 V DC input with built-in ignition power control, in a 240 x 225 x 84 mm fanless enclosure on a damping wall-mount bracket.

Every Nuvo-9100VTC shares the same core design. The LGA1700 socket on the Intel Q670E chipset takes 14th Gen Core i3 to i9 processors and 13th and 12th Gen Core, Pentium and Celeron E-series parts at 35 W or 65 W, up to 24 cores and 32 threads, with two DDR5-4800 SO-DIMM slots to 128 GB. Neousys quotes up to 1.8x the system performance of 10th and 11th Gen systems. Storage pairs an M.2 2280 PCIe Gen4 x4 NVMe socket with one hot-swappable 2.5-inch tray and one internal 2.5-inch SATA bay in RAID 0 or 1, and two M.2 B-key sockets with SIM slots and three mini-PCIe sockets take 5G, 4G, Wi-Fi, GPS and CAN modules. Intel vPro with AMT 16.0 and dTPM 2.0 support remote management.

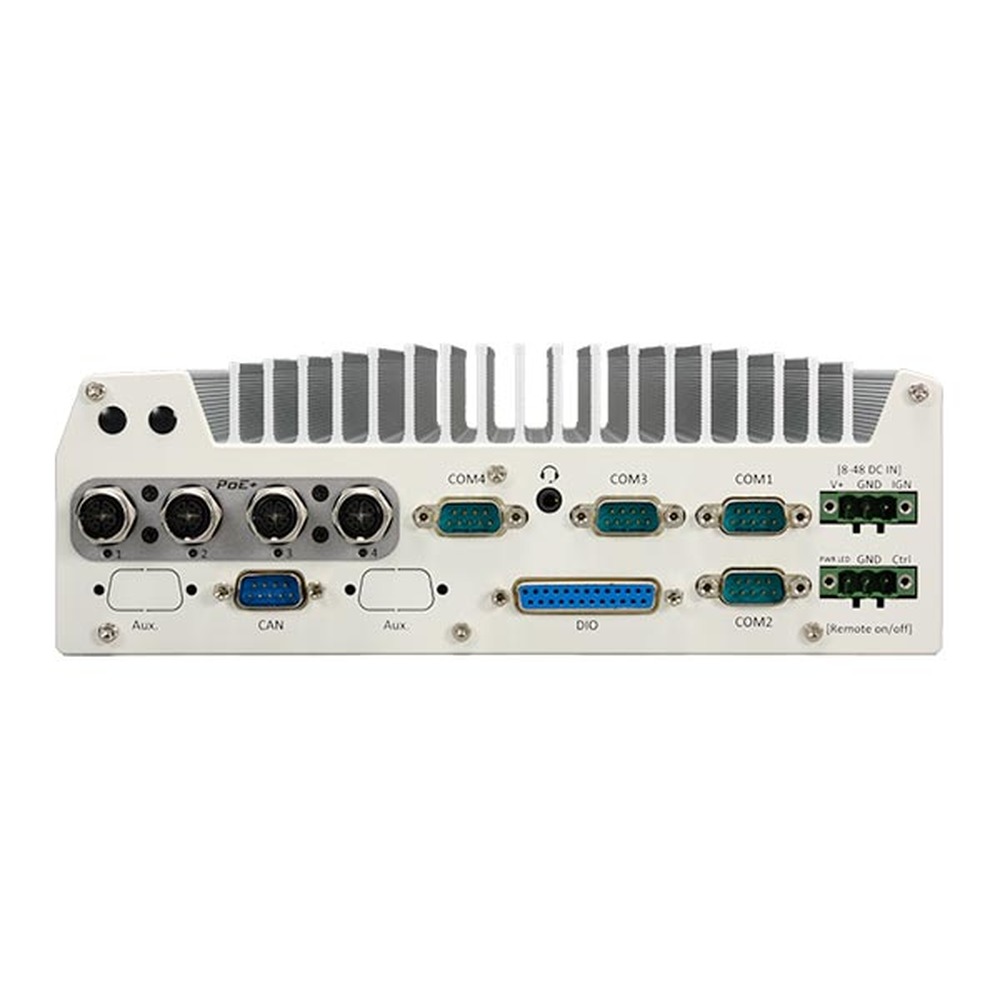

The series splits on the camera network. The Nuvo-9100VTC puts four Gigabit PoE+ ports on X-coded M12 connectors that lock against vibration. The Nuvo-9104VTC carries the same four ports on RJ45 for conventional camera cabling, and the Nuvo-9108VTC adds four 2.5GbE PoE+ ports to the four Gigabit ports, eight on RJ45, for multi-camera recording. Each PoE+ port supplies up to 25 W to an IP camera or sensor.

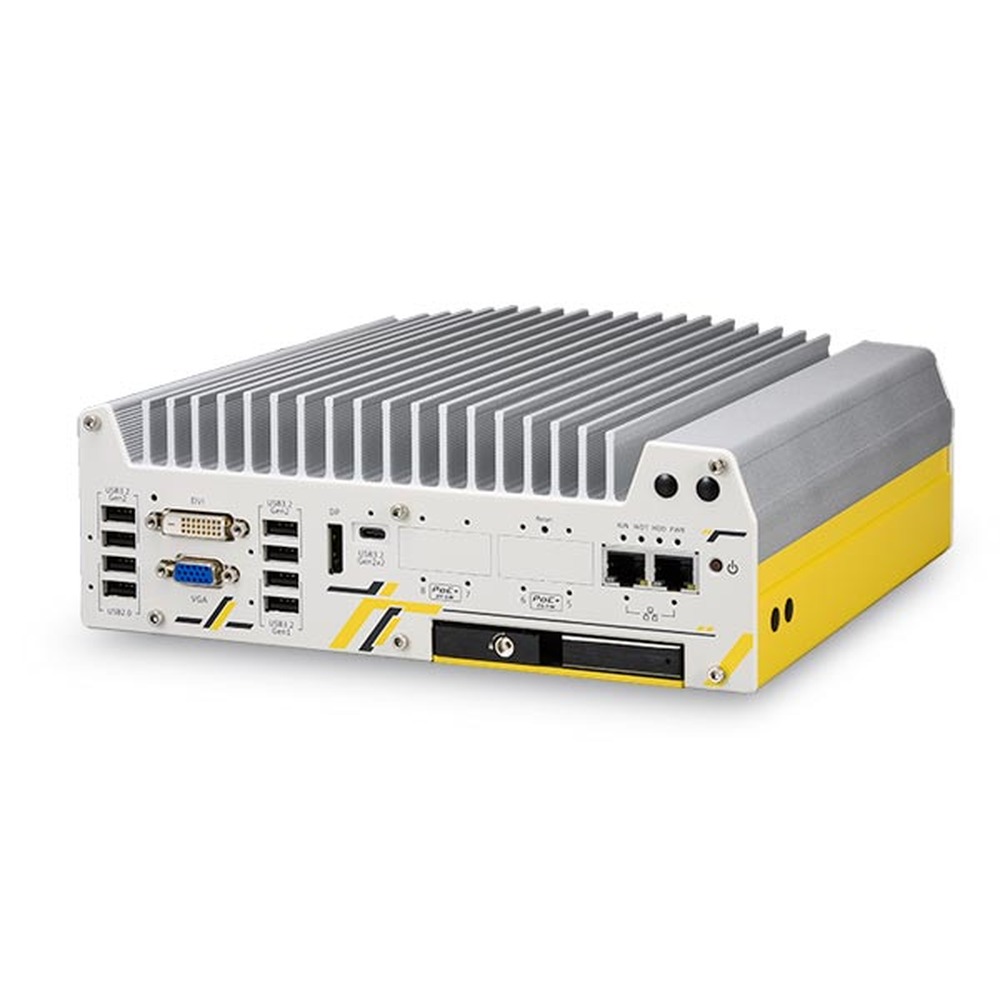

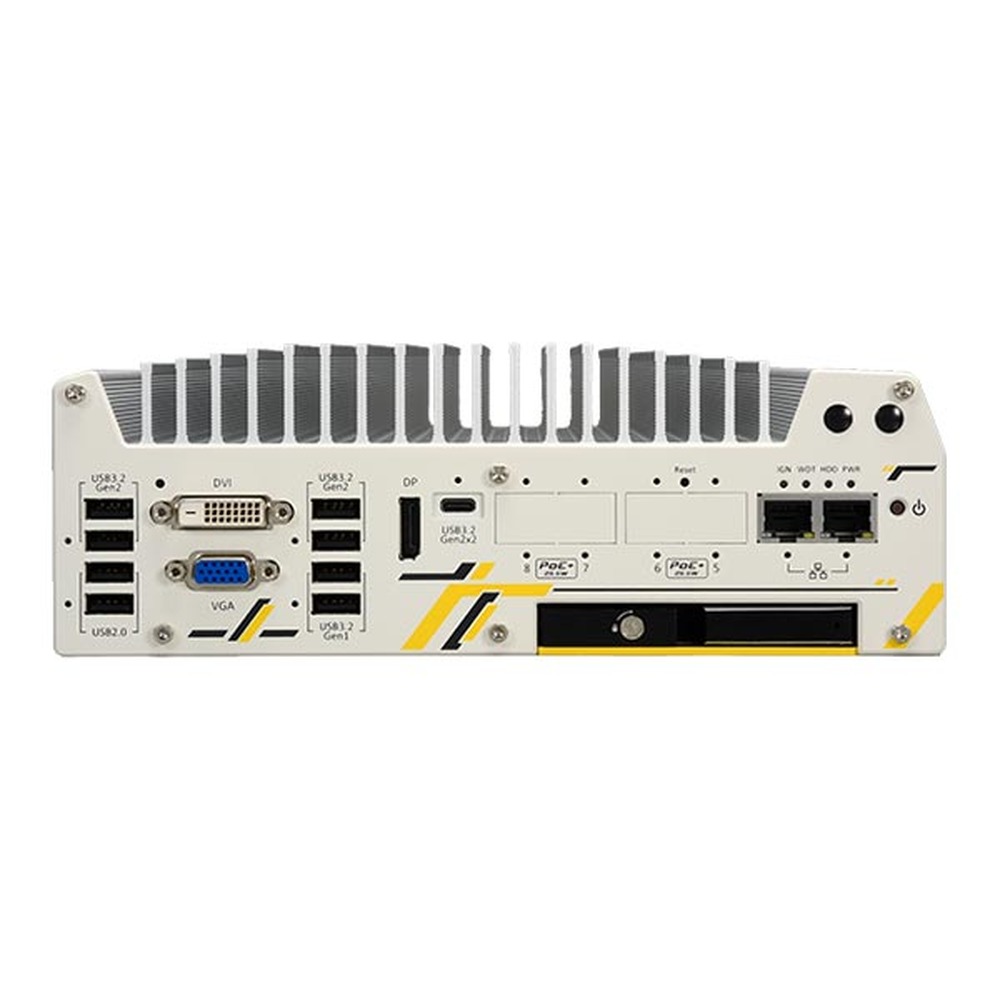

All three in-vehicle PCs share the rest of the I/O: screw-lock 2.5GbE and Gigabit Ethernet, a screw-lock USB 3.2 Gen 2×2 Type-C port at 20 Gbps, eight USB Type-A ports, four serial ports, 4-channel isolated DI and DO, and VGA, DVI-D and DisplayPort outputs. With a 35 W processor and one memory module they run from -40 °C to 70 °C, or to 60 °C with both slots filled and 50 °C at 65 W. Neousys lists E-Mark and EN 45545-2 certification, EN 50155 EMC compliance through EN 50121 and EN 50155:2017 / IEC 61373 body-mounted shock and vibration, which suits the Nuvo-9100VTC series to bus, coach, fleet and rolling-stock camera installs.
