Arestech BPC-5112 Intel Core Series 2 or 14th Gen Small Form Factor Embedded PC with Triple Display

Vision and motion-control cabinets often want desktop-socket processing and three screens, but a fan-cooled PC on the cabinet floor is usually the first part to fail. The Arestech BPC-5112 series puts an LGA1700 socket and triple display output into a small fanless extruded aluminum enclosure, giving small form factor embedded PCs for edge AI computing, factory automation, motion control, machine vision and data analytics.

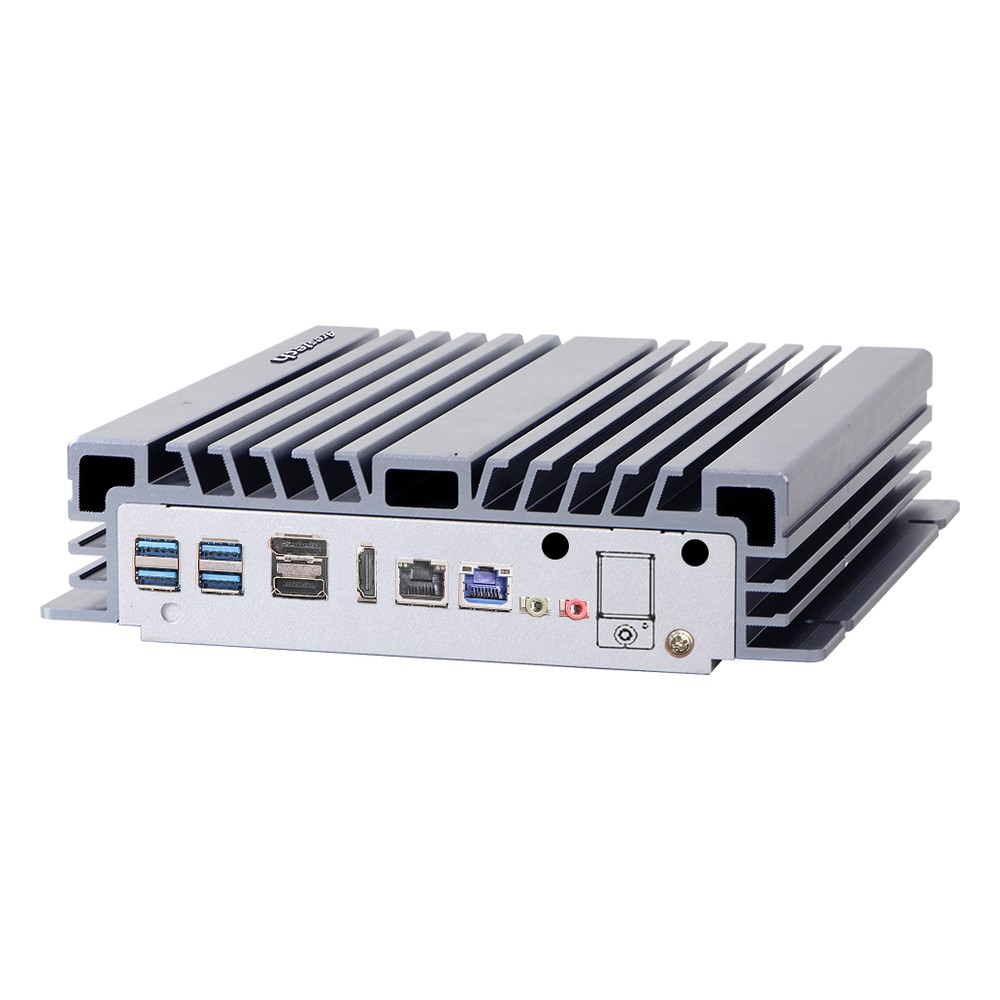

The socket on the Intel Q670 chipset takes 13 listed processors, from the Intel Core Series 2 (Bartlett Lake) Core 7 251TE, Core 5 221TE, Core 5 211TE and Core 3 201TE at 45 W to the 14th Gen i7-14700T, i5-14500T and i3-14100T and 13th and 12th Gen Core TE parts at 35 W. Dual-channel DDR5 at 4800 or 5600 MHz reaches 96 GB, TPM 2.0 is fitted on the board, and Intel UHD Graphics drives two HDMI 2.0b outputs and one DisplayPort 1.4a++ output. Storage runs to two internal 2.5″ SATA SSD bays and two M.2 M-Key slots with PCIe Gen4 x4 and Intel VMD RAID 0/1, while M.2 E-Key and B-Key slots take optional Wi-Fi and 4G.

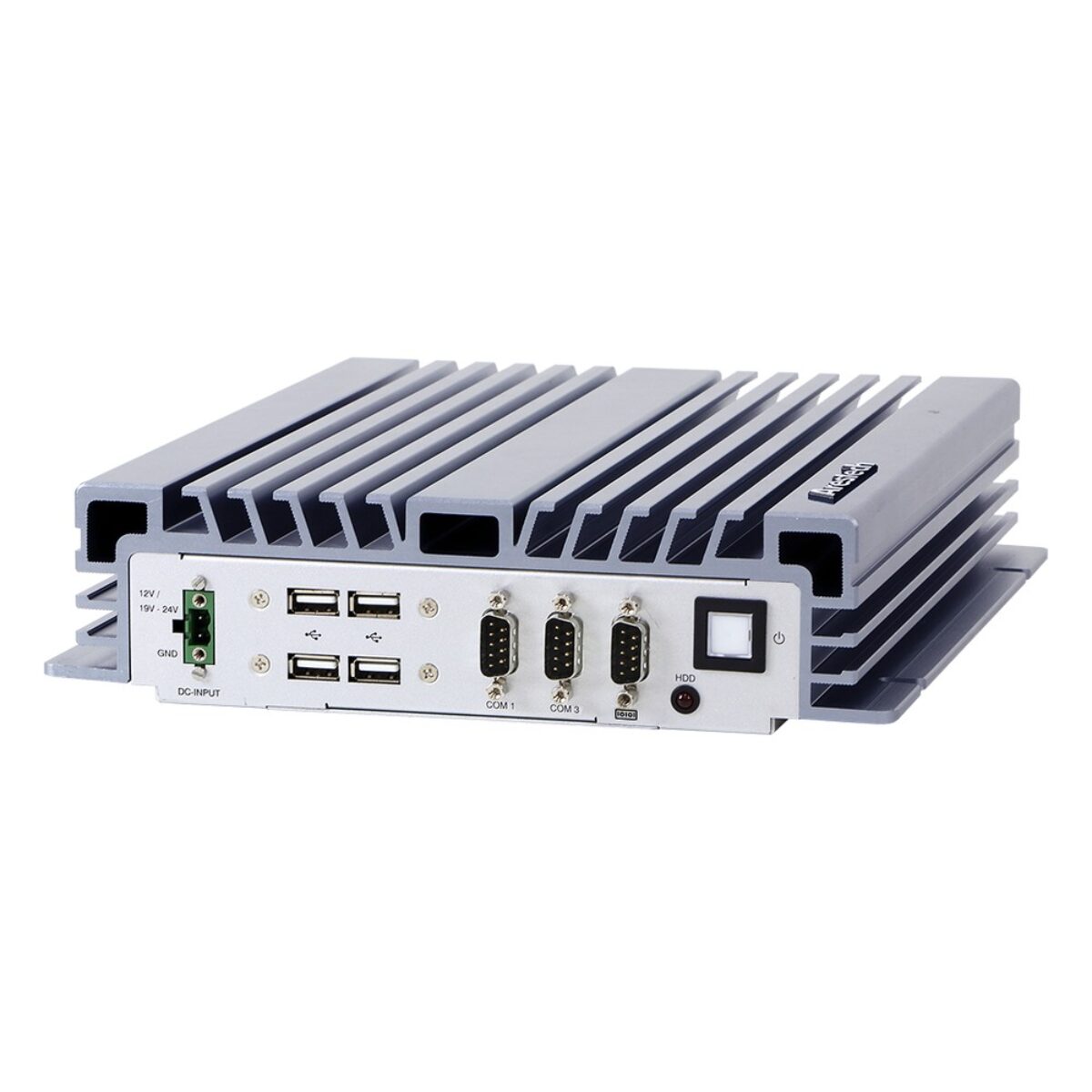

The series has one model today. The BPC-5112-1A1 pairs one Intel I226V 2.5GbE and one Intel I219LM GbE port with four USB 3.2 and four USB 2.0 ports, two RS-232/422/485 ports, a four-in, four-out GPIO connector, line-out and mic-in. One processor choice can take it from a Core i3 gateway to a Core 7 vision node without changing the enclosure, the wiring or the cabinet drawing. The two serial ports and the GPIO connector can handle PLC handshakes and simple signals alongside the Ethernet links.

Power is 12 to 28 V DC on a two-pin terminal block with AT and ATX modes. The BPC-5112 series runs fanless from -20 °C to 60 °C, is tested under IEC 60068 for vibration and shock, carries CE and FCC Class A marks and wall mounts, with Windows 11 or Linux supported. That suits these small form factor embedded PCs to multi-screen inspection stations, robot cells and line-side analytics where space is short. We supply each one configured, with the operating system installed, and tested.
