SolidRun BEDROCK R7000 BASIC 30W AMD Ryzen 7040 Series Fanless Industrial Mini PC with 2x 2.5GbE and 4x USB 3.2

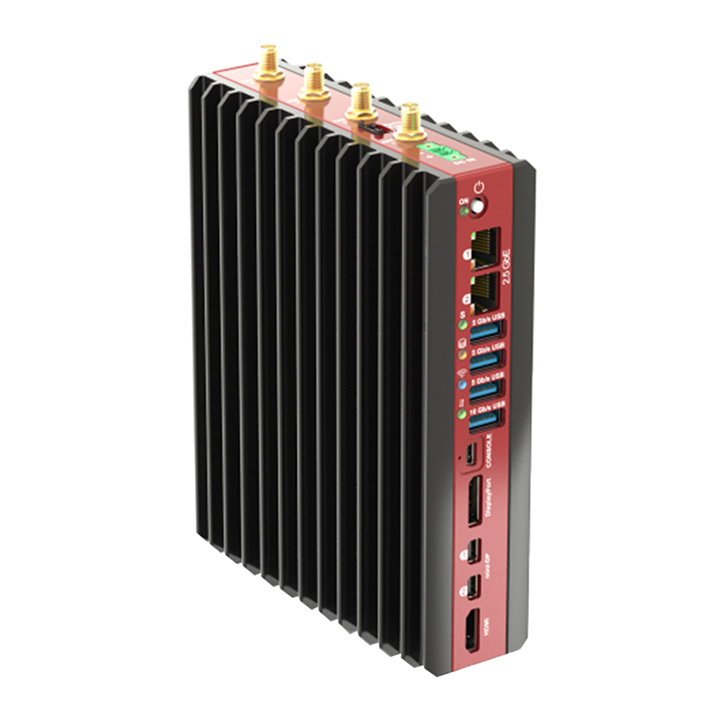

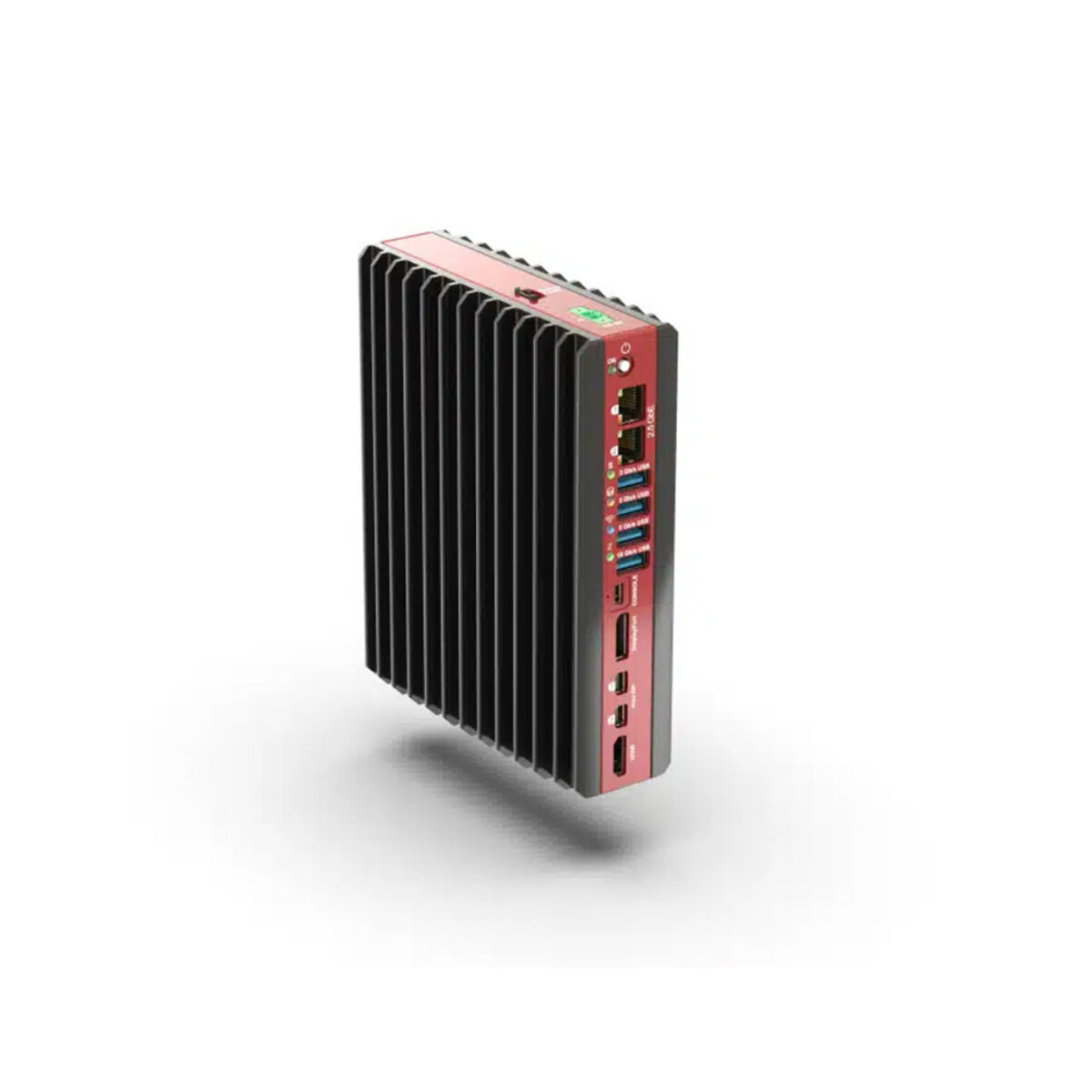

Control cabinets fill up quickly, and a computer that takes a hand’s width of DIN rail leaves less room for the drives, relays and power supplies around it. The SolidRun BEDROCK R7000 BASIC 30W is the compact finned member of the BEDROCK R7000 BASIC series: an industrial mini PC 45 mm wide and 0.9 liters, cooling up to 30 W through its aluminum walls without a fan.

Compute comes from the AMD Ryzen 7040 Series, with eight Zen 4 cores and 16 threads at up to 5.1 GHz and Radeon 780M graphics, plus a 10 TOPS NPU on the 7840U and 7840HS. SolidRun lets CPU power be set precisely in the BIOS, so the processor stays within what the enclosure can dissipate. Two DDR5 SO-DIMM sockets take up to 64 GB with ECC, and up to three NVMe PCIe Gen4 x4 SSDs are conduction cooled.

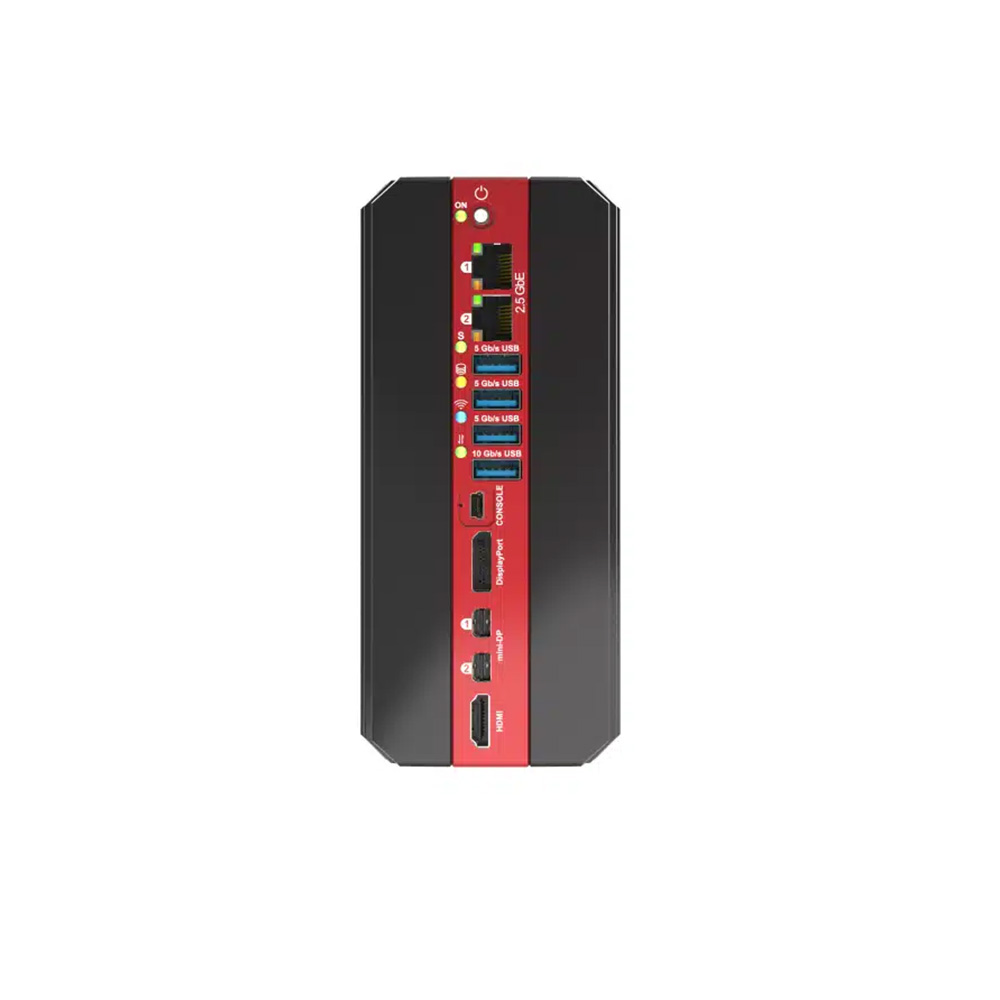

The front panel carries two Intel I226 2.5GbE ports, one 10 Gb/s and three 5 Gb/s USB 3.2 ports, HDMI 2.1, DisplayPort 2.1 and two mini DisplayPort 2.1 outputs, plus a mini-USB serial console. Optional Wi-Fi 6E with Bluetooth 5.3 and a Quectel 4G or 5G modem take antennas on the top panel and nano-SIM trays reached from outside.

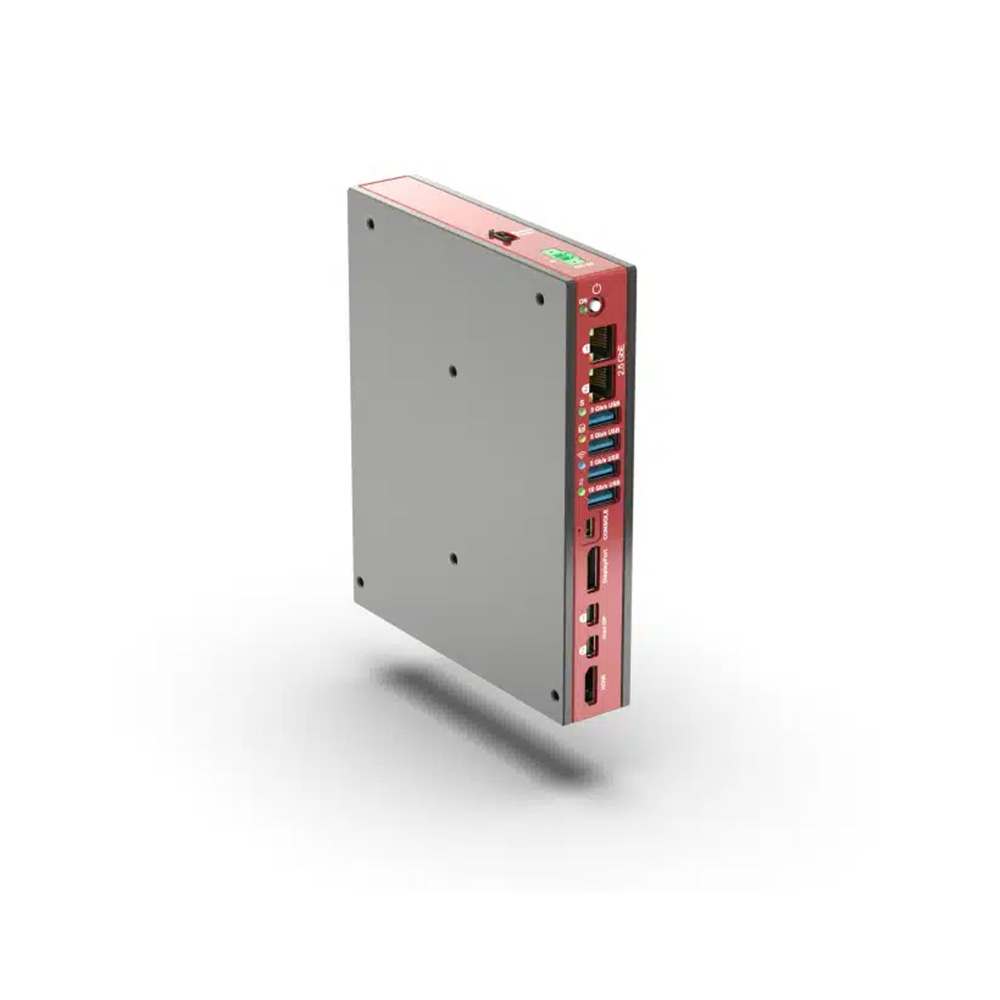

With the rear and bottom panels reserved for mounting, the BEDROCK R7000 BASIC 30W fits a locking DIN rail bracket, a wall bracket or a stand. Power is 12 to 60 V DC on a screw-locking Phoenix terminal, and industrial builds are rated from -40 to 85 °C. For more thermal headroom, see the BEDROCK R7000 BASIC 60W; for cold-plate mounting, the BEDROCK R7000 BASIC TILE. The BEDROCK R7000 BASIC 30W runs Windows or Linux.
