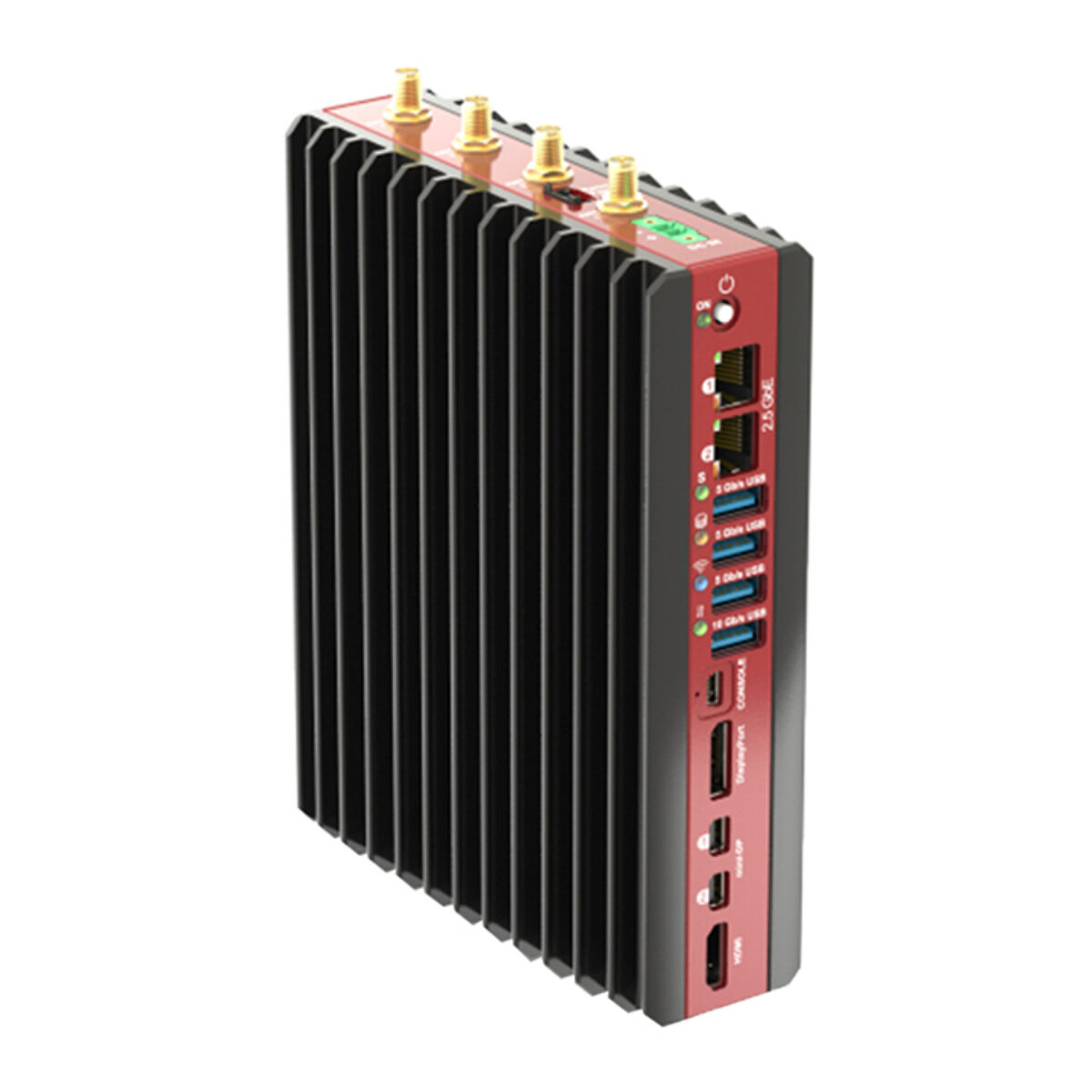

SolidRun BEDROCK R7000 BASIC AMD Ryzen 7 7040 Series Fanless Industrial Mini PCs with 2x 2.5GbE

A control cabinet or vehicle bay rarely has airflow to spare, and a fan is often the first part to fail once dust and vibration get in. The SolidRun BEDROCK R7000 BASIC series answers that with rugged industrial PCs that run an eight-core AMD Ryzen 7 7040 Series processor without a fan, inside an all-aluminium, ventless enclosure that SolidRun describes as dust resistant to IP40. Stacked heat pipes spread heat 360 degrees around the walls, and the processor couples to the chassis through a liquid metal thermal interface.

Every BEDROCK R7000 BASIC unit shares the same SoM and NIO R7000 Basic board. The Ryzen 7 7840U or 7840HS brings eight Zen 4 cores and 16 threads at up to 5.1 GHz, Radeon 780M graphics with 12 compute units and a 10 TOPS NPU, and CPU power can be set in the BIOS anywhere from 8 to 54 W. Two DDR5 SO-DIMM sockets take up to 64 GB with ECC, and up to three NVMe PCIe Gen4 x4 SSDs sit in conduction-cooled M.2 2280 sockets, with power loss protection available. Four displays run from HDMI 2.1, DisplayPort 2.1 and two mini DisplayPort 2.1 outputs, beside two Intel I226 2.5GbE ports, four USB 3.2 ports and a mini-USB serial console.

The range splits by enclosure, which SolidRun matches to processor power. The BEDROCK R7000 BASIC 30W is 45 mm wide and 0.9 liters, cooling up to 30 W by convection, the most compact finned option for a crowded DIN rail. The BEDROCK R7000 BASIC 60W widens to 73 mm and 1.5 liters for up to 60 W, giving the Ryzen 7 7840HS room for sustained load. The BEDROCK R7000 BASIC TILE swaps the fins for flat walls with blind threaded holes, 29 mm thick and 0.6 liters, for conduction cooling into a cold plate from either side. The I/O is identical across all three.

Power enters through a screw-locking Phoenix terminal at 12 to 60 V DC, with redundant SPI flash for the BIOS, a watchdog timer and TPM 2.0. Options include Wi-Fi 6E with Bluetooth 5.3 and a Quectel 4G or 5G modem with two nano-SIM trays reached from the panel. Rated up to -40 to 85 °C and mounting on a DIN rail, wall, VESA bracket or table top, these rugged industrial PCs suit machine vision, transport, robotics and outdoor cabinets running Windows or Linux.
