Winmate R17IT3S-RKA1ML 17″ Rack Mount Defense Panel PC with Intel Core i5-1135G7, MIL-STD-810H and MIL-STD-461

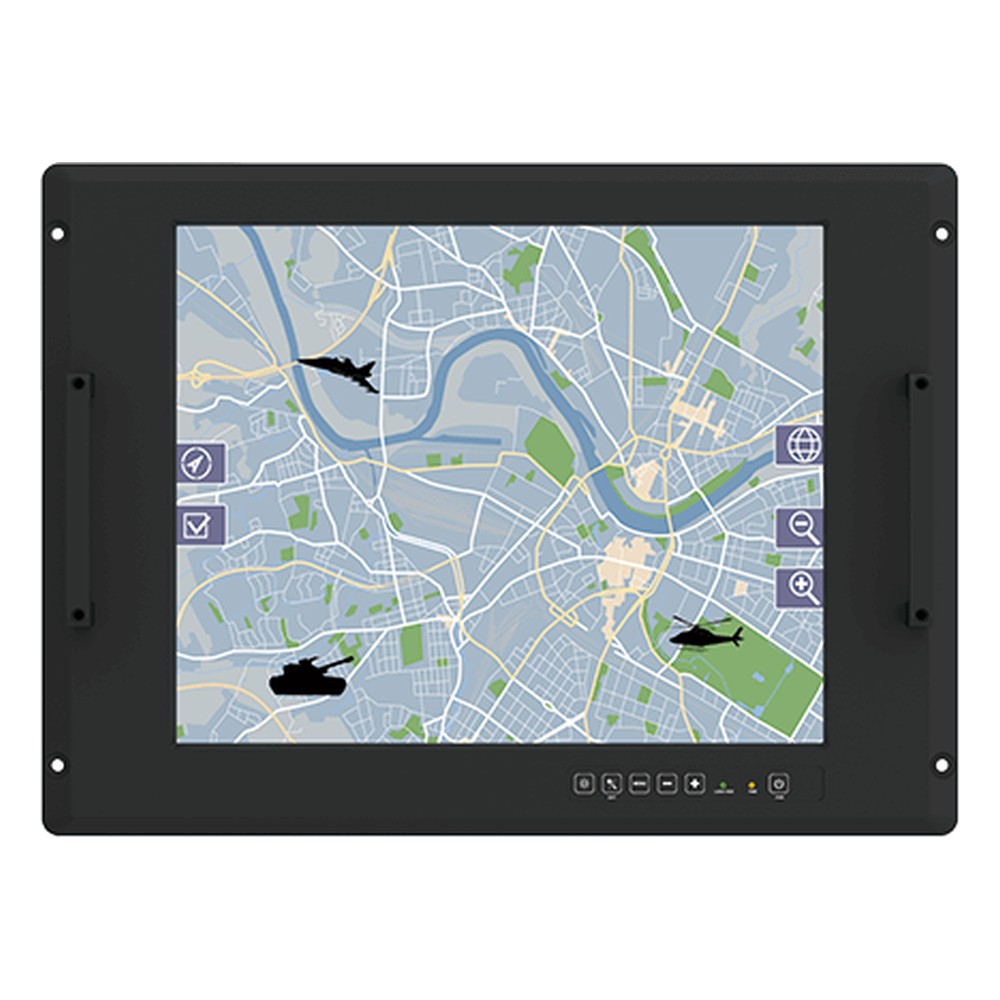

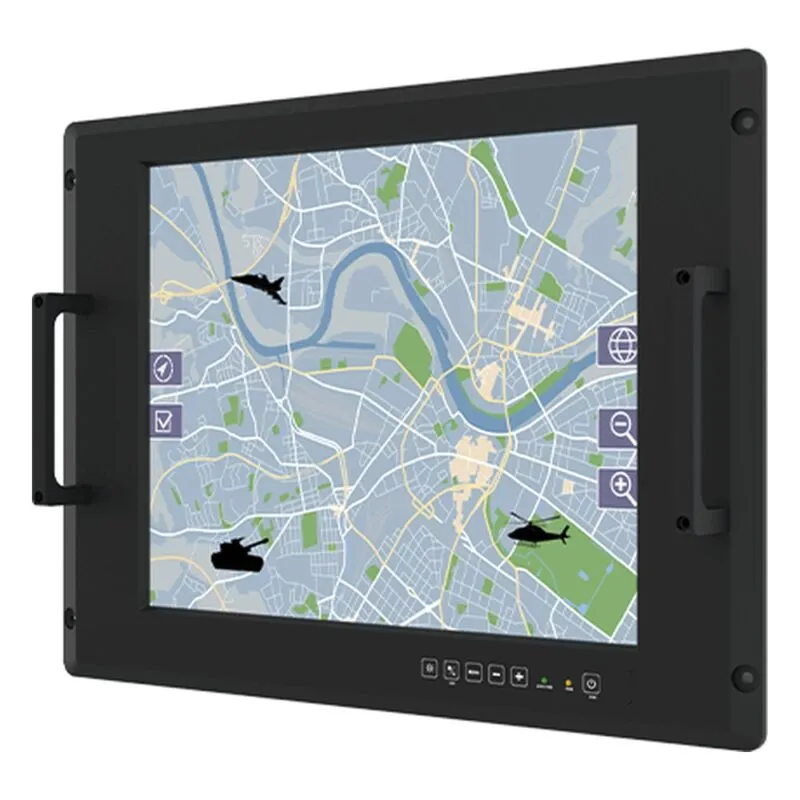

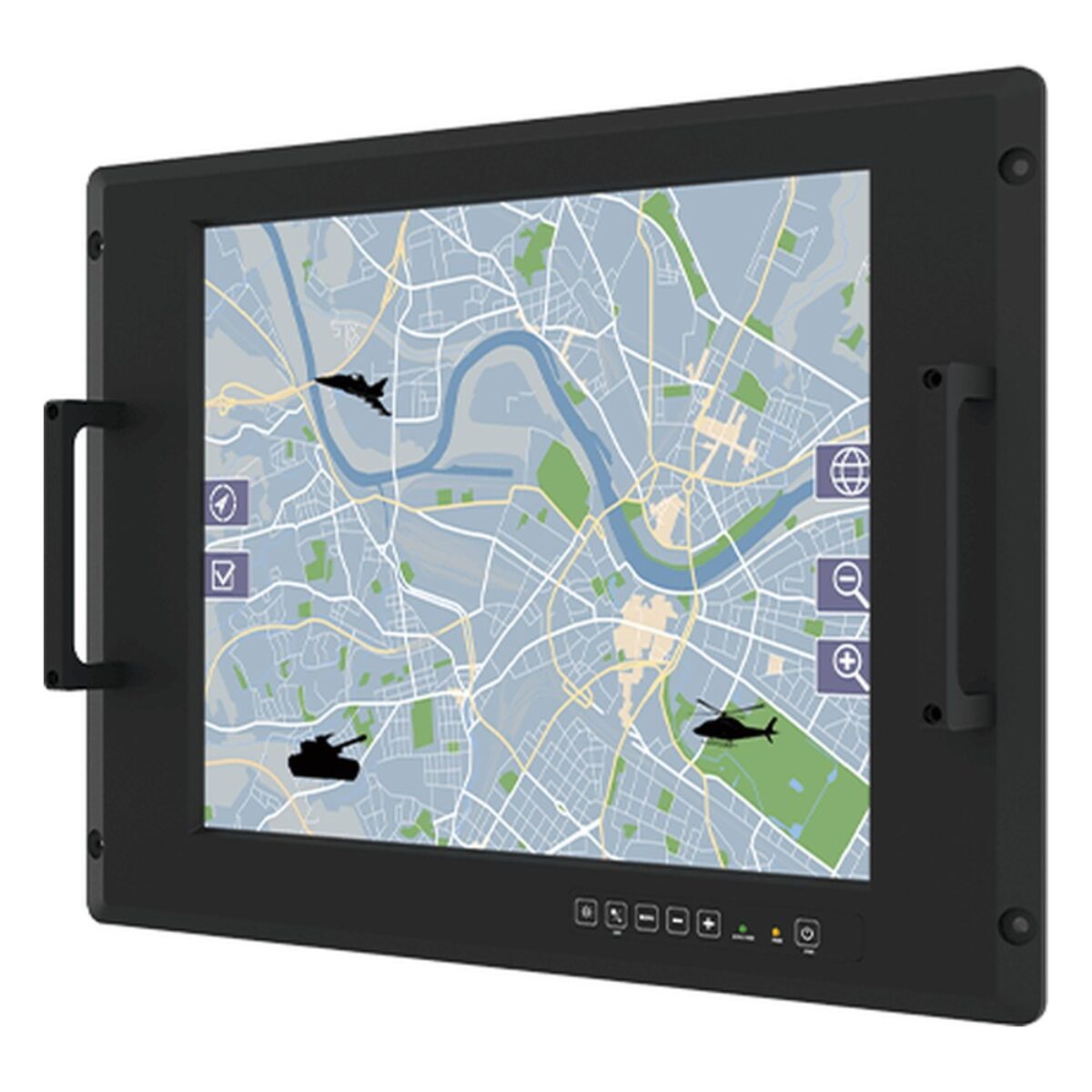

Console positions where operators use trackballs and keyboards, or wear gloves, often need protection glass first and touch only where it helps. The R17IT3S-RKA1ML is Winmate’s 17 inch defense console panel PC for this, with an Intel Core i5-1135G7 processor, a 1280 x 1024 SXGA screen behind AR protection glass and a fanless anti-corrosion housing for VESA or panel mounting. Winmate builds it for defense operations, field command and mission-critical mobility.

The 11th Gen Core i5-1135G7 runs at 2.4 GHz with turbo up to 4.2 GHz, with an optional Core i5-1145G7 up to 4.4 GHz. One DDR4 SO-DIMM takes 4 GB to 32 GB, and storage starts at 128 GB and goes up to 2 TB across an M.2 SSD and a 2.5″ drive bay. TPM 2.0 is fitted, and Windows 11 IoT Enterprise or Ubuntu 22.04 can be supplied. The 17″ panel shows 1280 x 1024 at 350 nits with 1000:1 contrast and 170° horizontal and 160° vertical viewing angles. AR protection glass is standard, with 5-wire resistive touch, resistive touch with an EMI mesh filter or EMI glass as options.

Connections are two RJ45 LAN ports on Intel Ethernet controllers, two USB 3.0 ports and an RS-232/422/485 port on a DB9 connector, with a second RS-232 port and an HDMI output as options. The R17IAD3S-RKA1ML is the same housing with a 12th Gen Intel Core i5-1235U, and the R17L100-RKA1ML is the 17 inch defense monitor with AR protection glass for consoles that already have a computer.

Power is 100 to 240 V AC as standard, with an isolated 9 to 36 V DC input as an option, and the power cord uses a MIL-DTL-38999/1 connector. Winmate lists MIL-STD-810H testing for vibration (Method 514.8), humidity (Method 507.6) and transit drop (Method 516.8), plus MIL-STD-461G. The R17IT3S-RKA1ML operates from -20 °C to 60 °C and stores from -30 °C to 70 °C at 10 to 95% humidity, and it carries CE and FCC marks. We supply it configured, with the OS installed, and tested for your console.
