Winmate R17L100-RKA1ML 17″ Rack Mount Defense Monitor with AR Protection Glass and MIL-STD-810G Compliance
Resistive
Extended Temp
CE
FCCR17L100-RKA1ML Overview

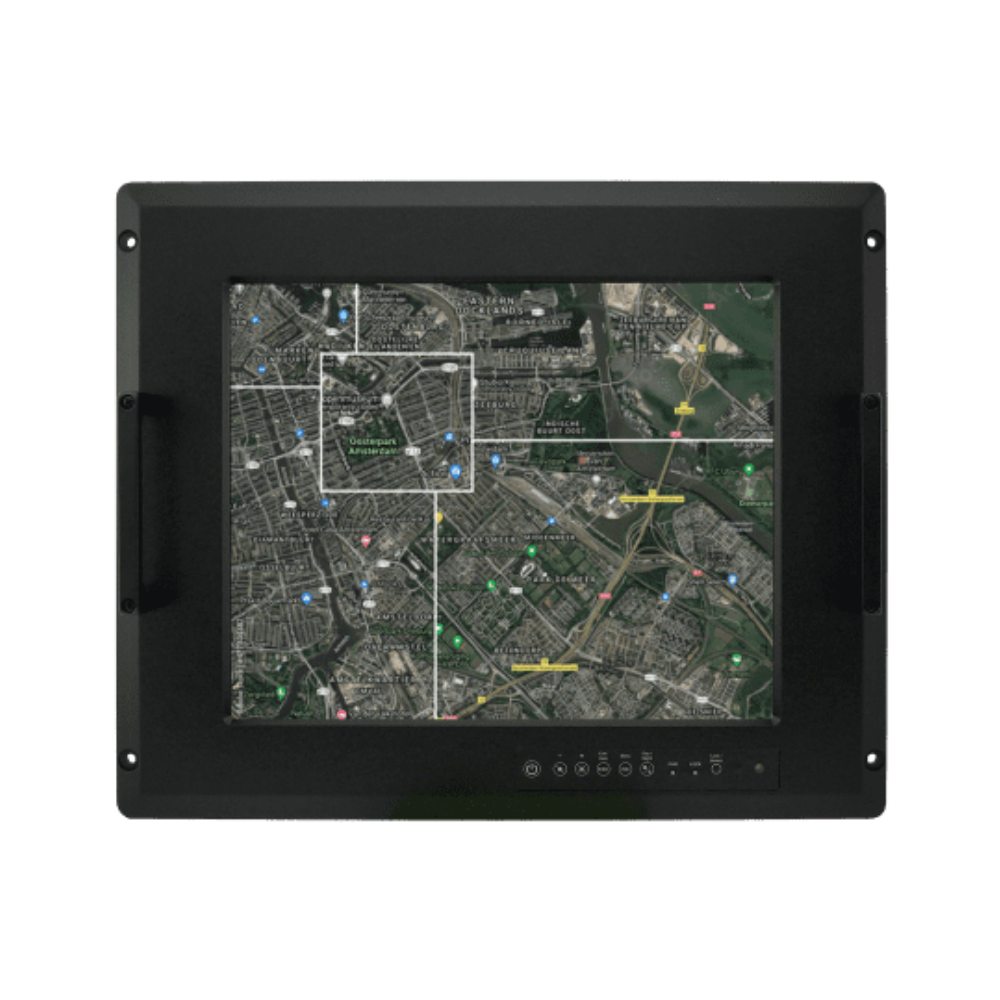

Many defense consoles show sensor, map or status data that operators read rather than touch. The R17L100-RKA1ML is Winmate’s 17 inch rack mount defense monitor with AR protection glass, compliant with MIL-STD-810G and MIL-STD-461E, with a built-in light sensor for automatic brightness control.
The 5:4 SXGA panel runs at 1280 x 1024 with 350 nits, a 1000:1 contrast ratio and 16.7 million colors. Anti-reflective protection glass is standard, and Winmate offers EMI ITO glass, 5-wire resistive touch, or resistive touch with an EMI mesh filter where the installation needs touch or tighter emissions control. A seven-key OSD includes day/night and lock/unlock keys. The active area measures 337.9 x 270.3 mm, and the light sensor adjusts brightness automatically as room lighting changes.
Video inputs are a 15-pin D-Sub VGA connector, five BNC inputs and DVI-D, covering older RGBHV sources as well as digital video. Where PCAP touch is required, the R17L100-MLA1FP is the 17 inch PCAP build of the same rack design, and the R19L100-RKA3ML offers AR protection glass on a 19 inch panel.

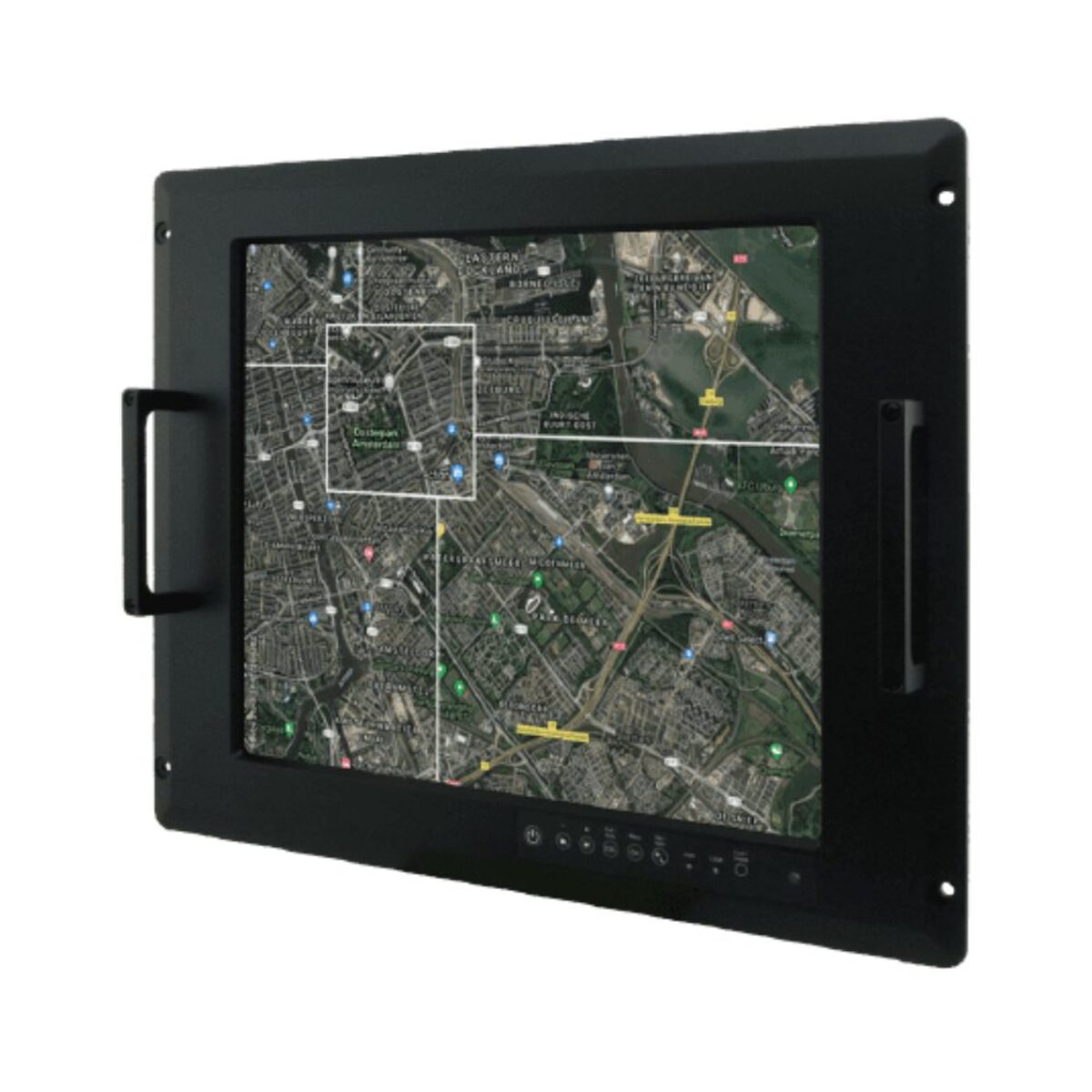

The fanless metal housing with an aluminum bezel measures 482.6 x 399.3 x 69.6 mm and mounts in a rack or on 100 x 100 mm VESA. Power is 100 to 240 V AC universal through a MIL-DTL-38999/1 connector, with 9 to 36 V DC as an option. It operates from -20 to 60 °C at up to 95% RH, stores from -30 to 70 °C and carries CE and FCC marks. Winmate names command centres, control rooms, military vehicles and ship-mounted systems as target uses.
R17L100-RKA1ML Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R17L100-RKA1ML |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 17"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Anti-reflective glass EMI Mesh Filter |
| Touch Controller | Optional 5-Wire Resistive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 7x Display Ports |
| Video Inputs | 1x VGA Input 1xDVI-D 5 x BNC |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 482mm x 399mm x 69mm (18.98" x 15.71" x 2.72") |
- R17L100-RKA1ML Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R17L100-RKA1ML configured for USA defense and naval projects. Within the Winmate range the R17L100-MLA1FP adds PCAP multi-touch to the same 17 inch rack design, and the R19L100-RKA3ML takes the protective glass build to 19 inches.
With AR protection glass the R17L100-RKA1ML sits among our military displays, our rugged monitors and our rack mount monitors. Where operators read rather than touch a rack screen in a vehicle, ship or control room, this is the model to specify.
