Winmate W18IAD3S-MLA3FP 18.5″ Defense Panel PC with 12th Gen Intel Core i5, MIL-STD-810H and MIL-STD-461

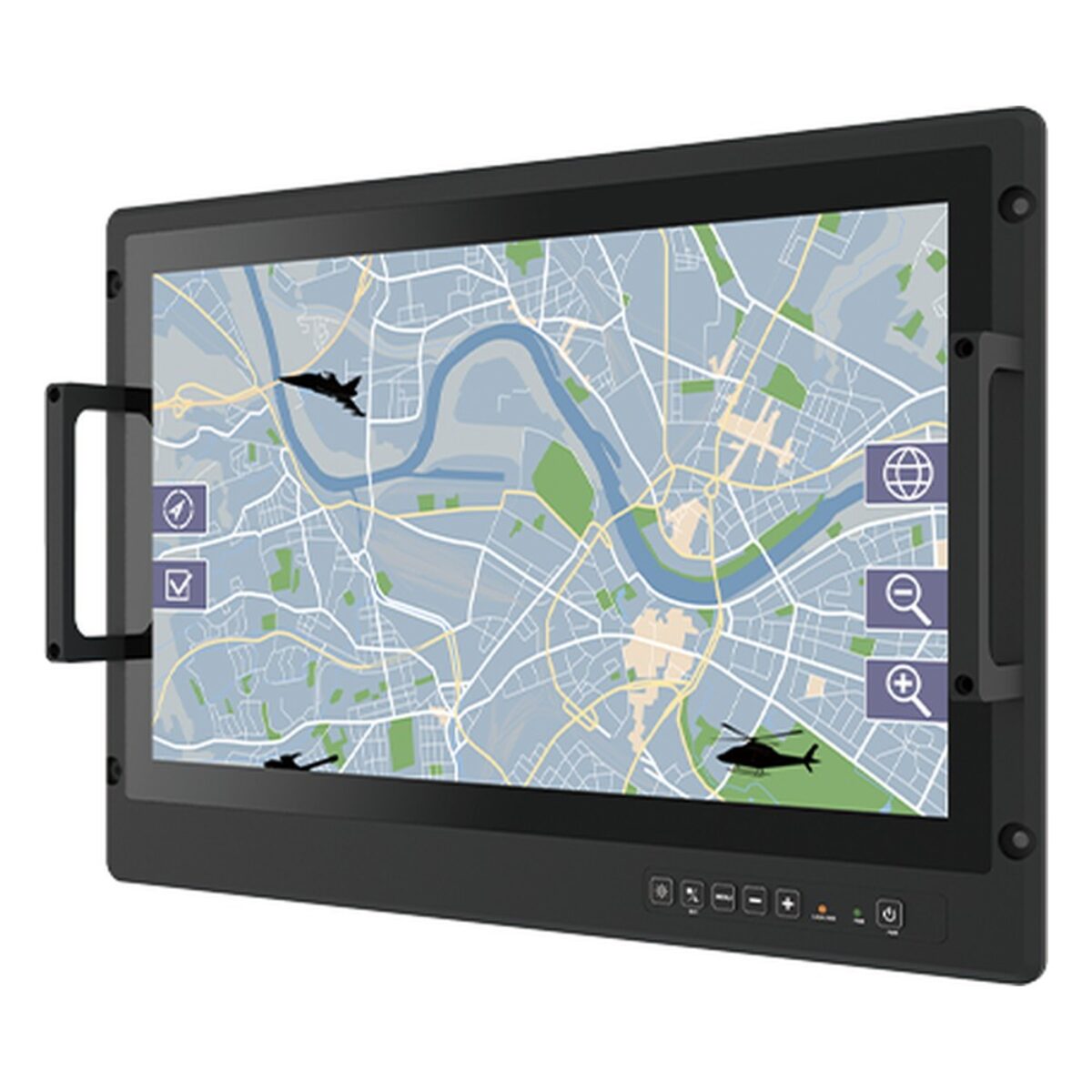

The W18IAD3S-MLA3FP is Winmate's 18.5 inch defense panel PC, with an Intel Core i5-1235U and a 500 nit 1920 x 1080 PCAP touch screen in a fanless rack mount housing compliant with MIL-STD-810H and MIL-STD-461G. It suits command centres and rugged field consoles.

  • MIL-STD-810H and MIL-STD-461G: Compliant with MIL-STD-810H for vibration, humidity and transit drop, and MIL-STD-461G for CE101, CE102, RE101, RE102 and CS118.
  • 18.5″ FHD PCAP Display: A 500 nit 1920 x 1080 panel with 1000:1 contrast, projected capacitive multi-touch and a light sensor for automatic brightness.
  • Intel Core i5-1235U: 10 cores and 12 threads at up to 4.4 GHz, with 8 GB of DDR5 as standard and options up to 32 GB.
  • Rear I/O: Two Ethernet ports on Intel controllers, two USB 3.2 Gen 2×1 ports, one RS-232/422/485 port and optional HDMI output.
  • AC or Isolated DC Power: 100 to 240 V AC on a MIL-DTL-38999/1 connector, optional isolated 9 to 36 V DC, and a -20 to 60 °C operating range.
Touch Technology: PCAPPCAP
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
USB Generation: USB3USB3
Thermal Dissipation: FanlessFanless
Operating Temperature: Extended TemperatureExtended Temp
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

W18IAD3S-MLA3FP Overview

Map, sensor and status views read better on a widescreen panel, and in a defense console that panel has to meet the same EMC and vibration rules as the rest of the rack. The W18IAD3S-MLA3FP is Winmate’s 18.5 inch widescreen defense panel PC for that job: a fanless 18.5″ unit with a 1920 x 1080 display, compliant with MIL-STD-810H and MIL-STD-461G.

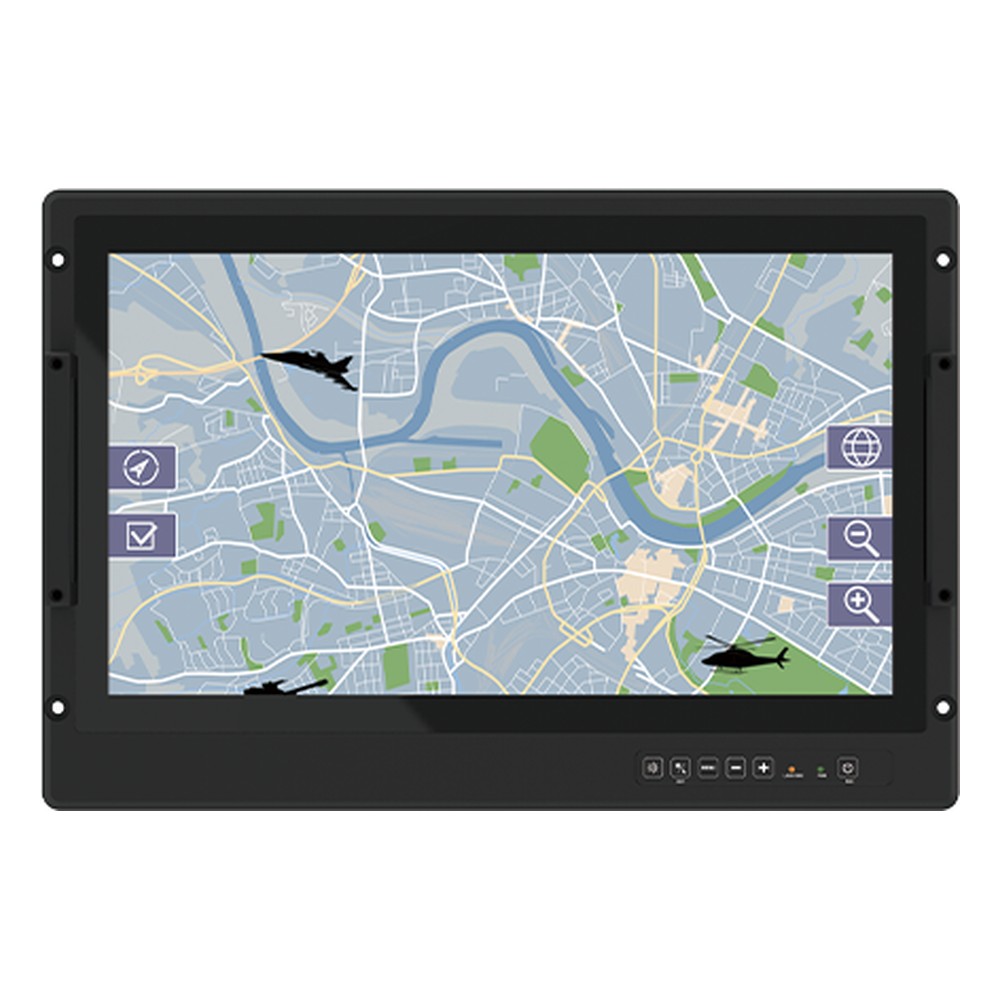

The Intel Core i5-1235U has 10 cores and 12 threads at up to 4.4 GHz with Intel Iris Xe graphics, for console software and operator displays without a fan. Memory is 8 GB of DDR5 with 16 GB and 32 GB options, storage is 256 GB with options up to 2 TB, TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed. The 1920 x 1080 panel gives 500 nits with 1000:1 contrast, with projected capacitive multi-touch, with a PCAP and ITO film version as an option. A six-key OSD pad covers power, brightness and day or night modes, and a light sensor can set brightness automatically.

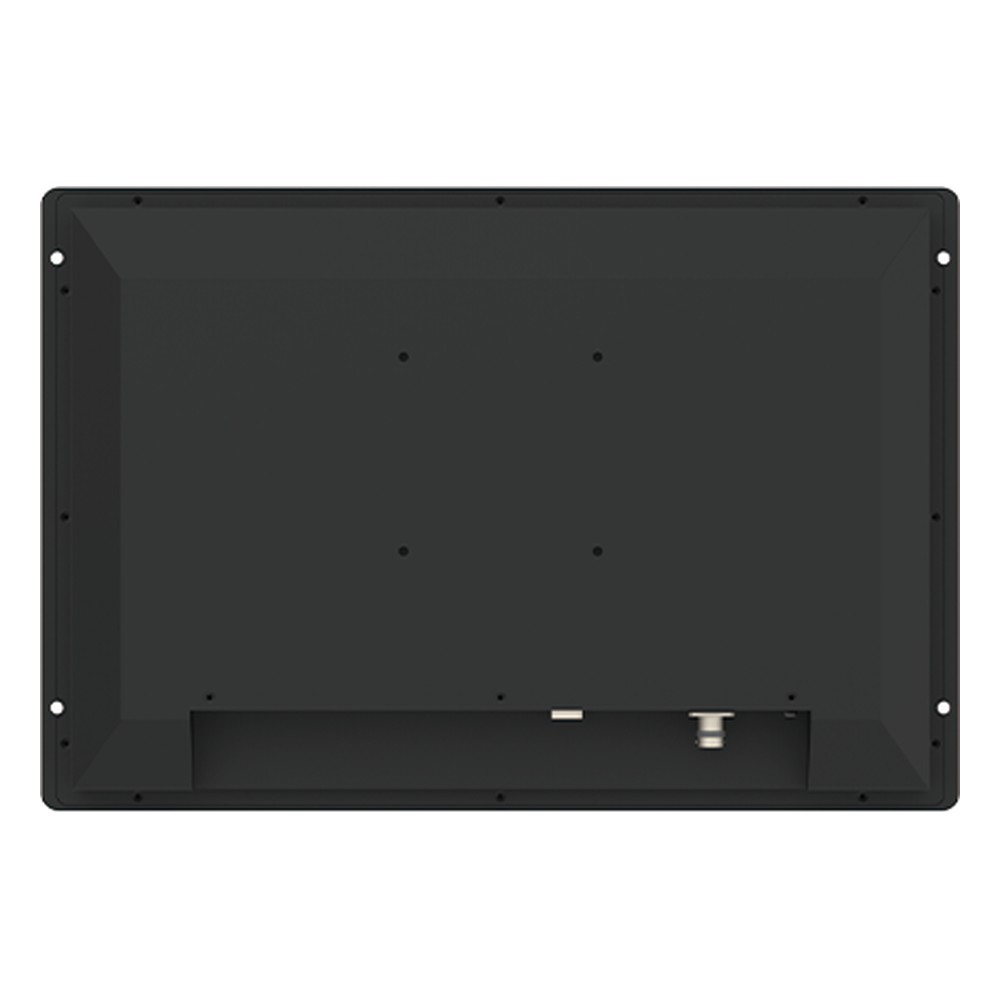

Rear I/O covers two Ethernet ports on Intel controllers, two USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 port set to RS-232 by default, an optional second RS-232 port and an optional HDMI output. The R19IAD3S-MLA3FP is the 19 inch defense panel PC with a 1280 x 1024 screen for consoles built around the 5:4 format, and the W18IAD3S-RKA1 is an 18.5 inch rack mount panel PC with resistive touch for industrial racks.

Power is 100 to 240 V AC on a MIL-DTL-38999/1 connector, with an optional isolated 9 to 36 V DC input. The W18IAD3S-MLA3FP runs from -20 to 60 °C and stores from -30 to 70 °C at 10 to 95% humidity. Winmate lists compliance with MIL-STD-810H for vibration, humidity and transit drop, and MIL-STD-461G for CE101, CE102, RE101, RE102 and CS118, with TEMPEST and NATO STANAG options and CE and FCC marks. The anti-corrosion metal housing with an aluminum bezel mounts in a rack or on VESA. We supply it configured, with the OS installed, and tested before dispatch.

W18IAD3S-MLA3FP Specifications

Overview
Brand & ModelWinmate W18IAD3S-MLA3FP
FeaturesFanless
Industrial
Rugged
Display
Display18.5"[16:9, 1920 x 1080, FHD]
Touch ControllerMulti Touch PCAP
Brightness500 Nits
Viewing AngleWide Viewing Angle
178° Horizontal, 178° Vertical
Aspect Ratio16:9
FormatWidescreen
Contrast1000:1
Performance
Processor SeriesIntel Core 12th Gen Alder Lake
Processor ModelsIntel Core i5-1235U: 1.3~4.4GHz, 10 Cores, 12 Threads, 12MB Cache, 15W
Performance Cores10 Cores
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux Ubuntu 22.04
Windows 11
Graphics
Integrated GPUIntel Iris Xe Series
I/O
USB2x USB Ports
2x USB 3.2 Gen 2 [Type A]
Serial2x Serial Ports
1x RS232 [DB9]
1x RS232/422/485 [DB9]
Storage
Storage1x 2.5" HDD/SSD
1x M.2 SSD
Power
Power Input100-240V AC
9-36V DC Input [MIL-STD]
Environmental Conditions
Thermal DissipationFanless Passively Cooled Chassis
Operating Temperature-20°C to 60°C [-4°F to 140°F]
Storage Temperature-30°C to 70°C [-22°F to 158°F]
Humidity10% - 95% (Non-condensing)
ShockMIL-STD-810H
VibrationMIL-STD-810H
CertificationCE
FCC
MIL-STD-461
MIL-STD-810
Mechanical Properties
Dimensions465mm x 327mm x 75mm (18.31" x 12.87" x 2.95")

Official Winmate USA Distributor

Things Embedded is an official Winmate USA distributor, supplying the W18IAD3S-MLA3FP configured for USA defense, command centre and control room projects. Within the Winmate range the R19IAD3S-MLA3FP is the 19 inch defense panel PC with a 1280 x 1024 screen, and the W18IAD3S-RKA1 is an 18.5 inch rack mount panel PC with resistive touch for industrial use.

Built for defense consoles, the W18IAD3S-MLA3FP sits among our rugged panel PCs, our rack mount panel PCs and our wide temperature computers. Where a console needs an 18.5 inch widescreen, a -20 to 60 °C range and MIL-STD compliance, this is the model to specify.
