Winmate R15IT3S-SPC369 15″ IP69K Stainless Steel Panel PC with Intel Core i5-1135G7 and PCAP Touch

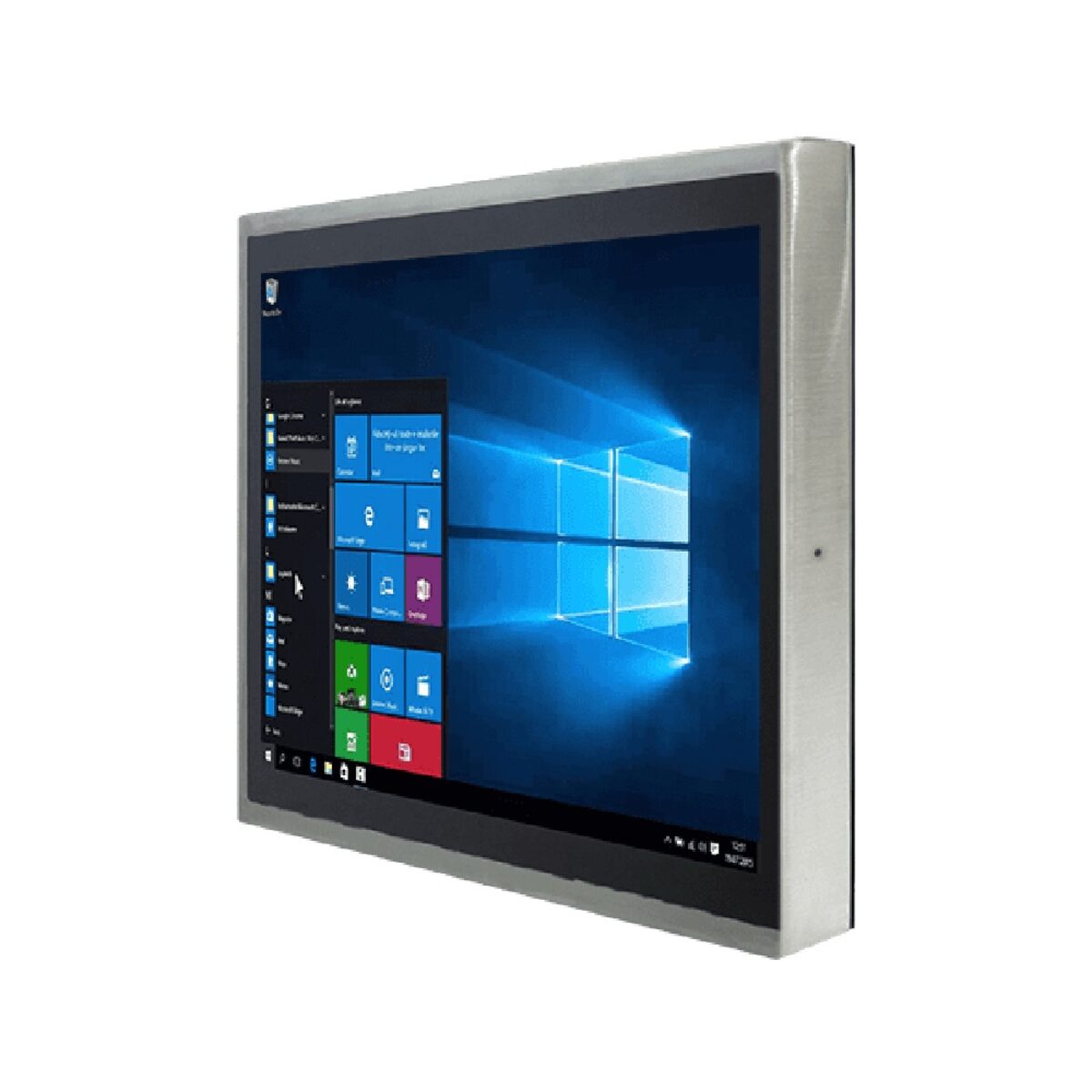

Hygiene rules on food and chemical lines mean equipment is hosed at high pressure and temperature, so a front-only seal is not enough and any ledge or gap traps residue. The R15IT3S-SPC369 is Winmate’s 15 inch answer: a fanless panel PC in SUS 316 / AISI 316 stainless steel, sealed to IP69K as a whole unit, with a true flat, easy-to-clean edge-to-edge front.

The display is a 300 nit 1024 x 768 panel with 2000:1 contrast and 176 degree viewing angles, under projected capacitive multi-touch that supports glove and rain modes, so staff in gloves or working on a wet screen can still operate it; optical bonding is an option. The Intel Core i5-1135G7 runs at up to 4.2 GHz with one DDR4-3200 SO-DIMM, 4 GB as standard and options to 32 GB, and a 128 GB SSD on an M.2 2242 SATA or 2280 NVMe socket with options to 4 TB. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 10 IoT Enterprise or Linux Ubuntu 22.04 available.

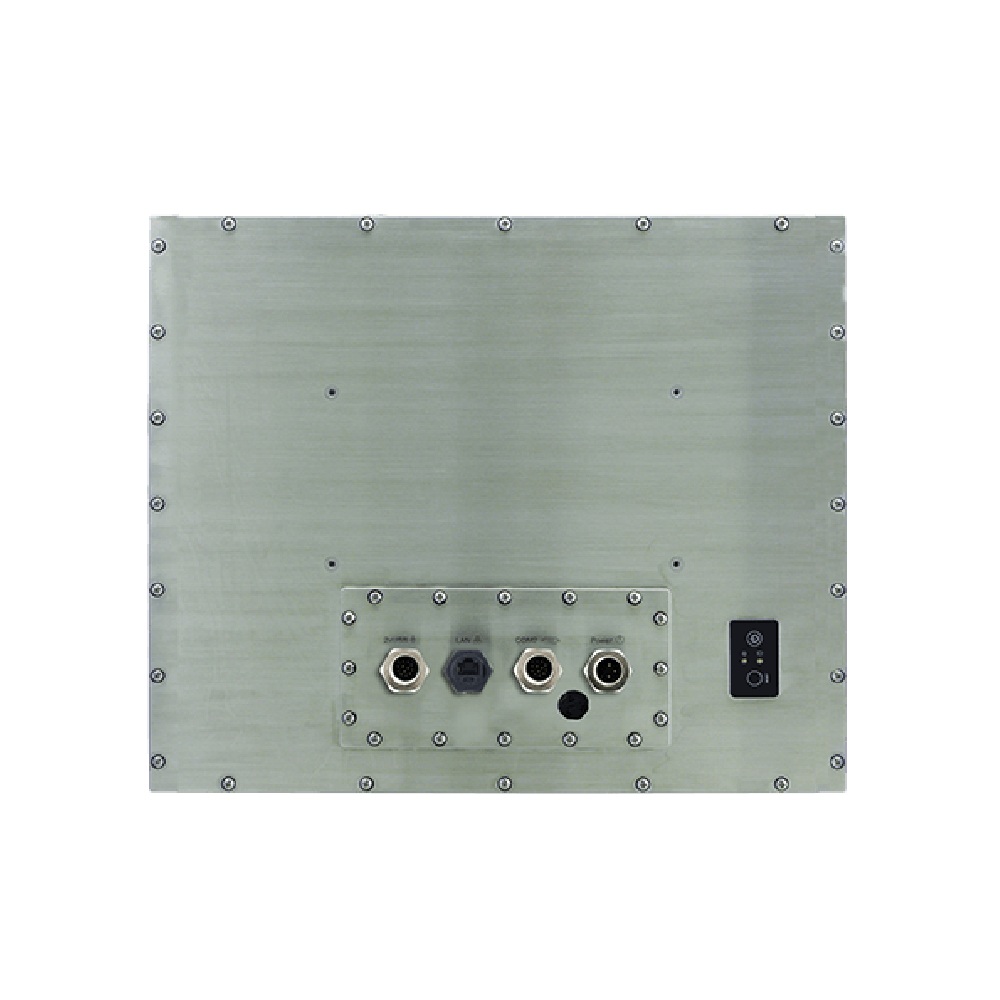

Every connection is waterproof: 12 V DC power, two USB 2.0 ports and one RS-232 port on M12 connectors, and one waterproof Gigabit LAN RJ45 connector, with external USB, COM and LAN cables, a waterproof power adapter and caps supplied. Wi-Fi and Bluetooth are optional, with antenna covers. The R15IT3S-SPC369-P1 is the same 15 inch stainless design with standard I/O routed through a sealed conduit pipe, and the R17IT3S-SPM169 is the 17 inch M12 model.

The fanless design operates from 0 °C to 45 °C at 10 to 90% humidity, non-condensing. It measures 378 x 301 x 56.4 mm, weighs 7.5 kg and mounts on 100 x 100 mm VESA or a yoke. It carries CE and FCC marks.
